[Lifetime Warranty] 2319792 W10197428 W10189190 TSD2 Overload and Start Relay & Compressor Run Capacito For Whirlpool Kenmore Electrolux Refrigerators - Replaces 2264017 W10662129 241527803 241941003

W10189190 TSD2 Refrigerator Relay and Overload Combination W10662129 2264017 Capacitor

Key Features

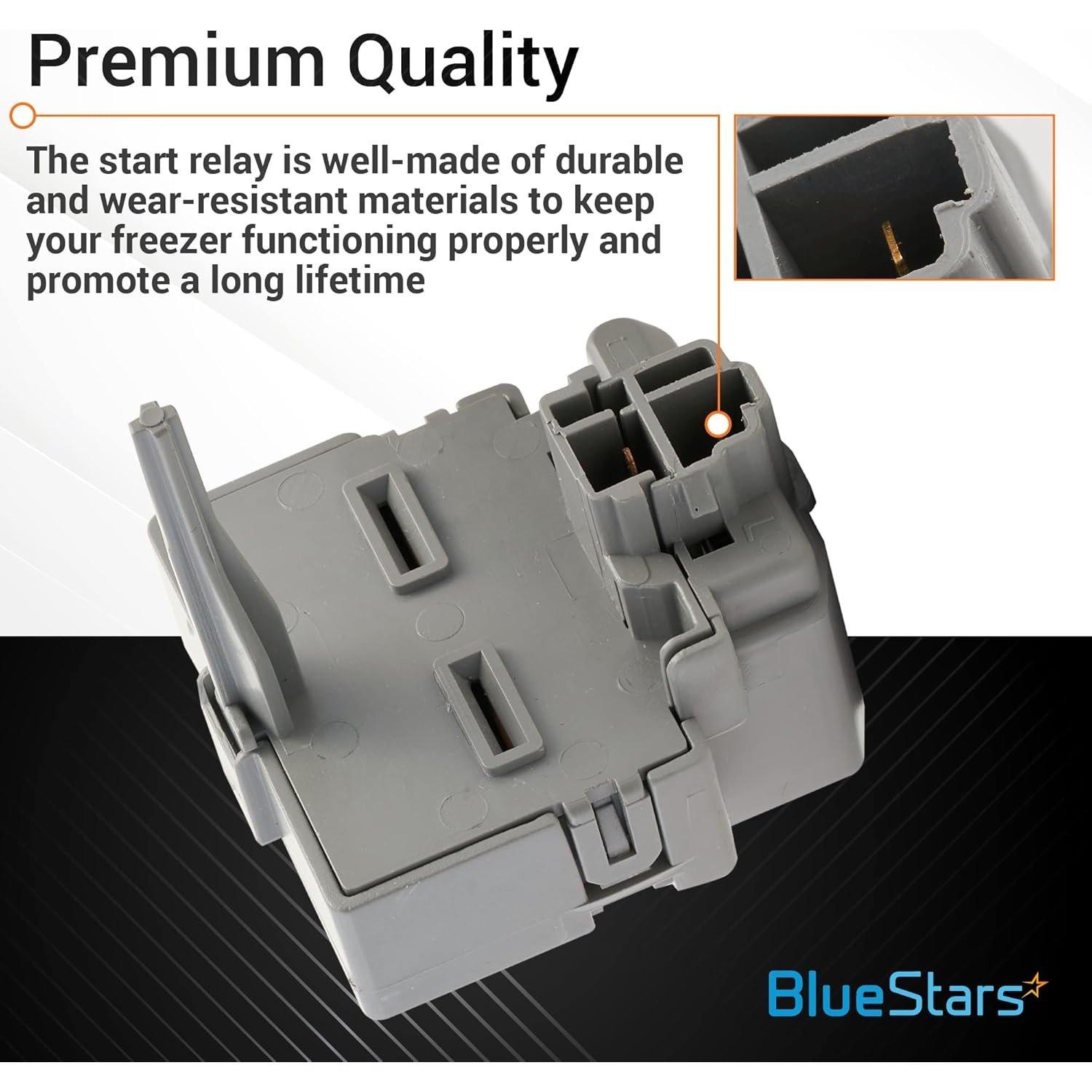

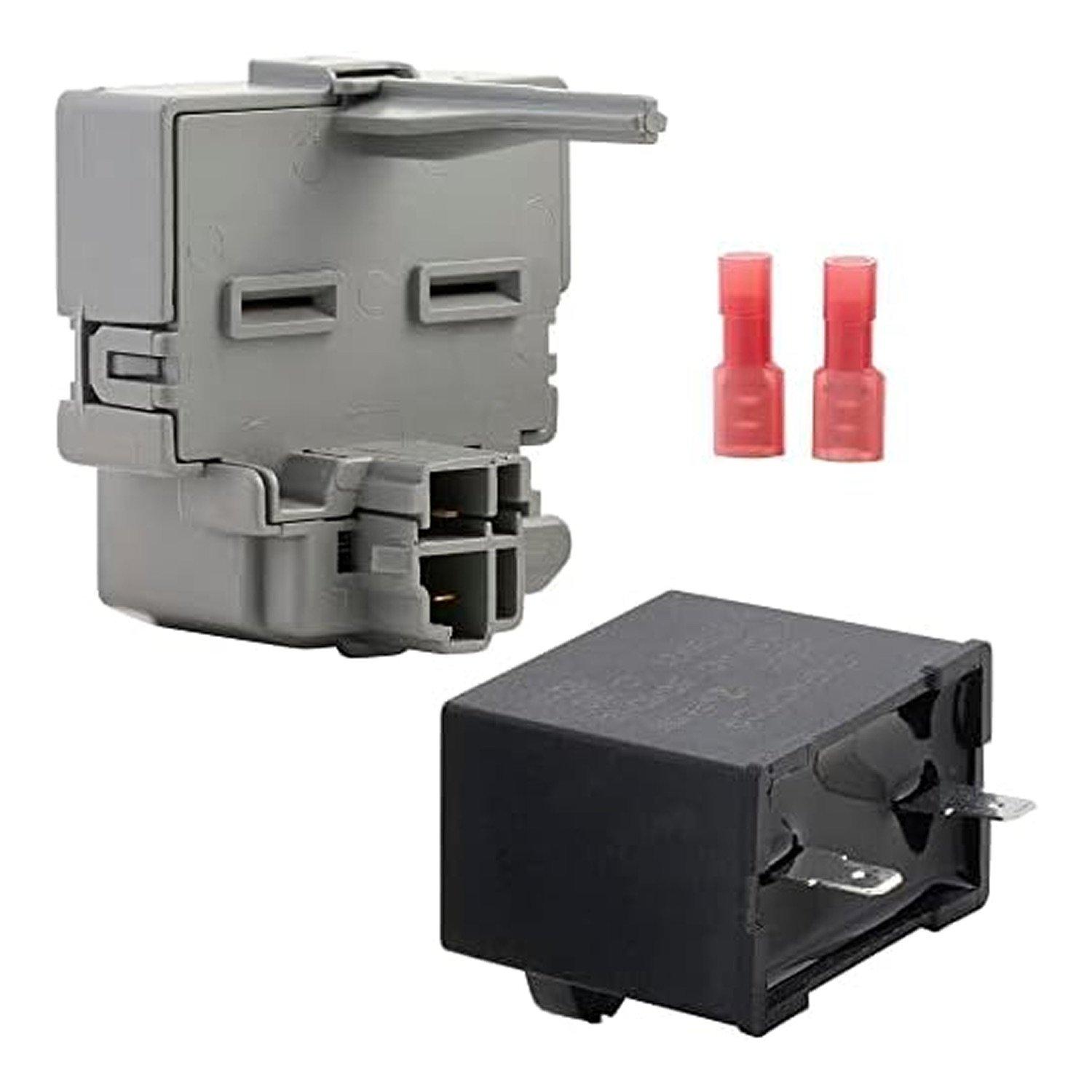

• Complete kit includes one W10189190 TSD2 start relay and overload assembly.

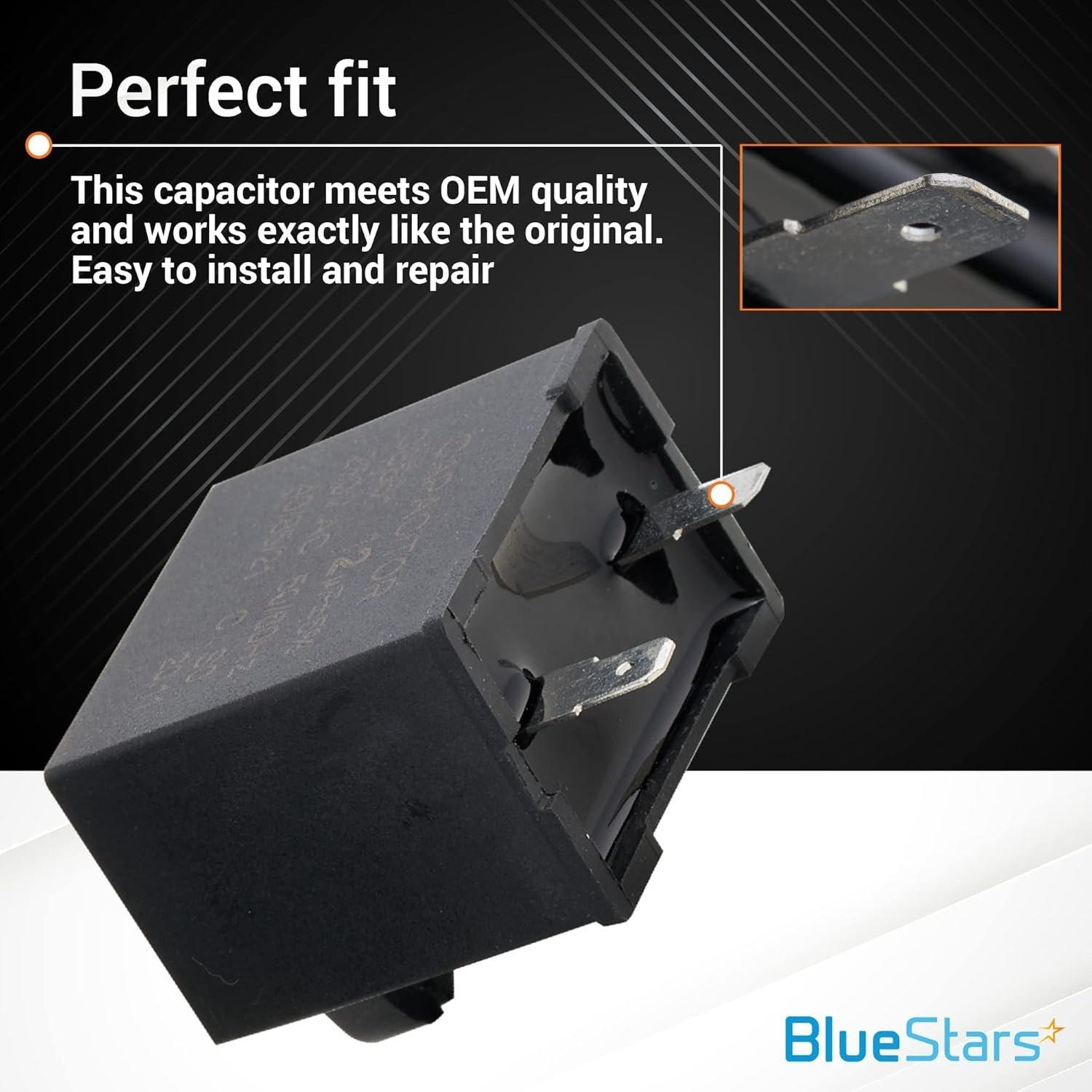

• Includes one W10662129 / 2264017 compressor run capacitor.
• Resolves common compressor starting issues.
• Engineered for direct fit and function.

Replaces / Cross-Reference Part Numbers

• Relay and Overload Assembly: W10189190, TSD2, WPW10189190, W10197428, 2319792, 10097201, 14200214
• Capacitor: W10662129, 2264017

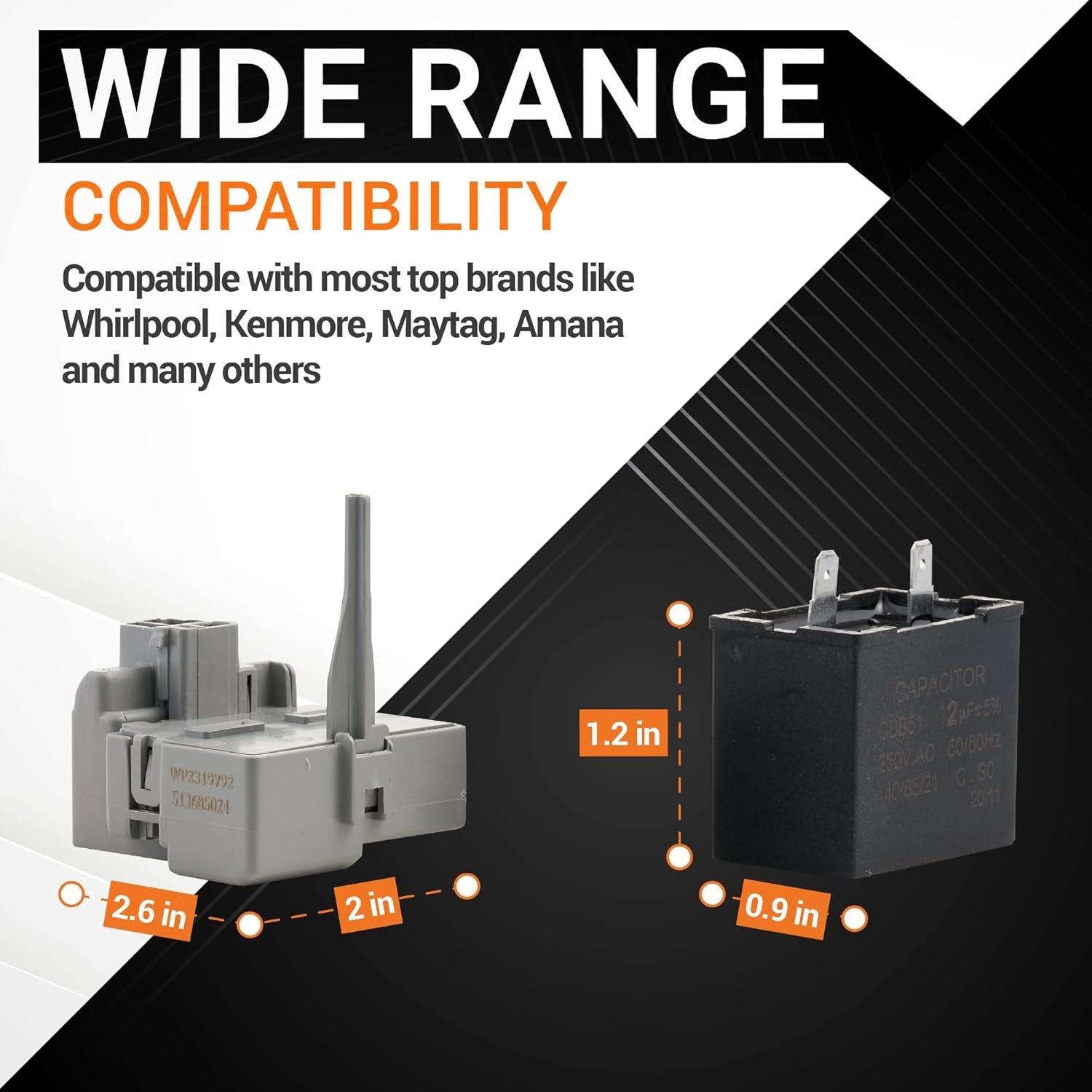

Compatibility & Fitment

• Designed for use with refrigerators and freezers from multiple brands.
• Compatible Brands: Whirlpool, Kenmore, KitchenAid, Amana, Roper, Admiral, Norge, Magic Chef.
• Verify fitment by matching your original part number.

When to Replace

• Refrigerator is running but not cooling.
• Compressor fails to start, often with an audible clicking sound.
• Refrigerator is warmer than the set temperature.
• The compressor hums but does not engage.

Installation Tips

• Disconnect the appliance from all power sources before installation.
• Take a photograph of the original wiring configuration for reference.
• Ensure the relay is firmly seated on the compressor terminals.
• Confirm wire connections are secure before restoring power.
