[Lifetime Warranty] 24-Value Aluminum Electrolytic Capacitor 630 pcs

24-Value Aluminum Electrolytic Capacitor - 630 pcs - Assortment Box Kit Range 0.1uF－1000uF, 24 Values with 630 Pieces 10V 16V 25V 50V

Key Features

• Total quantity: 630 pieces
• Number of values: 24 distinct capacitance values
• Capacitance range: 0.1uF to 1000uF
• Voltage ratings: 10V, 16V, 25V, 50V

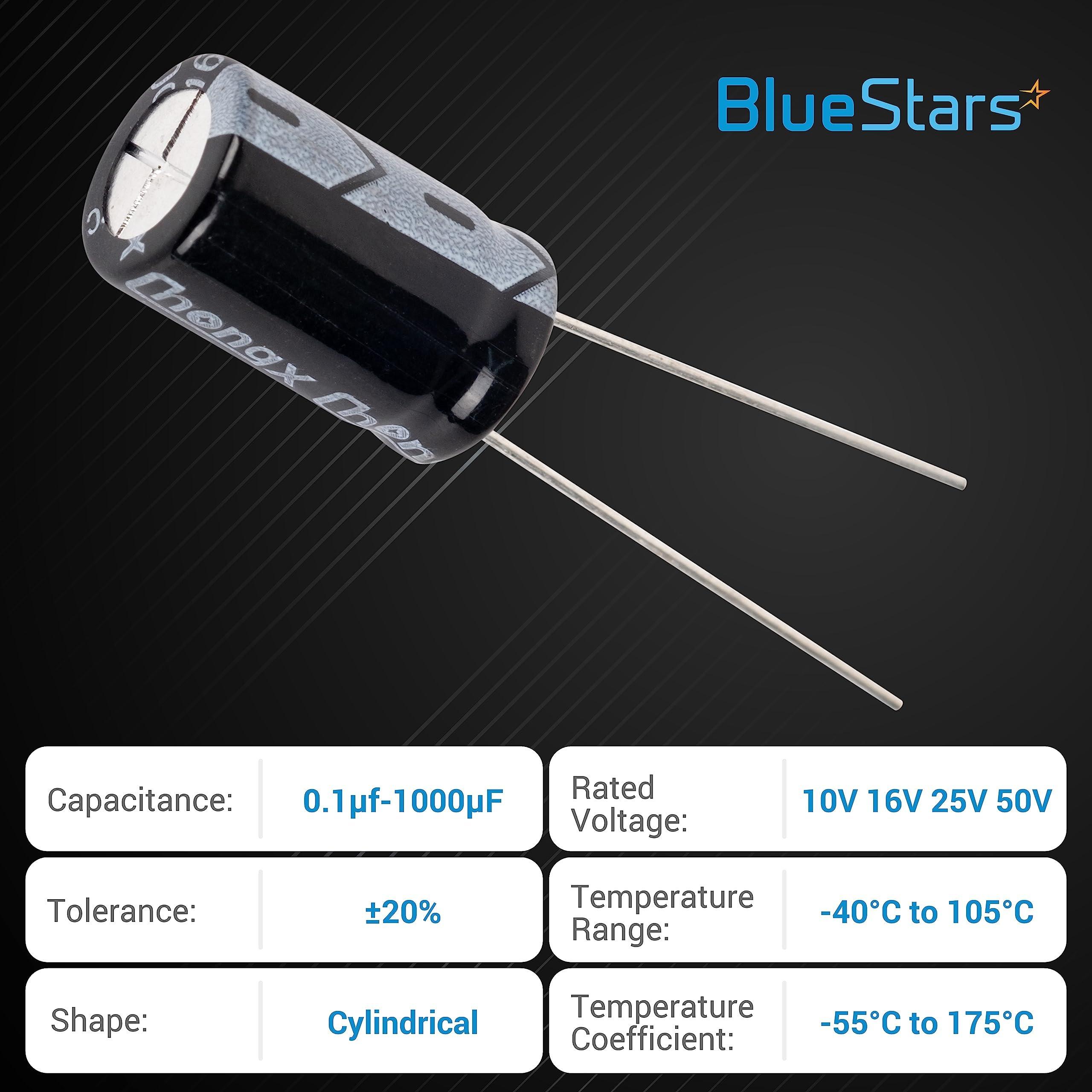

• Capacitor type: Aluminum electrolytic, radial lead
• Markings: Each capacitor is clearly marked with its capacitance and voltage rating

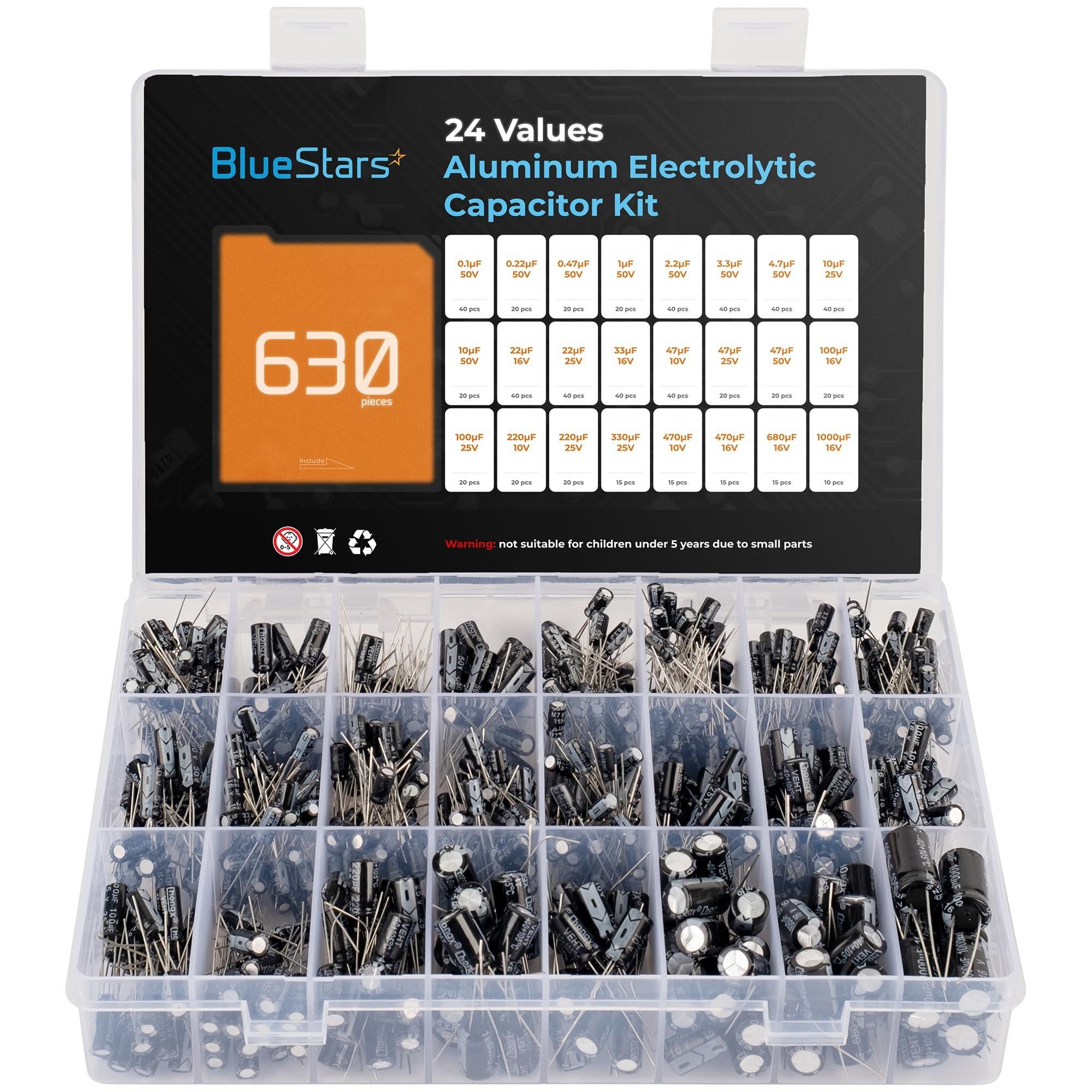

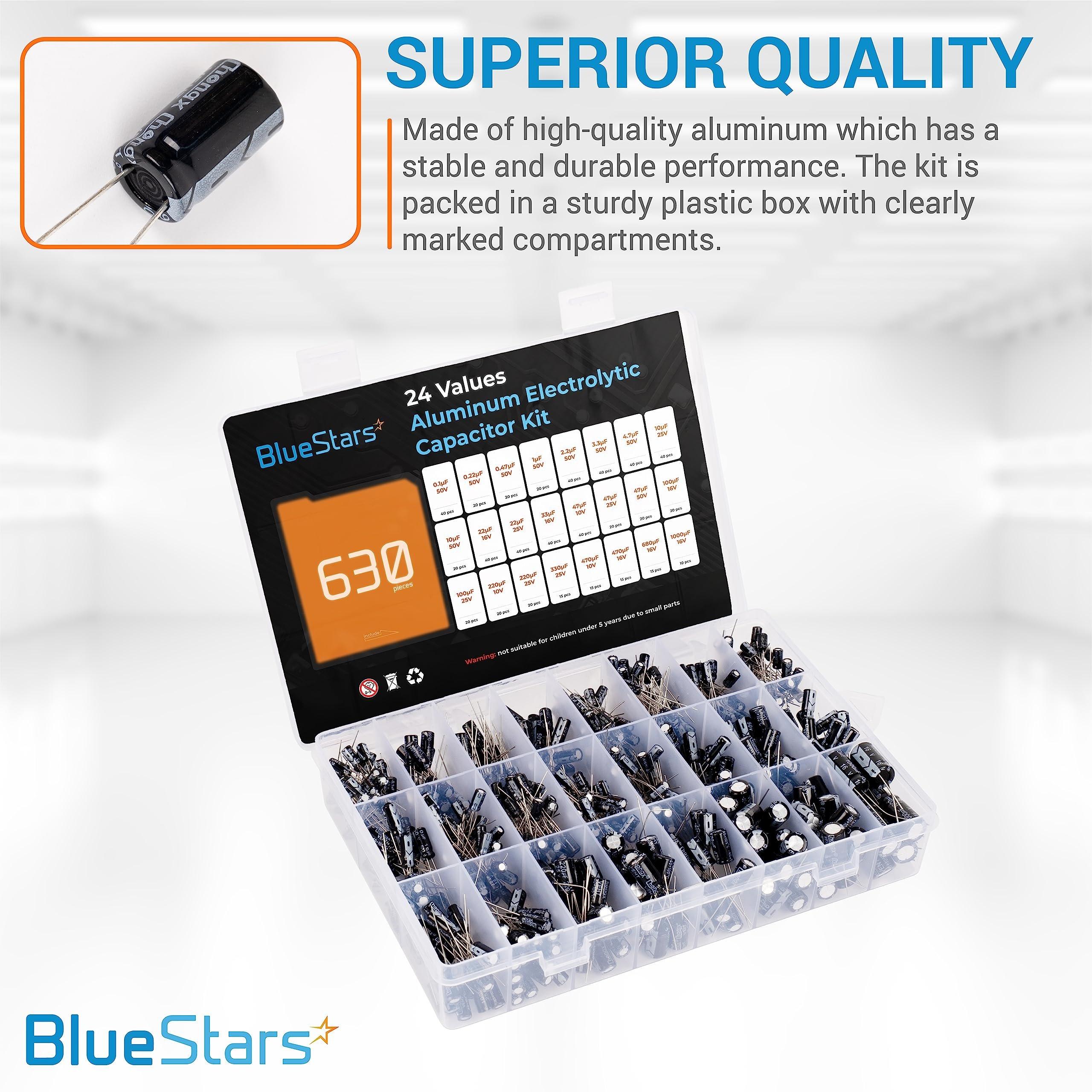

• Packaging: Includes a partitioned plastic storage box for organization

Replaces / Cross-Reference Part Numbers

Compatibility & Fitment

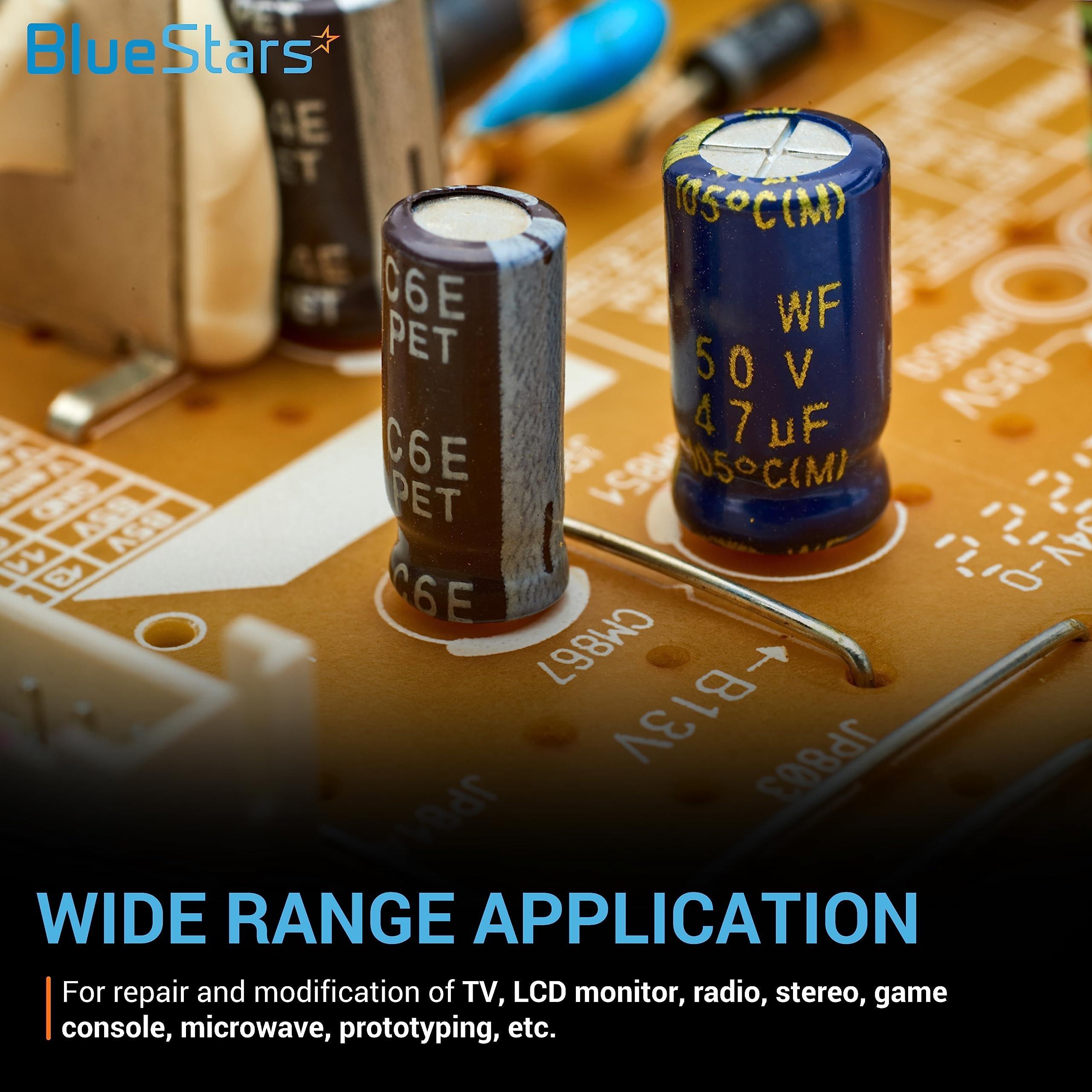

• Audio amplifiers, receivers, and speaker crossovers
• Video game consoles (e.g., Xbox 360)
• Televisions, LCD monitors, and power supplies
• DIY electronics projects and prototyping boards
• General electronic circuit repair and maintenance

When to Replace

• Visible bulging, swelling, or deformation of the capacitor can
• Leaking electrolyte fluid from the capacitor vents or leads
• Device fails to power on or operates intermittently
• Audible humming or buzzing from audio equipment
• Flickering or distorted video output on displays

Installation Tips

• Verify that the replacement capacitor's capacitance (uF) and voltage (V) ratings meet or exceed the original component's specifications.
• Observe correct polarity. The negative lead is shorter and is identified by a stripe on the capacitor's body. Incorrect installation will cause component failure.
• Use a soldering iron and desoldering braid or pump to remove the old component cleanly.
• Ensure the new capacitor is seated flush with the circuit board before soldering to ensure a secure mechanical connection.
• Trim excess lead length after soldering.
