[Lifetime Warranty] 8/10/12 Positions Terminal Strip Blocks 600V 15A - Pack of 6

6-pack 8/10/12 Positions Terminal Strip Blocks 600V 15A

Key Features

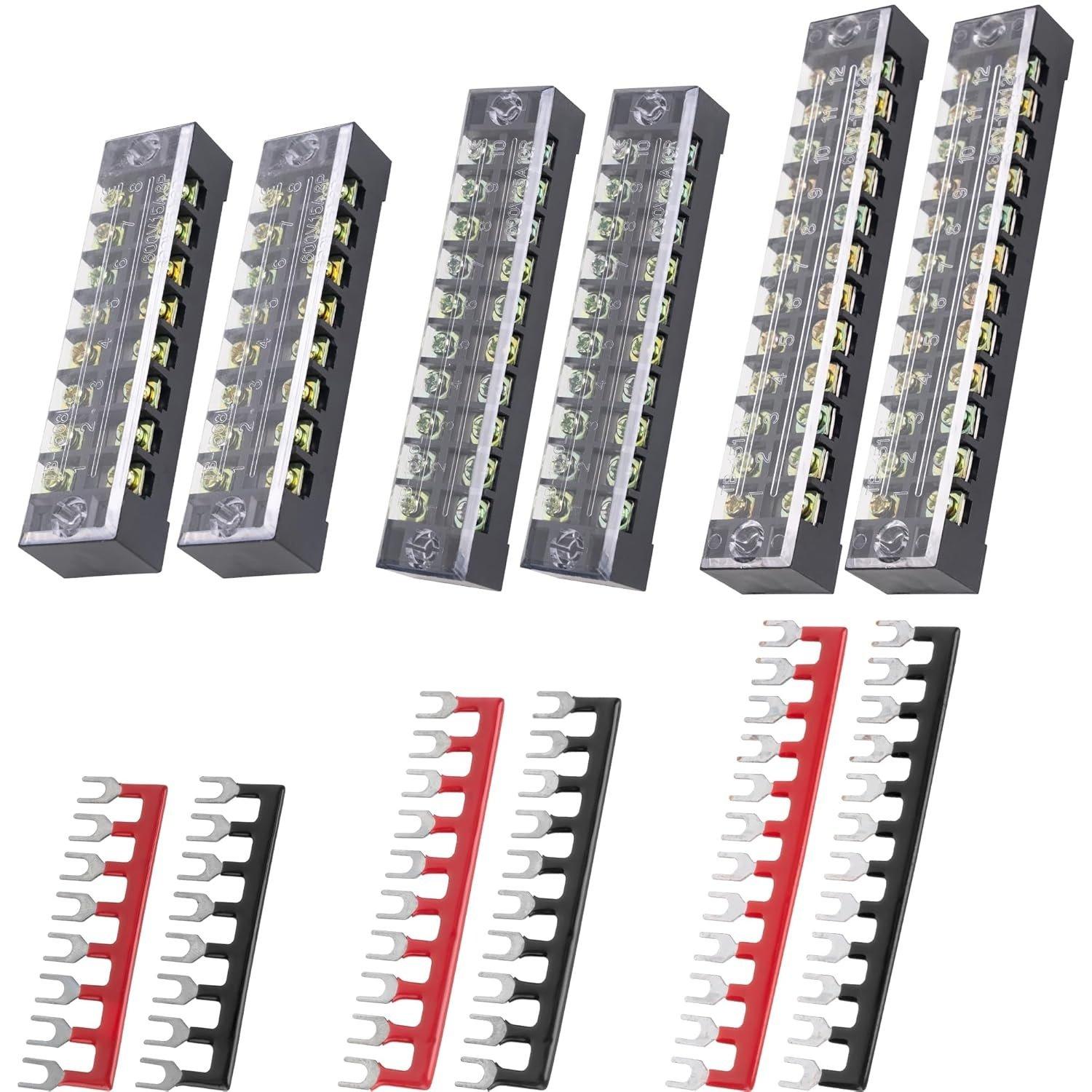

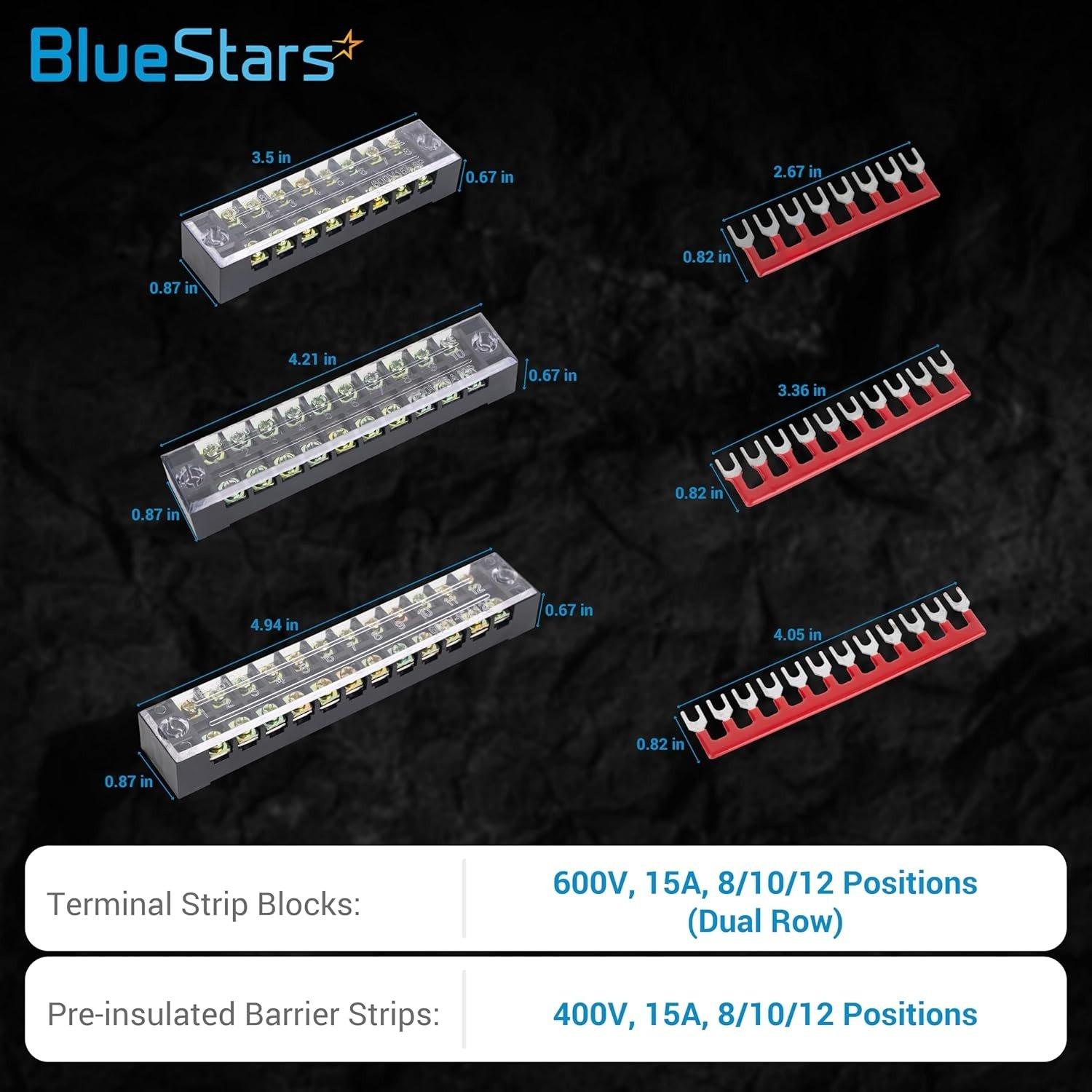

• Package includes 6 terminal blocks: two 8-position, two 10-position, and two 12-position.
• Electrical Rating: 600 Volts, 15 Amps maximum.

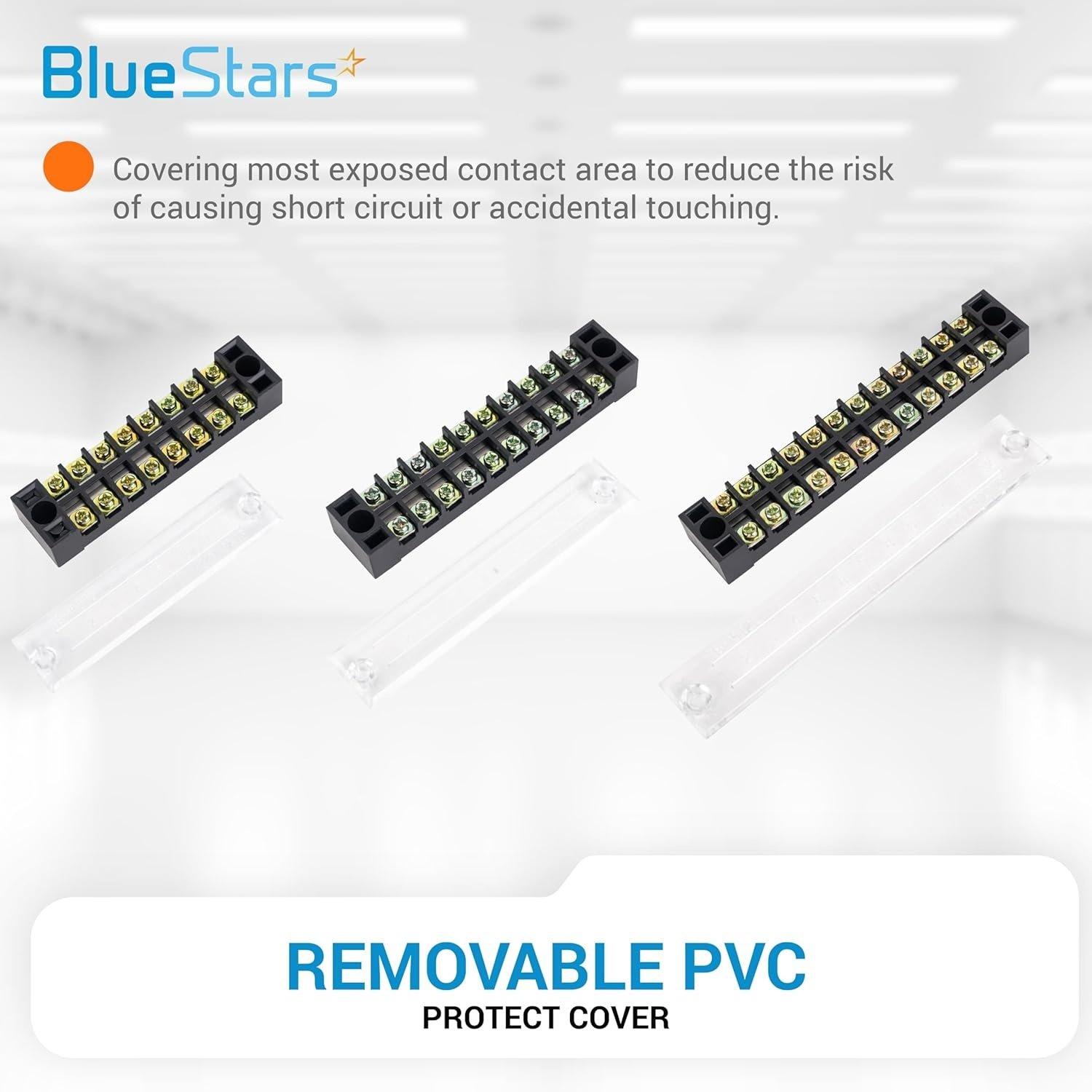

• Design: Dual row screw-in terminal design with removable transparent plastic insulating covers.

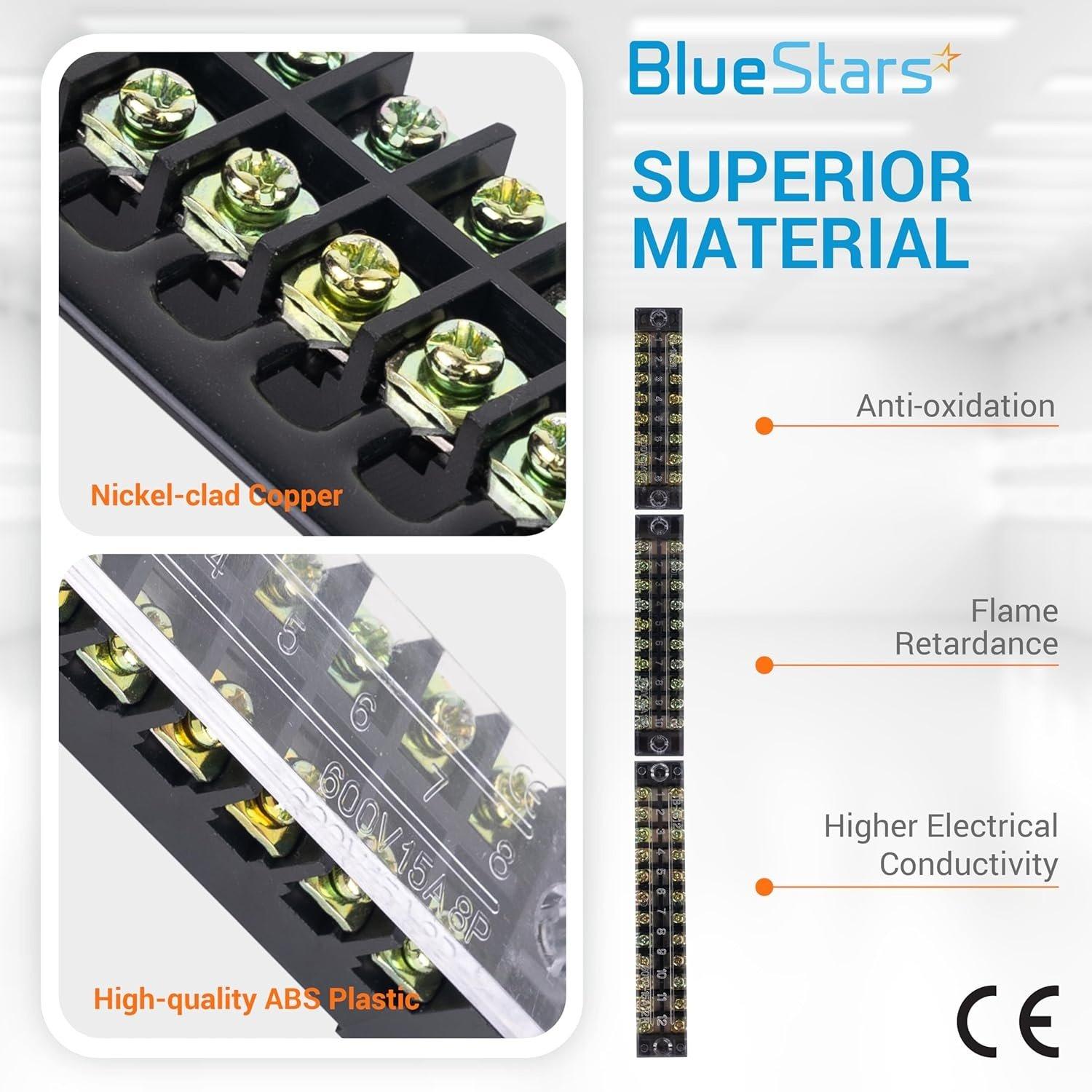

• Construction: Nickel-plated copper conductors, zinc-plated iron screws, and a flame-resistant housing.
• Accessories Included: 6 pre-insulated barrier jumper strips (two 8-position, two 10-position, two 12-position) and a set of insulated fork wire connectors.

Replaces / Cross-Reference Part Numbers

• Serves as a direct replacement for dual row terminal blocks with a 600V 15A rating.
• Interchangeable with standard barrier strips of corresponding 8, 10, and 12 position counts.
• Suitable for custom wiring applications or repairs where a multi-position junction point is required.

Compatibility & Fitment

• Accepts wire sizes from 22 AWG to 14 AWG.
• Each terminal block features M3 size screws for securing wires.

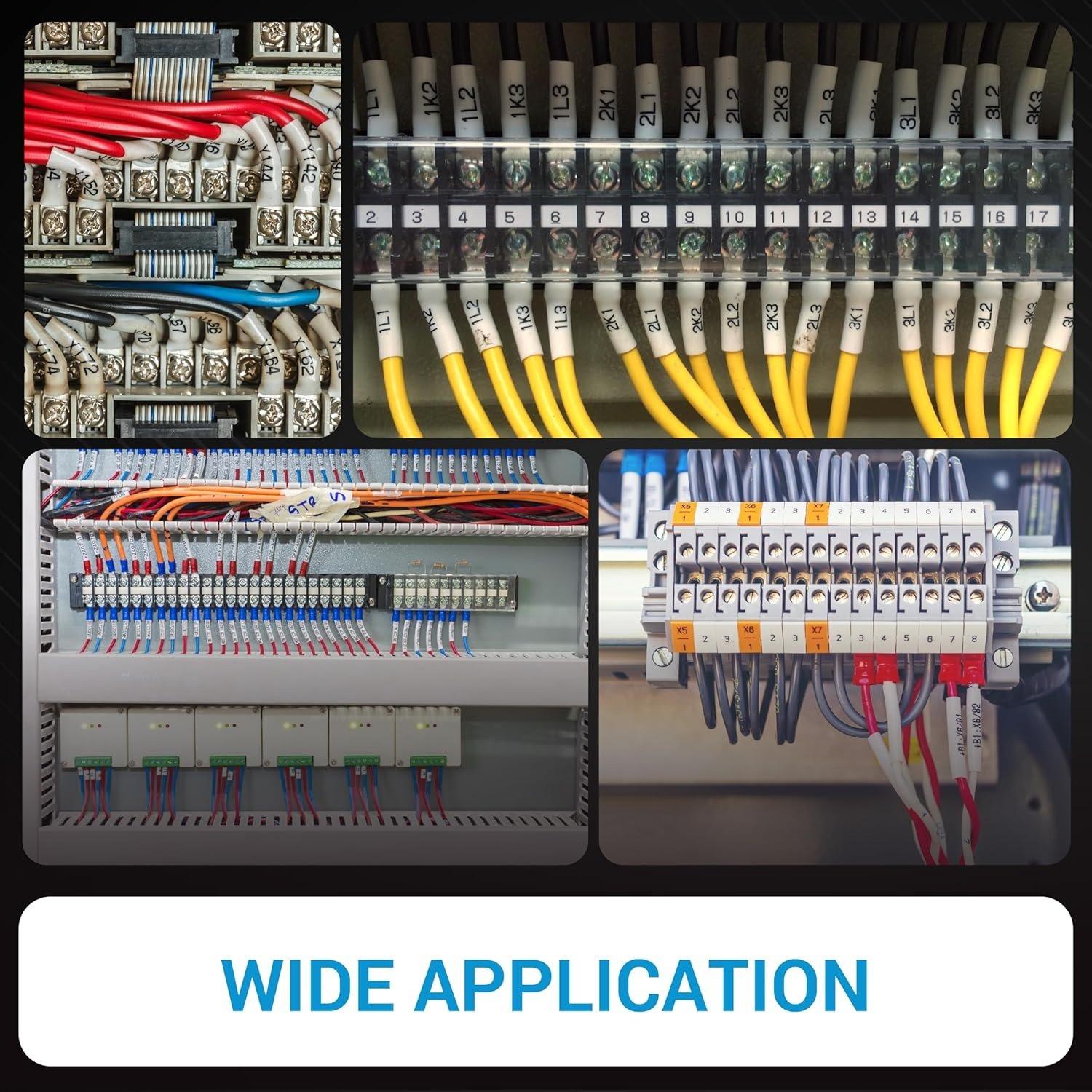

• Suitable for use in a wide range of applications including home wiring, automotive, marine, industrial controls, and electronic projects.
• Mounting holes on each end allow for secure panel or surface installation.

When to Replace

• Visible signs of heat damage, such as discoloration or melting of the plastic housing.
• Cracks, chips, or physical breakage of the terminal block body.
• Corrosion on terminal screws or conducting plates that impedes connection.
• Stripped screw heads or threads that prevent proper wire tightening.

Installation Tips

• Always disconnect the power source before beginning installation.
• Strip approximately 1/4 inch (6-7mm) of insulation from the wire end.
• For multiple connections, cut the included jumper strips to the required number of positions.
• Insert the stripped wire or fork connector fully into the terminal and tighten the screw securely.
• Avoid over-torquing screws to prevent damage to the threads or wire.
• Once all connections are verified, attach the clear insulating cover.
