[Lifetime Warranty] 808656 491922 Fuel Pump - Pack of 3

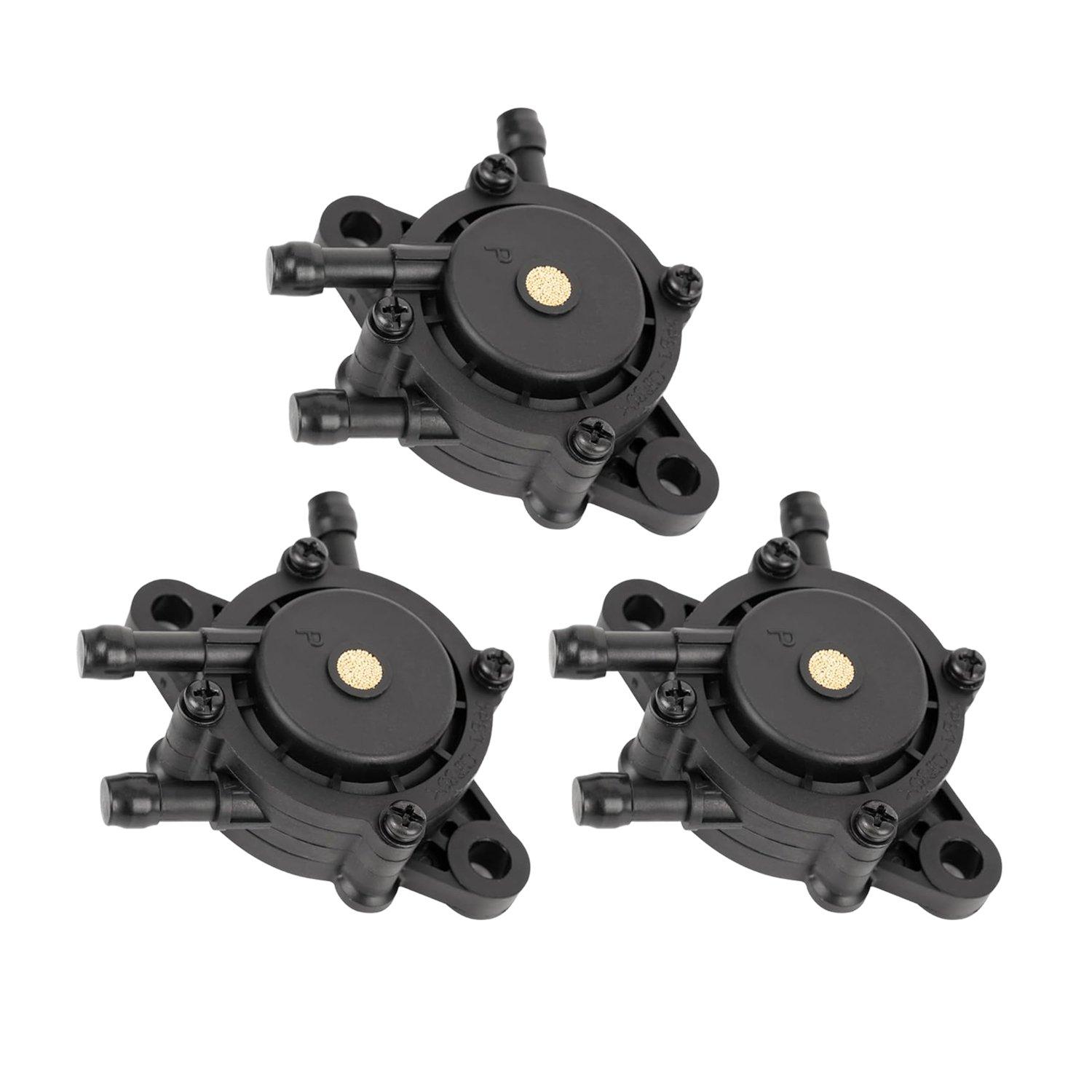

3-pack 808656 491922 Fuel Pump

Key Features

• Package includes: 3 fuel pumps, 3 fuel filters
• Pump Type: Vacuum pulse operated
• Inlet & Outlet Port Size: Fits 1/4 inch fuel line
• Engine Compatibility: Designed for 15 HP to 25 HP engines

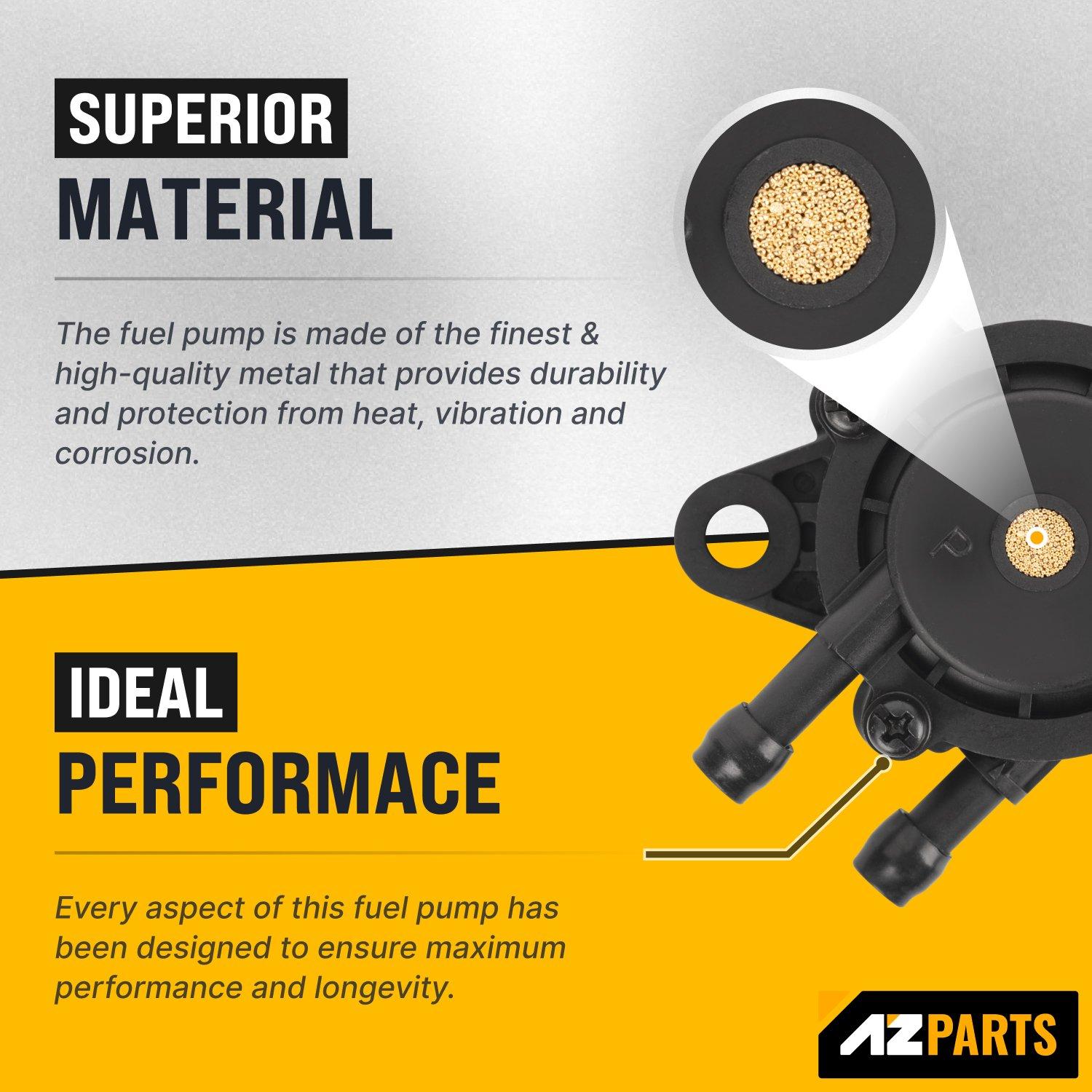

• Construction: Durable plastic housing for corrosion resistance

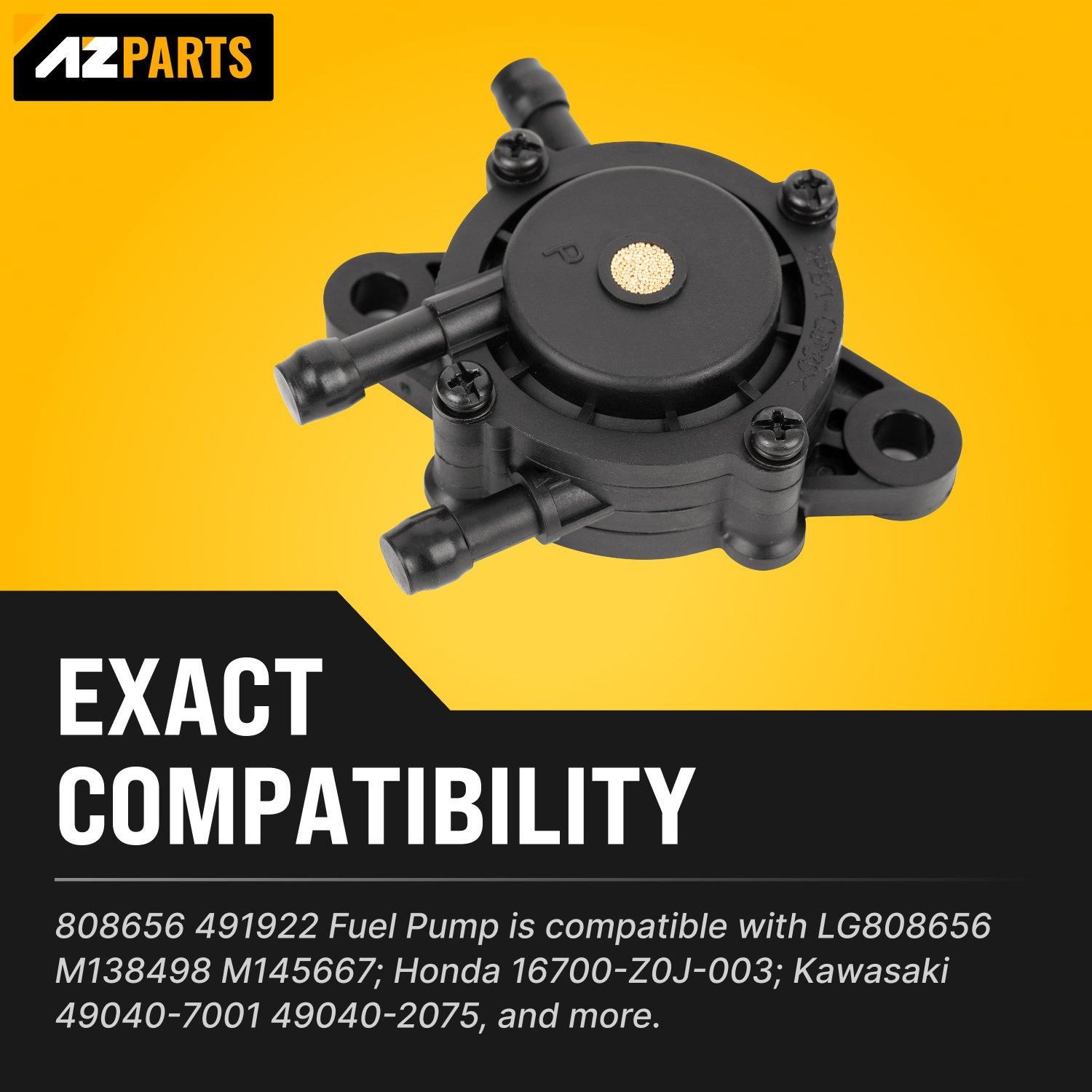

Replaces / Cross-Reference Part Numbers

• Briggs & Stratton:491922, 808656, 691034, 692313, 808492, 596163, 593998
• John Deere:LG808656, M138498, M145667
• Kawasaki:49040-7001
• Kohler:24 393 04-S, 24 393 16-S
• Honda:16700-Z0J-003

Compatibility & Fitment

• Fits a wide range of small engines from 15 HP to 25 HP
• Kawasaki Engines:FH381V-FH680V series
• Honda Engines:GX610, GX620
• Cub Cadet Models:LTX1046VT, LTX1050VT
• Also compatible with select Mikuni, John Deere, Kohler, and Briggs & Stratton engines requiring a vacuum-style fuel pump.

When to Replace

• Engine struggles to start, runs rough, or stalls
• Loss of power, especially under load or at high RPM
• Engine sputtering or surging during operation
• Visible cracks, damage, or leaks from the fuel pump housing
• No fuel is being delivered to the carburetor

Installation Tips

• Before installation, disconnect the battery's negative terminal for safety.
• Note the routing and connection points of the old fuel and vacuum lines.
• Ensure fuel lines are securely fastened with hose clamps to prevent leaks.
• Install the new fuel filter between the fuel tank and the pump.
• After installation, check all connections for leaks before starting the engine.
