AZ00688189
2-1/4" Oil Filter 492932S 492932 795890 695396 492932B 492056
Easy
More than one hour
$29.25
$32.49
Save $3.24
In Stock
Fast delivery
Confirm the fit for your model
Find your model number and check it here to see if the part fits.
Description
Description
2-1/4" Oil Filter 492932S 492932 795890 695396 492932B 492056
Key Features
- Replacement oil filter for lawn mowers, lawn tractors, zero-turn mowers, and compatible small engines.

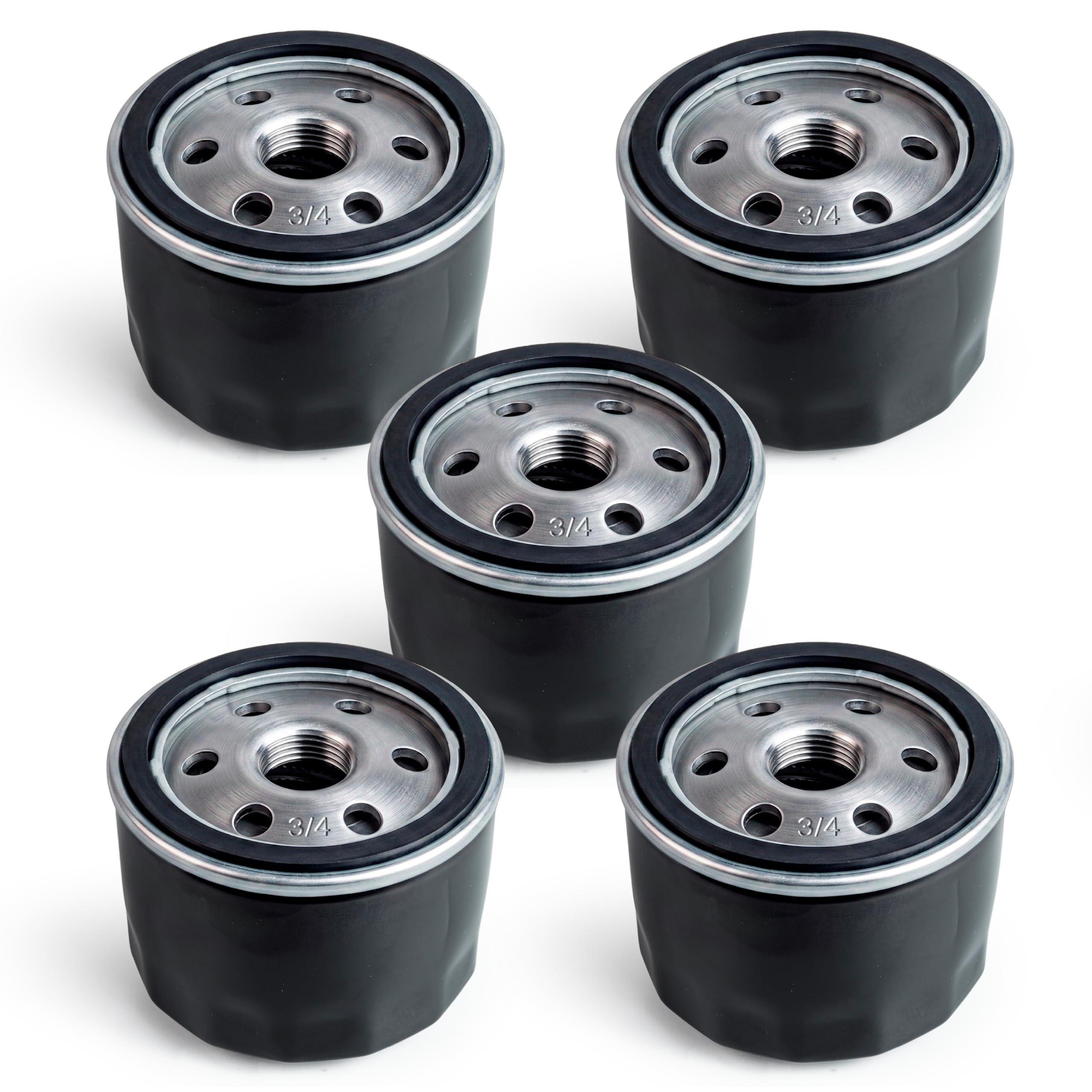

- Ships as 5 filters.

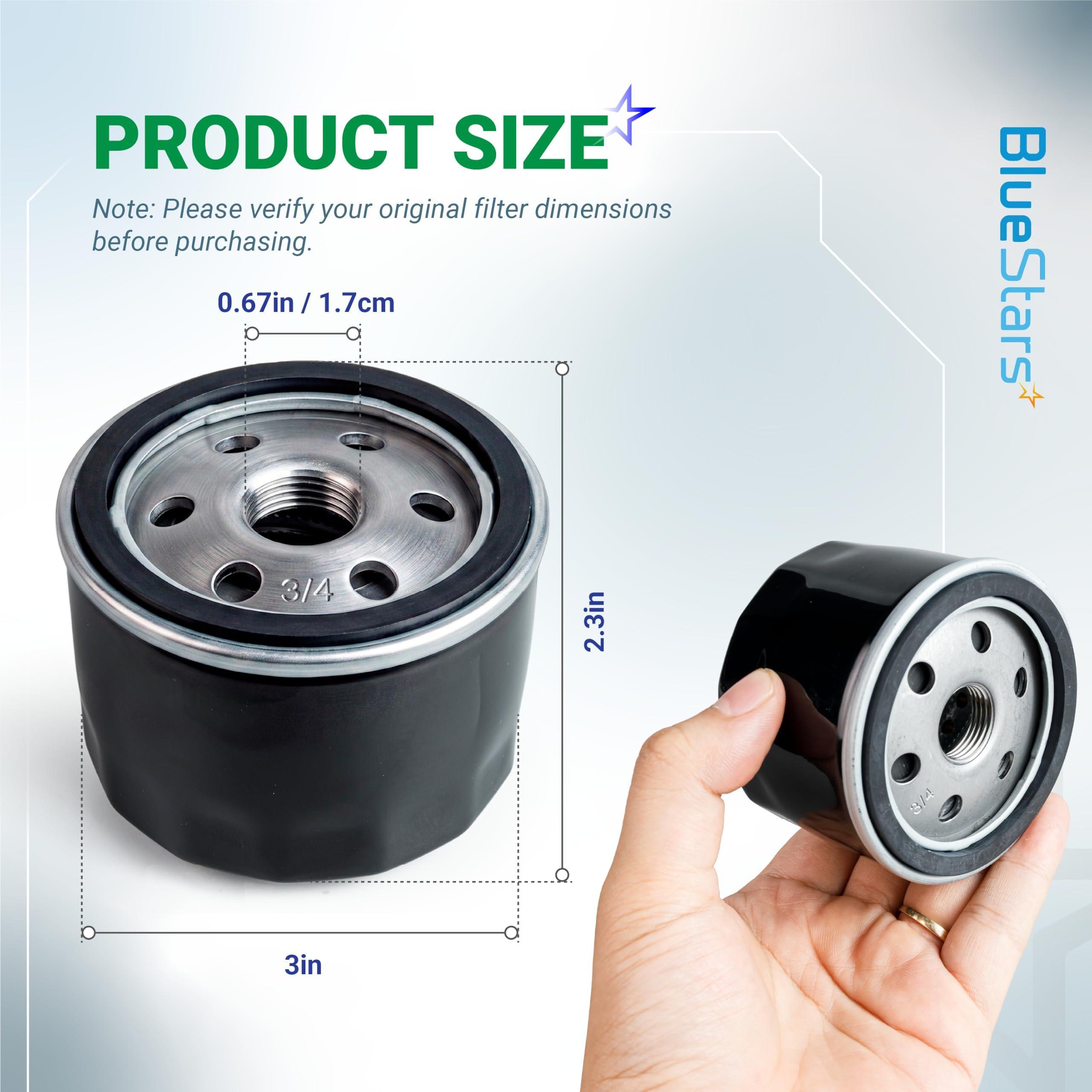

- Outside diameter: approximately 3 inches.
- Height: approximately 2.3 inches.
- Thread size: 0.67 inch.

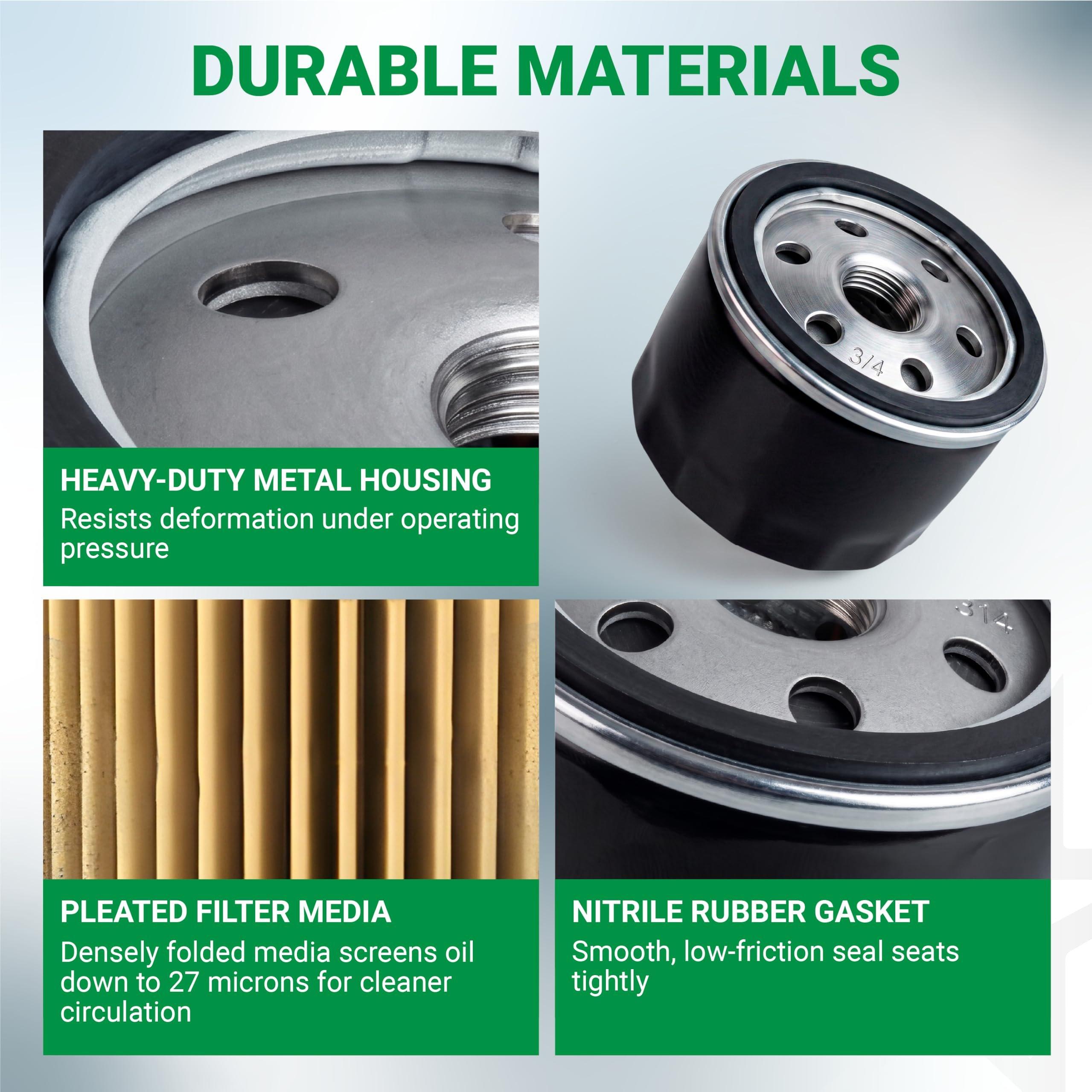

- Designed to filter dirt, carbon, and metal debris from circulating engine oil, with filtration down to 27 microns.
- Product grade: replacement part.
Replaces / Cross-Reference Part Numbers
- 492932S, 492932, 795890, 695396, 492932B, 492056, 696854, 842921
- 4049, 4049H, 4154, 5049, 5049H, 5049K, 5076
- AM125424, AM119567, GY20577, LG4153, LG492932S
- 49065-7007, 49065-0721, 49065-7002, 49065-2077, 49065-2076, 49065-2057
- 25 050 01, 28-050-01S, 24603, 33935, 531307043, 531307389, 1077817, 36563, 2722463

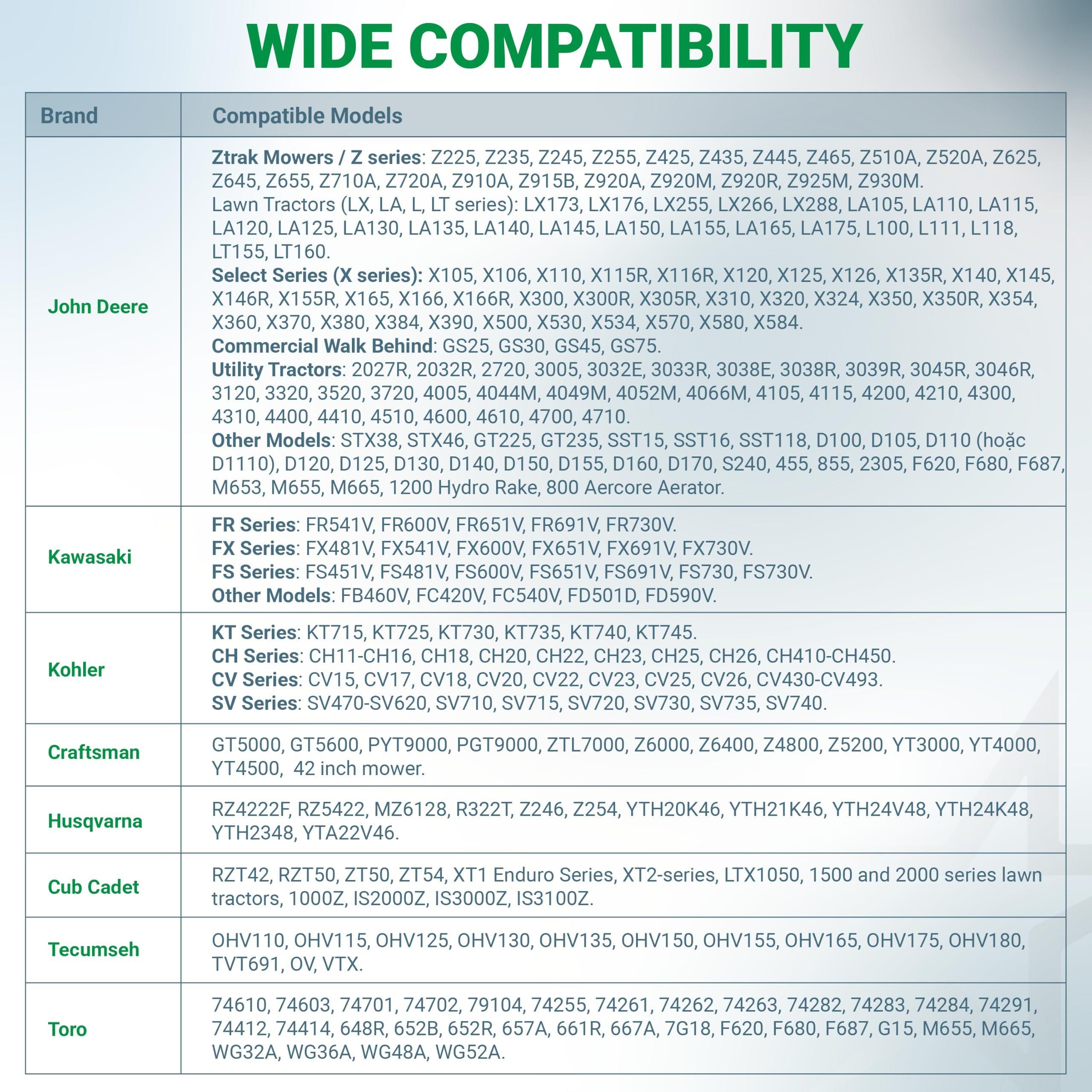

Compatibility & Fitment
Compatible with selected Kawasaki, Kohler, Craftsman, Husqvarna, Cub Cadet, John Deere, Tecumseh, and Toro lawn mower and engine applications. Confirm the old filter dimensions and engine model before ordering because similar filters may use different thread sizes.
- John Deere zero-turn and ZTrak mowers:Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z510A, Z520A, Z625, Z645, Z655, Z710A, Z720A, Z915B, Z920M, Z920R, Z925M, Z930M.
- John Deere lawn tractors:LX173, LX255, LX266, LX288, LA105, LA110, LA115, LA120, LA125, LA130, LA135, LA140, LA145, LA150, LA155, LA165, LA175, STX38, STX46, GT225, GT235, SST15, SST16, SST118, D100, D105, D1110, D120, D125, D130, D140, D150, D155, D160, D170.
- John Deere select models:X105, X106, X110, X115R, X116R, X120, X125, X126, X135R, X140, X145, X146R, X155R, X165, X166, X166R, X300, X300R, X305R, X310, X320, X324, X350, X350R, X354, X360, X370, X380, X384, X390, X500, X530, X534, X570, X580, X584. Also GS25, GS30, GS45, and GS75 commercial walk-behind mowers.
- Kawasaki engines:FR541V, FR600V, FR651V, FR691V, FR730V, FS451V, FS481V, FS600V, FS651V, FS691V, FS730V, FX481V, FX541V, FX600V, FX651V, FX691V, FX730V, FB460V, FC420V, FC540V, FD590V.
- Kohler engines:KT715, KT725, KT730, KT735, KT740, KT745, CH18, CH20, CH22, CH23, CH25, CH26, CV17, CV20, CV22, CV23, CV25, CV26, SV470, SV590, SV620, SV710, SV730.
- Craftsman:GT5000, YT3000, YT4000, YT4500, Z6000, Z6400.
- Husqvarna:Z246, Z254, RZ5422, YTH2348, R322T.
- Cub Cadet:RZT42, RZT50, ZT50, ZT54, LTX1050, XT1, XT2.
When to Replace
Replace the filter at the interval specified in the equipment service schedule, or when servicing the engine oil. A clogged or worn filter can contribute to dark, gritty oil, restricted oil flow, seepage around the filter base, and increased internal engine wear. Ethanol-related fuel contamination, poor maintenance, and extended service intervals can accelerate oil contamination.
Installation Tips
- Verify the engine model, old filter dimensions, outside diameter, height, and thread size before installation.
- Stop the engine, allow it to cool, and position the mower safely before servicing.
- Drain the engine oil according to the equipment manufacturer’s procedure.
- Remove the old filter with an appropriate filter wrench if it is tight, and clean the mounting surface.
- Check that the old gasket has been removed. Lightly coat the new gasket with clean engine oil, install the filter by hand, and tighten it according to the equipment service instructions.
- Refill with the specified oil, run the engine briefly, and check the filter base for leaks. Recheck the oil level after shutdown.
Product Grade
Replacement Part
Vehicle Service Type
Lawn Mower
Outside Diameter
3.0
Thread Size
0.67"
Unit Count
5 Count
Item Highlight
696854 842921 John Deere AM125424 GY20577 LG492932S Kawasaki 49065-7007 49065-0721 Lawn Mower Tractor (5 Pcs)
Model Number
492932S
Compatible With Vehicle Type
Lawn Mower
Part Interchange Info
Replaces part numbers #492932, 492932S, 492932B, 696854, 695396, 492056, 795890, 842921, 4049, 4049H, 4154, 5049, 5049H, 5049K, 5076, AM125424, AM119567, GY20577, LG4153, LG492932S, 49065-7007, 49065-0721, 49065-7002, 49065-2077, 49065-2076, 49065-2057, 25 050 01, 28-050-01S, 24603, 33935, 531307043, 531307389, 1077817, 36563, 2722463. Compatible with Kawasaki, Kohler, Craftsman, Husqvarna, Cub Cadet, John Deere, and Tecumseh engines.
Automotive Fit Type
Vehicle Specific Fit
Oem Equivalent Part Number
492932S 492932 795890 695396 492932B 492056 696854 842921 AM125424 GY20577 LG492932S 49065-7007 49065-0721
