AZ00713983
[Lifetime Warranty] DC Motor Speed Controller 9-60V 12V 24V 36V 48V 60V 20A 25KHZ PWM
Normal
15 - 20 minutes
Out of Stock
Confirm the fit for your model
Find your model number and check it here to see if the part fits.
Description
Description

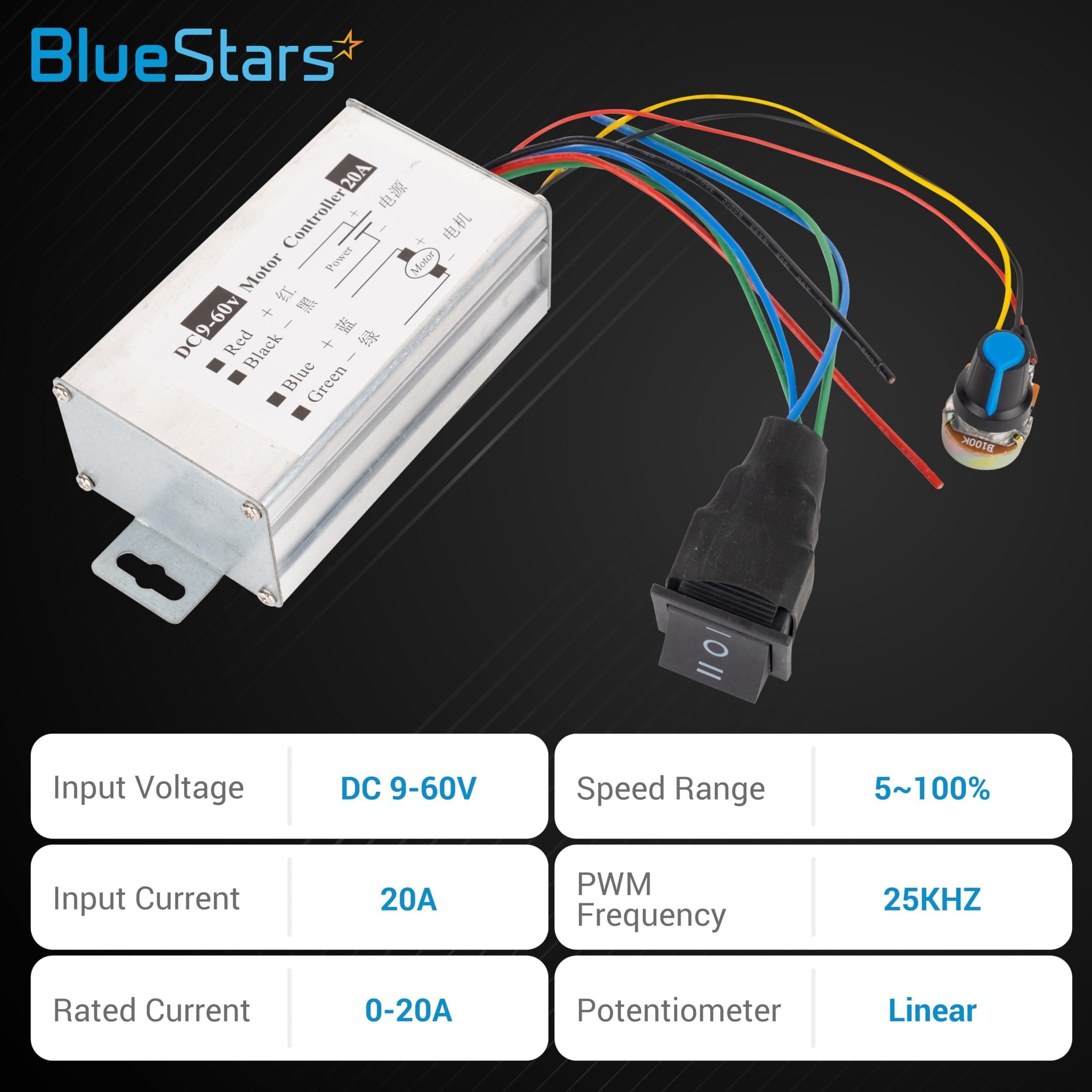

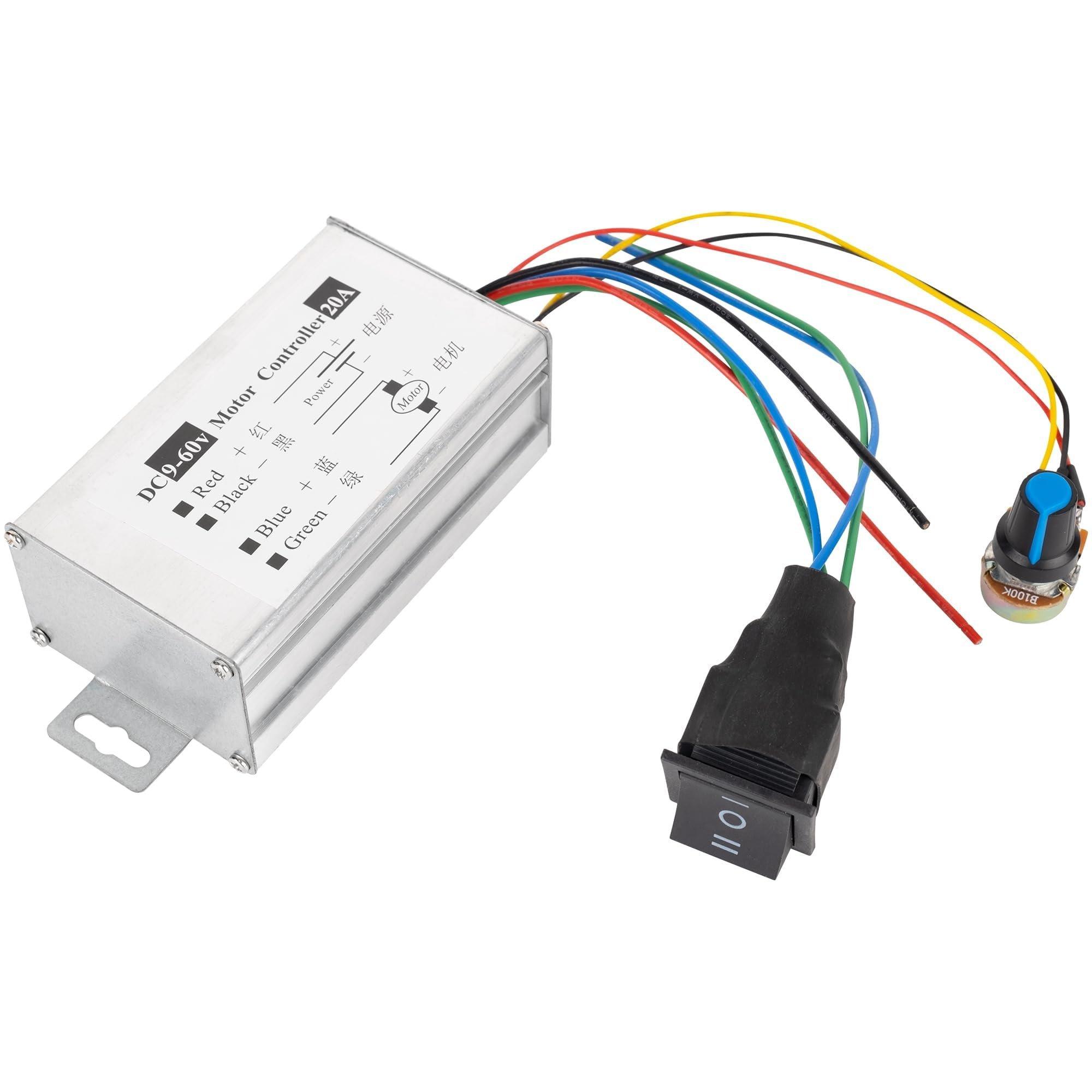

DC Motor Speed Controller (9-60V, 20A, 25kHz PWM)
This high-performance DC motor speed controller offers precise control over a wide range of DC motors. Designed for versatility, it boasts a broad operating voltage range of 9-60V DC, accommodating 12V, 24V, 36V, 48V, and 60V motors.
Key Features:
- Wide Voltage Range:9-60V DC (compatible with 12V, 24V, 36V, 48V, and 60V motors)
- High Current Capacity:20A maximum current
- Smooth PWM Control:25kHz PWM frequency for quiet and efficient operation
- Versatile Operation:Forward, Brake, and Reverse switching
- Precise Speed Adjustment:Integrated adjustable potentiometer
- Suitable for:DC motors with a current rating of 20A or less
This controller supports motors with a current draw up to 20 Amps, providing ample power for various applications. Its 25kHz PWM (Pulse Width Modulation) frequency ensures smooth, quiet operation and minimizes electromagnetic interference (EMI).

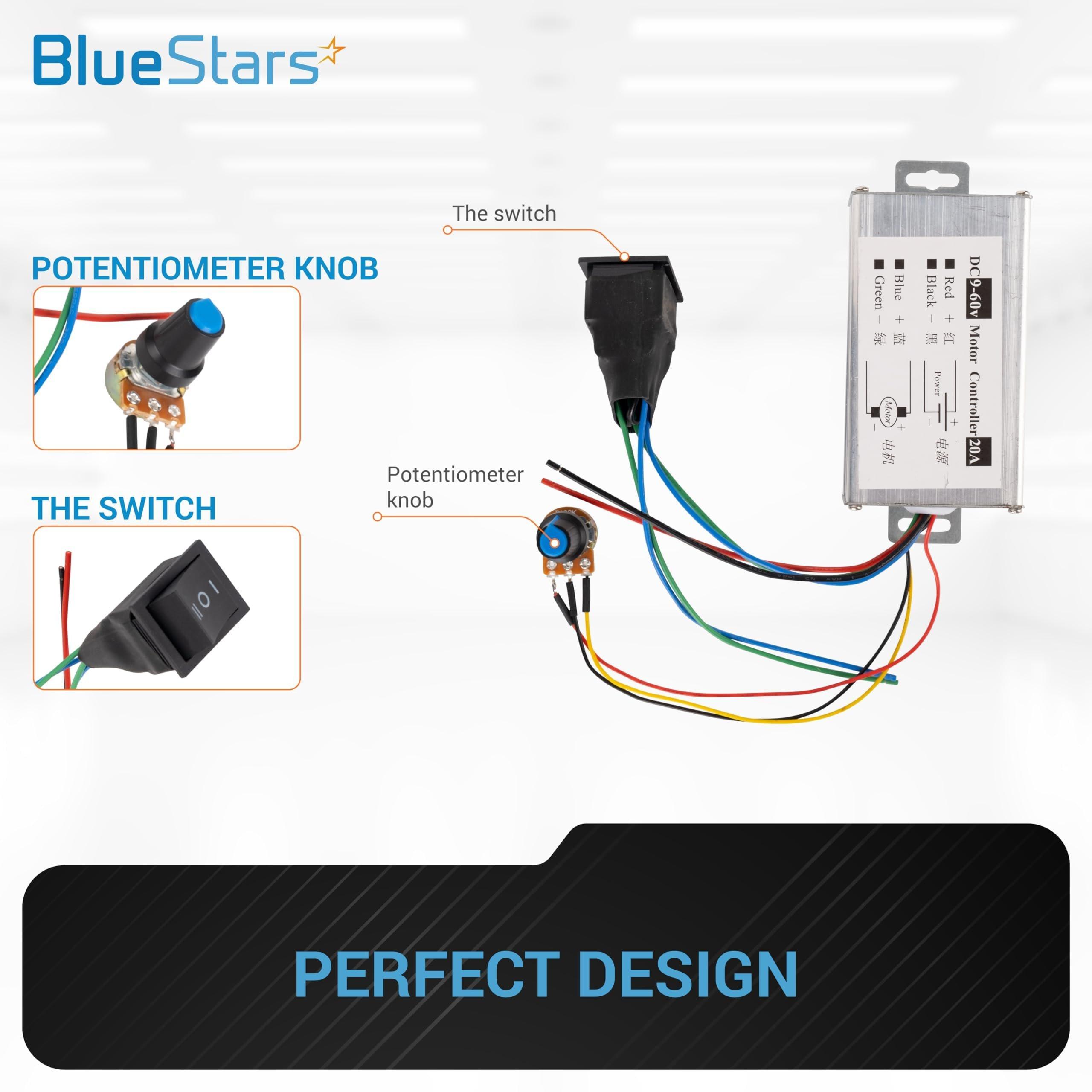

The unit features a convenient three-position switch for easy selection of forward, brake, and reverse motor operation. An integrated adjustable potentiometer allows for precise speed adjustment, giving users granular control over motor speed.
Note:Always ensure your motor's specifications are within the controller's capabilities to prevent damage.
Color
blue,black
Material
Aluminum
Display Type
LED
