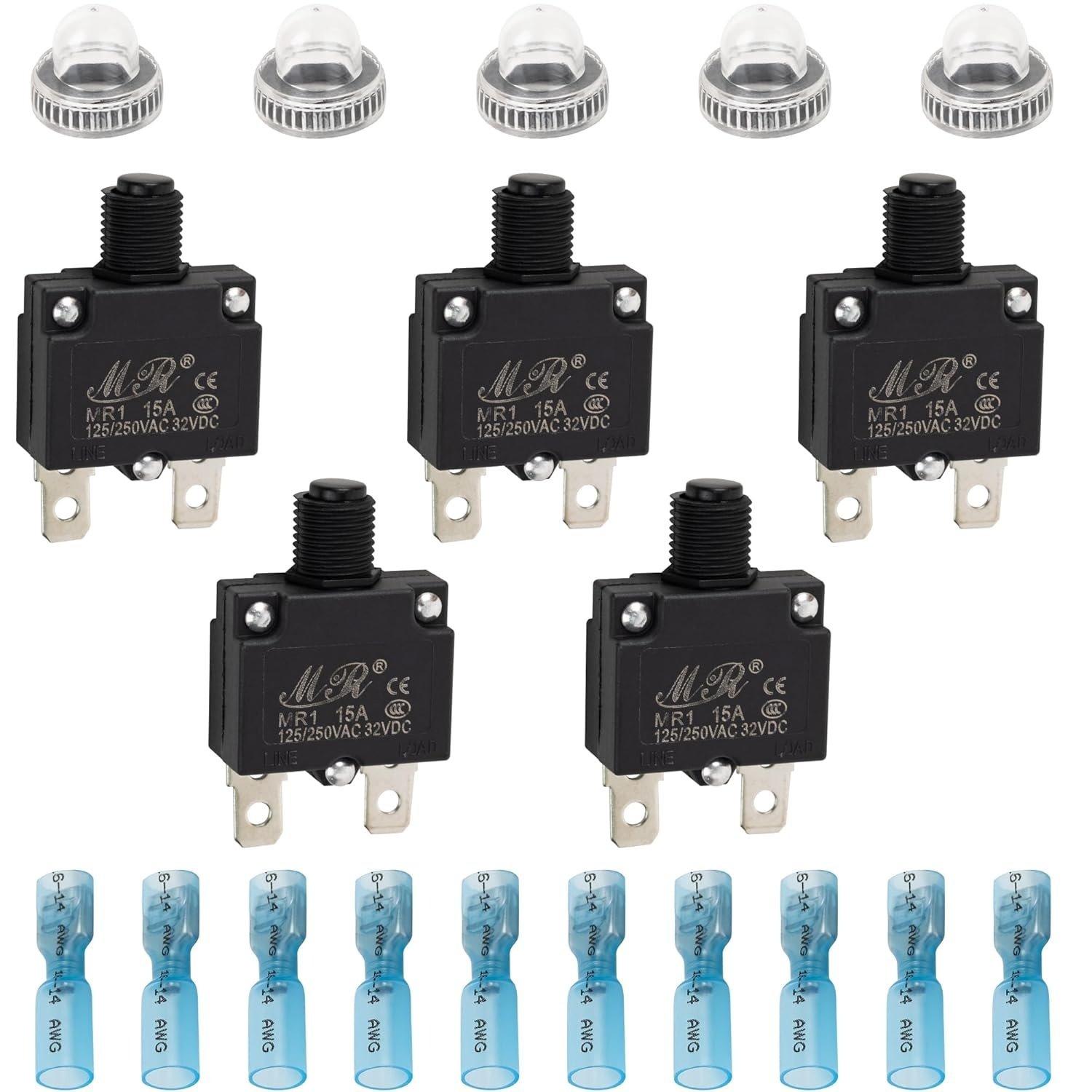

[Lifetime Warranty] 5-pack 15Amp Thermal Circuit Breaker 125/250V

5-pack 15Amp Thermal Circuit Breaker 125/250V

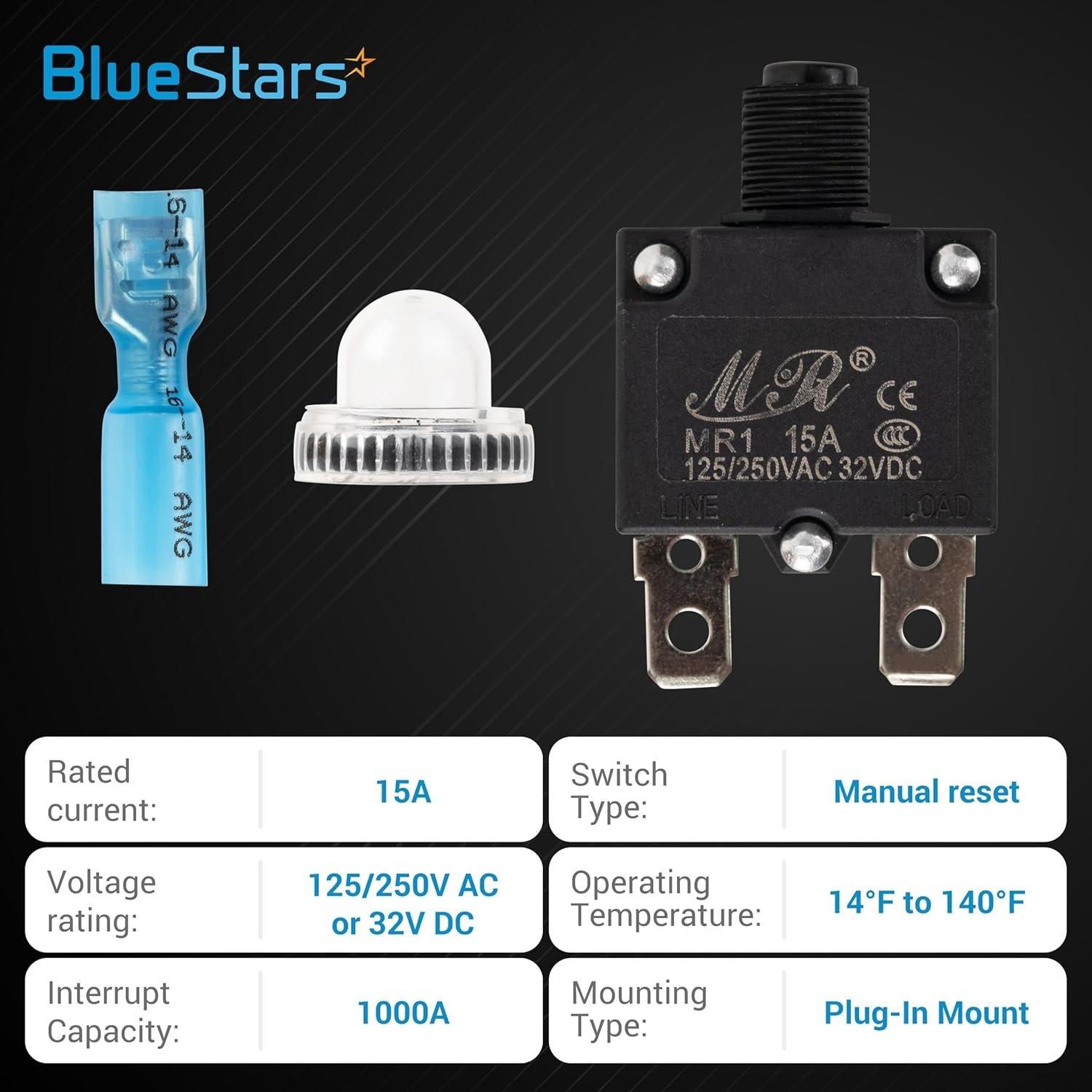

Key Features

• Quantity: 5 circuit breakers
• Current Rating: 15A
• Operating Voltage: 125/250V AC, 32V DC
• Interrupt Capacity: 1000A
• Operation Type: Thermal, single pole

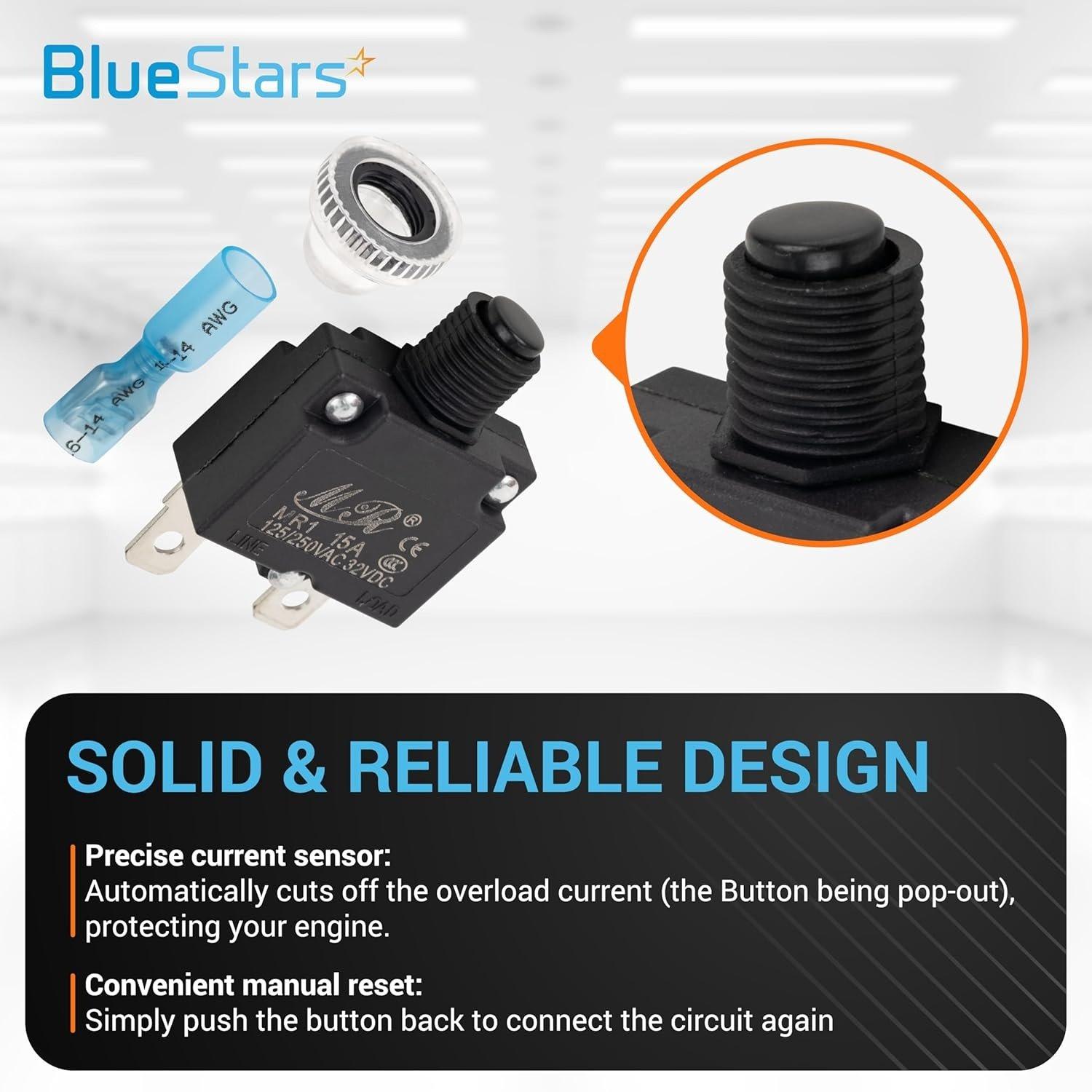

• Reset Mechanism: Manual push-to-reset
• Includes waterproof button caps for added protection

Replaces / Cross-Reference Part Numbers

• Serves as a direct replacement for thermal circuit breakers with matching 15A, 125/250V AC, and 32V DC electrical ratings and physical dimensions.
• Suitable for applications calling for a push-button reset overload protector.

Compatibility & Fitment

• Mounting Hole Size: 0.437 in (11.1 mm)
• Commonly used in automotive, marine, industrial, and household applications.
• Fits panels and power distribution systems designed for this form factor.

When to Replace

• Breaker fails to trip during an overcurrent event.
• Nuisance tripping occurs under normal load conditions.
• Reset button will not stay engaged after tripping.
• Visible signs of physical damage, such as cracks or burn marks.

Installation Tips

• Always disconnect power from the circuit before installation or removal.
• Ensure the 15A rating is appropriate for the circuit's wire gauge and load.
• Secure wire terminal connections to prevent overheating.
• This device is an overcurrent protector and is not intended for use as a manual on/off switch.
