[Lifetime Warranty] Pack of 2 NEMA 6-20P Electrical Male Plugs

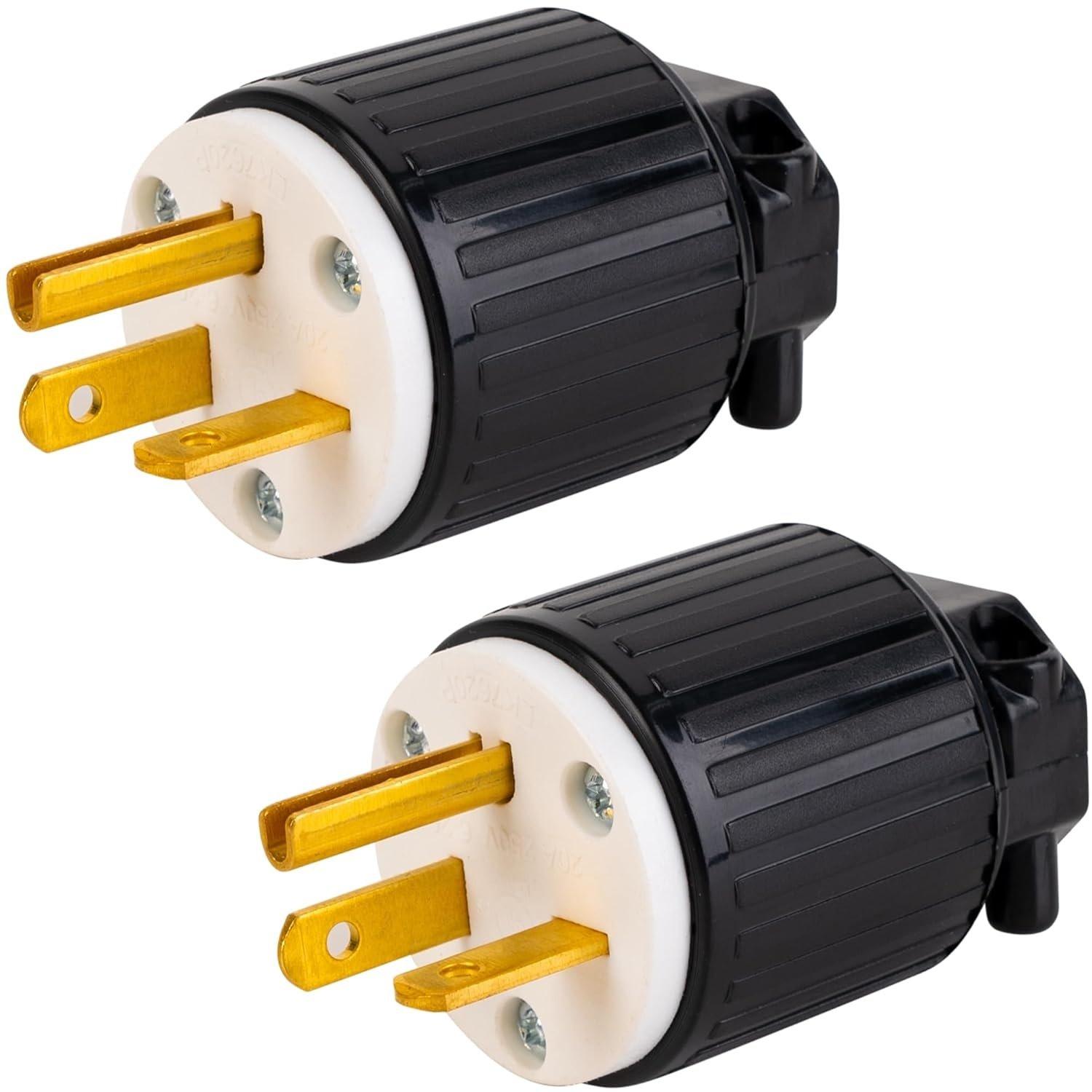

Pack of 2 NEMA 6-20P Electrical Male Plugs

Key Features

• Quantity: 2 male plugs
• Configuration: NEMA 6-20P

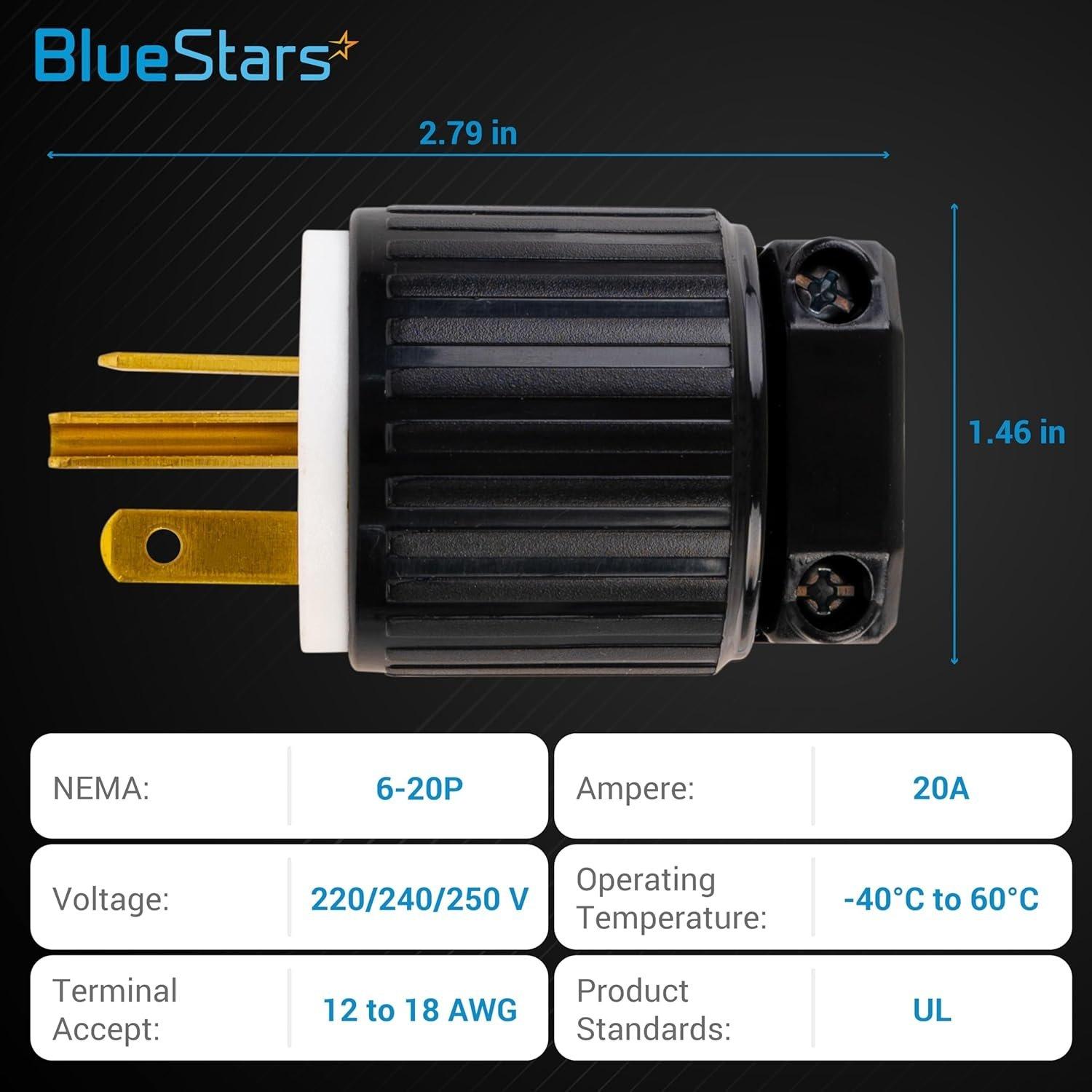

• Electrical Rating: 20 Amps, 250 Volts AC

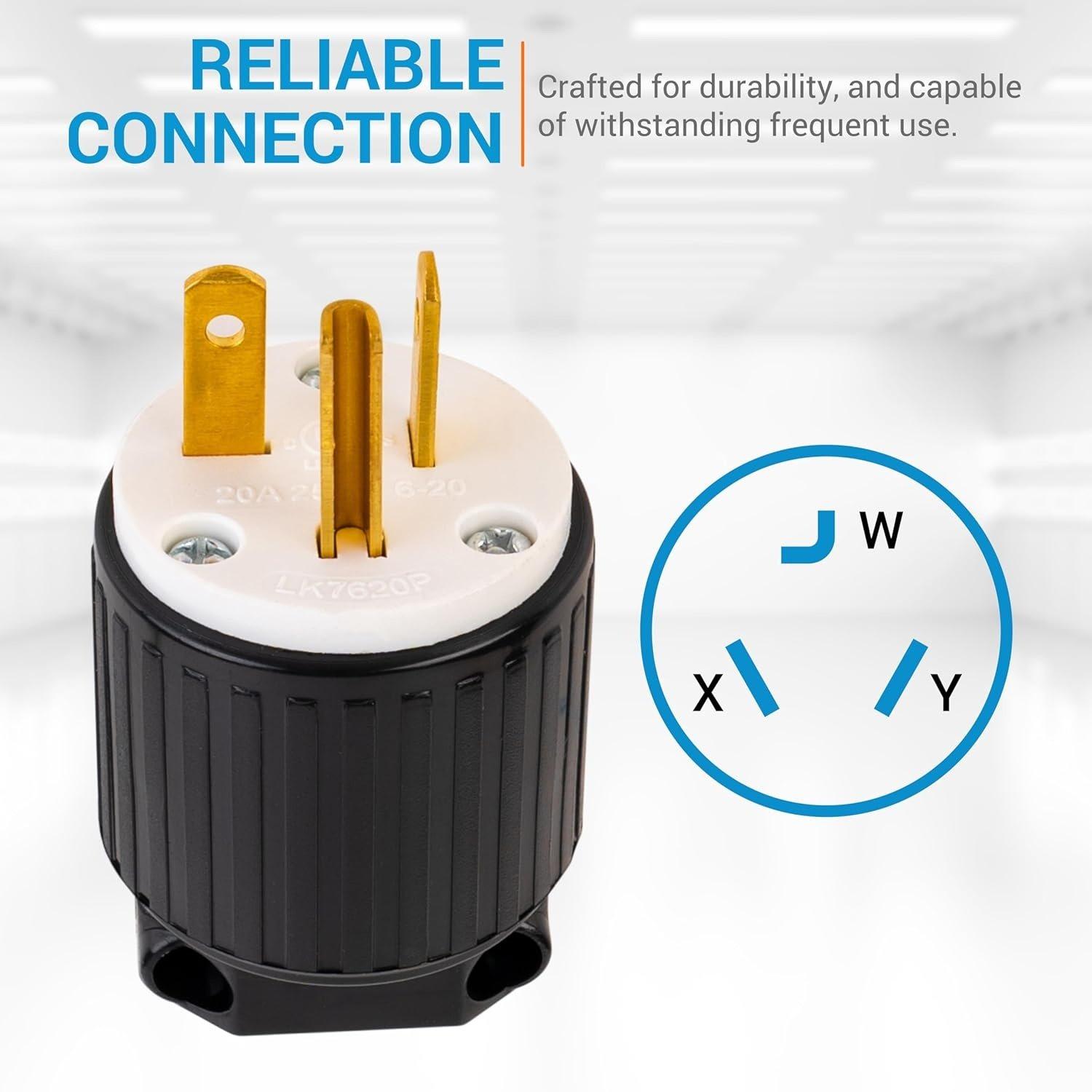

• Design: 2-pole, 3-wire, grounding, straight blade

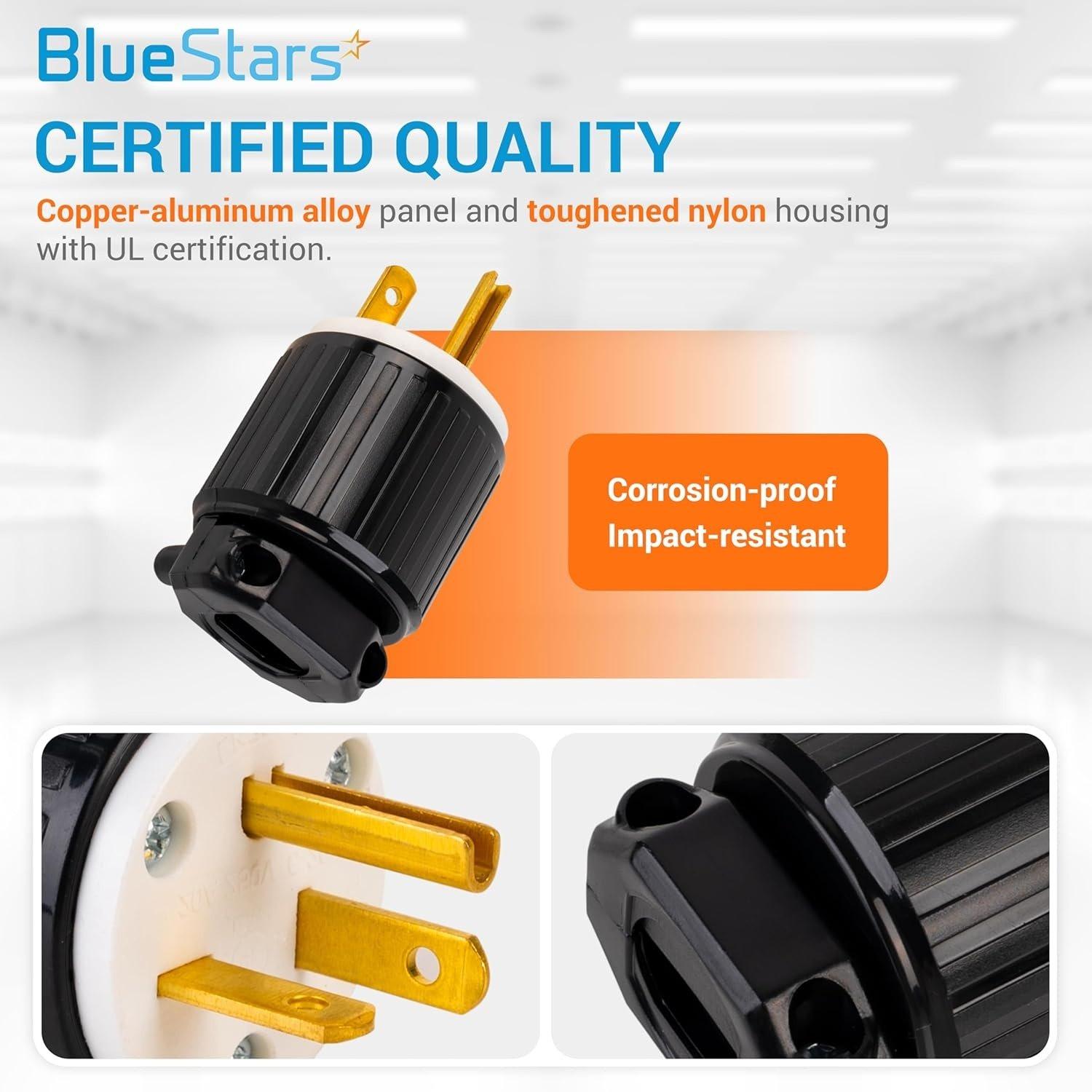

• Construction: High-temperature resistant nylon housing
• Safety: Conforms to UL safety standards

Replaces / Cross-Reference Part Numbers

• Replaces any standard NEMA 6-20P male plug end

Compatibility & Fitment

• Mates with any NEMA 6-20R receptacle or connector
• Suitable for building or repairing 20A, 250V extension cords or equipment power cords
• Accommodates standard wire gauges for 20A applications

When to Replace

• Existing plug housing is cracked, chipped, or broken
• Prongs are bent, corroded, or show signs of arcing
• Evidence of melting or discoloration from overheating
• Loose internal wire connections cause intermittent power

Installation Tips

• Disconnect all power sources before starting installation

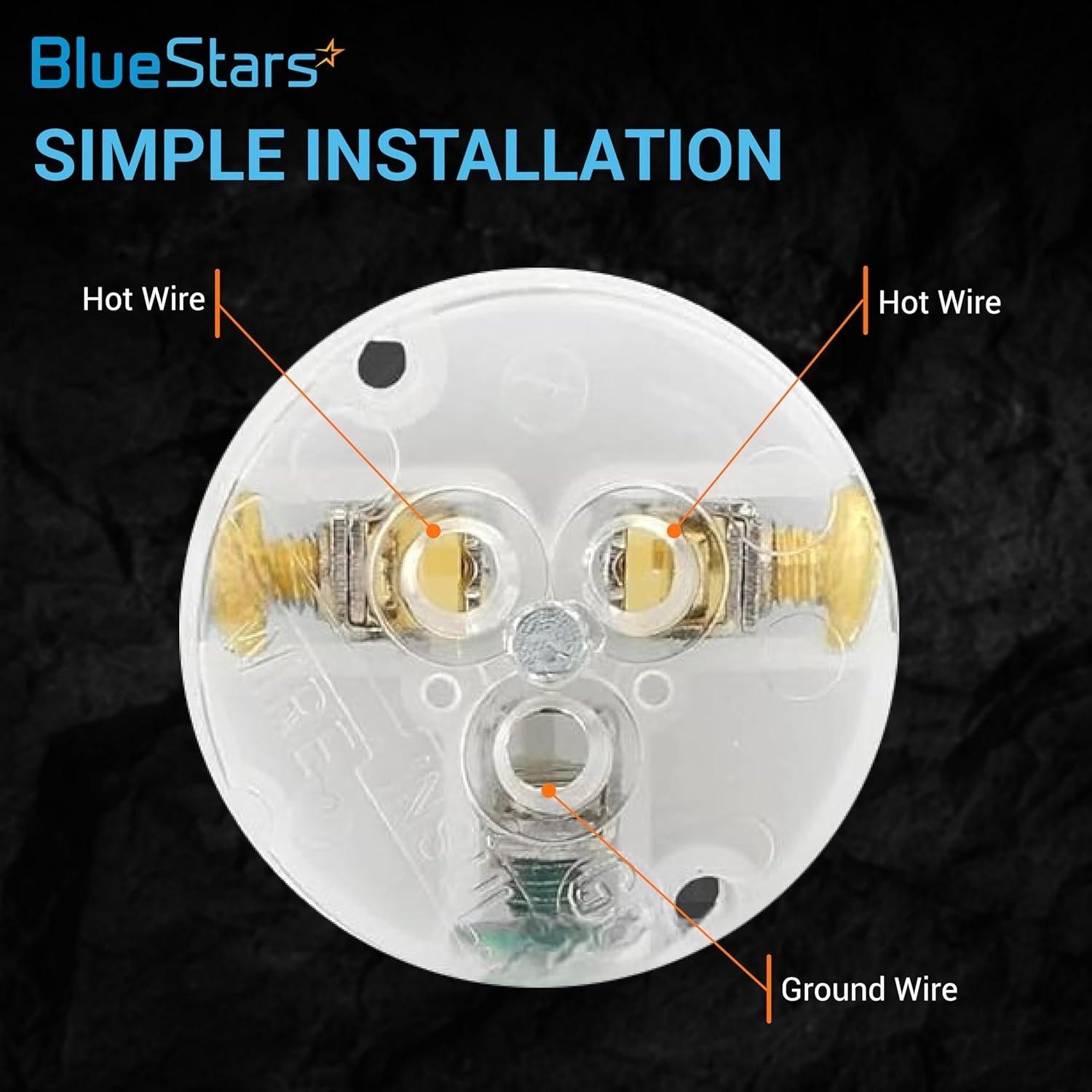

• Verify correct wiring: two hot wires to brass-colored screws, ground wire to the green screw
• Use a wire stripping tool to remove insulation without damaging conductors
• Ensure all terminal screws are tightened securely for a solid electrical connection
• Properly tighten the external cord clamp to provide strain relief
