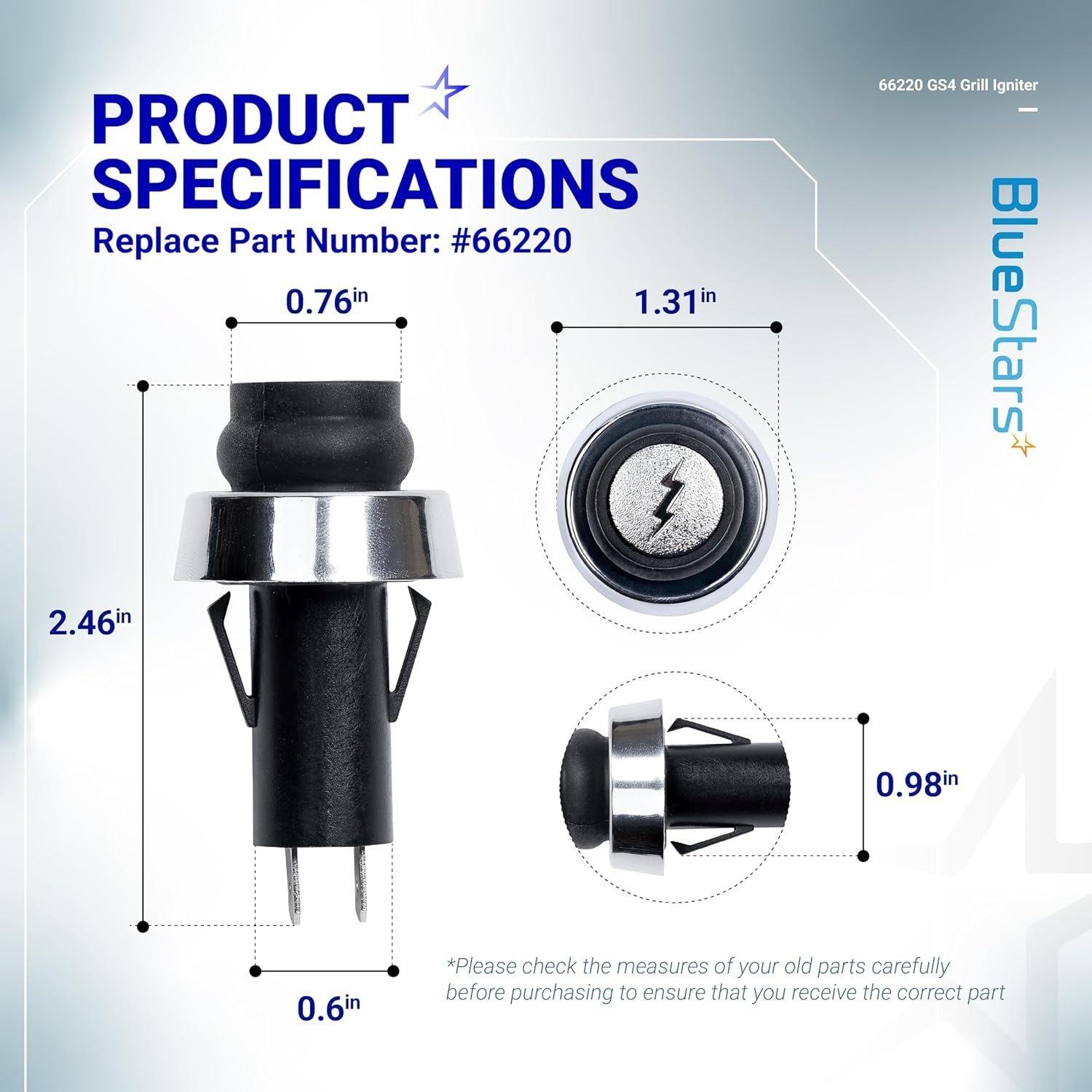

[Lifetime Warranty] 66220 GS4 Igniter Switch

66220 GS4 Igniter Switch

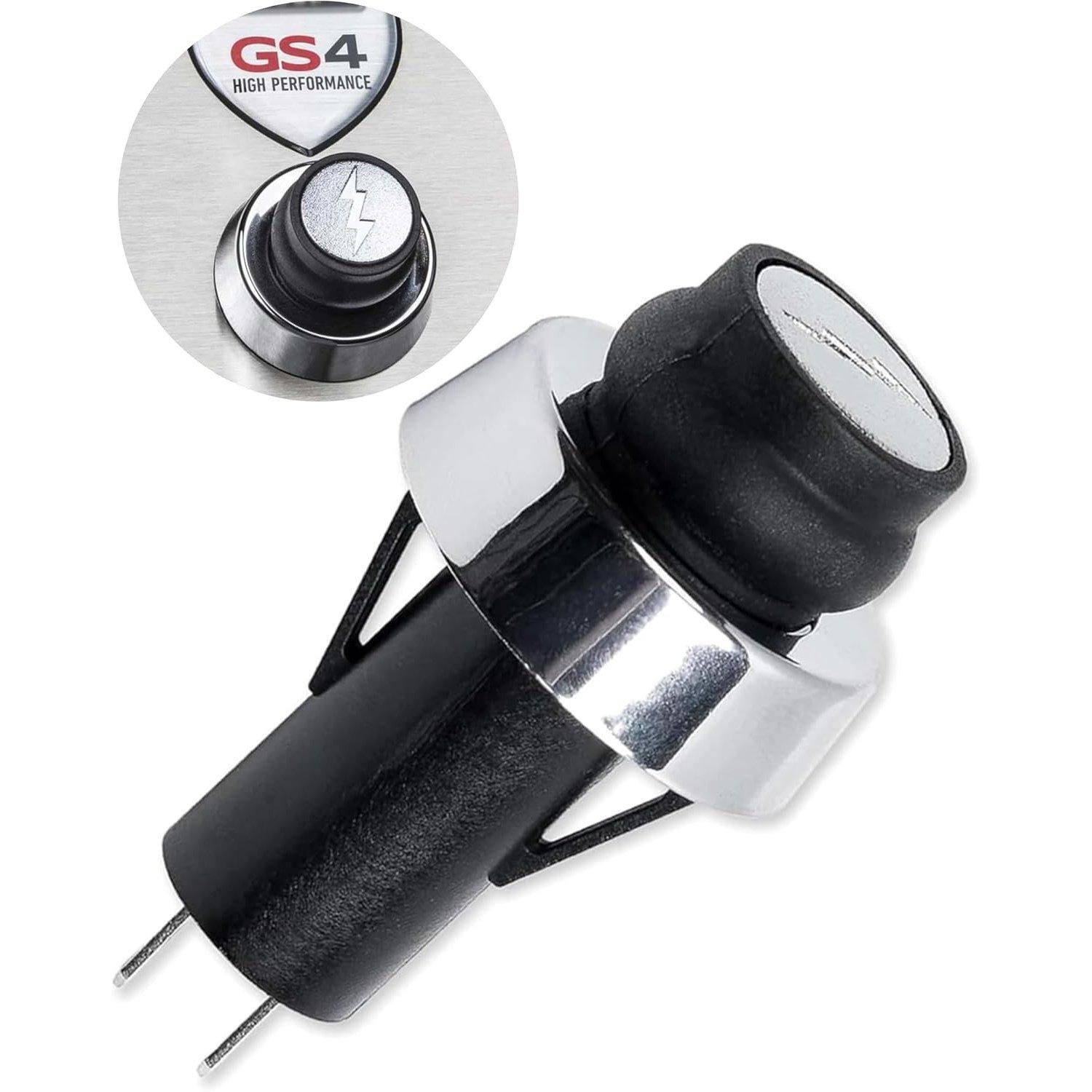

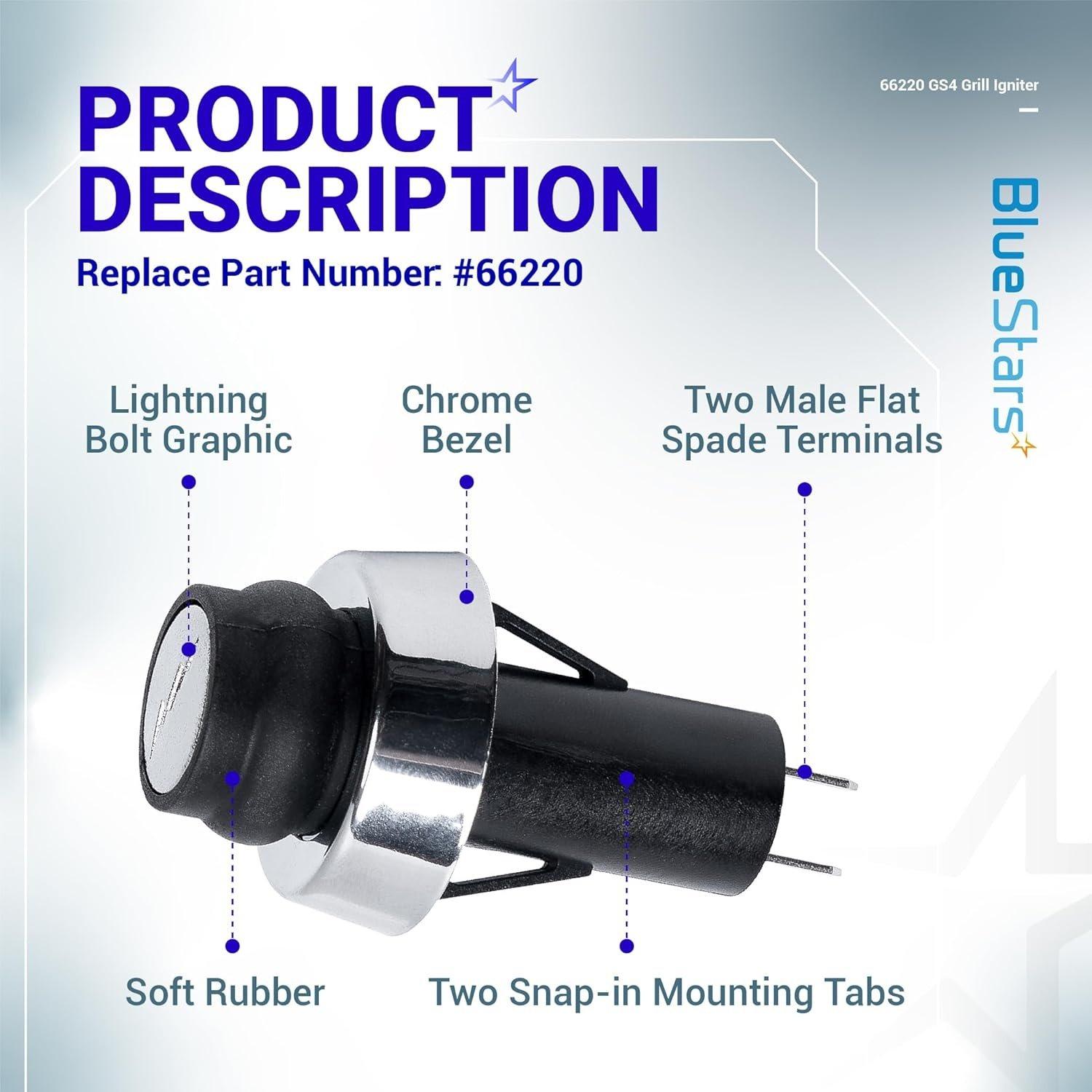

Key Features

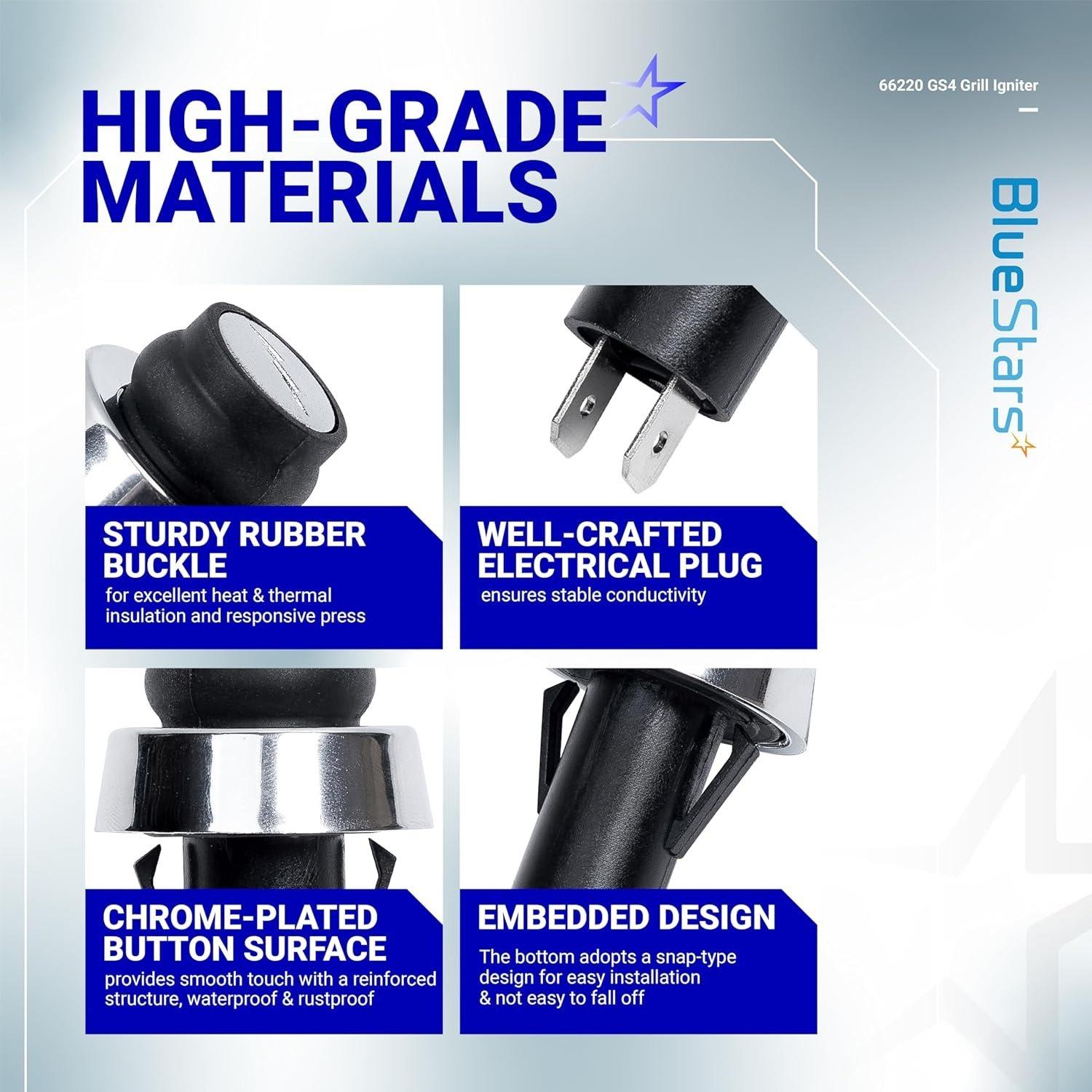

• Momentary push-button switch for grill ignition systems
• Durable ABS plastic body with a chrome-plated bezel
• Features a soft rubber push-button surface
• Two male flat spade terminals for wire connections
• Designed for snap-in mounting on the control panel

Replaces / Cross-Reference Part Numbers

• Weber: 66220

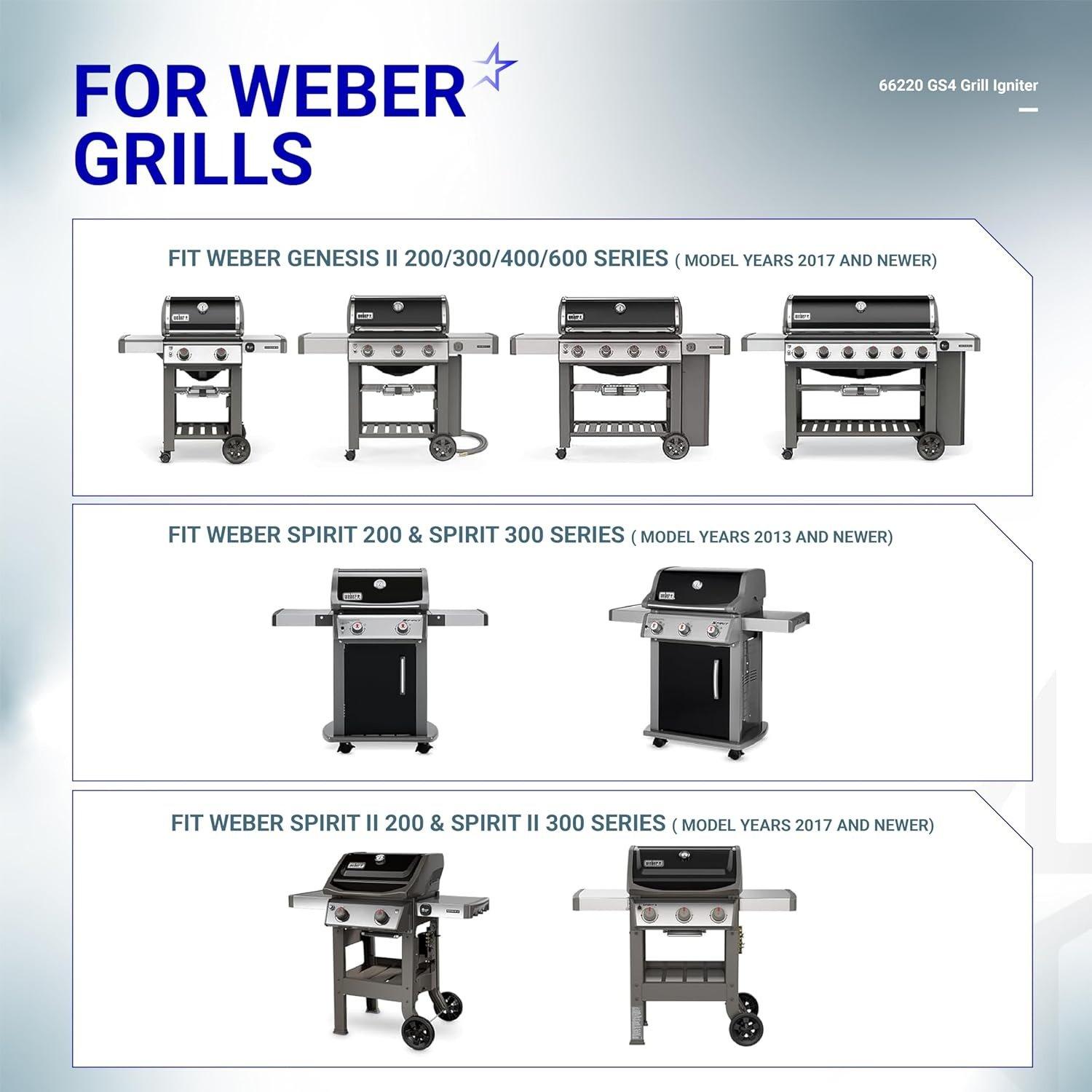

Compatibility & Fitment

• Fits Weber Genesis II series gas grills (2017 and newer)
• Fits Weber Spirit II series gas grills (2017 and newer)
• Compatible with models such as E-210, S-210, E-310, and S-310 with front-mounted controls

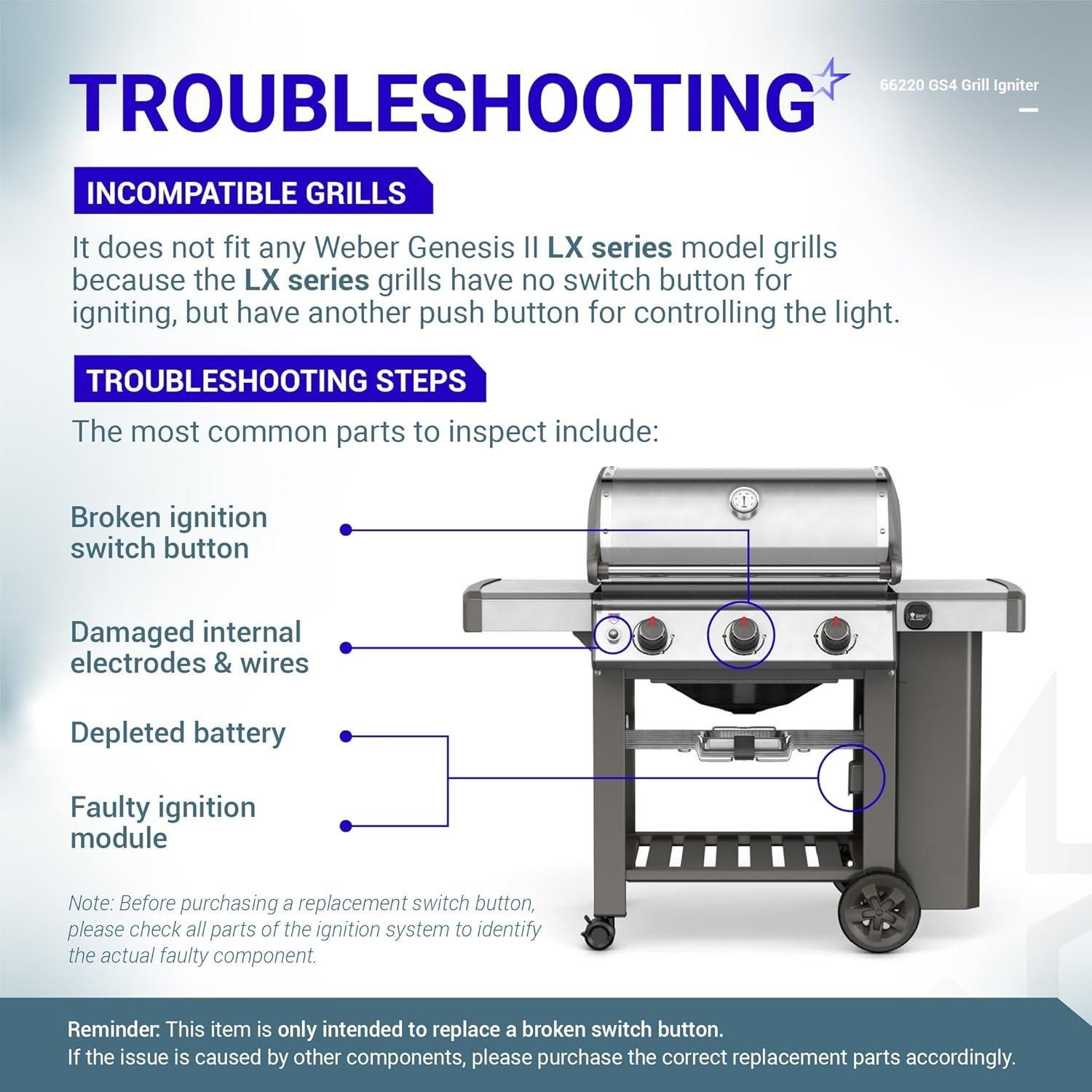

When to Replace

• The existing button is physically cracked, broken, or will not depress

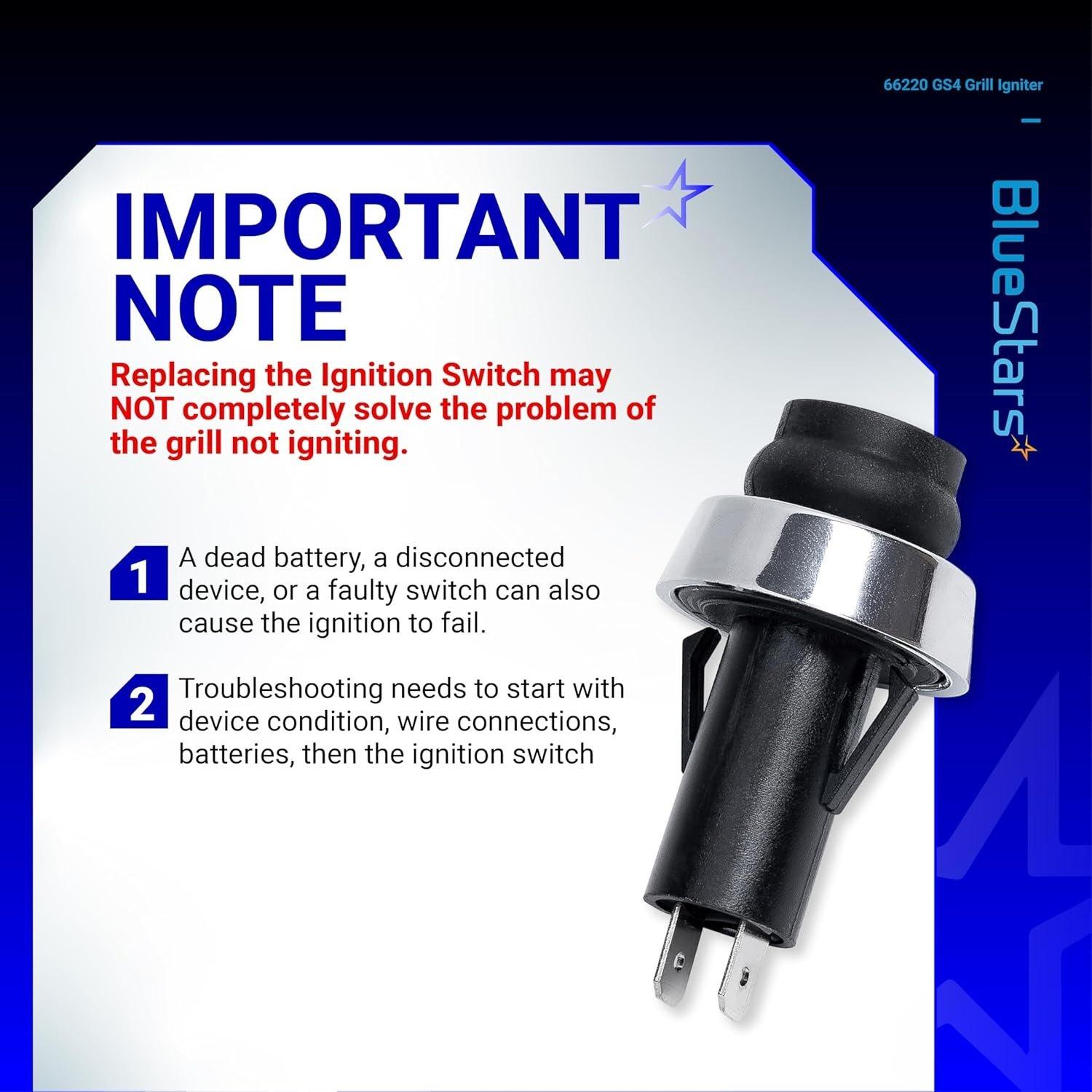

• Ignition fails to spark when the button is pressed (verify battery and igniter module first)
• The connection to the igniter module is loose or corroded at the switch terminals
• Ignition functions intermittently when the button is used

Installation Tips

• Disconnect the gas supply and ensure the grill is cool before beginning work
• Access the back of the control panel to disconnect the two wire leads from the old switch
• Gently depress the locking tabs on the old switch to remove it from the control panel
• Insert the new switch into the panel opening until it snaps securely in place
• Reconnect the two wire leads to the flat spade terminals on the new switch
