AZ0079908

[Lifetime Warranty] W10189703 Refrigerator Evaporator Fan Motor - Compatible with Whirlpool Maytag Kenmore Refrigerators - Replaces WPW10189703 W10208121 2219647 AP6016598 10449505

Sold 20,179

Difficulty Icon: Easy
Easy
More than 30 minutes

$23.40

$25.99

Save $2.59
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

W10189703 Refrigerator Evaporator Fan Motor

Key Features

  • Circulates air over evaporator coils to cool refrigerator and freezer compartments
  • Voltage: 115V
  • Frequency: 60Hz
  • Current: 0.135A
  • Speed: 3000 RPM

Replaces / Cross-Reference Part Numbers

  • WPW10189703
  • PS11749890
  • W10208121
  • 4389146
  • 2219647

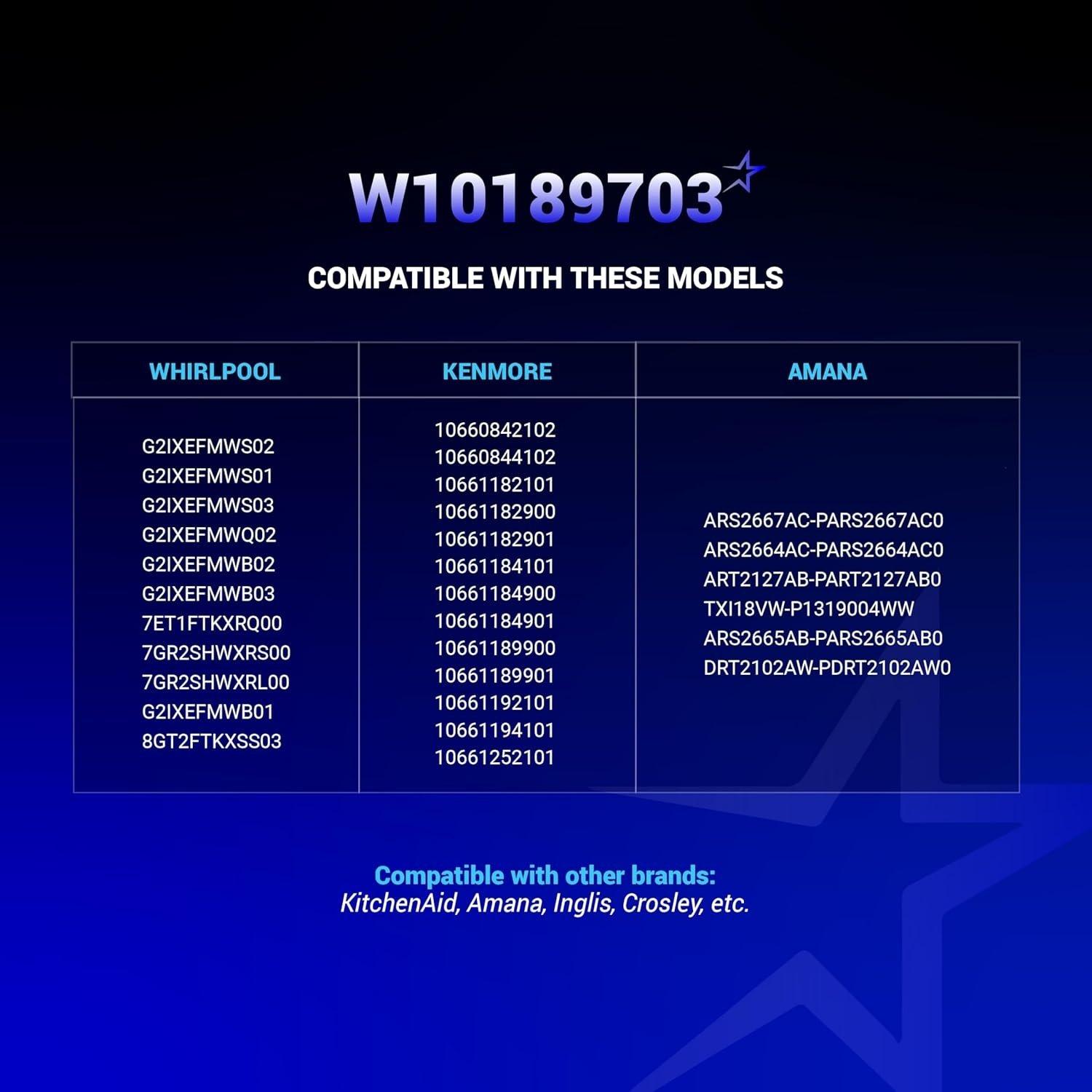

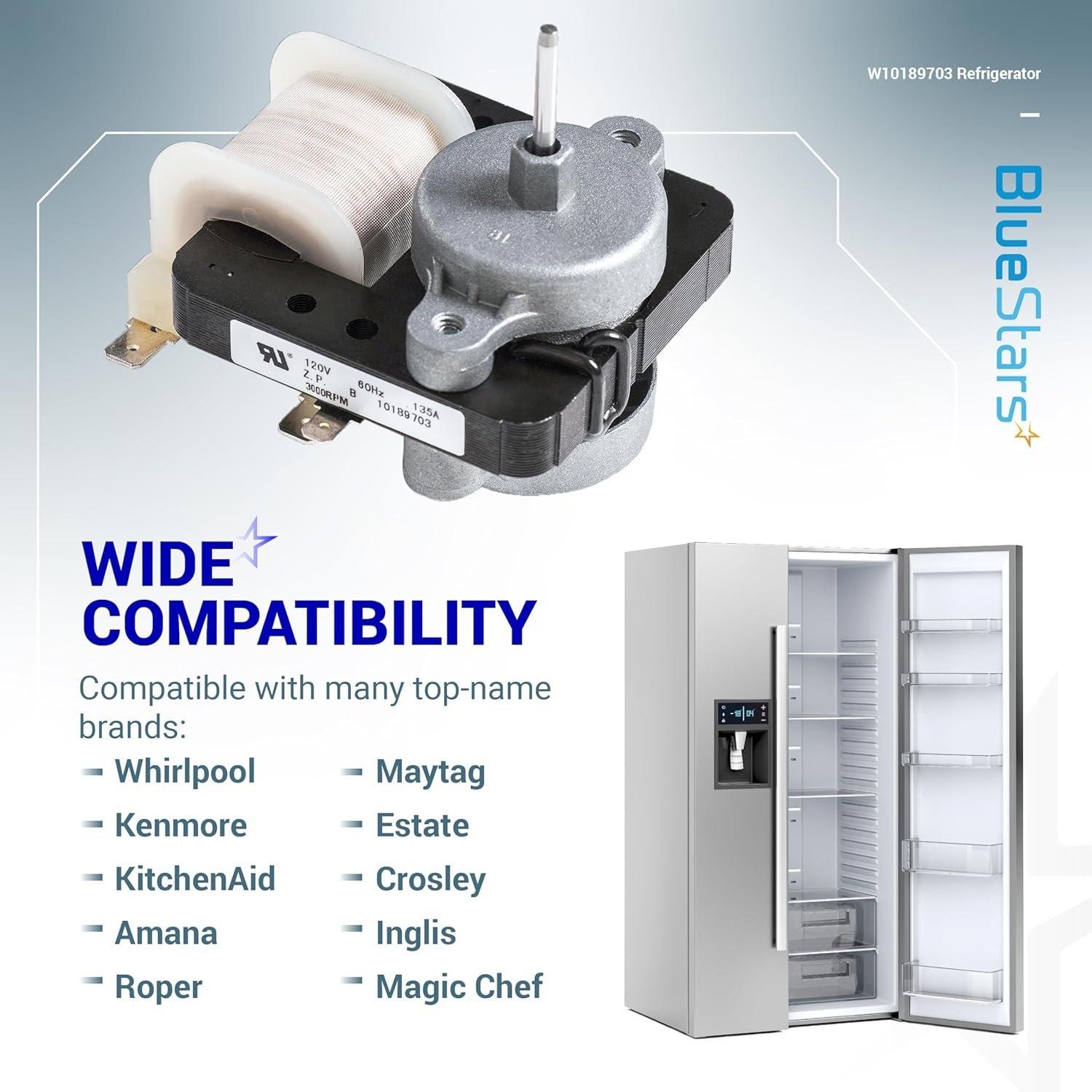

Compatibility & Fitment

Direct replacement for various refrigerator models from brands including:
  • Whirlpool
  • Kenmore
  • Maytag
  • Amana
  • Roper

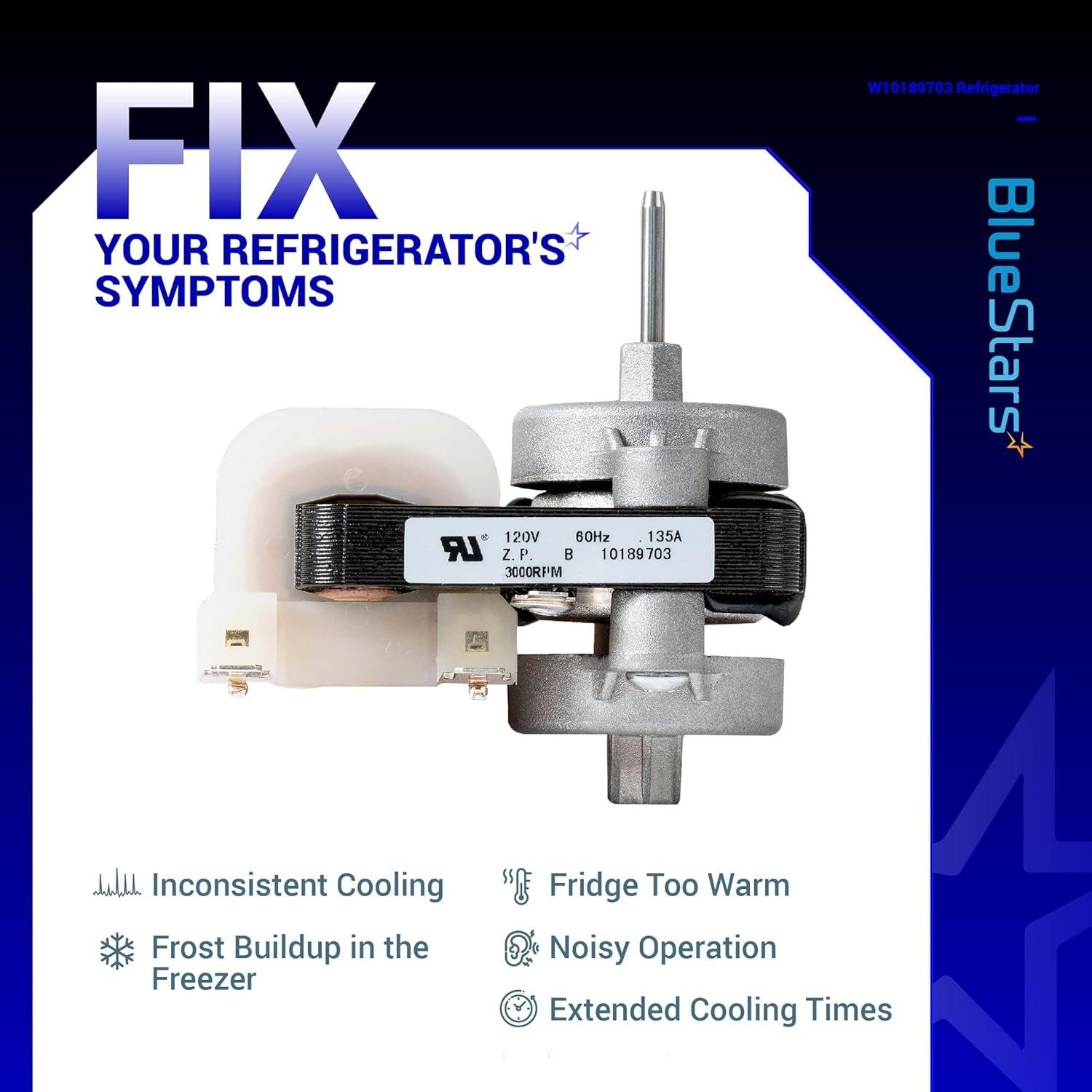

When to Replace

Consider replacement if you observe the following symptoms:
  • Refrigerator compartment is warm while the freezer remains cold
  • Unusual noises (whirring, grinding, or rattling) from the freezer area
  • The fan motor does not run when the compressor is on
  • Inadequate cooling or temperature fluctuations

Installation Tips

  • Disconnect the refrigerator from its power source before starting the installation.
  • The evaporator fan is typically located behind an access panel inside the freezer compartment.
  • Have towels ready to manage any frost or ice melt during the process.
  • Note the orientation and connection of wires before removing the old motor.
