[Lifetime Warranty] 154827601 Door Seal, 809006501 Lower Seal, 154701001 Splash Shield Kit - Compatible with Frigidaire Kenmore Crosley Dishwashers - Replaces AP5690109 AP5809675 AP4338941

154827601 Door Seal, 809006501 Lower Seal, 154701001 Splash Shield Kit

Key Features

• Complete kit designed to prevent water leakage from the bottom of the dishwasher door.
• Creates a watertight seal between the dishwasher tub and the door.

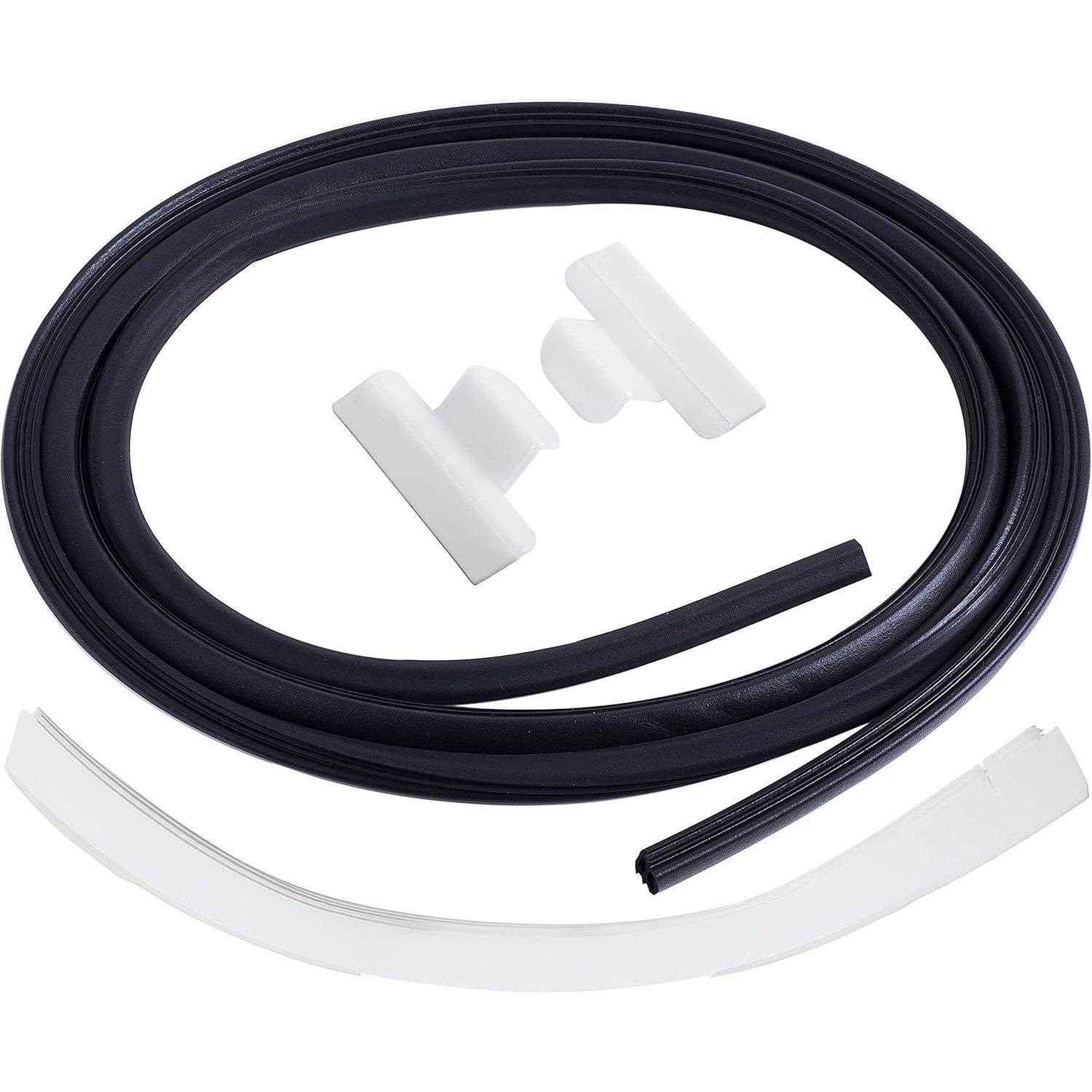

• Includes one main door seal, one lower door seal, and a two-piece splash shield kit.

Replaces / Cross-Reference Part Numbers

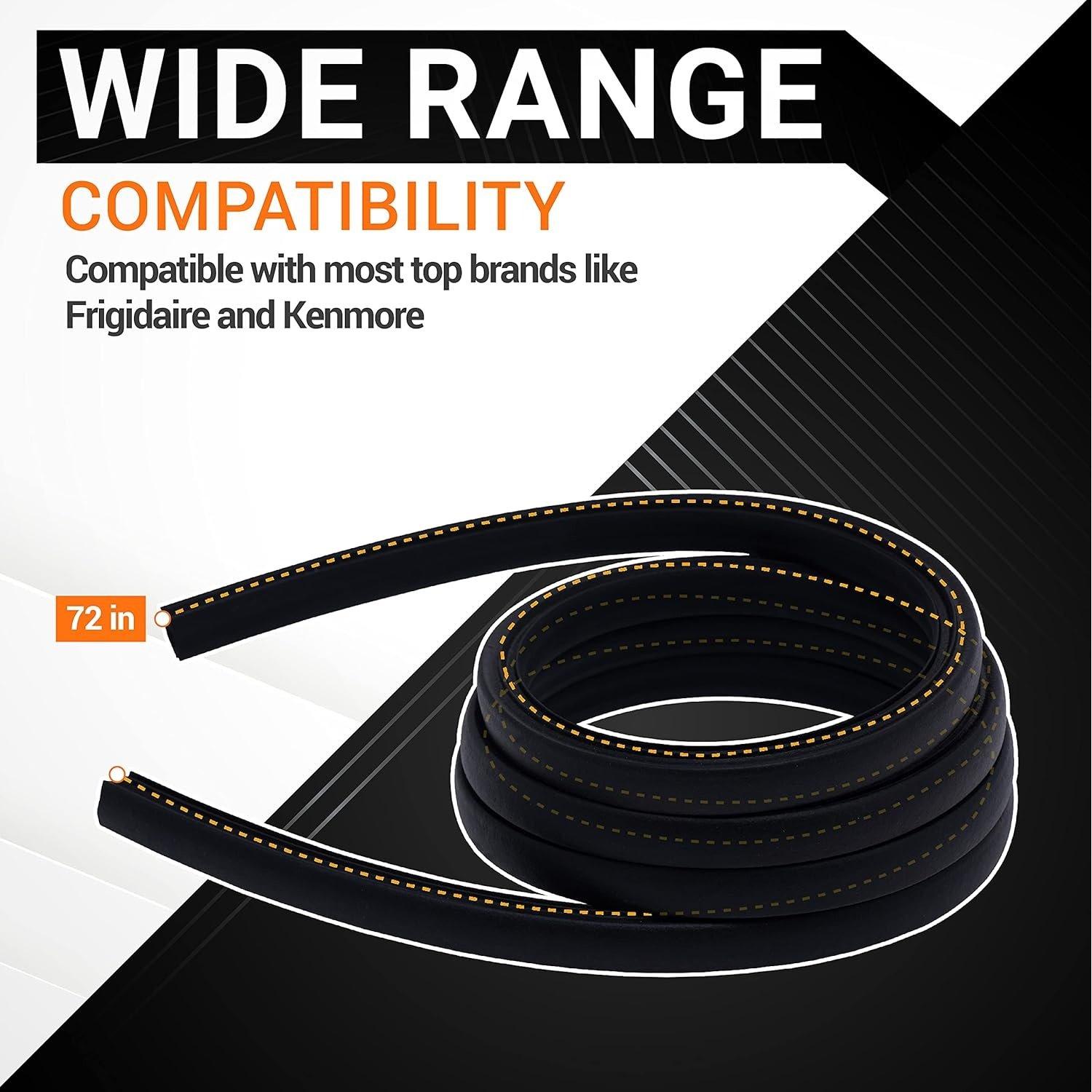

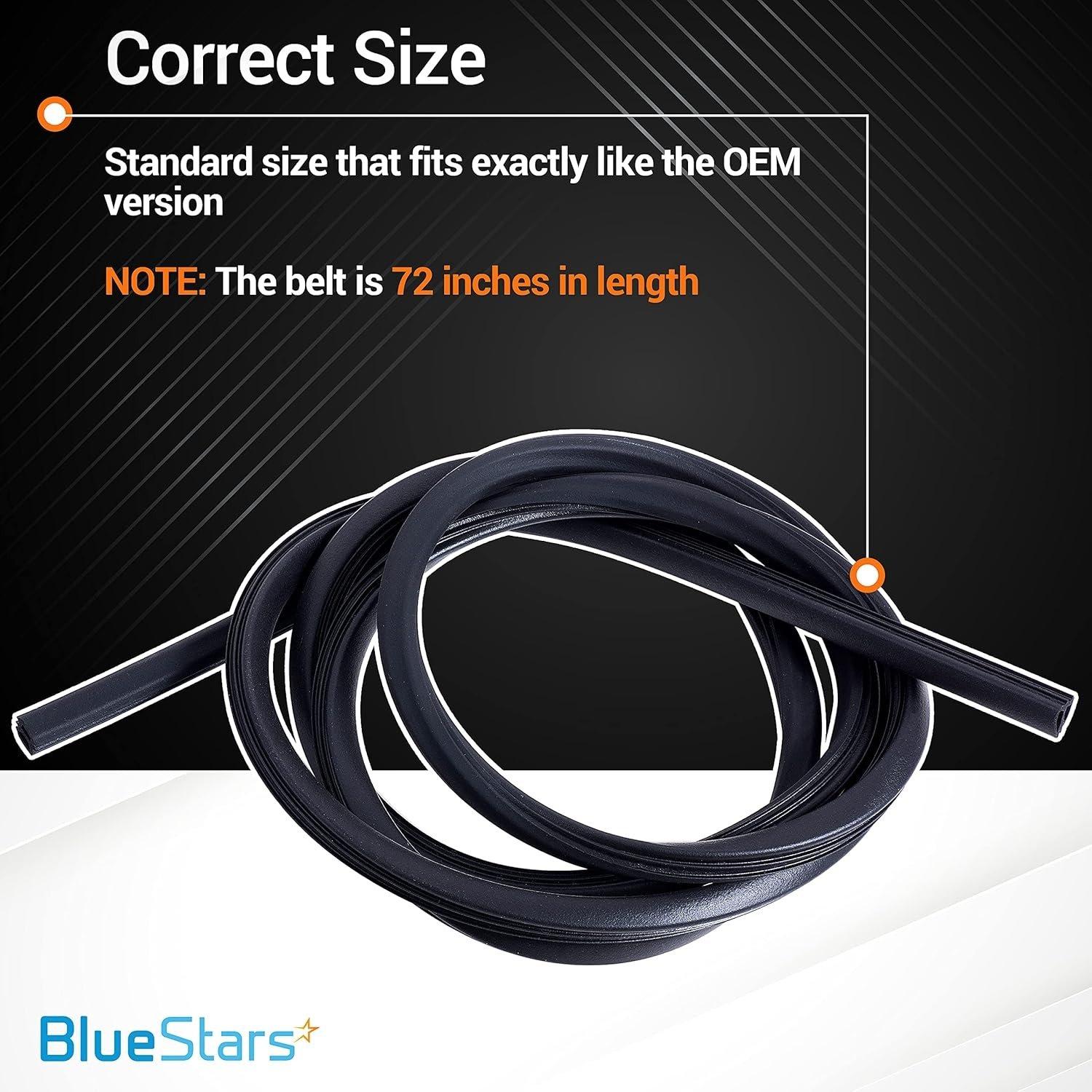

• Door Seal: 154827601
• Lower Seal: 809006501
• Splash Shield Kit: 154701001

Compatibility & Fitment

• Fits select dishwasher models from brands including Frigidaire, Kenmore, Electrolux, Gibson, Crosley, and Tappan.
• Verify compatibility by checking your appliance's original part numbers.

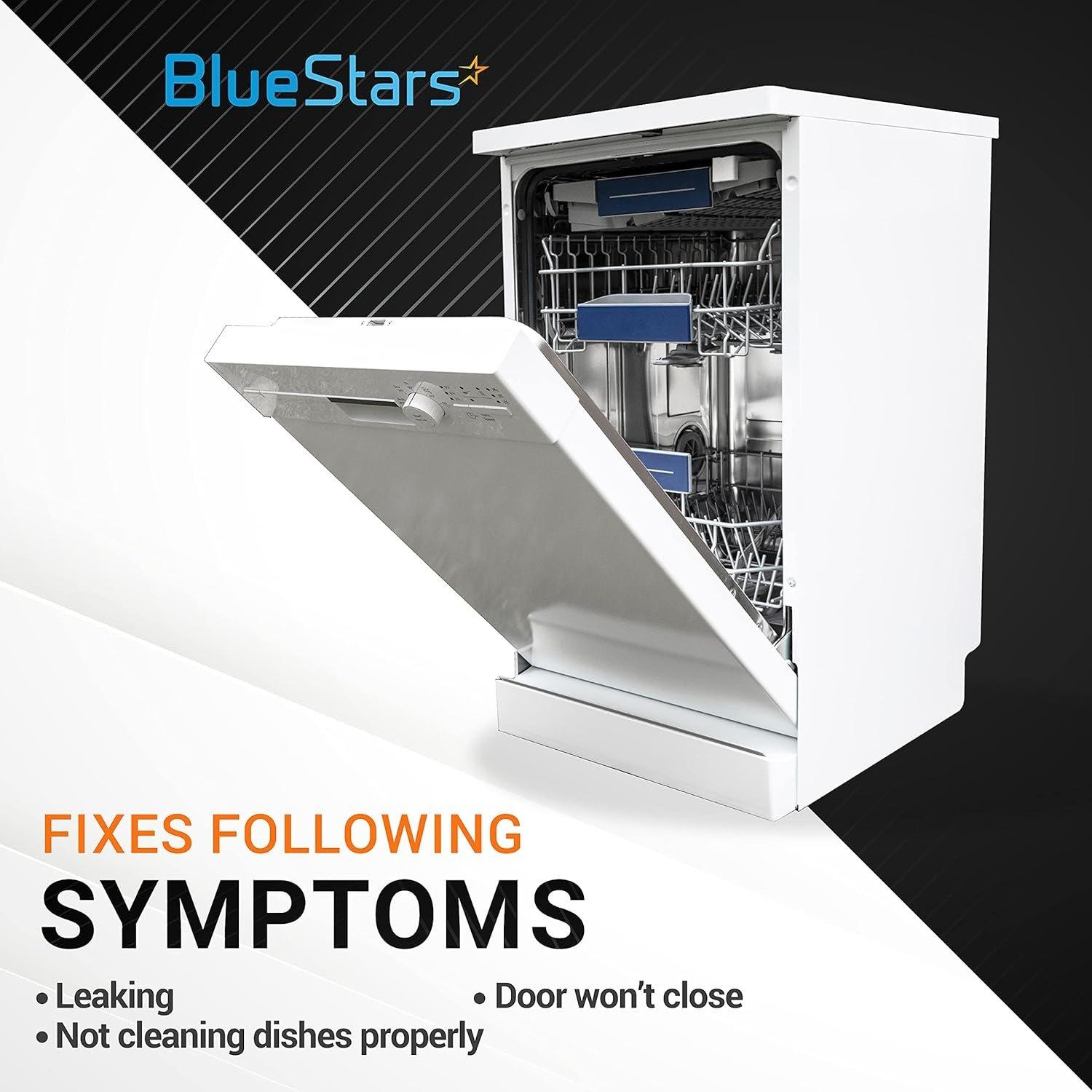

When to Replace

• Water is leaking from the bottom of the dishwasher door.
• Existing seals are cracked, brittle, torn, or show visible signs of wear.
• A puddle of water forms in front of the dishwasher after a cycle.

Installation Tips

• Disconnect the dishwasher from its power and water supply before beginning installation.
• Remove the old gasket and thoroughly clean the channel to remove any residue or debris.

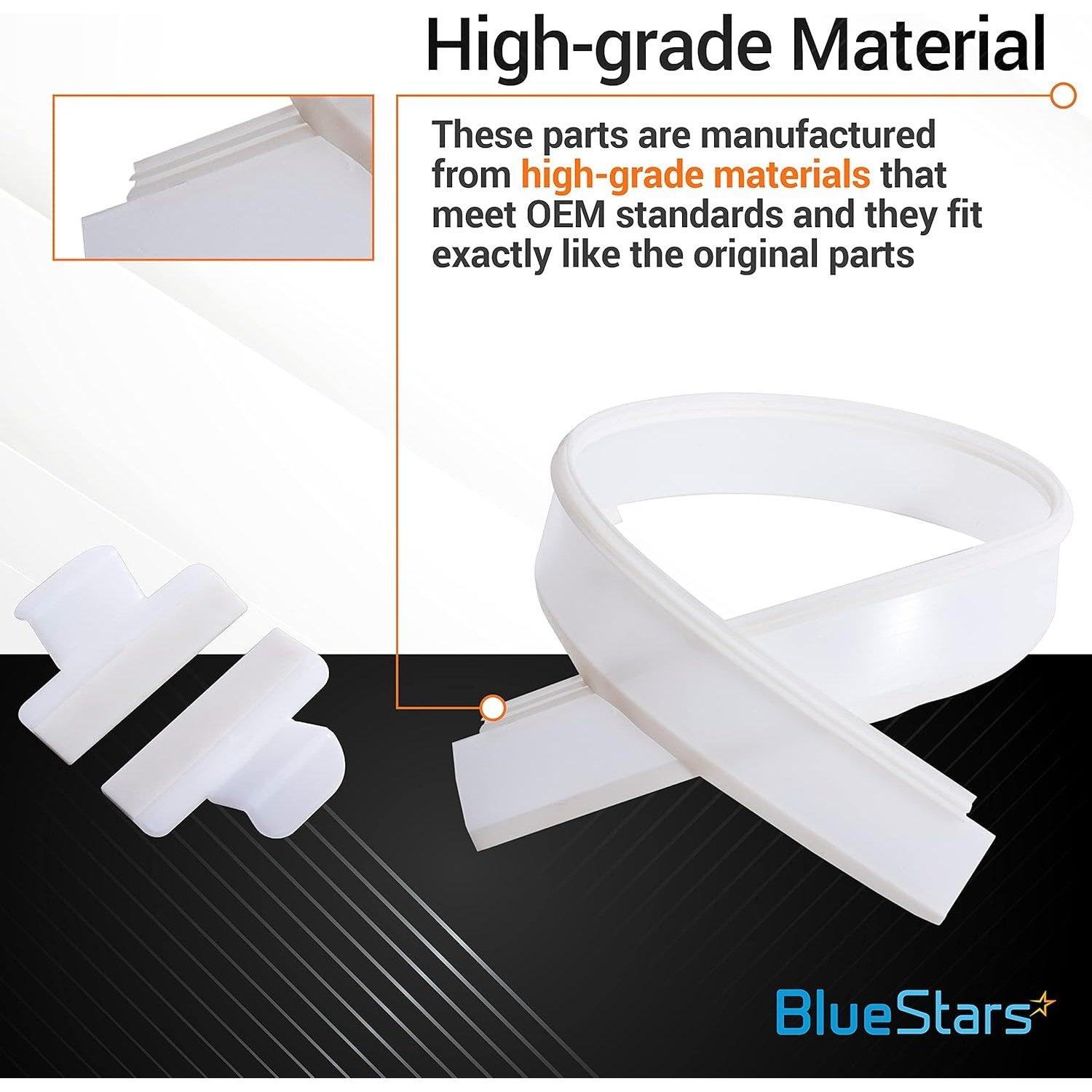

• The two splash shields install at the bottom corners of the tub opening.
• Ensure the new seals are fully seated in their respective channels for a proper fit.
