[Lifetime Warranty] WH03X30517 Washer Shift Actuator - Compatible with GE and Hotpoint Washing Machines - Replaces WH05X25036, WH05X24435, PS16554752, AP7014559, 290D1056G001, 4961069

Difficulty Icon: Easy
Easy
15 - 20 minutes
Out of Stock
This item is no longer available. Please contact our customer service for more information
puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.

Description

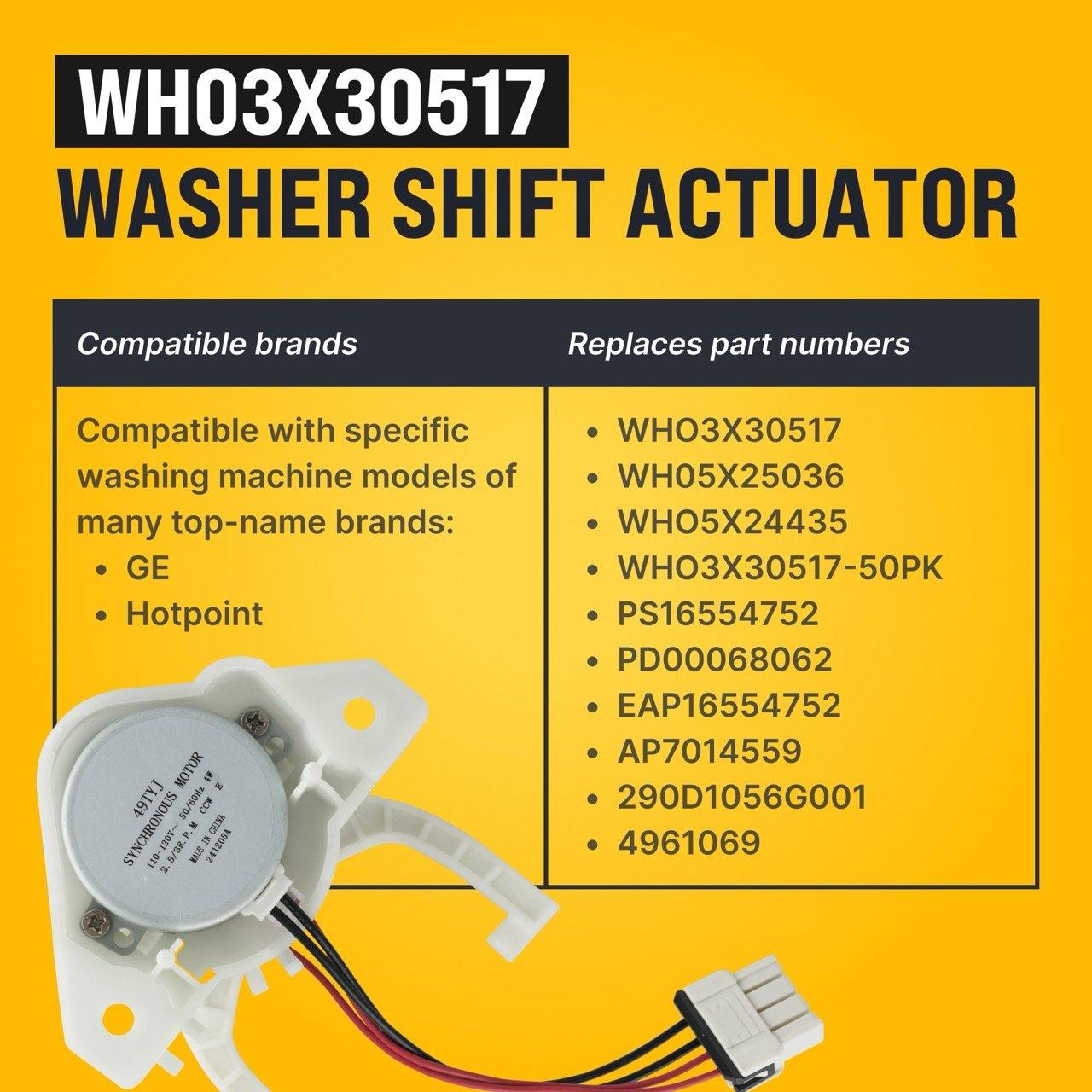

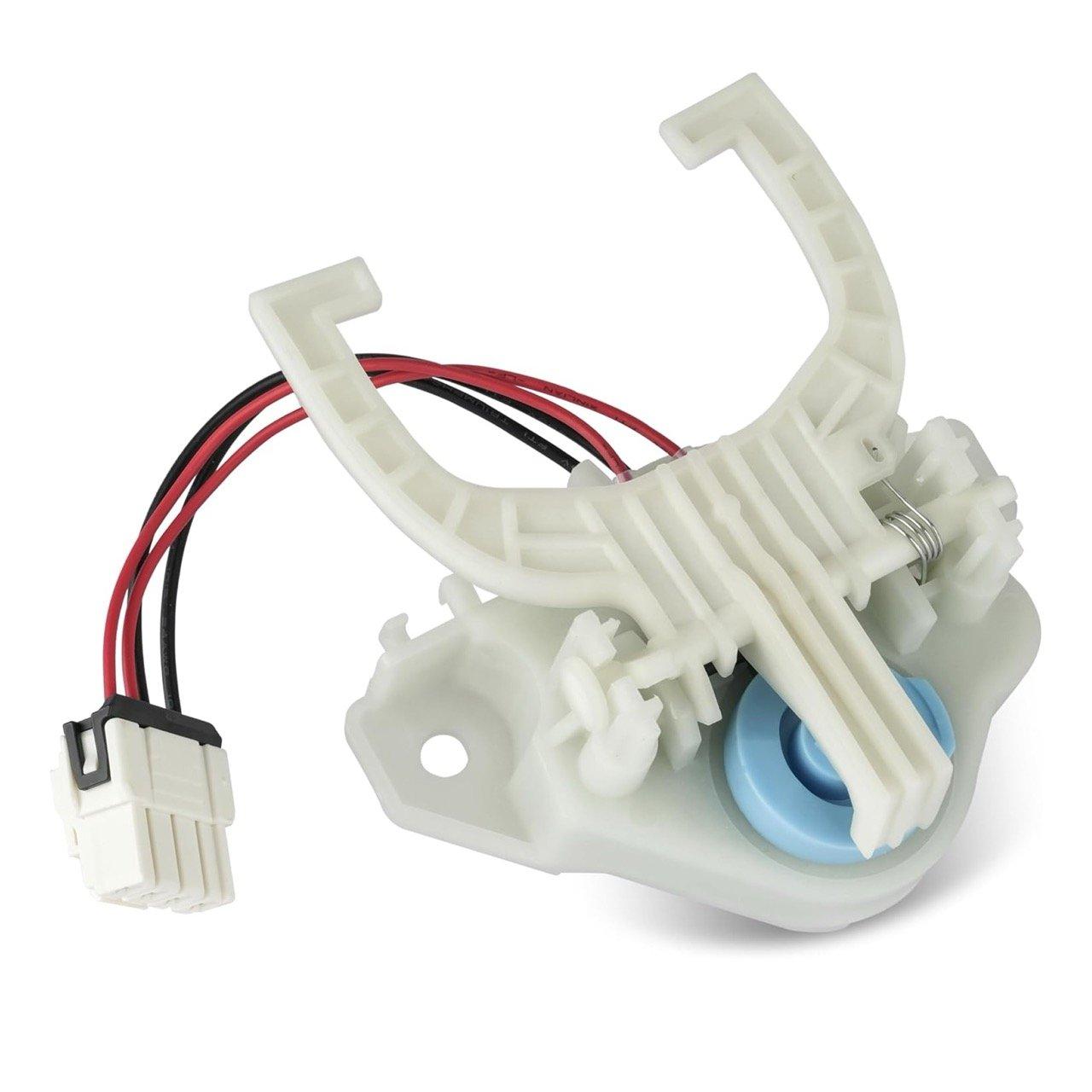

WH03X30517 Washer Shift Actuator

Key Features

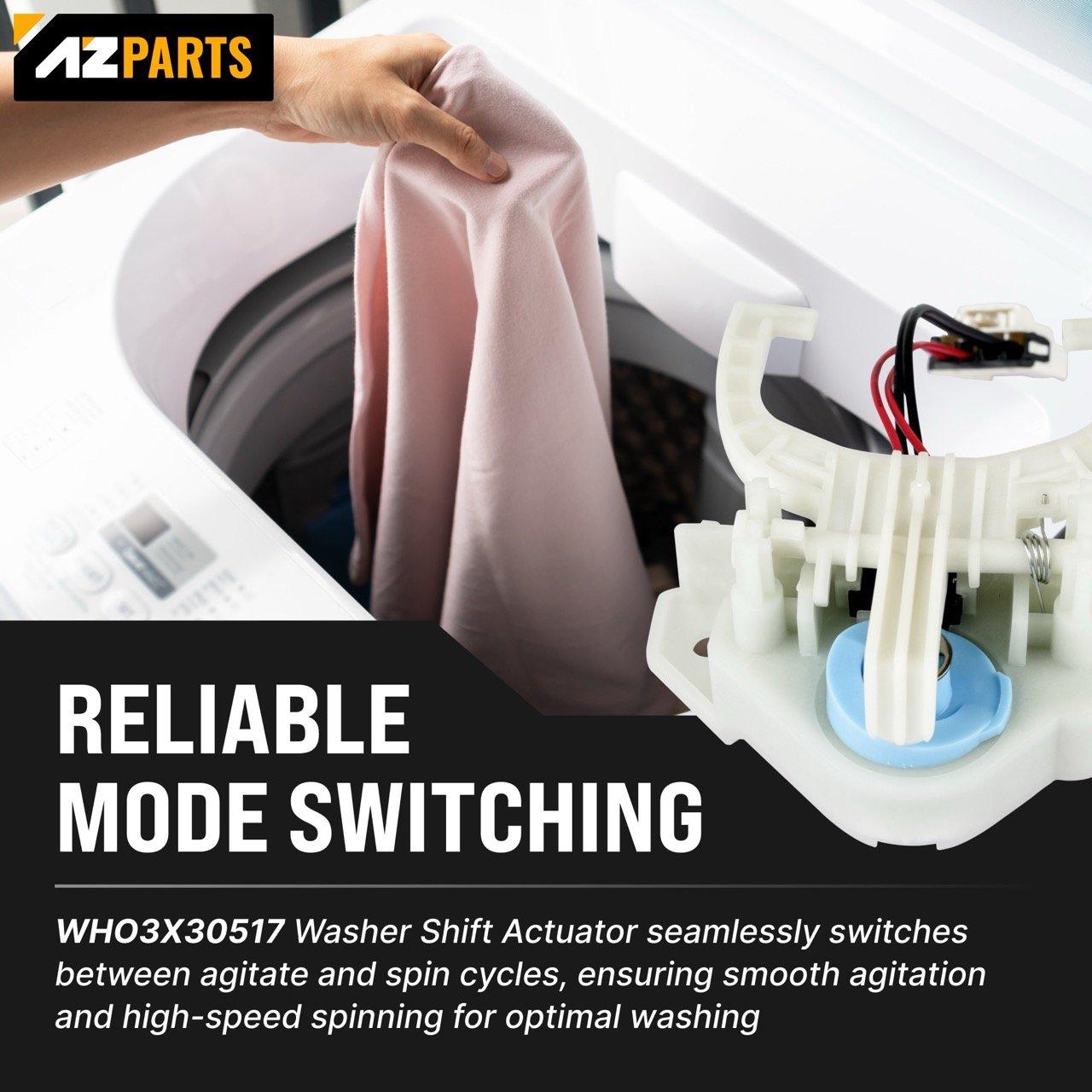

  • Controls the washer's transmission, shifting between agitate and spin cycles
  • Manages the movement of the inner tub and agitator
  • Direct replacement for specified original equipment part numbers
  • Designed for top-loading washing machine models

Replaces / Cross-Reference Part Numbers

  • WH05X25036
  • WH05X24435
  • WH05X24185
  • AP7014559

Compatibility & Fitment

  • Fits specific GE top-loading washing machines
  • Example compatible models include: GTW220ACK1WW, GTW220ACK2WW, GTW220ACK3WW, GTW220ACK4WW, GTW465ASN2WW
  • Verify compatibility with your appliance's model number before ordering

When to Replace

  • Washer fails to agitate or spin
  • Washer stops mid-cycle
  • Loud or unusual noises during cycle transitions
  • Appliance displays error codes related to the mode shifter or transmission

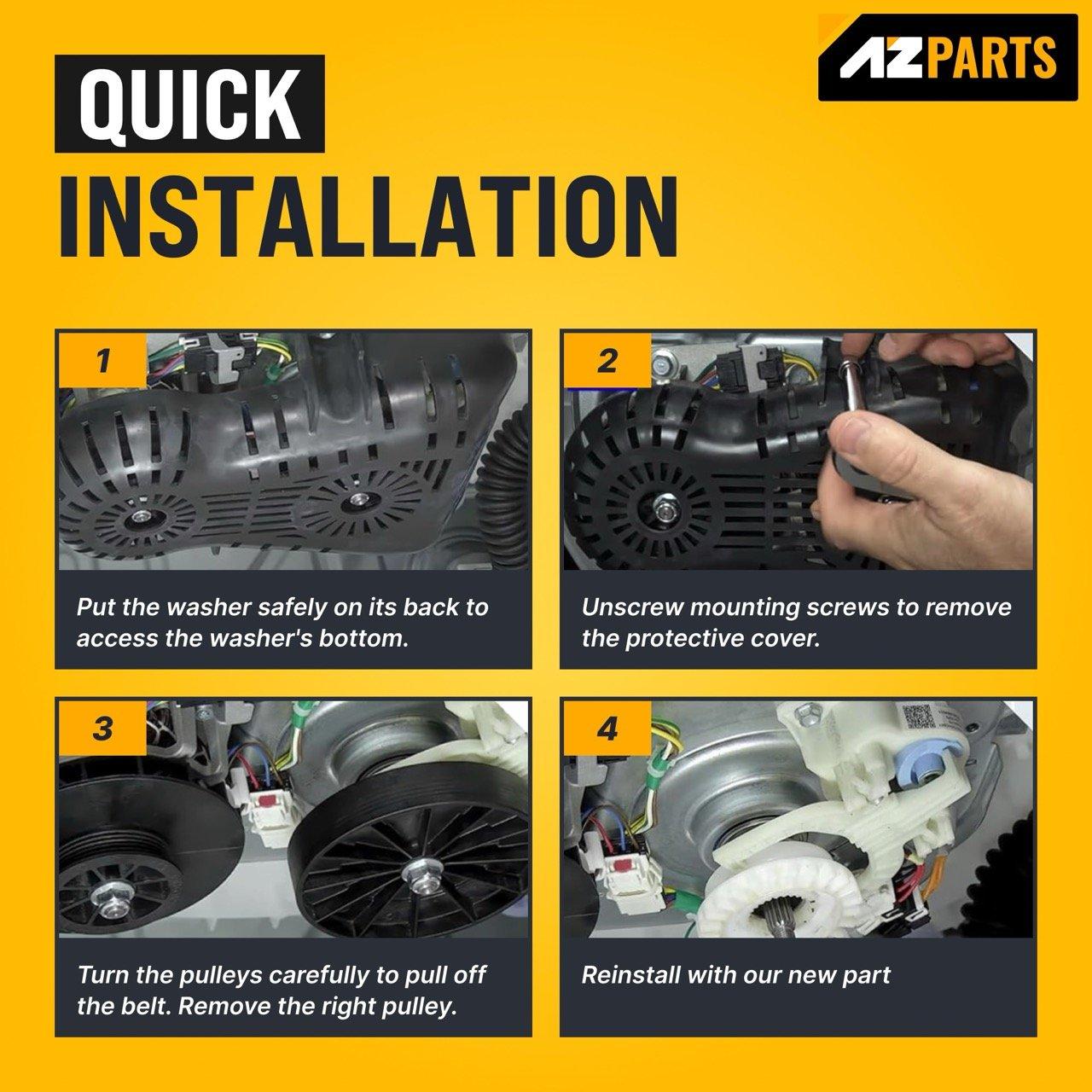

Installation Tips

  • Disconnect the washer from power and water sources before beginning the repair
  • Tilt the washer to access the component from underneath the machine
  • The drive belt and pulley must be removed to access the shift actuator
  • Secure the new actuator with the original mounting screws
