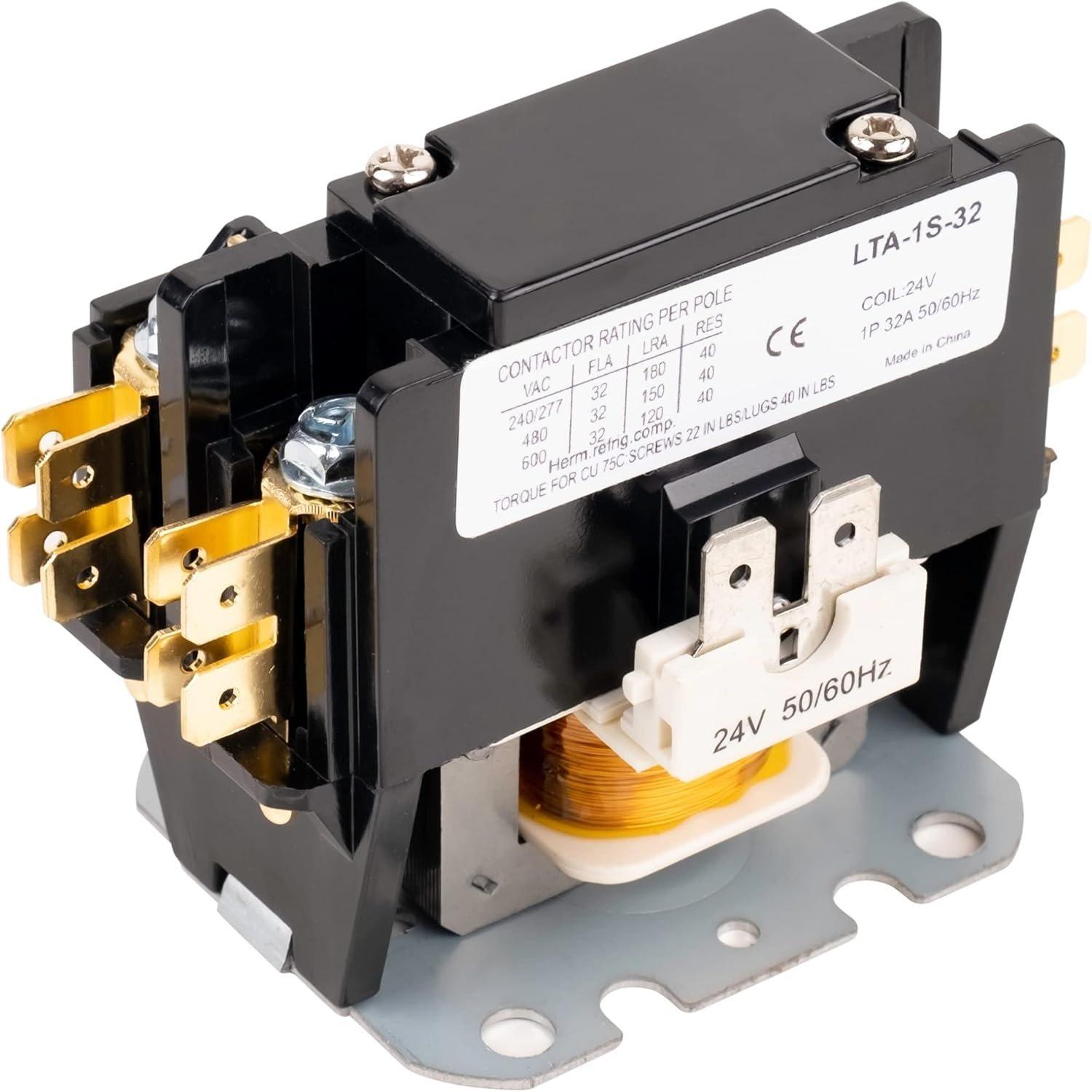

[Lifetime Warranty] 1 Pole Contactor 32 Amp 24VAC Coil

1 Pole Contactor 32 Amp 24VAC Coil

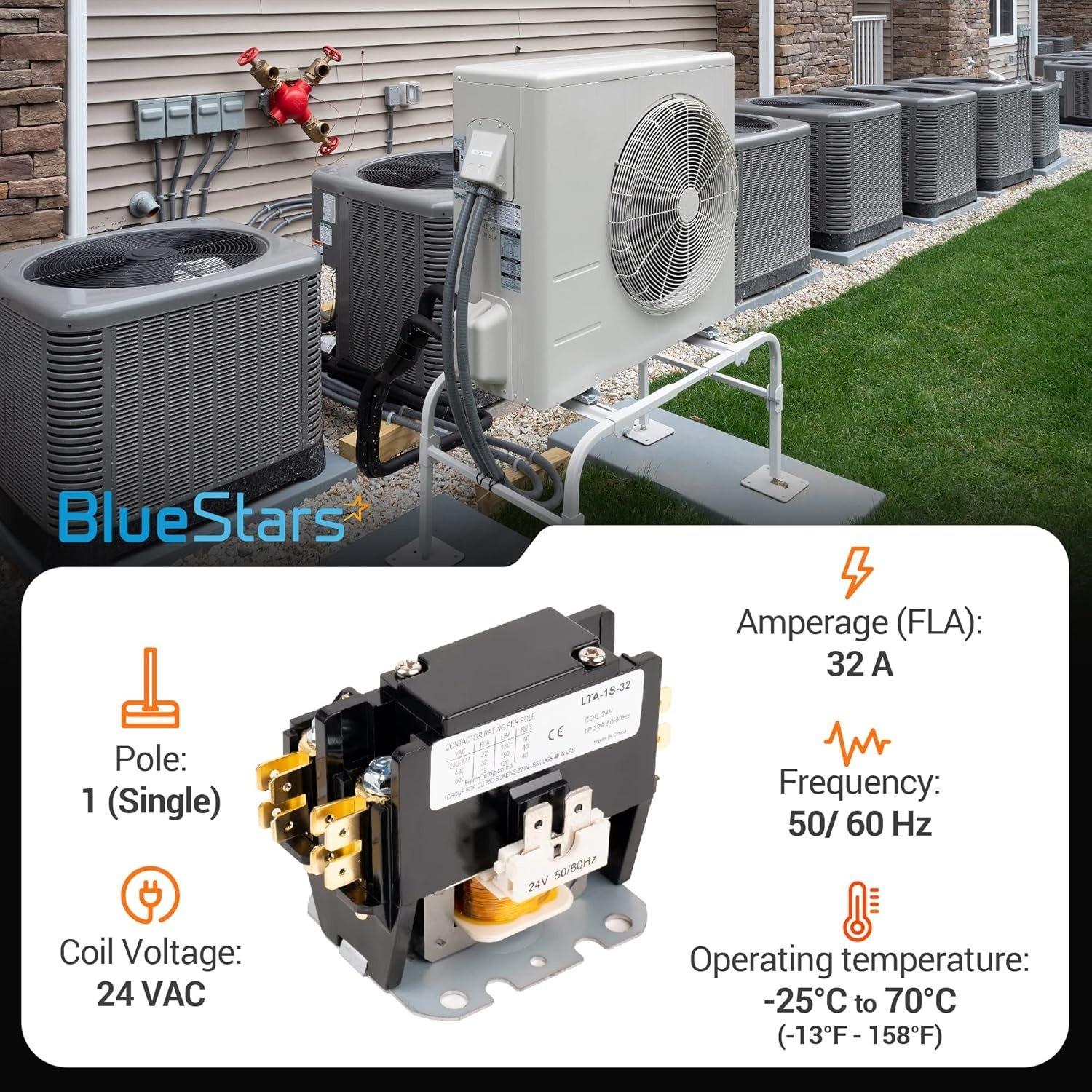

Key Features

• Poles: 1 (Single Pole)
• Full Load Amperage (FLA): 32A
• Coil Voltage: 24VAC, 50/60Hz
• Application: Definite Purpose (DP) for HVAC and motor control

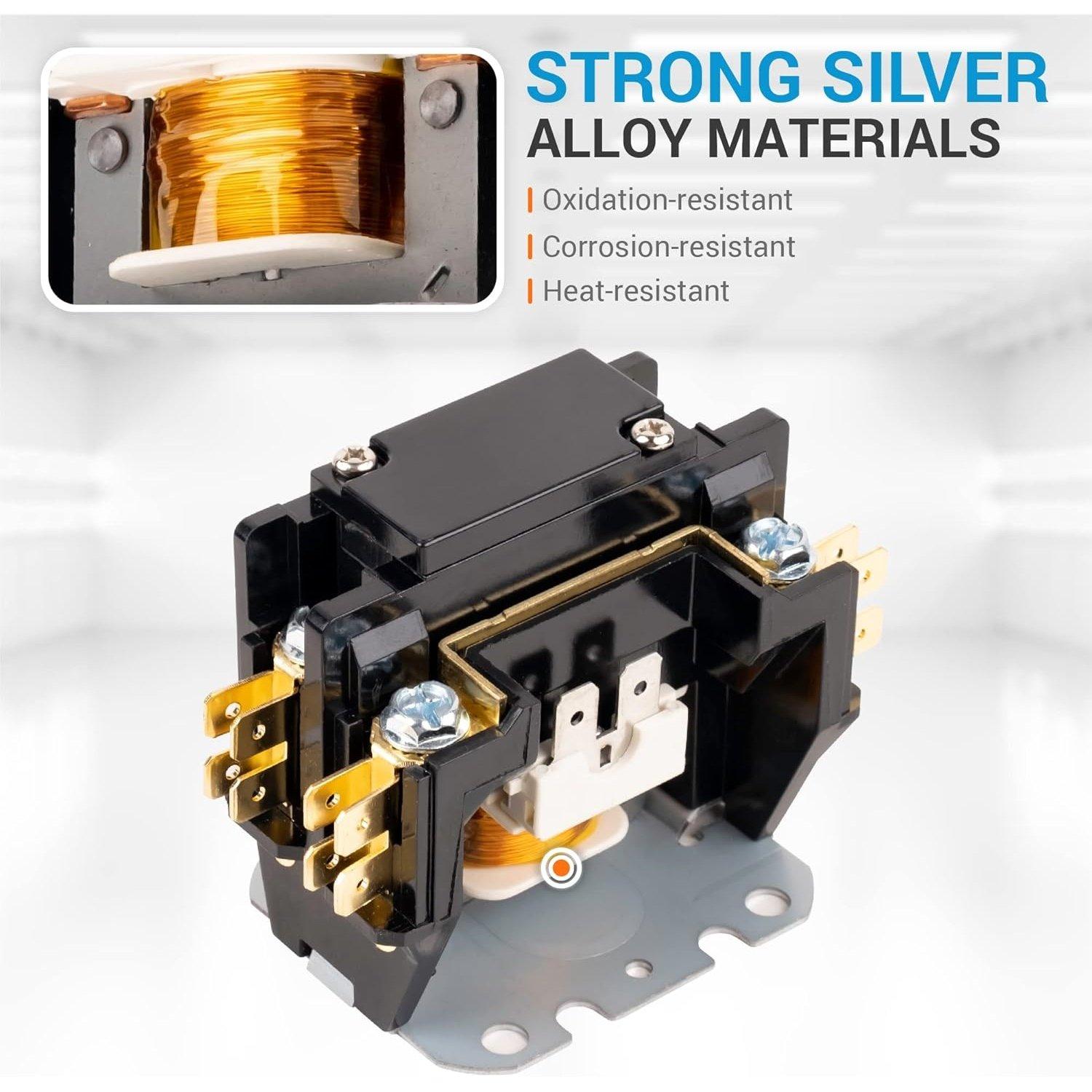

• Contact Material: Copper alloy
• Terminals: Screw and quick-connect
• Mounting: Panel mount with accessible mounting base

Replaces / Cross-Reference Part Numbers

• 42-109499-15
• DILM32-01
• MC-32A-22-AC24
• Durastar 1P-32A-24V

Compatibility & Fitment

• Designed for use in residential and commercial HVAC systems, including air conditioners and heat pumps.
• Suitable for controlling single-phase motors and other high-power loads such as refrigeration equipment, compressors, and resistive heating elements.

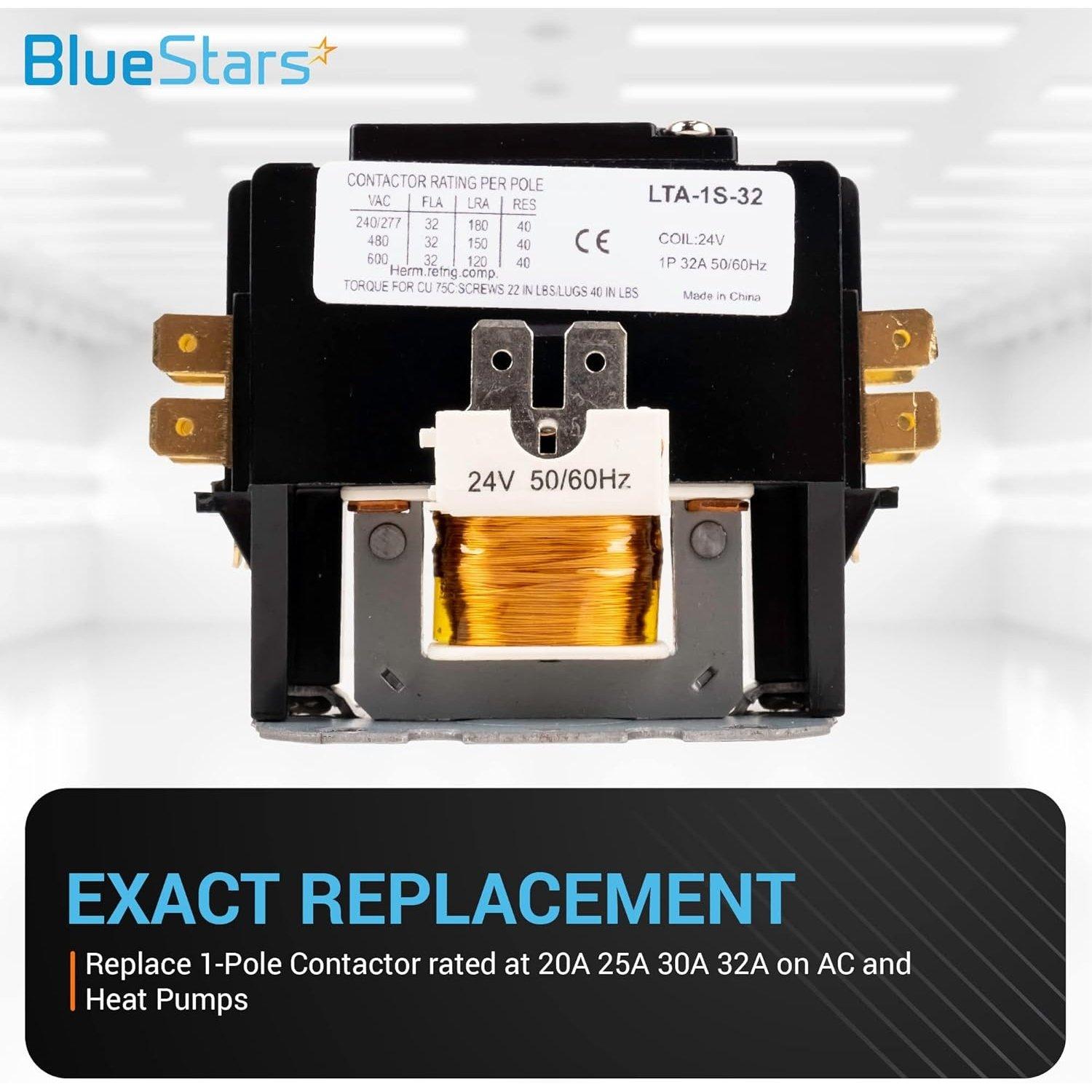

• Direct replacement for contactors with matching specifications: 1 pole, 32 Amp or lower rating, and a 24VAC control circuit.

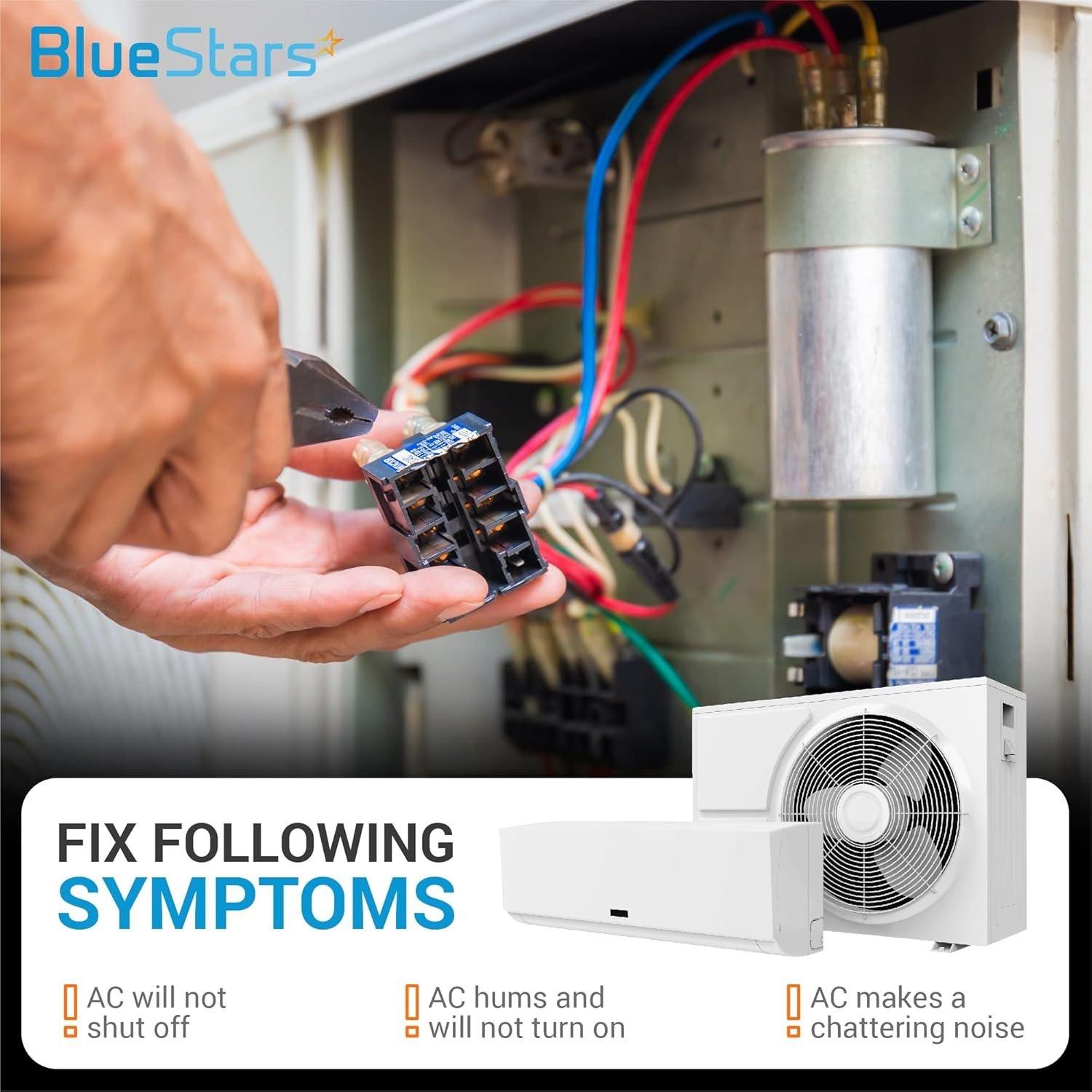

When to Replace

• Outdoor condenser unit fails to start when the thermostat calls for cooling.
• A loud, continuous buzzing or humming noise from the outdoor unit.
• Visible damage to the contactor, including burnt terminals, pitting on contacts, or melted casing.
• The contactor plunger is physically stuck in the engaged (pulled-in) or disengaged position.

Installation Tips

• Disconnect all electrical power at the breaker panel and service disconnect before beginning installation.
• Use a multimeter to verify that no voltage is present in the unit.
• Photograph or label all wires before disconnecting them from the original contactor to ensure correct placement on the new part.
• Confirm the new contactor's amperage rating meets or exceeds that of the original component.
• Ensure all electrical connections are tight and secure to prevent overheating and arcing.
