[Lifetime Warranty] 15 Amp Electrical USB Wall Charger Outlet - Pack of 2

Electrical USB Wall Charger Outlet 15 Amp USB Type C & Type A High-Speed Charging with Tamper-Resistant Shutter and Screwless Wall Plate Included

Key Features

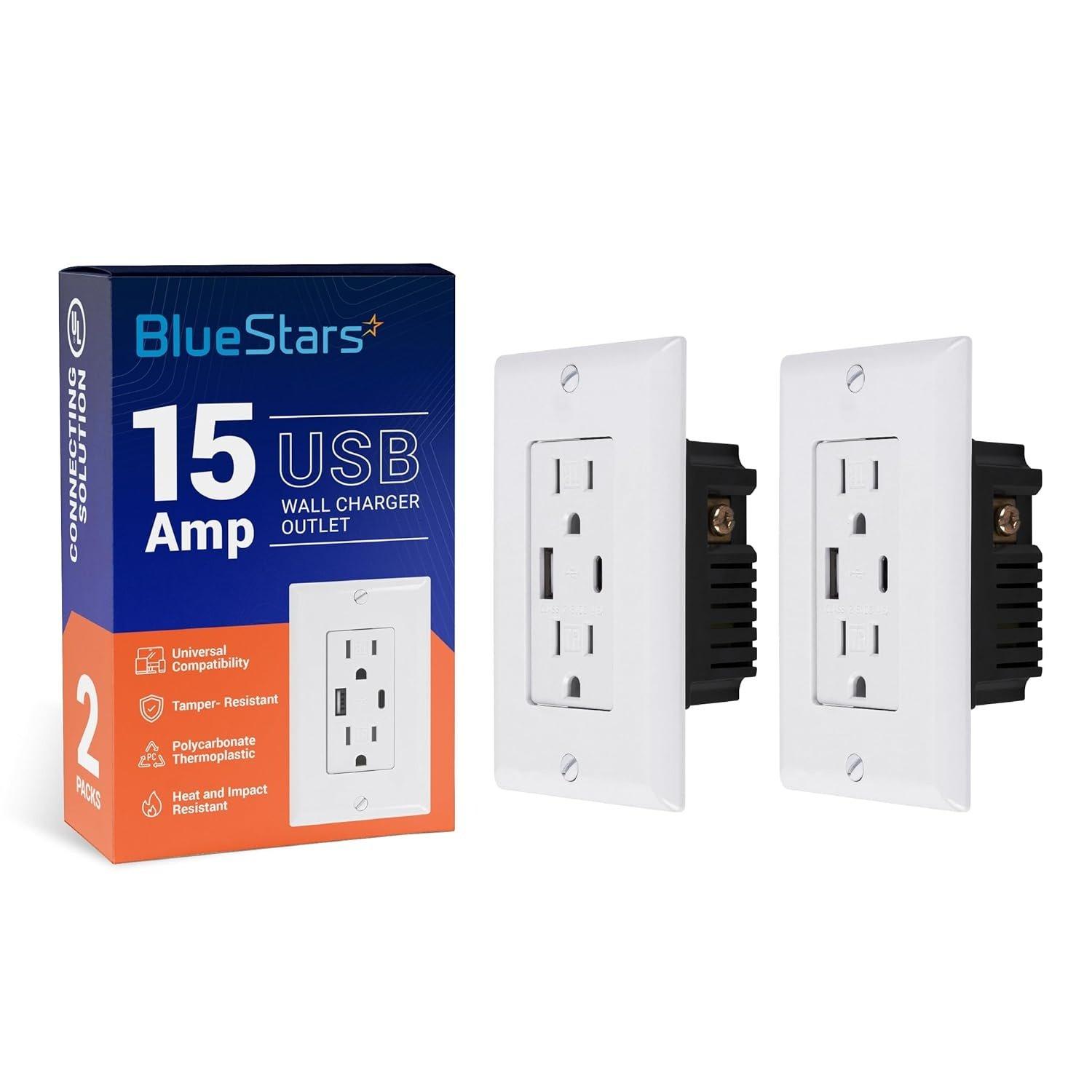

• Package includes two (2) USB charger outlets and two (2) screwless wall plates.
• Electrical Rating: 15 Amp, 125 Volt AC, 60Hz.

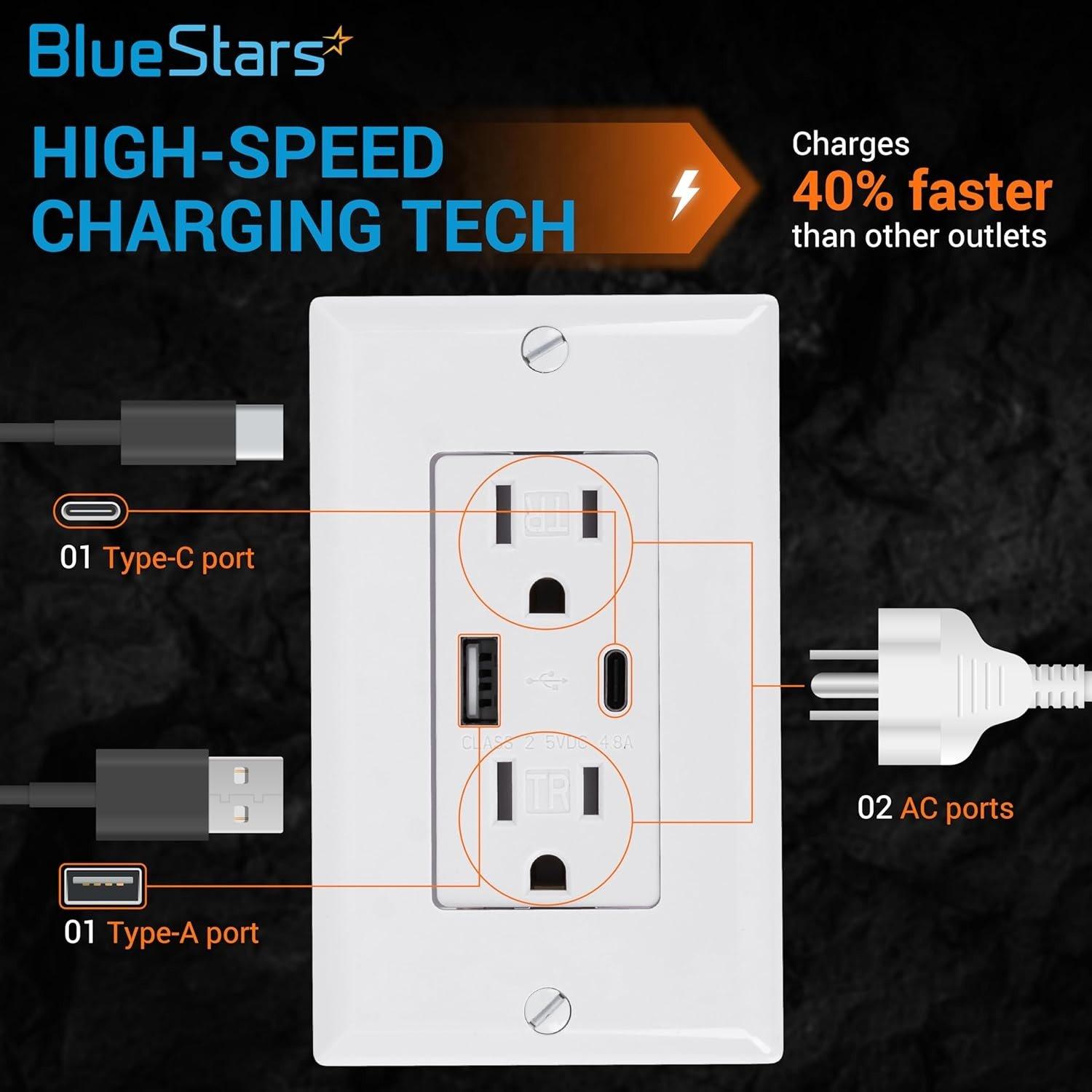

• USB Output: One USB Type-A port and one USB Type-C port with a combined total output of 4.2 Amp, 5V DC.
• Safety mechanism with tamper-resistant shutters to block foreign objects.
• Certified as UL Listed for safety and compliance.

Replaces / Cross-Reference Part Numbers

• Serves as an upgrade or direct replacement for standard 15A duplex wall receptacles.
• Replaces any standard NEMA 5-15R outlet in a single-gang box.

Compatibility & Fitment

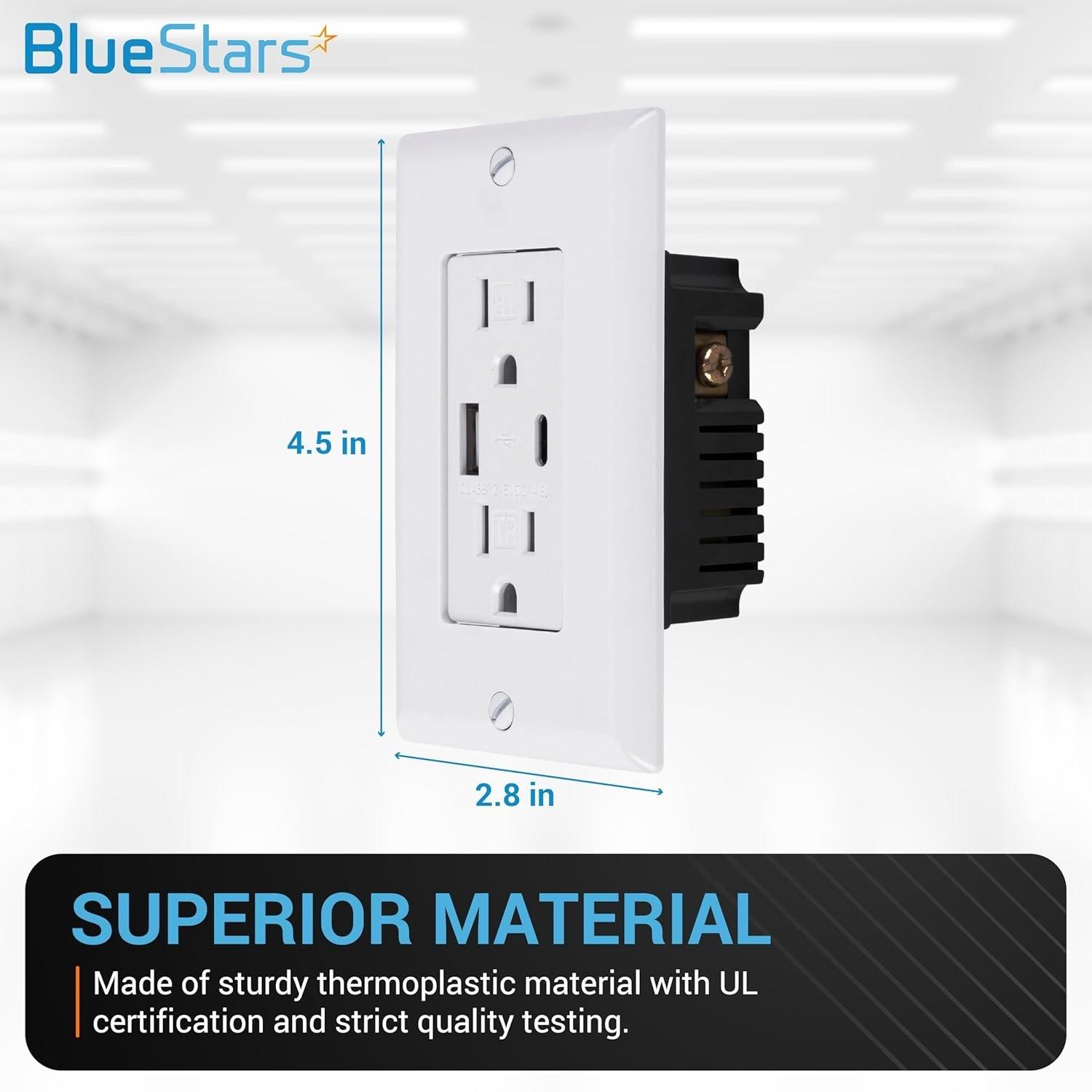

• Fits standard single-gang electrical wall boxes.
• Accepts standard NEMA 5-15 plugs for the AC receptacles.
• USB ports are compatible with devices that charge via USB Type-A or USB Type-C, including smartphones, tablets, and other electronic devices.
• Designed for use with standard residential copper wiring (14 AWG or 12 AWG).

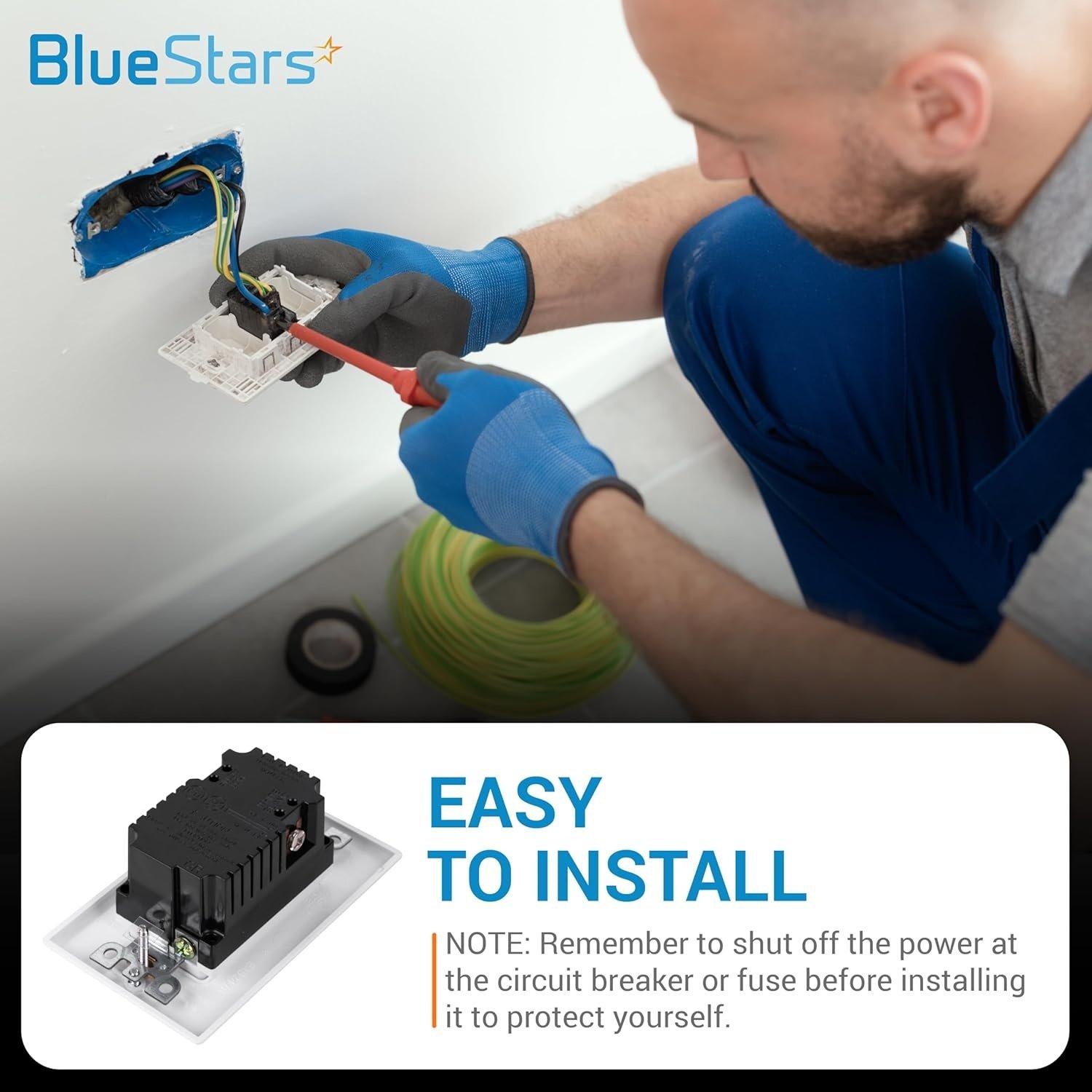

Installation Tips

• CAUTION:Turn off power at the circuit breaker before installation.
• Verify the circuit is de-energized using a voltage tester.
• Ensure the electrical box has adequate depth to accommodate the larger body of the USB outlet.
• Connect wires according to the included diagram: hot (black), neutral (white), and ground (green/bare).
• Installation by a qualified electrician is recommended.
