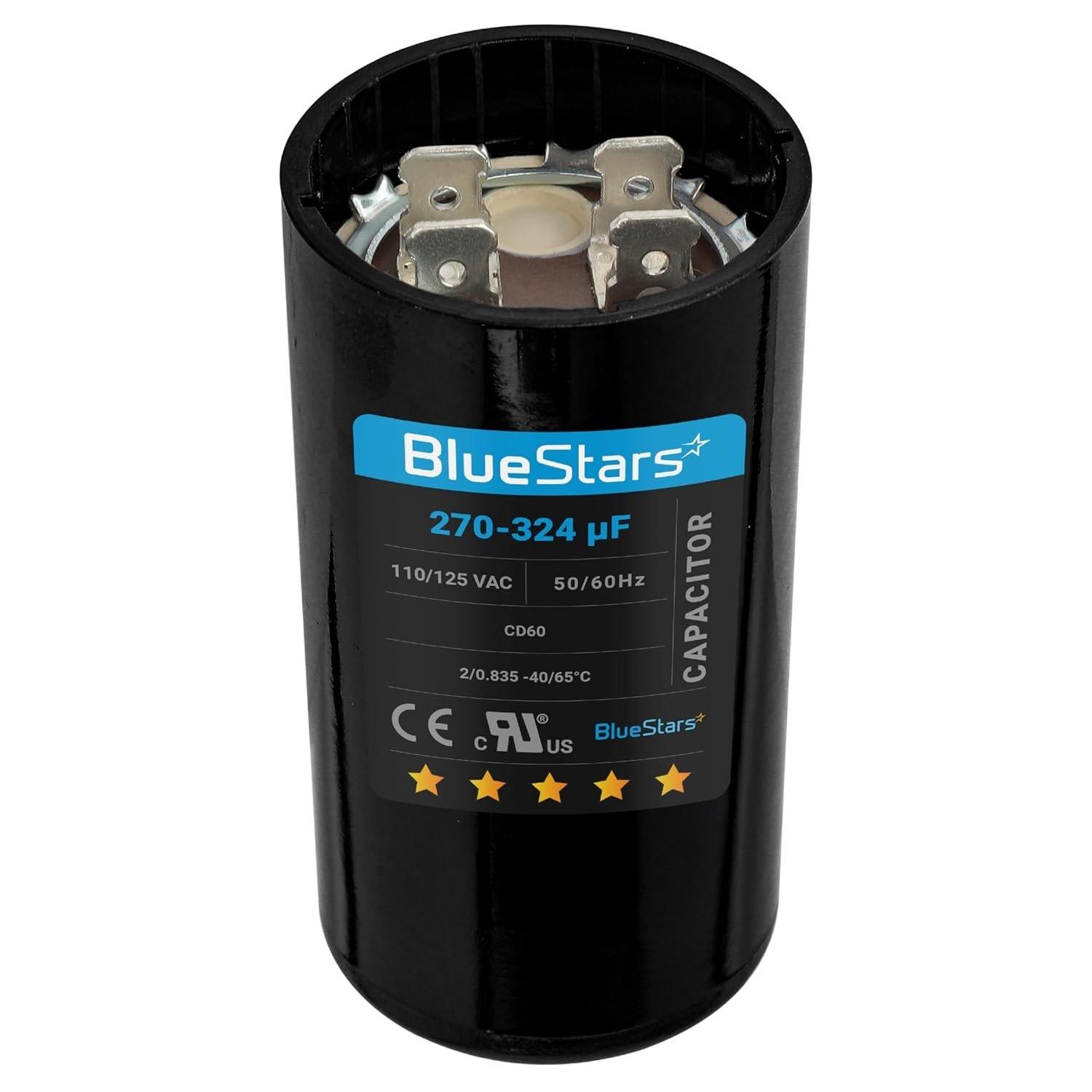

[Lifetime Warranty] 270-324 uF MFD 110-125 VAC Round Motor Start Capacitor 50/60 Hz - Fits Pool Pump, Well Pump

270-324 Mfd uF 110-125VAC Round Motor Start

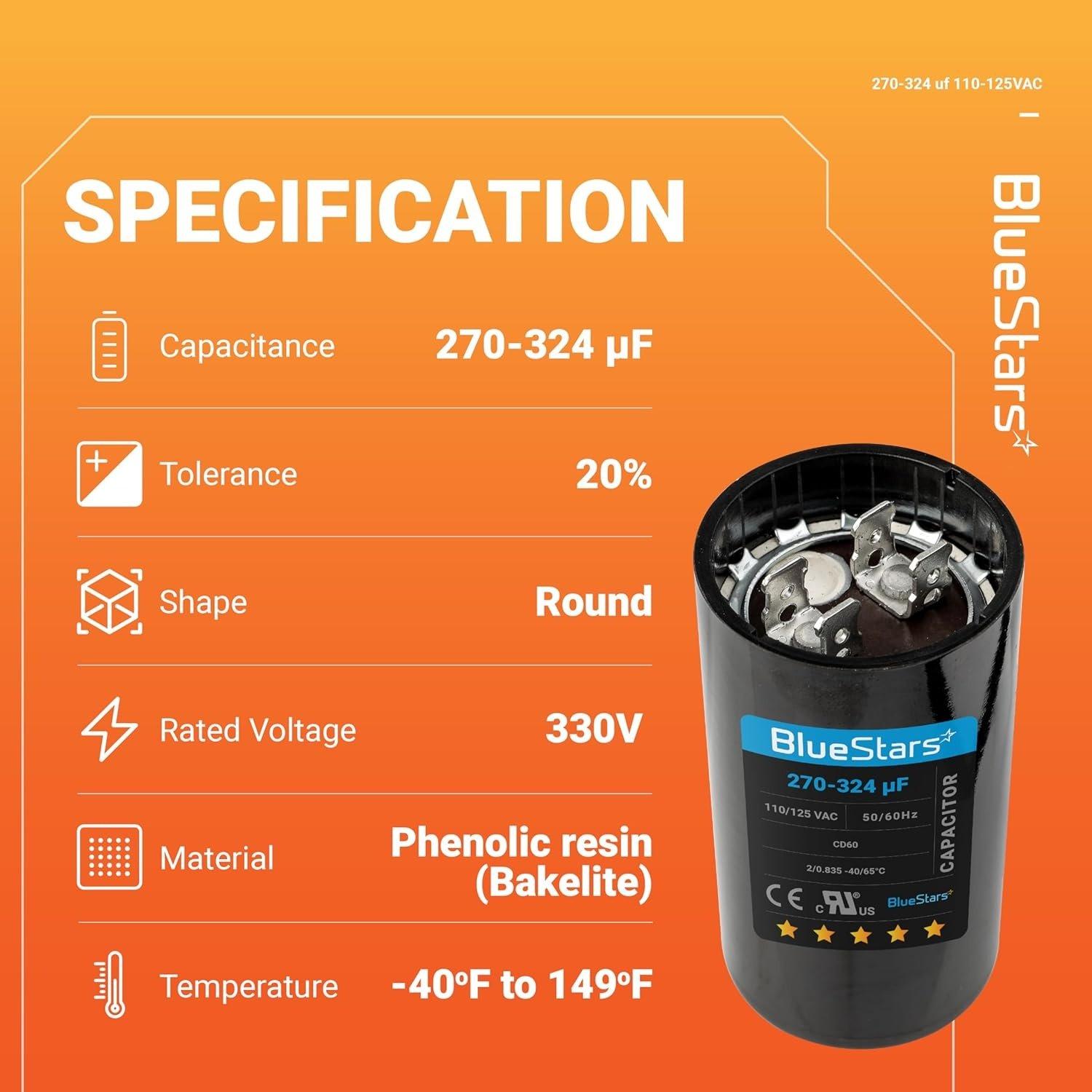

Key Features

• Capacitance: 270-324 Mfd (Microfarad)
• Voltage Rating: 110-125 VAC
• Frequency: 50/60 Hz
• Shape: Round

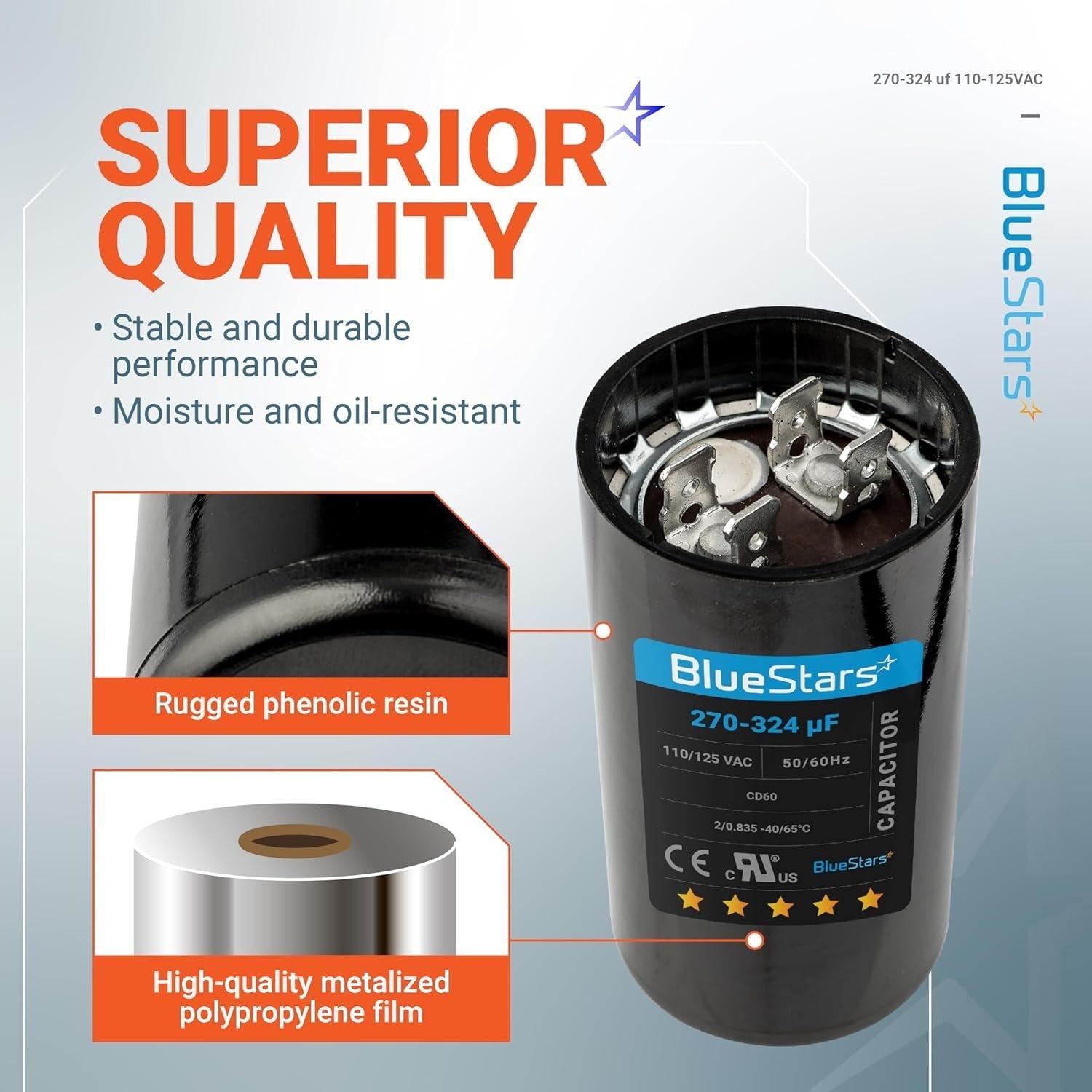

• Construction: Moisture and oil-resistant molded plastic or phenolic case

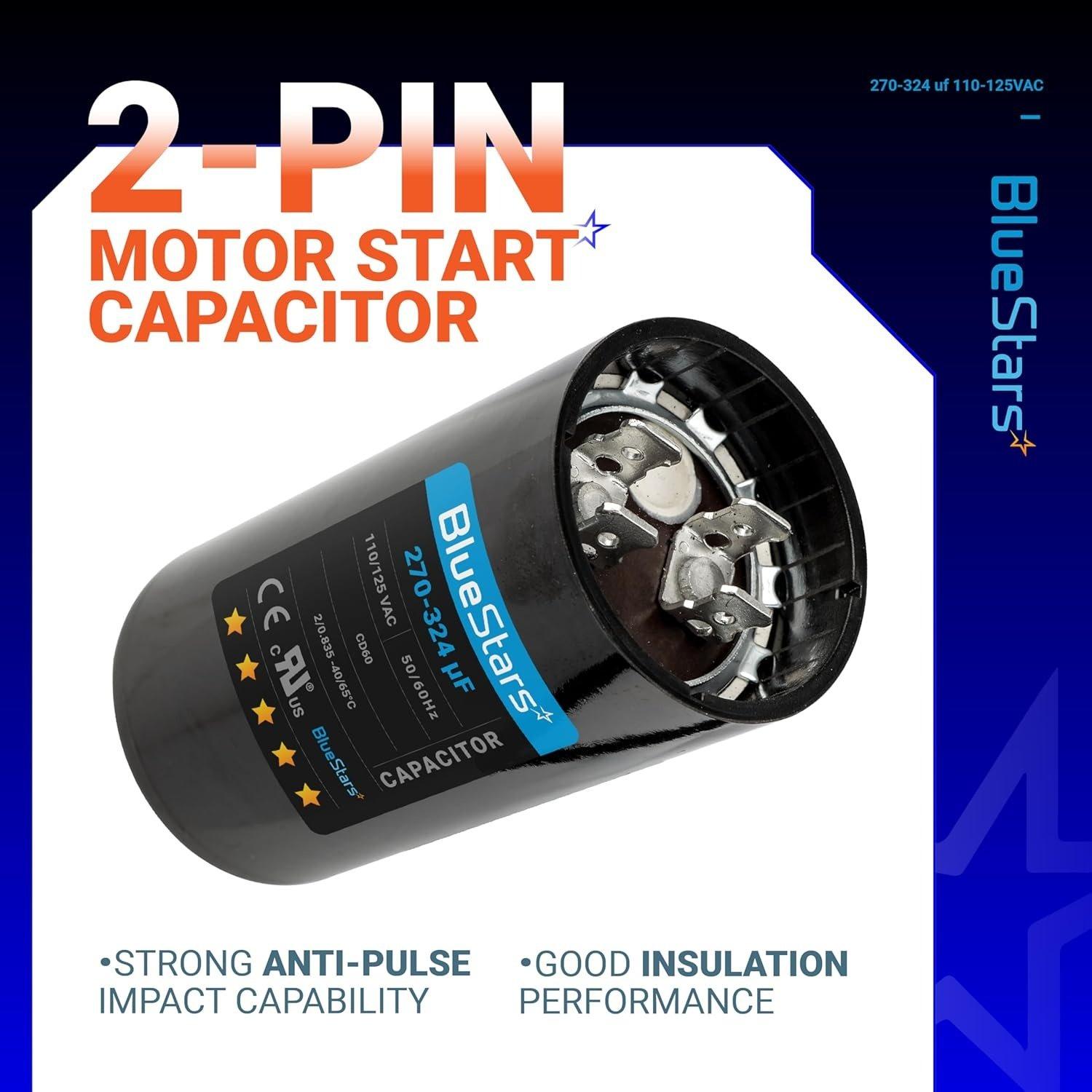

• Terminals: Standard dual blade terminals
• Duty: Intermittent, for AC motor starting circuits

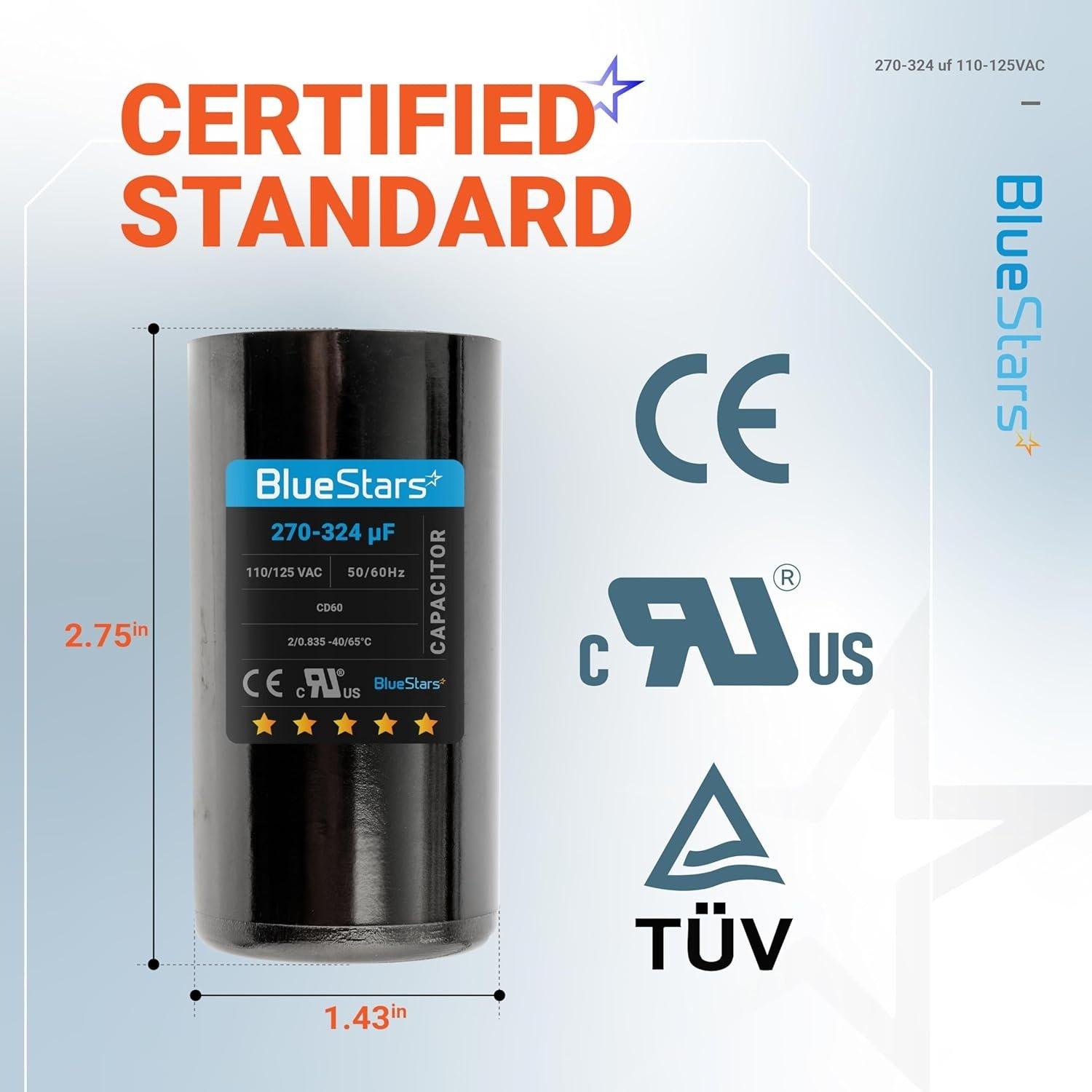

• Dimensions (Approximate): 1-7/16 in. Diameter x 3-3/8 in. Height

Replaces / Cross-Reference Part Numbers

• Replaces any start capacitor with the same capacitance and voltage ratings.
• Commonly replaces parts with CD60 or 11919 model numbers.
• Compatible replacement for capacitors from brands such as Jard, Titan, TEMCo, and Appli Parts with matching specifications.

Compatibility & Fitment

• Designed for single-phase AC motor starting circuits.
• Suitable for applications including HVAC units, air compressors, well pumps, and other electric motors requiring a start capacitor.

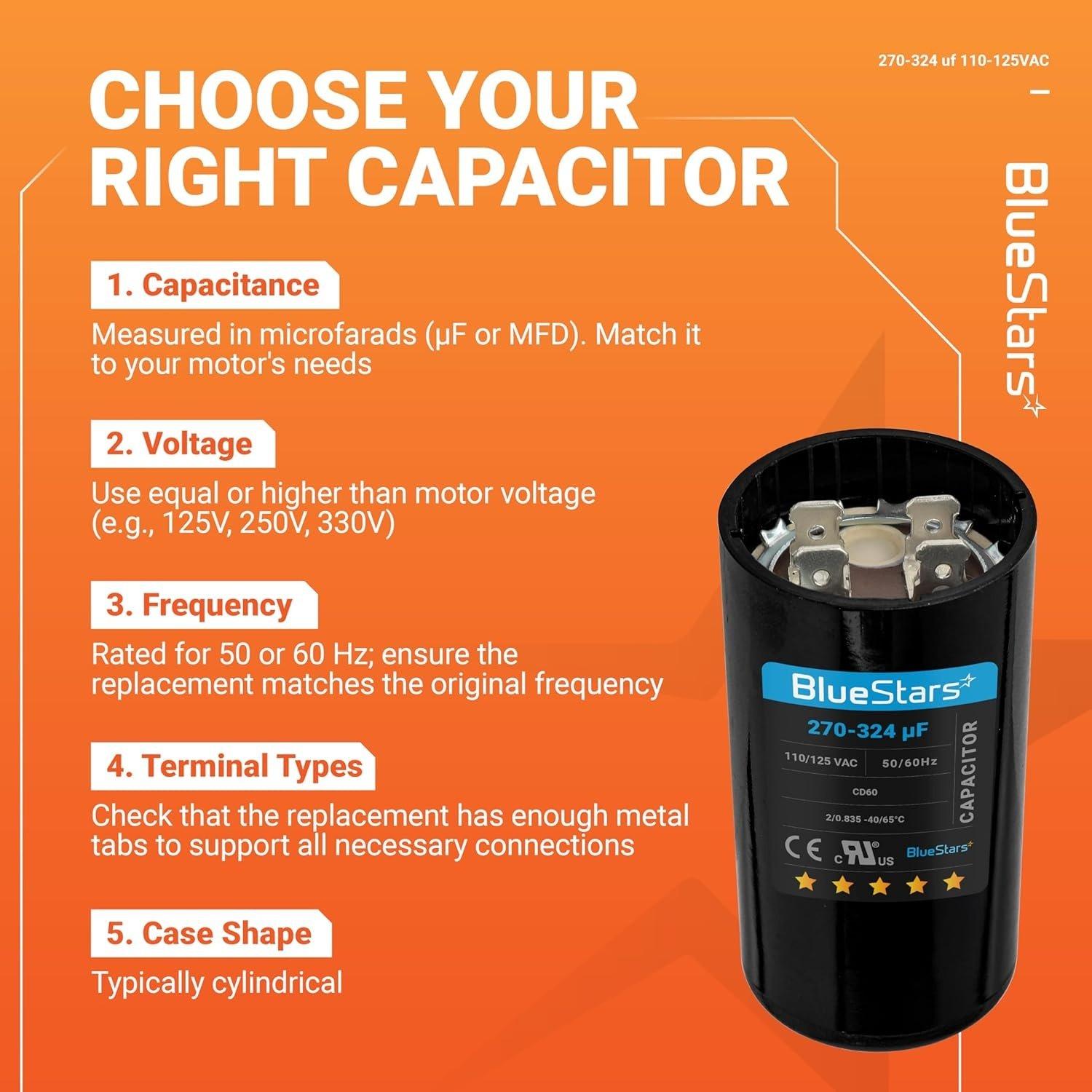

• Ensure the Mfd/uF and VAC ratings match the original equipment manufacturer's specifications.

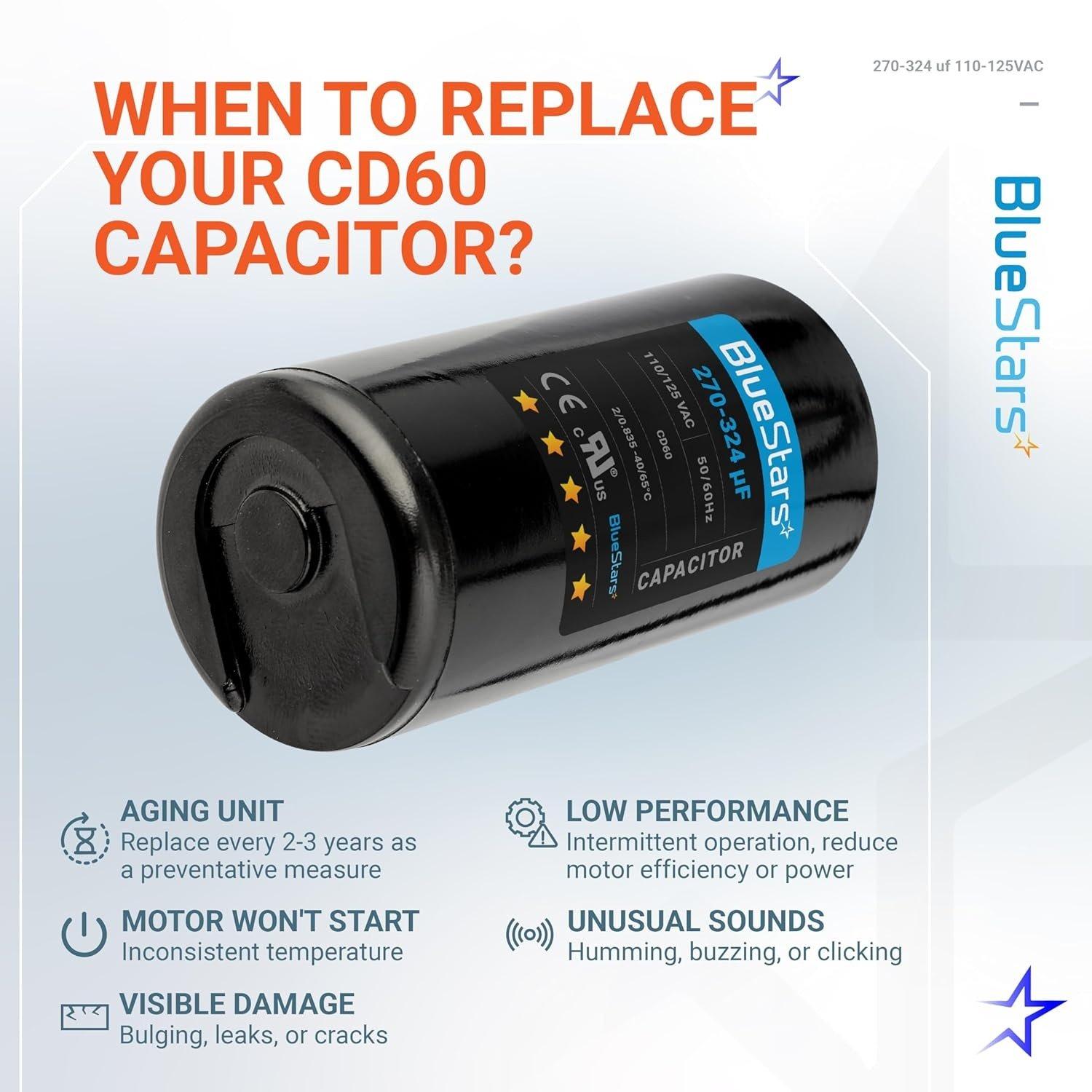

When to Replace

• The motor hums but fails to start.
• The motor starts slowly or requires manual assistance.
• The capacitor case is bulging, cracked, or leaking fluid.
• Capacitance measures outside the specified range when tested with a multimeter.

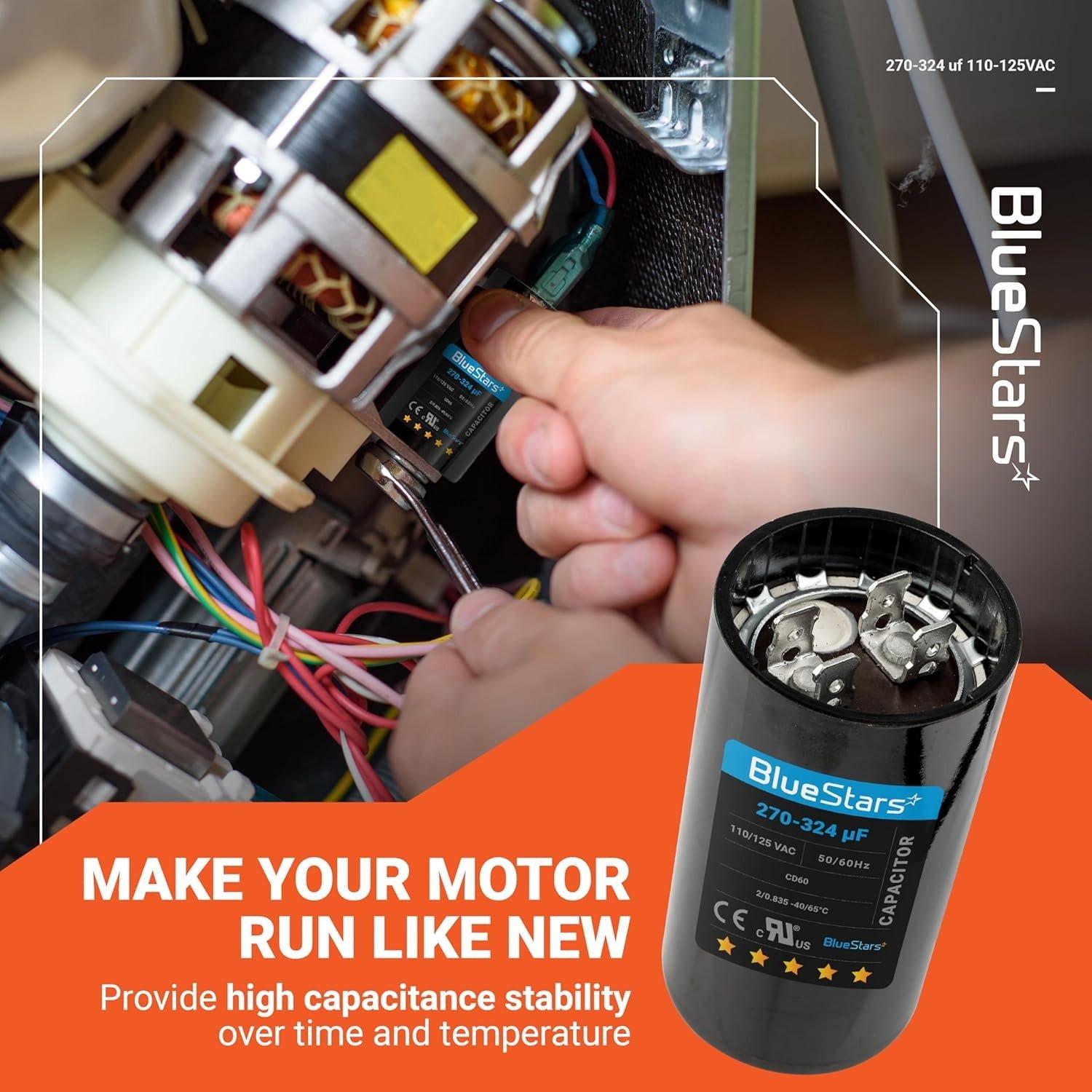

Installation Tips

• Disconnect all electrical power to the equipment before servicing.
• Safely discharge the existing capacitor by shorting its terminals with a properly insulated tool.
• Verify the wire connections before removing the original part.
• Install the new capacitor, ensuring a secure connection to the terminals. Start capacitors are non-polarized.
