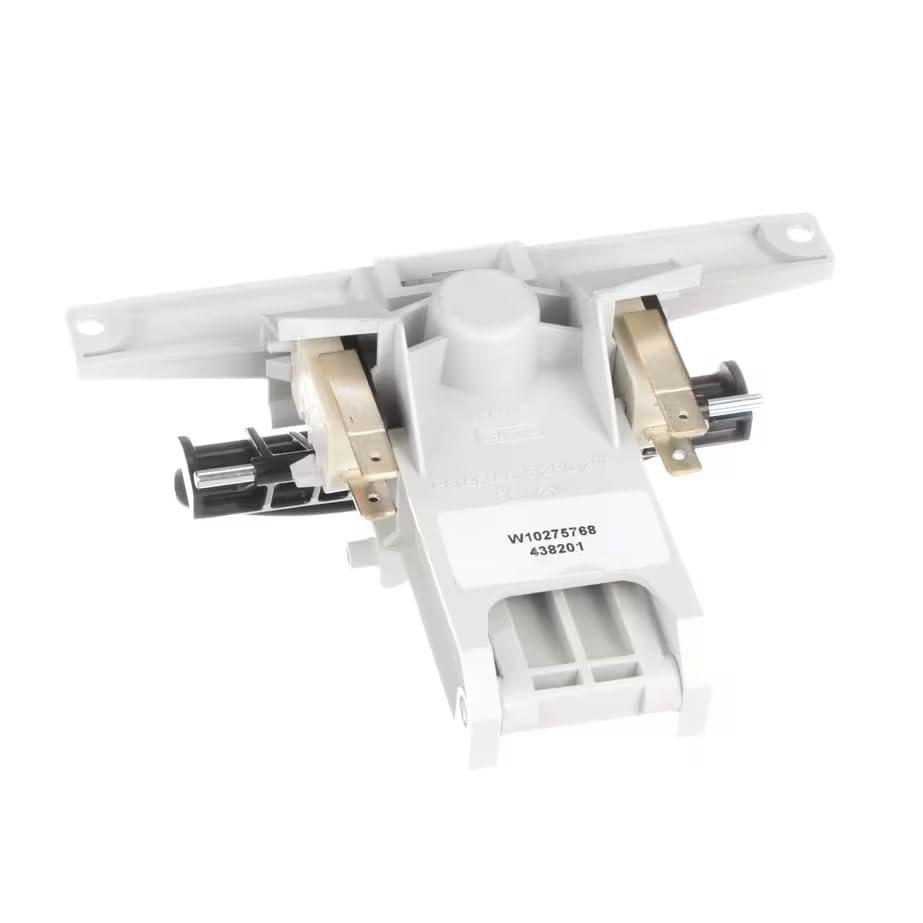

[Lifetime Warranty] W10130695 W10862259 WPW10275768 Dishwasher Door Latch Handle Replacemen for Whirlpool Maytag Dishwasher Quiet Series 300 Handle WPW10275768 WPW10130695 W10275768

W10130695 W10862259 WPW10275768 Dishwasher Door Latch Handle

Key Features

• Integrated Latch Mechanism:Combines the door handle with the mechanical latching system to ensure a secure, watertight seal during wash cycles.
• Reinforced Pivot Points:Engineered with high-impact plastic components to withstand frequent opening and closing without snapping or warping.
• Precision Actuator:Features a responsive trigger mechanism that accurately engages the door switch, signaling the control board to begin operation.
• Ergonomic Grip:Designed with a smooth, contoured surface for comfortable manual operation and easy access to the door release.

Replaces / Cross-Reference Part Numbers

• Primary Part Numbers:W10130695, W10862259, WPW10275768
• Manufacturer Substitutions:WPW10130695, W10275768, 1448166, 1872166
• Industry Standards:AP6018315, PS11752200, EAP11752200

Compatibility & Fitment

• Maytag:Quiet Series 300, Heritage Series, and select Jetclean models.
• Whirlpool:Various standard and Gold series front-control models.
• Jenn-Air:Fits specific high-end models requiring the W10130695 specification.
• Amana & Crosley:Compatible with select entry-level and mid-range dishwasher units.
• Note:Specifically fits models where the handle is integrated into the center of the control console.

When to Replace

• Door Won't Close:The latch fails to "click" or grab the strike plate, preventing the door from staying shut.
• Dishwasher Won't Start:The handle is intact, but the internal actuator fails to engage the door switch, leaving the unit in standby mode.
• Loose or Floppy Handle:The handle feels disconnected or has no tension, usually indicating a broken internal spring or plastic tab.
• Visible Damage:Cracks or broken plastic on the handle lever or the latch housing.
• Steam Leaks:If the latch does not pull the door tightly against the tub gasket, moisture may escape during the drying cycle.

Installation Tips

• Power Safety:Always disconnect the dishwasher from the power source by unplugging it or turning off the circuit breaker before removing the door panel.
• Accessing the Latch:Remove the screws from the inner door panel to separate it from the outer panel. Support the outer panel to avoid straining the UI wiring harness.
• Switch Transfer:Carefully unclip the micro-switches from the old latch housing and snap them into the new assembly. Document the wire positions to ensure proper reconnection.
• Alignment Check:Before fully tightening the door panel screws, test the handle to ensure it moves freely and aligns with the strike plate.
• Spring Tension:Ensure the internal return spring is properly seated within the new housing to maintain the correct handle "snap" feel.
