[Lifetime Warranty] 14V Golf Cart Solenoid 4-Terminal

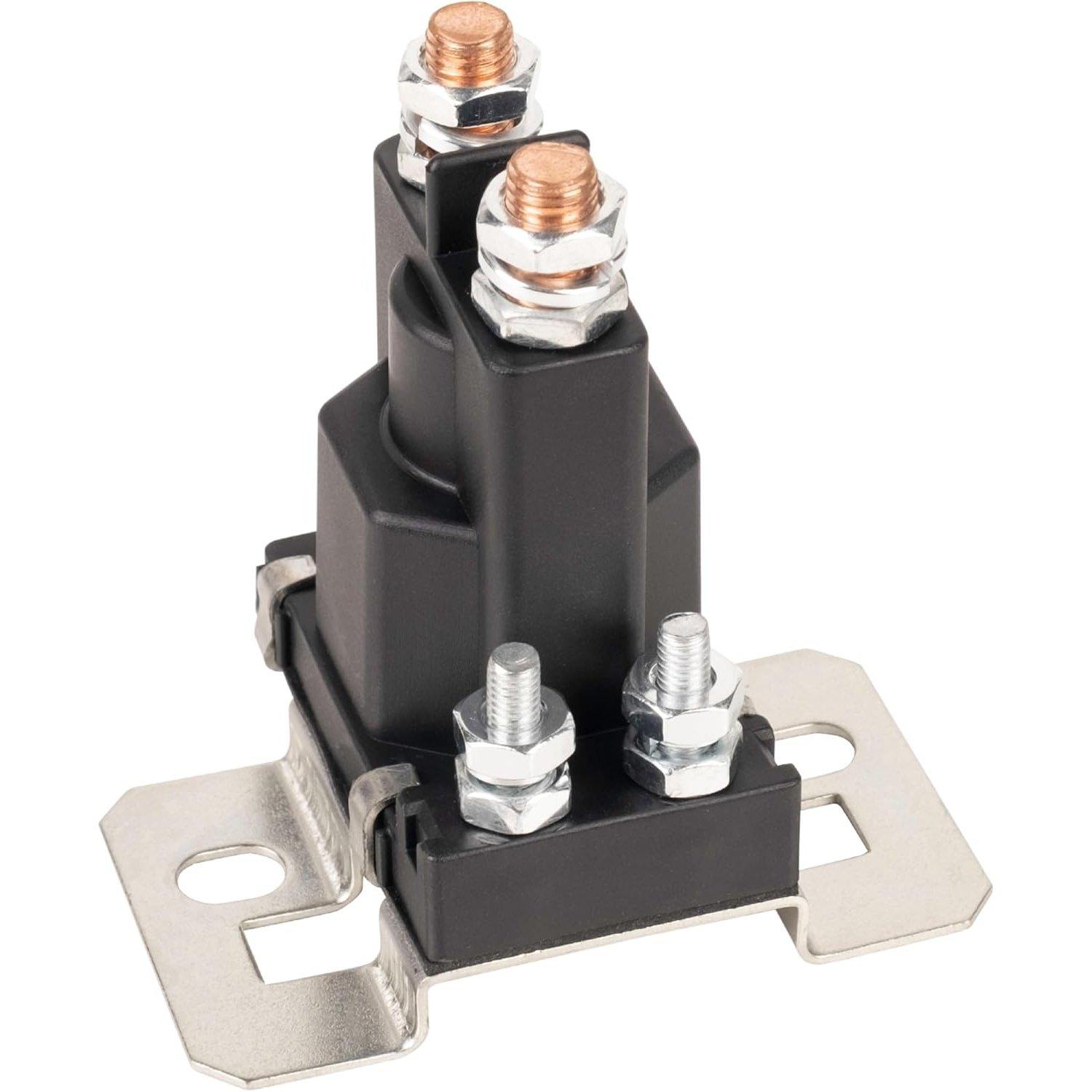

14V Golf Cart Solenoid 4-Terminal

Key Features

• Voltage Rating: 14V DC
• Terminal Count: 4 (2 large, 2 small)
• Duty Cycle: Intermittent

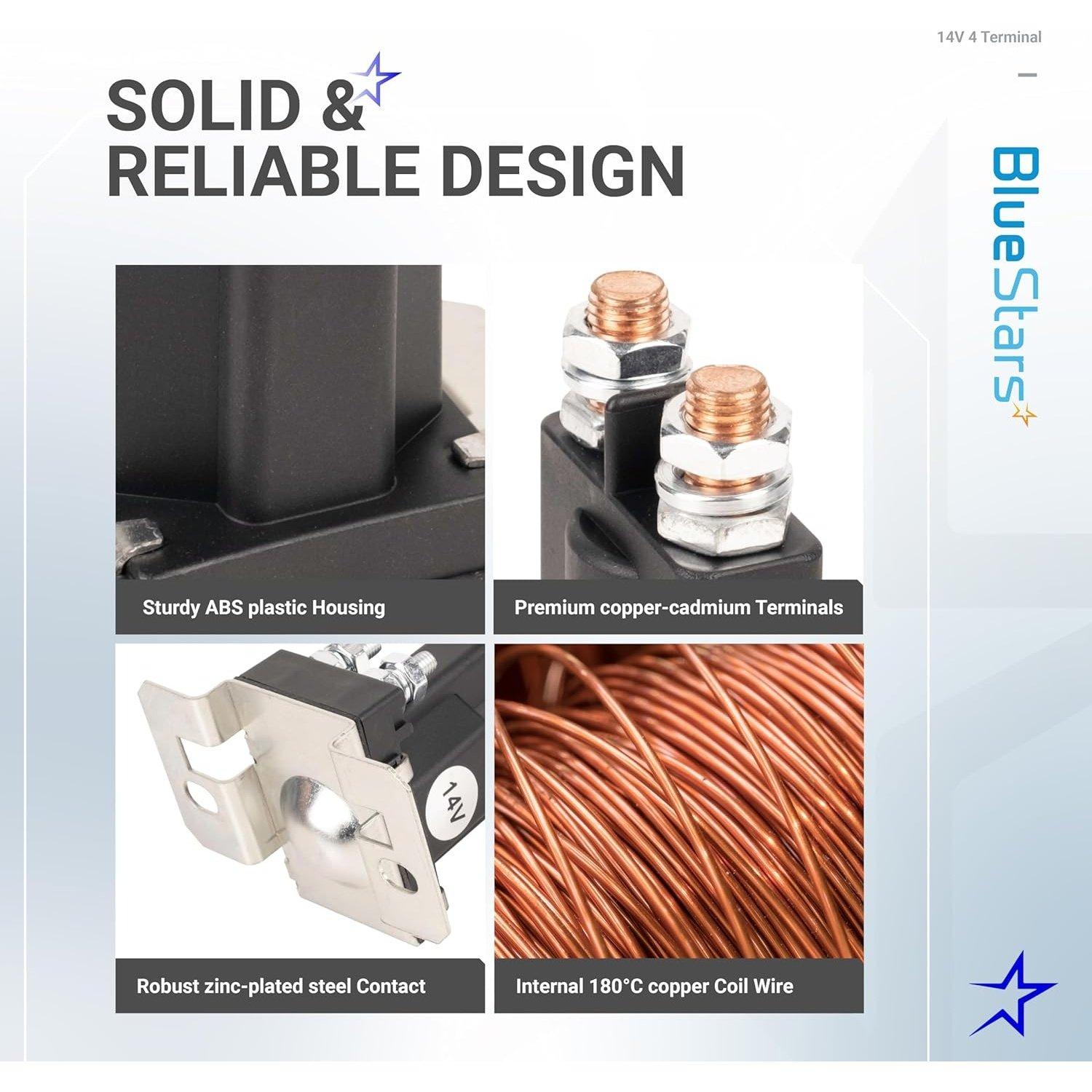

• Construction: High-conductivity copper or silver alloy contacts for efficient power transfer.
• Function: Converts electrical energy to mechanical force to engage the starter-generator.

Replaces / Cross-Reference Part Numbers

• E-Z-GO: 27153G01, 27153-G01, 612813
• Aftermarket: SOL-1003, SOL-1008

Compatibility & Fitment

• Fits E-Z-GO 4-Cycle Gas Models (1994-Up):
• Fits E-Z-GO RXV Gas Models (2008-Up) with Kawasaki engines.
• Fits select Cushman 2200 vehicles.
• Engine Compatibility: 295cc and 350cc engines.

When to Replace

• A distinct clicking sound is heard, but the engine does not crank.
• The engine fails to turn over or has intermittent starting problems.
• The starter continues to run after the ignition key is released.
• No power is transferred from the battery to the starter when the key is turned.

Installation Tips

• Disconnect the battery's negative terminal before beginning the installation.
• Photograph or label the wires connected to each terminal before removal.
• Ensure new connections are clean, tight, and free of corrosion.
• Securely fasten the solenoid to its original mounting location.
