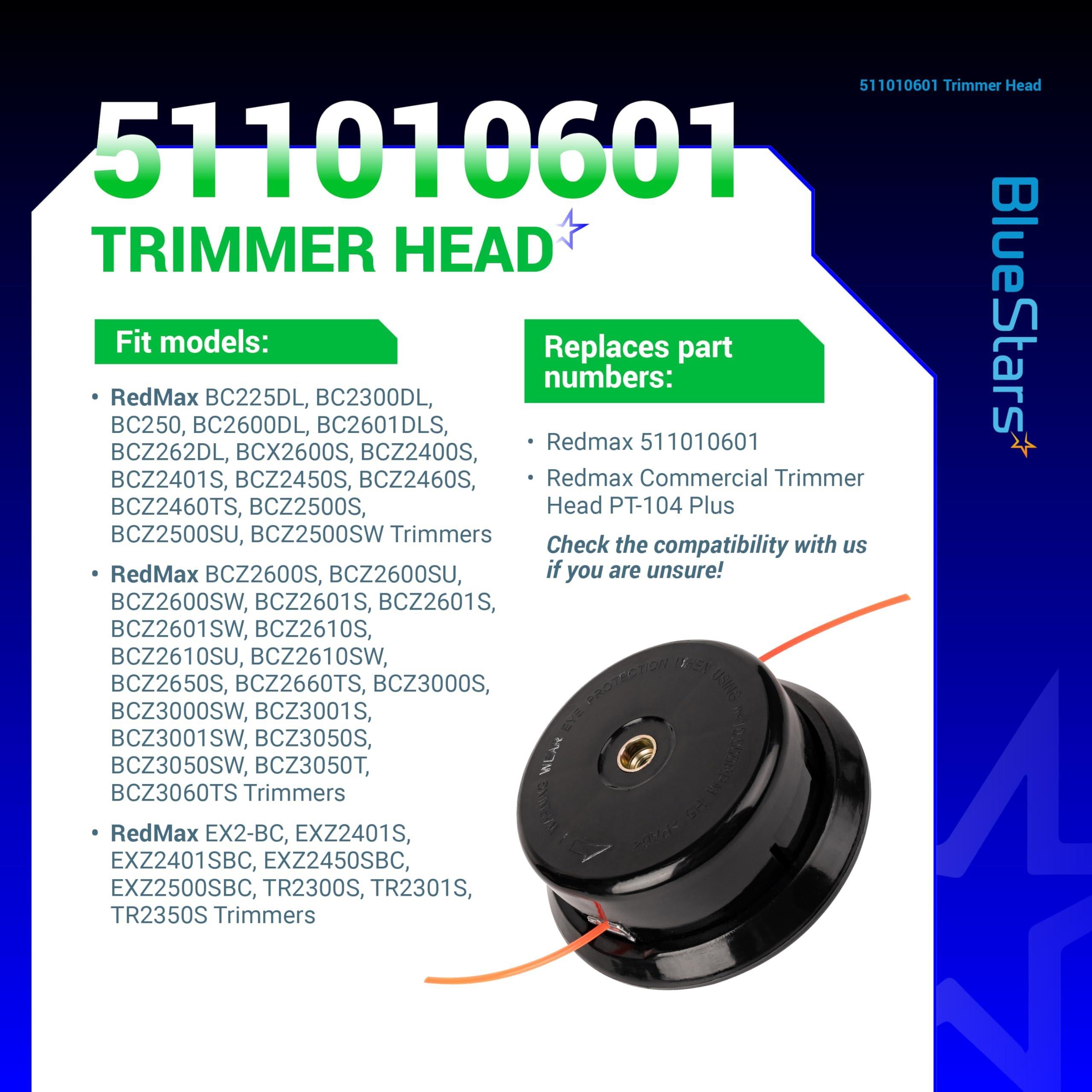

[Lifetime Warranty] 511010601 Trimmer Head - Pack of 3

511010601 Trimmer Head - Pack of 3

Key Features

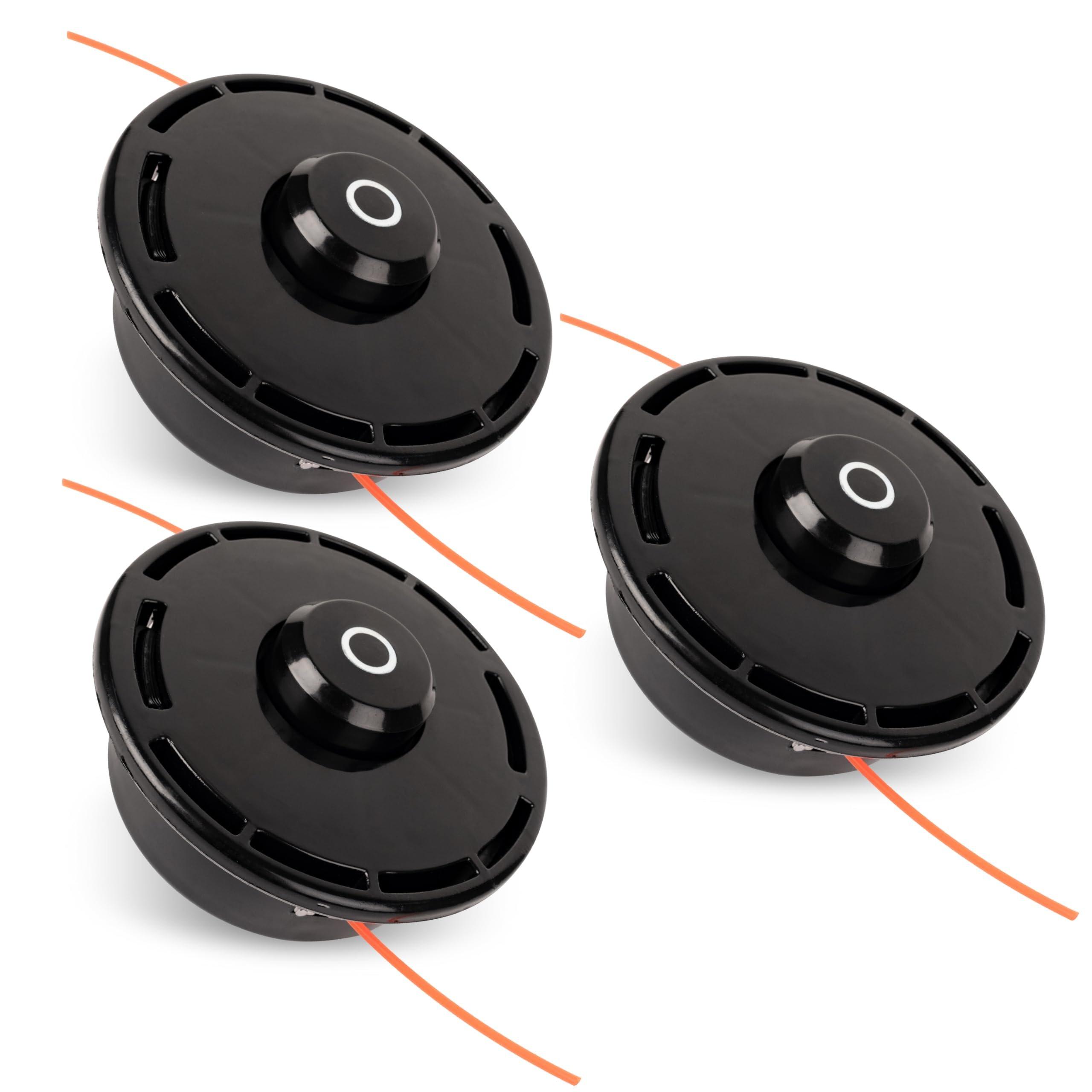

• Package includes three complete trimmer head assemblies.

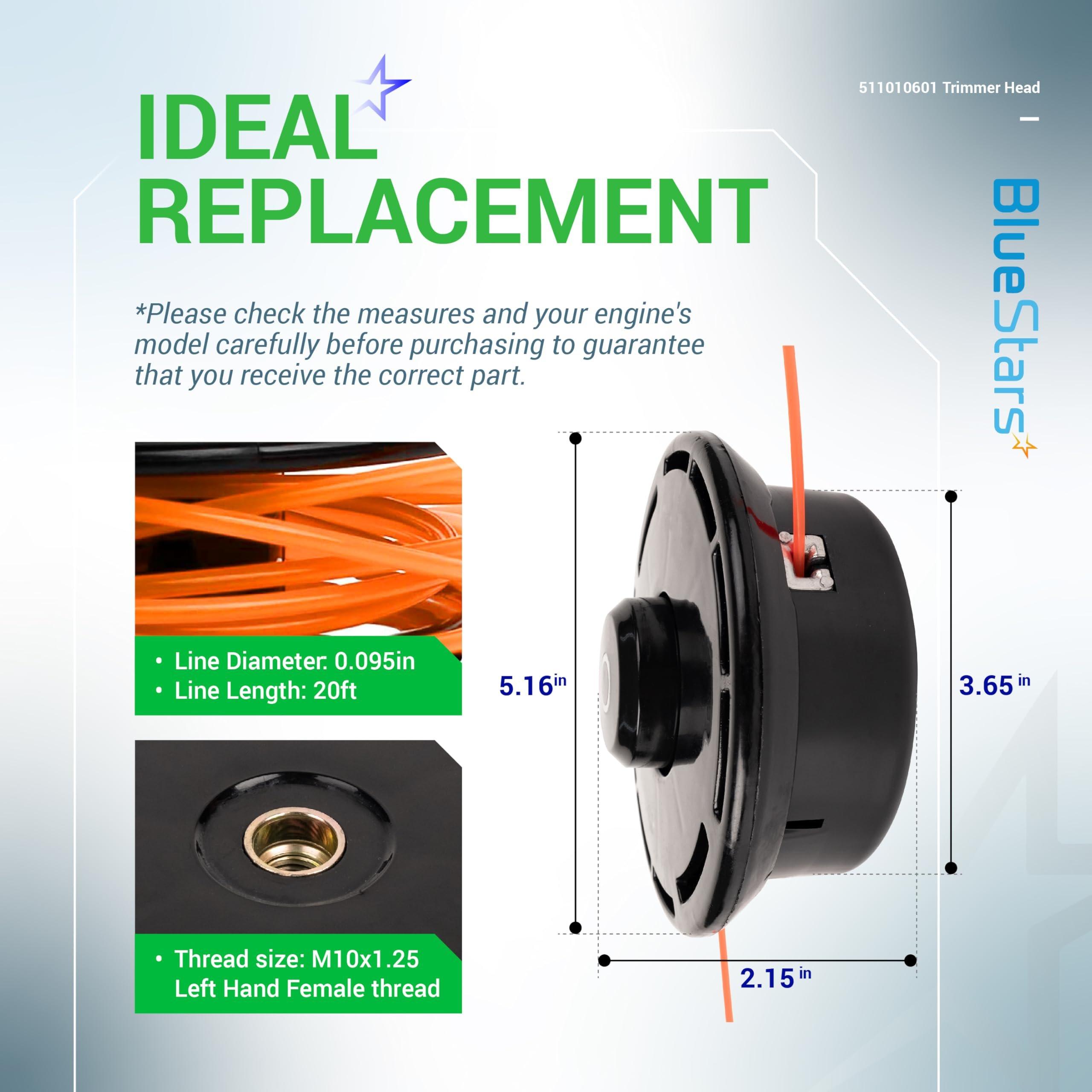

• Arbor Size: 10mm x 1.25mm Left-Hand Thread.
• Features a manual tap-to-advance line feeding mechanism.
• Split-spool construction allows for simplified trimmer line loading.

Replaces / Cross-Reference Part Numbers

• RedMax: 511010601
• Stens: 385-220

Compatibility & Fitment

• Fits select trimmers requiring a 10mm x 1.25mm left-hand thread arbor.
• RedMax Models:BC225DL, BC250, BC3400, BC4400, BCX2600S, BCZ2400S, BCZ2450S, BCZ2460S, BCZ2460TS, BCZ2660TS, BCZ3000S, BCZ3000SW, PT104, PT104 Plus, TR2300S, TR2350S.
• Honda Models:UMK422LNA, UMK431E, UMK435E.

When to Replace

• Housing is cracked, broken, or excessively worn from ground contact.
• Line fails to advance properly when the head is tapped.
• Trimmer line frequently melts, jams, or tangles inside the spool.
• Line exit eyelets are worn through, causing premature line breakage.
• Excessive vibration is felt during operation.

Installation Tips

• Disconnect the spark plug wire before starting work.
• Lock the trimmer's gear head from rotating, typically by inserting a small screwdriver or pin into the designated locking hole.
• Unscrew the old trimmer head by turning it clockwise (it has a left-hand thread).
• Thread the new head on by turning it counter-clockwise until it is hand-tight.
• Do not use tools to overtighten the new head onto the shaft.
