[Lifetime Warranty] 1950 2050 2150 Carburetor Kit - Compatible with Poulan 1900 2055 2175 2350 2450 2550 262 Wild Thing 545081885 530069703 C1Q-W8 C1Q-W14 WT-891 WT-324 Air Filter Fuel Line Spark Plug

1950 2050 2150 Carburetor Kit

Key Features

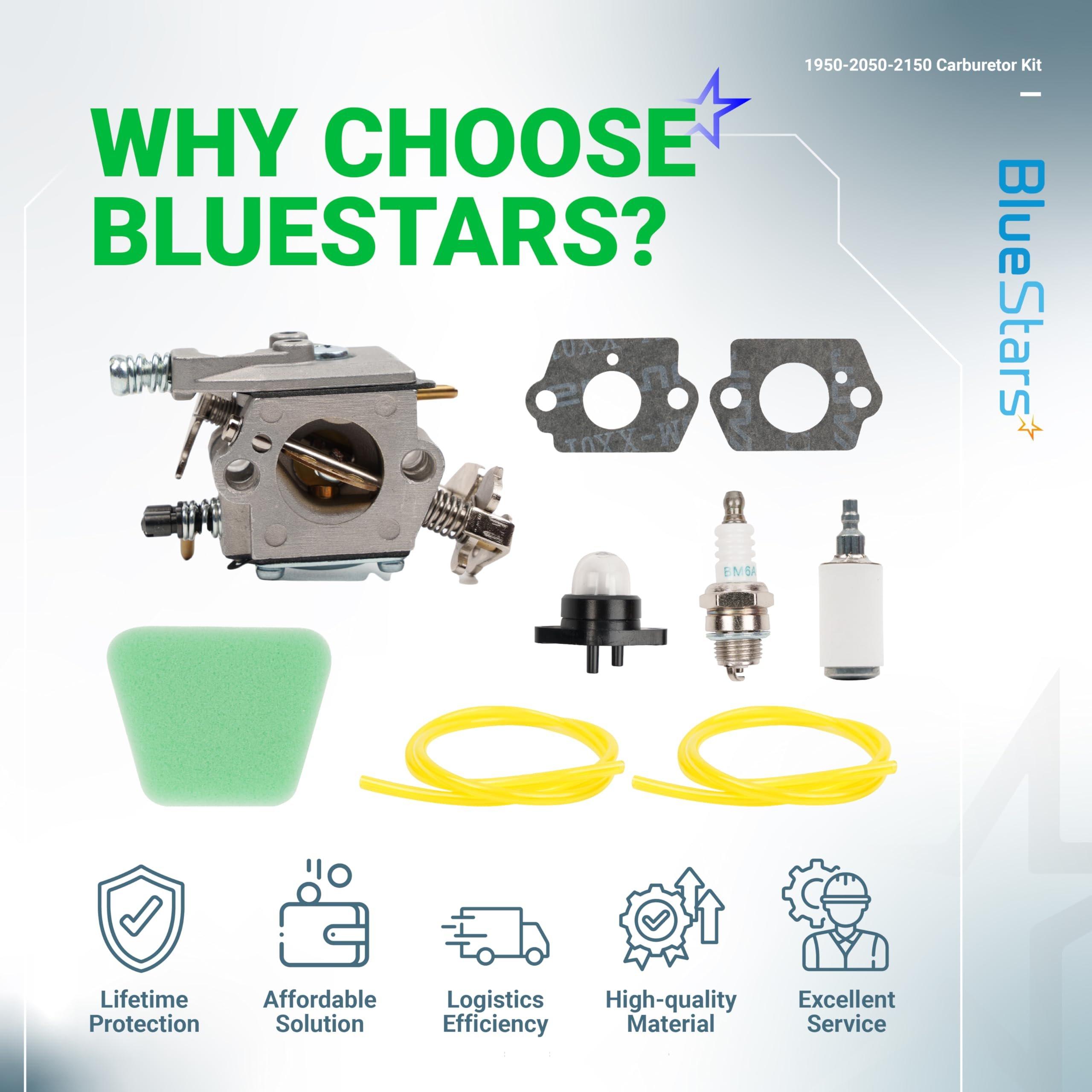

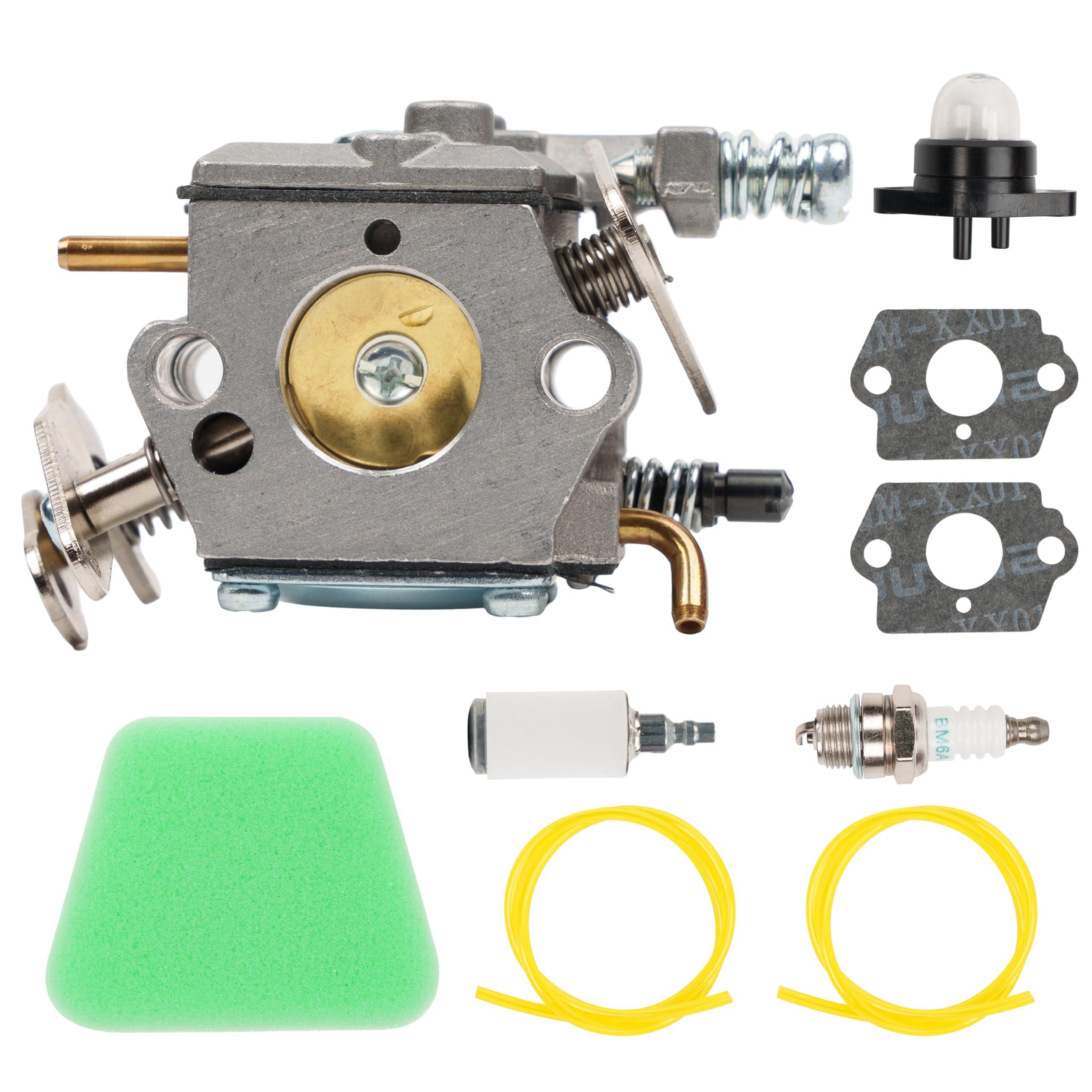

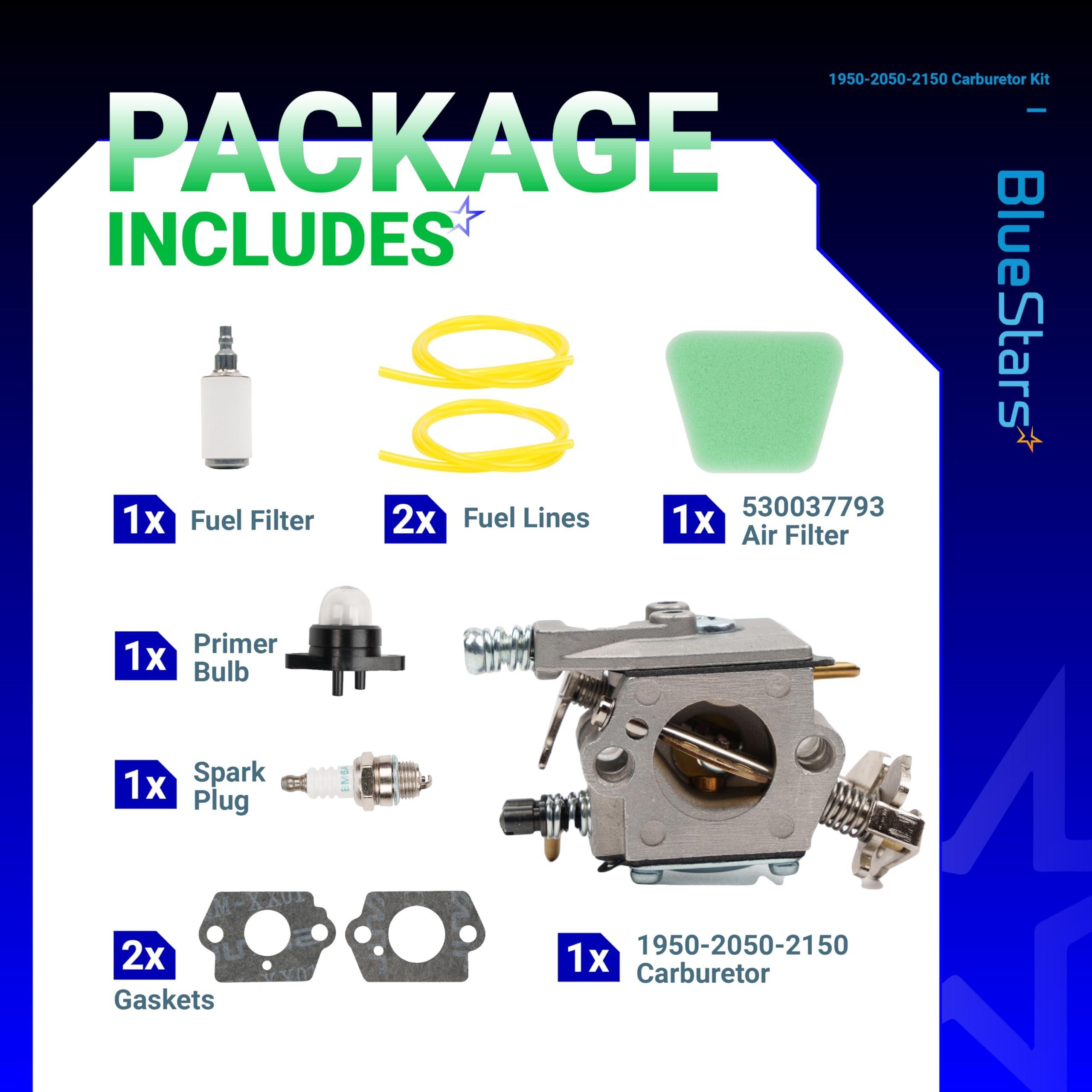

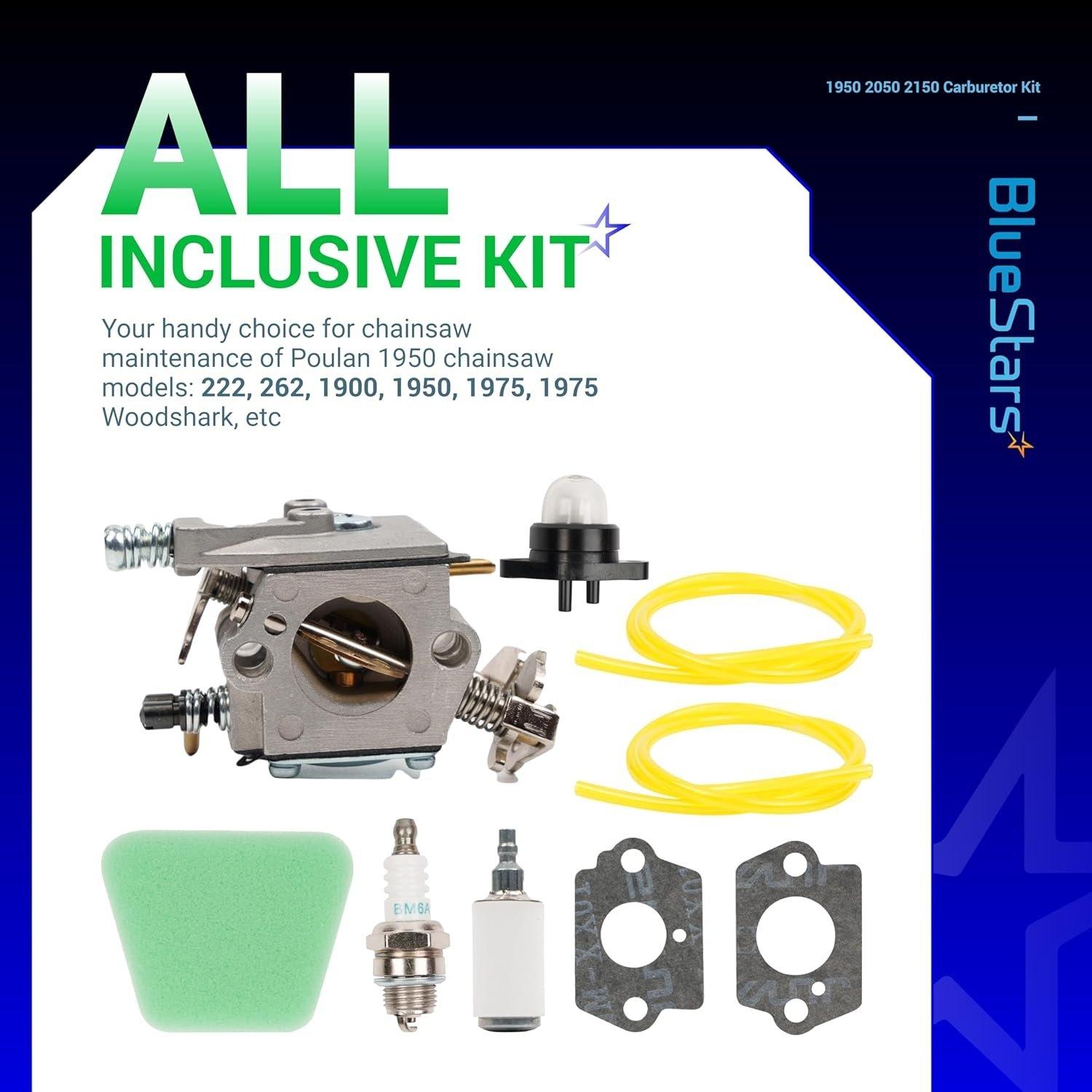

• Comprehensive Maintenance Solution:Includes a high-performance carburetor, air filter, fuel lines, primer bulb, and spark plug for a complete engine refresh.
• Precision Fuel Management:Optimized to deliver the correct air-to-fuel ratio, ensuring easier cold starts and consistent power under heavy cutting loads.
• Enhanced Filtration:High-density air filter captures fine dust and wood chips to protect internal engine components from premature wear.

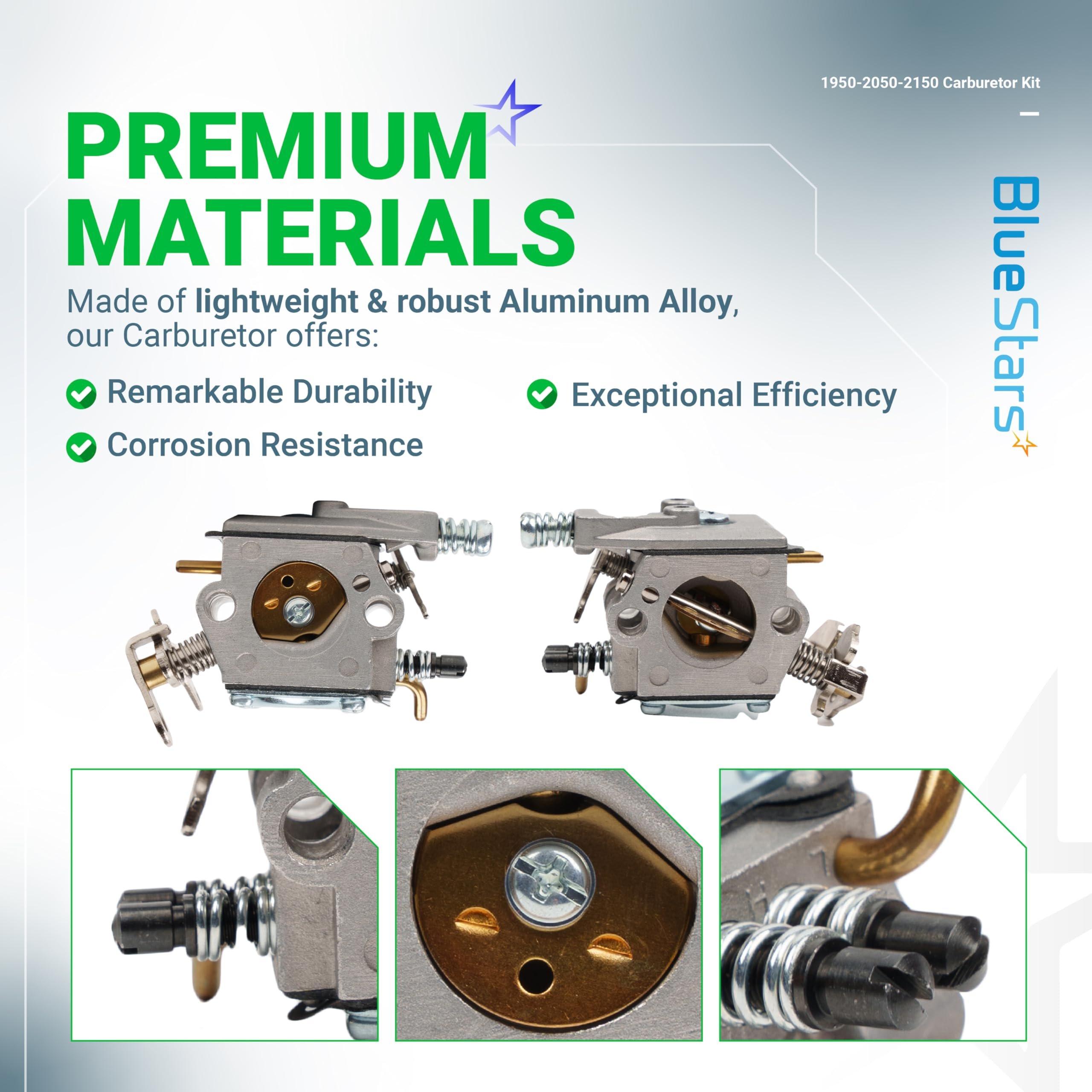

• Advanced Material Composition:Carburetor body is constructed from corrosion-resistant alloy to handle modern fuel additives and minimize internal varnish buildup.

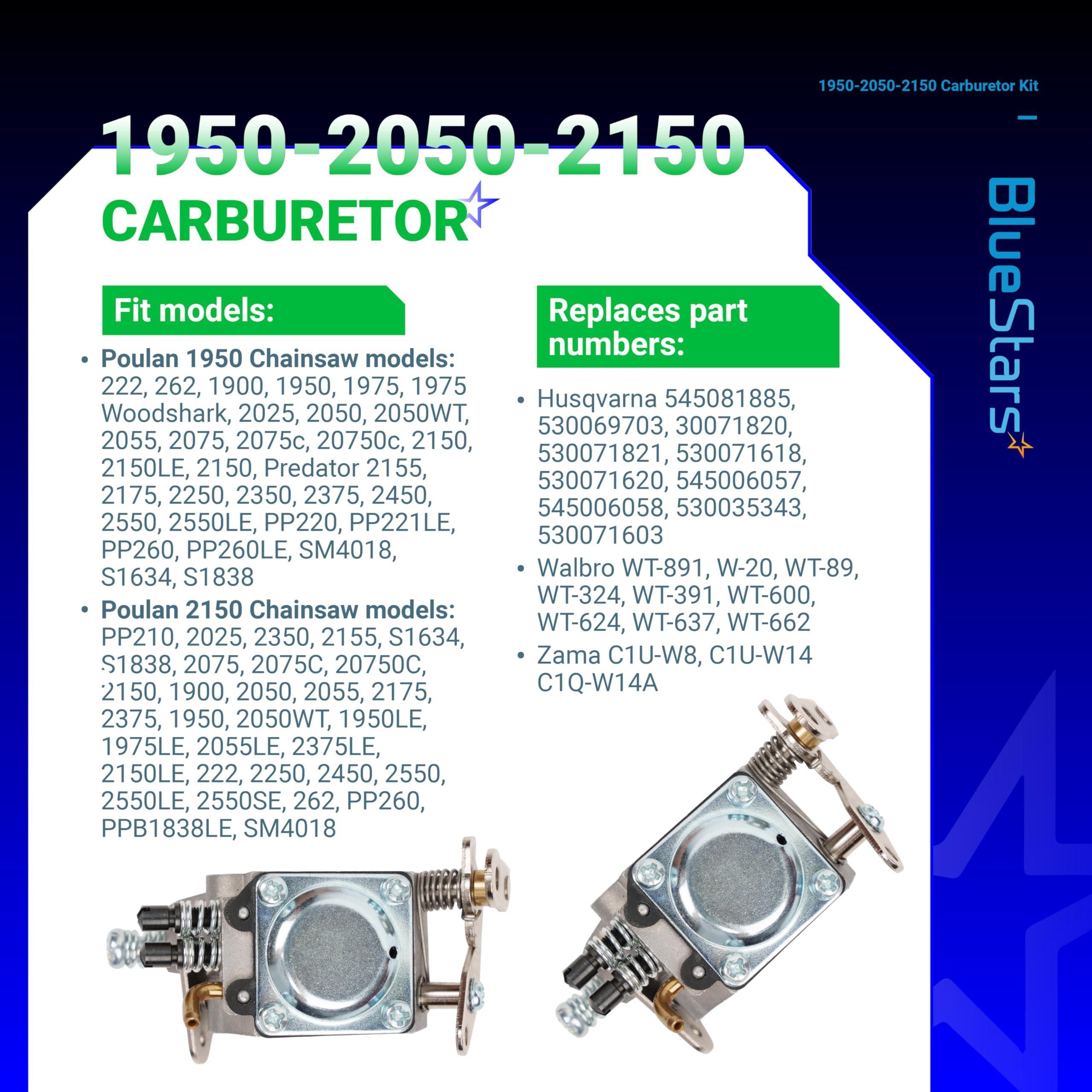

Replaces / Cross-Reference Part Numbers

• OEM Part Numbers:545081885, 530069703, 530035412, 530035330, 530071621
• Walbro Models:WT-891, WT-324, WT-662, WT-600
• Zama Models:C1Q-W8, C1Q-W14, C1Q-W14A

Compatibility & Fitment

• Poulan Models:1900, 1950, 2050, 2055, 2150, 2175, 2250, 2350, 2375, 2450, 2550.
• Special Editions:Wild Thing, Woodshark, Silver Eagle.
• Poulan Pro Models:220, 221, 260, 262, 351.
• Sears Craftsman:Fits select 33cc, 34cc, 36cc, 38cc, and 42cc chainsaw models using the part numbers listed above.

When to Replace

• Engine Stalling:The saw starts but dies immediately when the throttle is engaged or when tilted during a cut.
• Fuel Starvation:Cracking or hardening of the fuel lines prevents the carburetor from drawing fuel from the tank.
• Priming Issues:The primer bulb is cracked or fails to fill with fuel, indicating an air leak in the system.
• Poor Performance:The engine lacks the "snap" it once had, often caused by a clogged air filter or carbon-fouled spark plug.
• Long-Term Storage:The engine will not start after being stored with fuel for several months, suggesting internal carburetor passages are blocked.

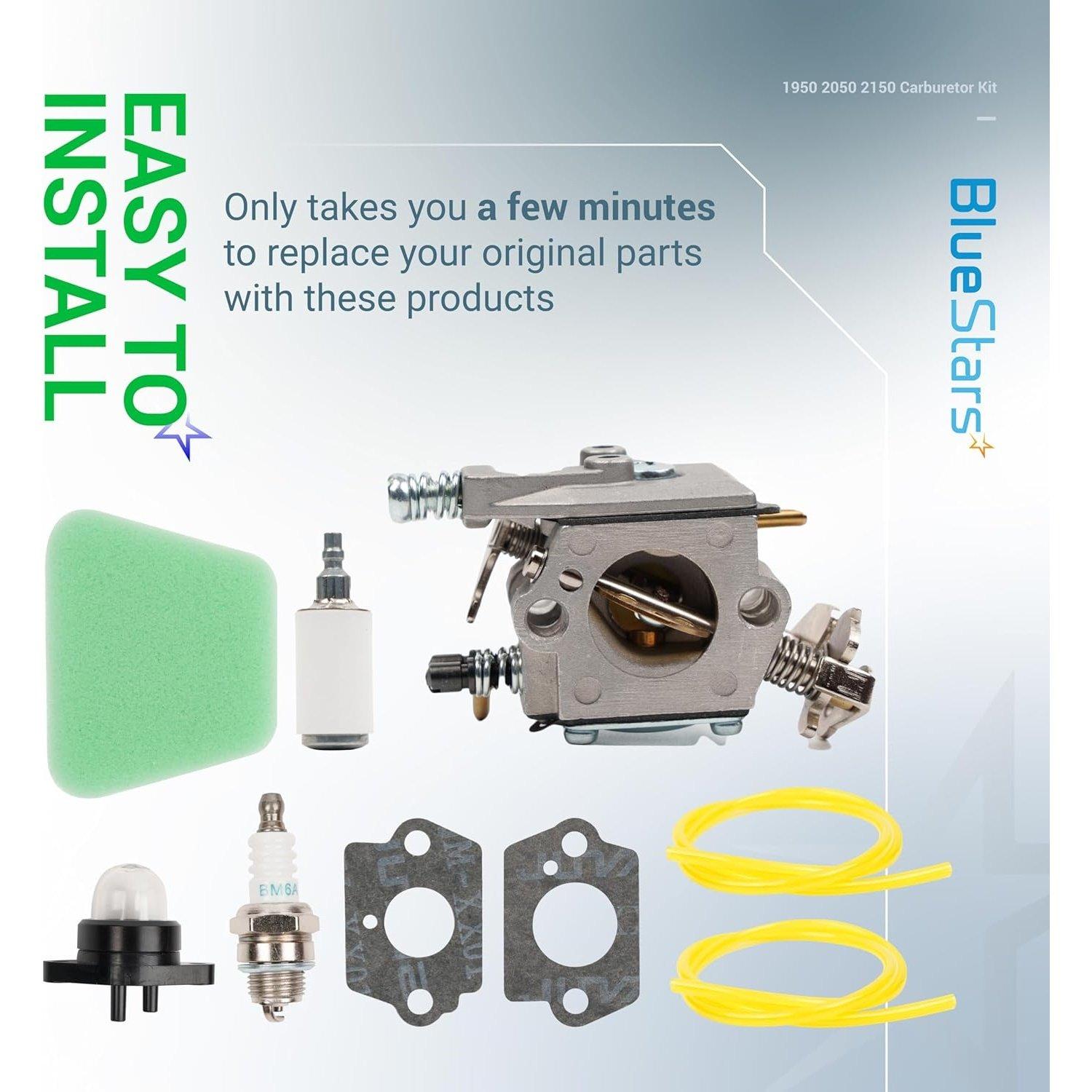

Installation Tips

• Safety First:Work in a well-ventilated area and ensure the fuel tank is completely empty before disconnecting lines.
• Fuel Line Routing:Note the diameter difference between the intake line (larger) and the return line (smaller) to ensure proper primer bulb function.
• Gasket Alignment:Ensure the intake gasket hole aligns perfectly with the pulse hole on the engine block; incorrect alignment will prevent the fuel pump from operating.
• Spark Plug Gap:Verify the spark plug gap meets your specific model's requirements (typically 0.025 inches) before installation.
• Throttle Linkage:Test the throttle trigger movement before replacing the engine cover to ensure the linkage isn't binding on the new air filter housing.
