[Lifetime Warranty] 240369701 Refrigerator Evaporator Fan Motor - Compatible with Frigidaire Kenmore Electrolux Refrigerators - Replaces AP4700070 PS3419839 5303918549 image 0
[Lifetime Warranty] 240369701 Refrigerator Evaporator Fan Motor - Compatible with Frigidaire Kenmore Electrolux Refrigerators - Replaces AP4700070 PS3419839 5303918549 image 1
[Lifetime Warranty] 240369701 Refrigerator Evaporator Fan Motor - Compatible with Frigidaire Kenmore Electrolux Refrigerators - Replaces AP4700070 PS3419839 5303918549 image 2
[Lifetime Warranty] 240369701 Refrigerator Evaporator Fan Motor - Compatible with Frigidaire Kenmore Electrolux Refrigerators - Replaces AP4700070 PS3419839 5303918549 image 3
[Lifetime Warranty] 240369701 Refrigerator Evaporator Fan Motor - Compatible with Frigidaire Kenmore Electrolux Refrigerators - Replaces AP4700070 PS3419839 5303918549 image 4
[Lifetime Warranty] 240369701 Refrigerator Evaporator Fan Motor - Compatible with Frigidaire Kenmore Electrolux Refrigerators - Replaces AP4700070 PS3419839 5303918549 image 5
[Lifetime Warranty] 240369701 Refrigerator Evaporator Fan Motor - Compatible with Frigidaire Kenmore Electrolux Refrigerators - Replaces AP4700070 PS3419839 5303918549 image 6
[Lifetime Warranty] 240369701 Refrigerator Evaporator Fan Motor - Compatible with Frigidaire Kenmore Electrolux Refrigerators - Replaces AP4700070 PS3419839 5303918549 image 7
[Lifetime Warranty] 240369701 Refrigerator Evaporator Fan Motor - Compatible with Frigidaire Kenmore Electrolux Refrigerators - Replaces AP4700070 PS3419839 5303918549 image 8
AZ0162061

[Lifetime Warranty] 240369701 Refrigerator Evaporator Fan Motor - Compatible with Frigidaire Kenmore Electrolux Refrigerators - Replaces AP4700070 PS3419839 5303918549

Sold 9,557

Difficulty Icon: Normal
Normal
More than 30 minutes

$19.89

$22.09

Save $2.20
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

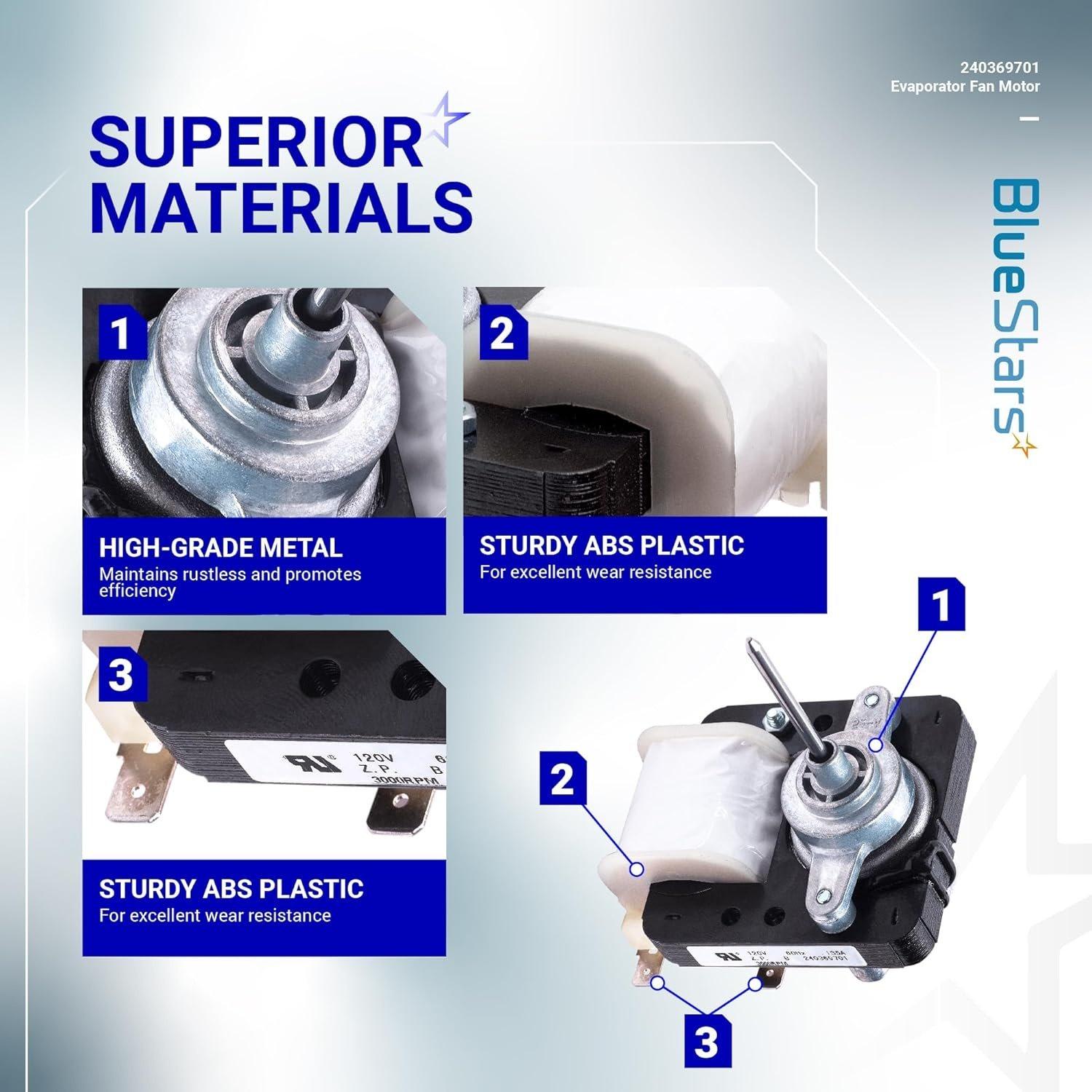

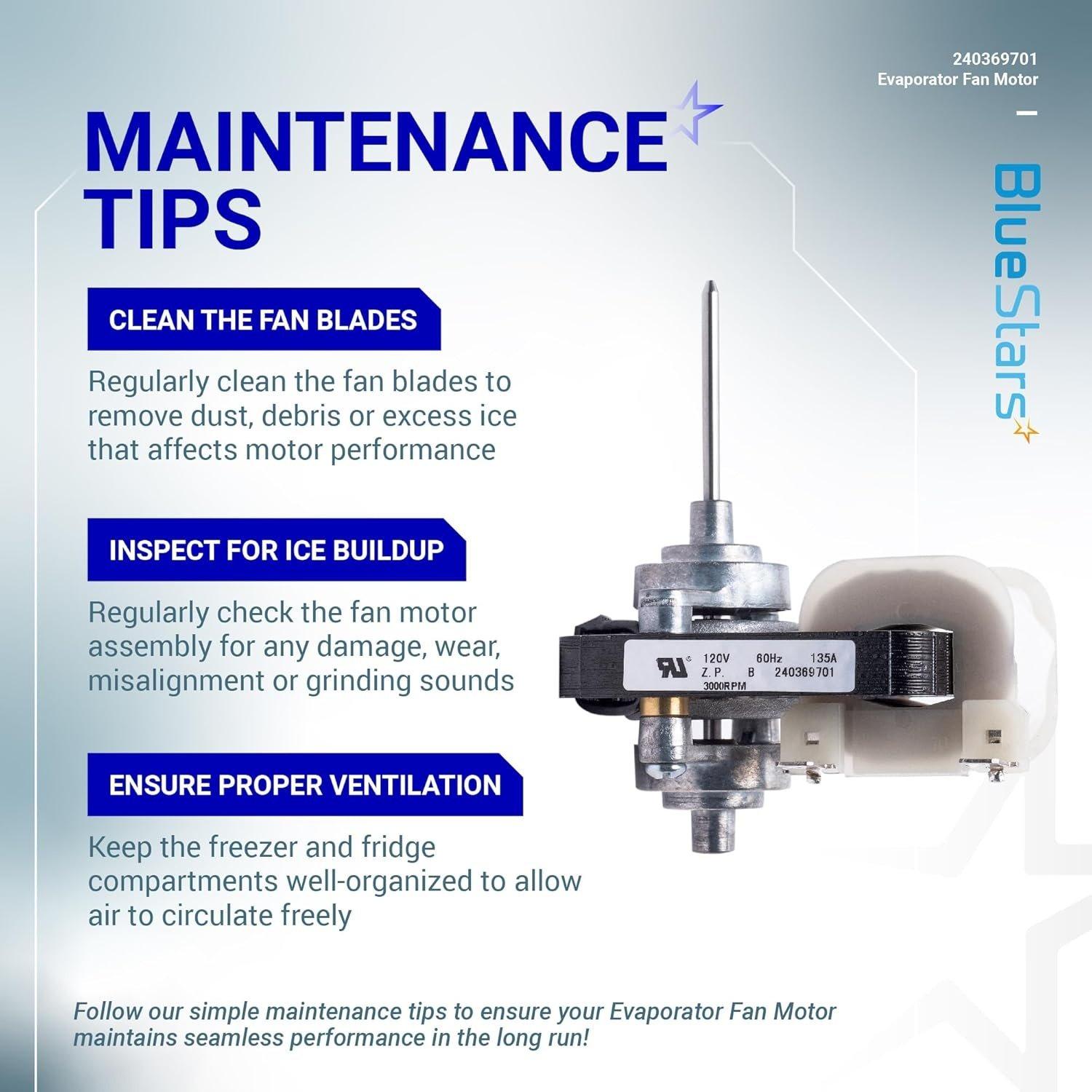

240369701 Refrigerator Evaporator Fan Motor

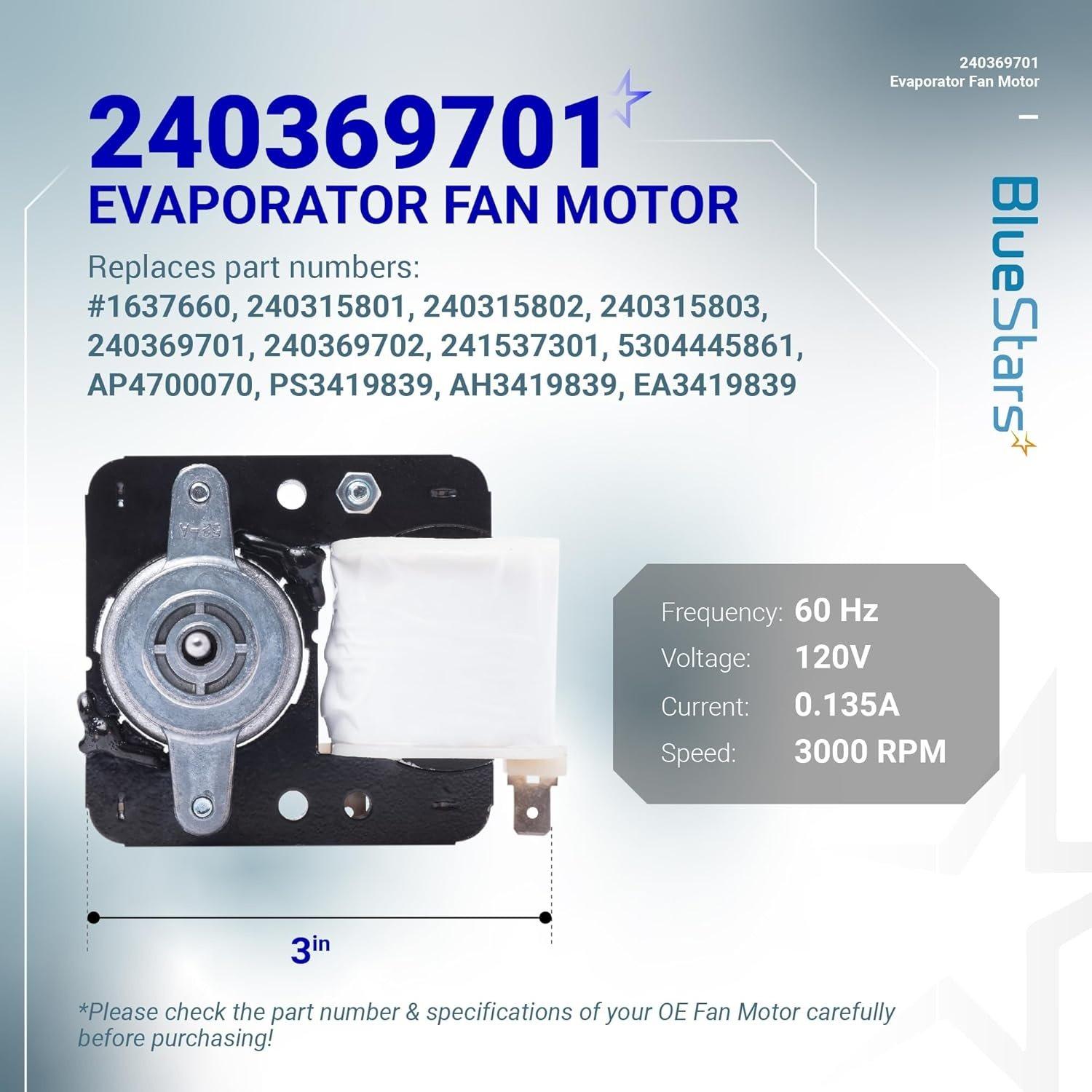

Key Features

  • Direct replacement evaporator fan motor

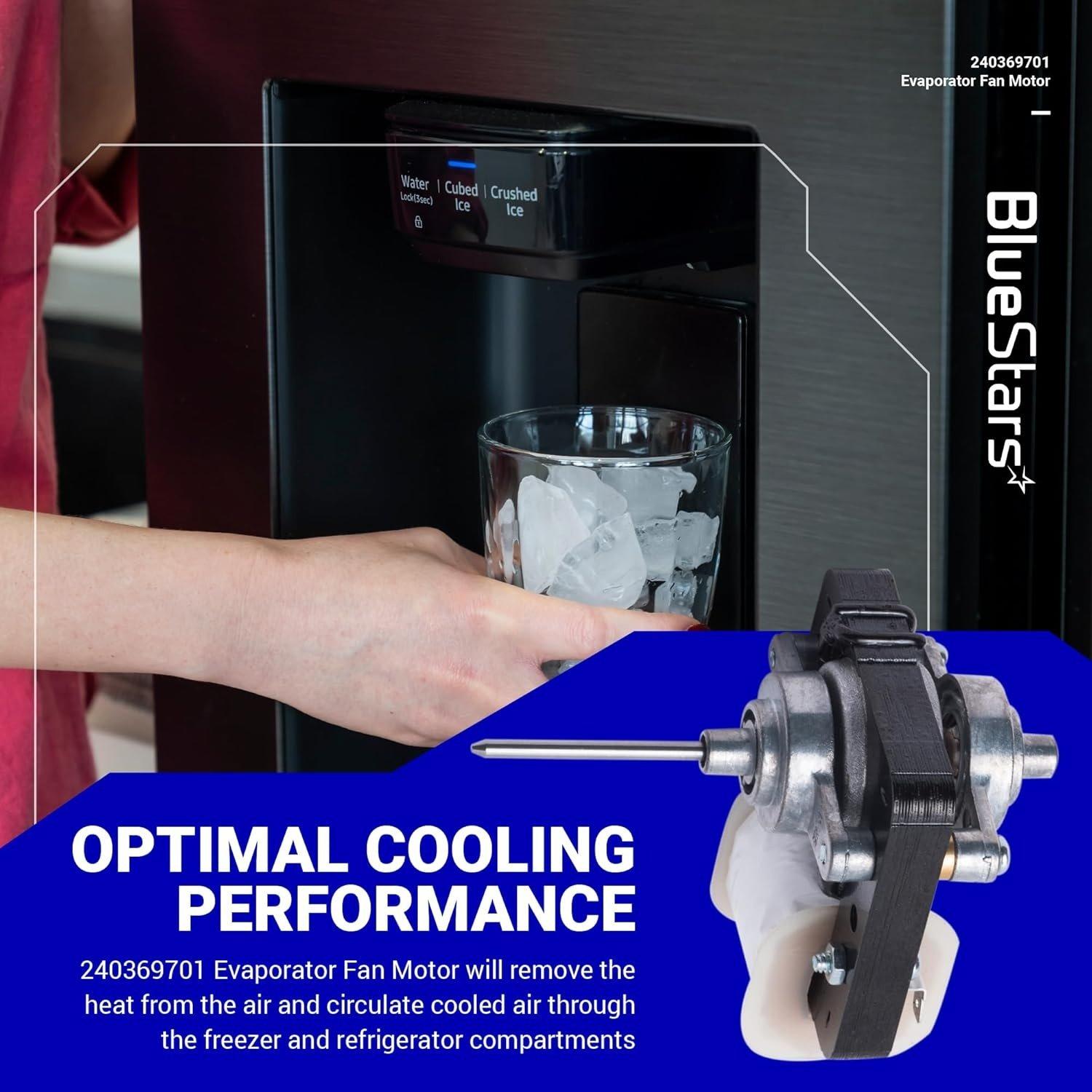

  • Circulates air through the food compartment for efficient cooling
  • Voltage: 120V
  • Frequency: 60Hz
  • Speed: 3000 RPM
  • Rotation: Clockwise (CW)
  • Shaft Length: 1.75 inches
  • Connection: Male spade terminals

Replaces / Cross-Reference Part Numbers

  • 240369701
  • 5304445861
  • 215951002
  • 240315801
  • 240315802
  • AP4700070
  • PS3419839

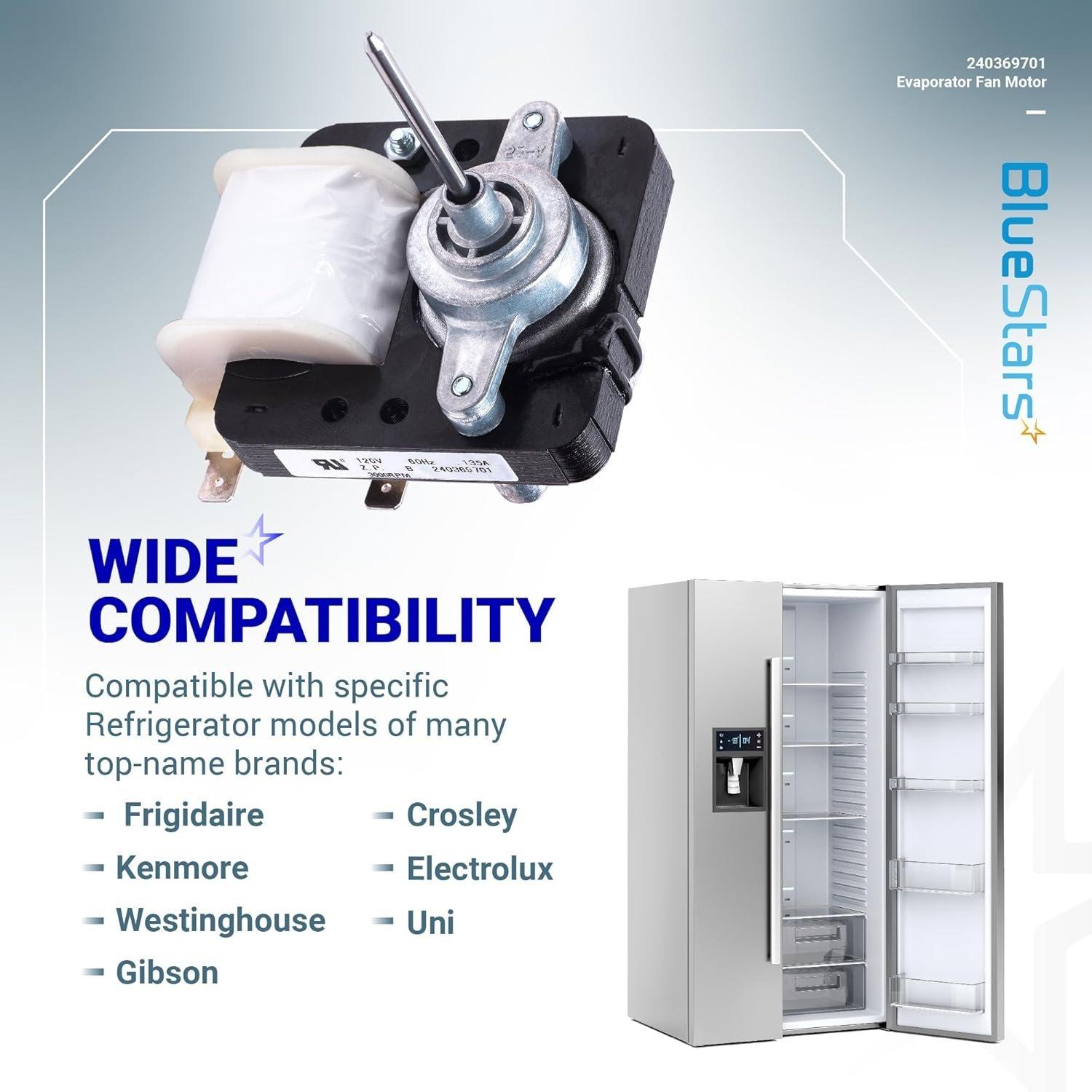

Compatibility & Fitment

  • Fits select refrigerator models from major brands including:
  • Frigidaire
  • Electrolux
  • Kenmore

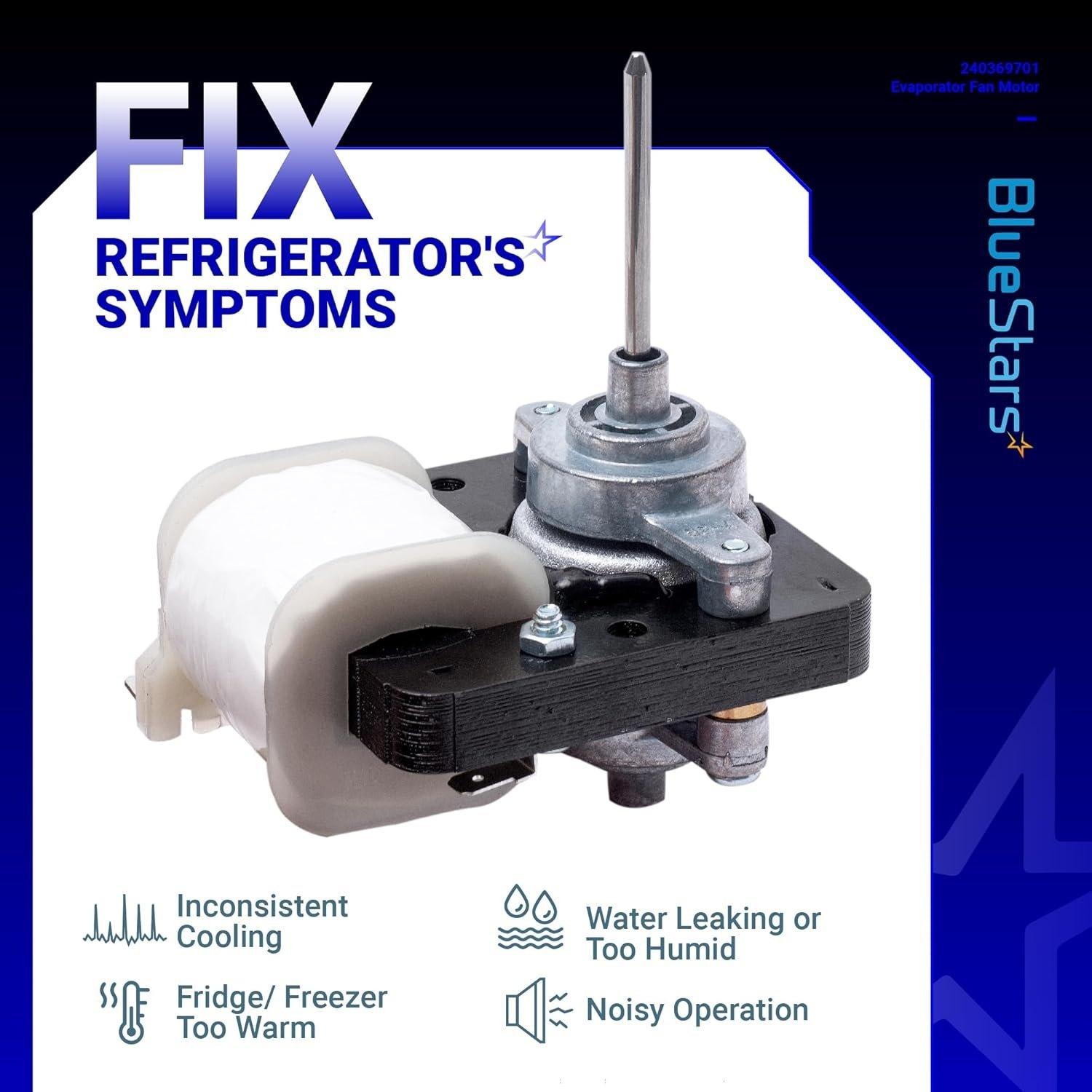

When to Replace

  • Refrigerator compartment is warm while the freezer is cold
  • Loud or unusual noises originating from the freezer area
  • Evaporator fan does not run when the compressor is on
  • Excessive frost buildup in the freezer

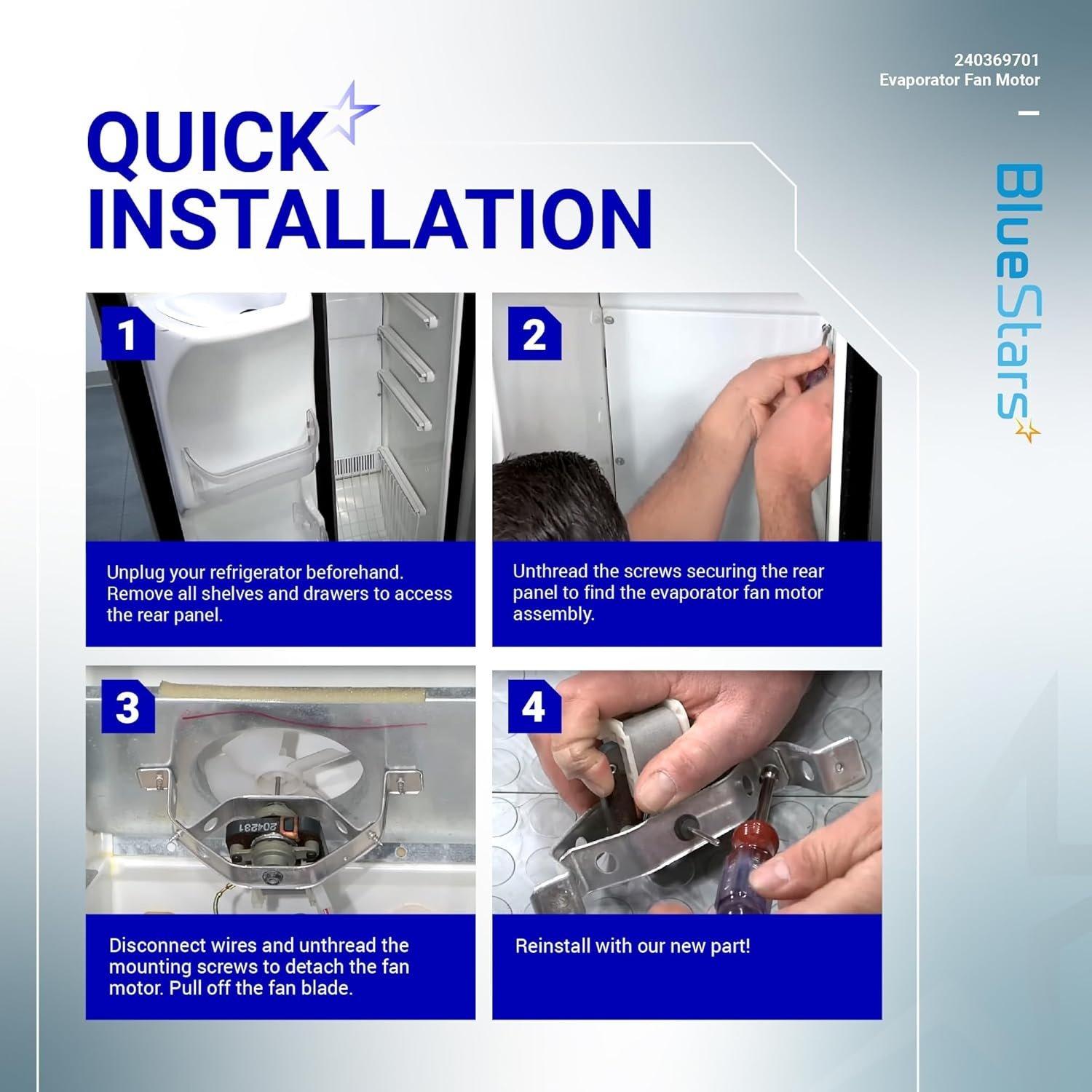

Installation Tips

  • Disconnect the refrigerator from its power source before starting the installation.
  • The fan motor is typically located behind a panel at the back of the freezer compartment.
  • Carefully remove the fan blade from the old motor shaft and transfer it to the new motor.
  • Ensure all wiring is securely connected before restoring power.
