[Lifetime Warranty] 3363394 Washer Drain Pump & 285753A Core Motor Coupling Kit - Compatible with Whirlpool Kenmore Washers - Replaces 3352492 3348215 3348014 3348015 WP3363394

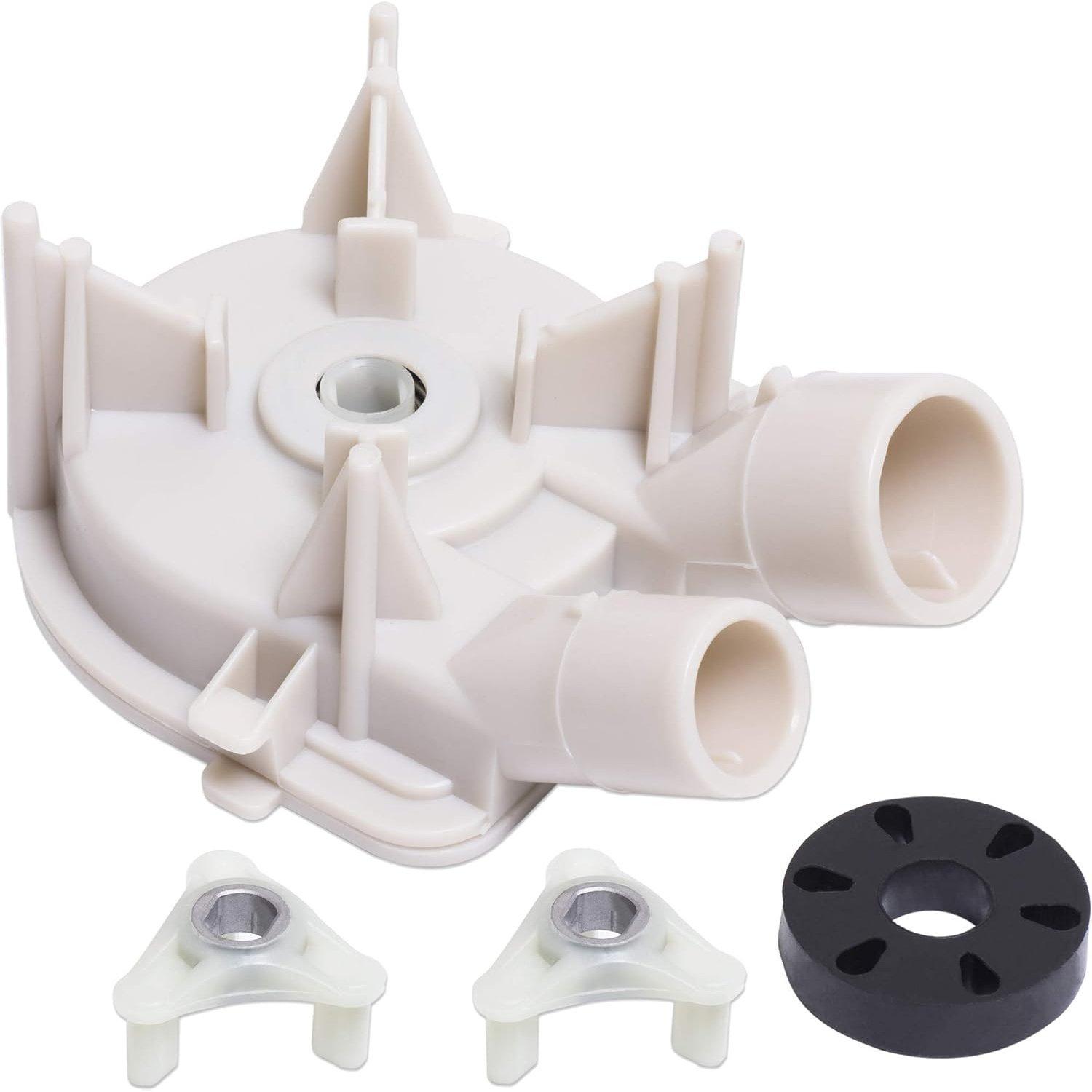

3363394 & 285753A Washer Drain Pump With Washer Motor Coupling Kit

Key Features

• Includes one washer drain pump and one motor coupling kit.
• Drain pump removes water from the washer tub during the drain cycle.

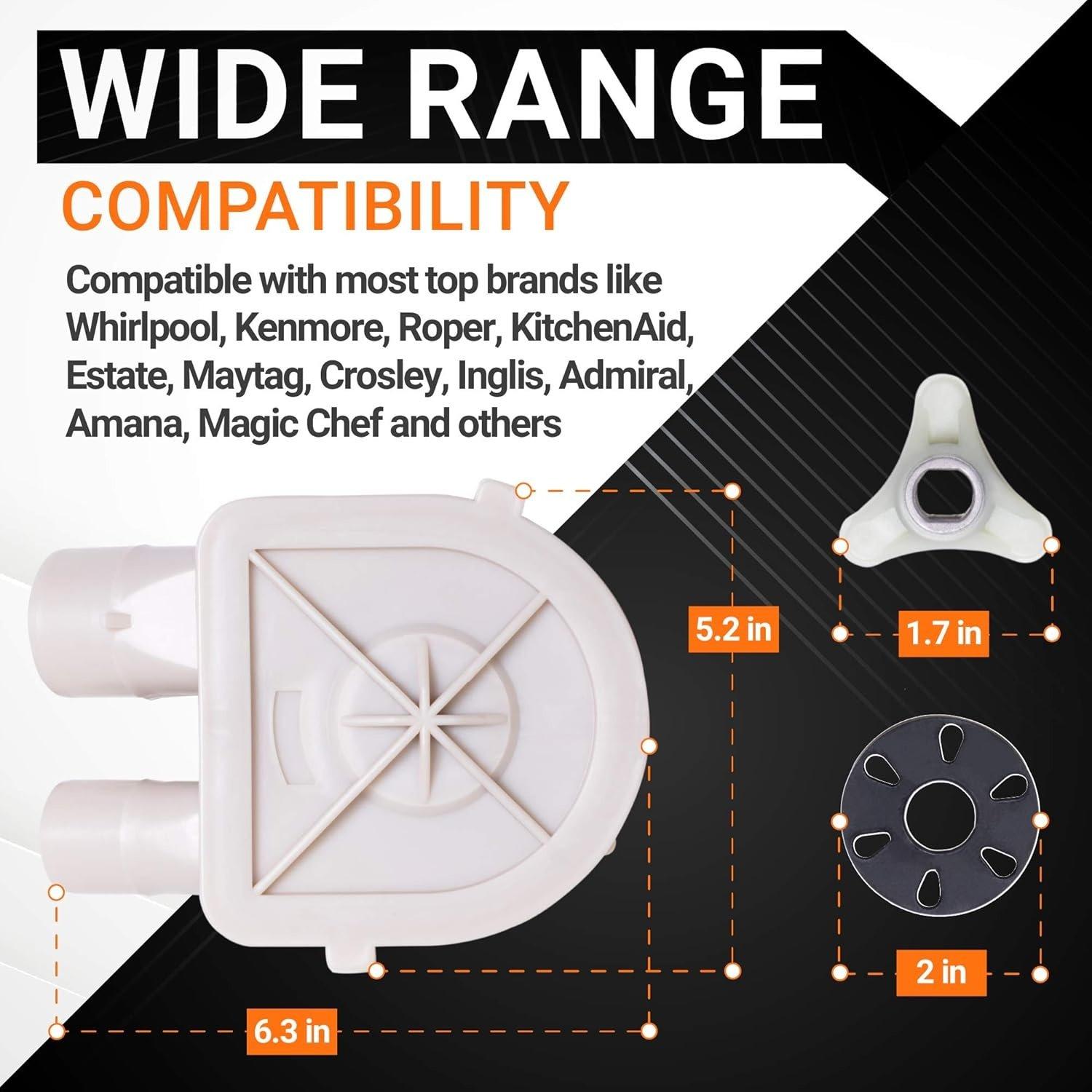

• Pump Port Diameters: 1-3/4 inch inlet, 1-1/4 inch outlet.
• Motor coupling connects the motor to the transmission, with a reinforced metal core.
• Designed for direct-drive washing machines without a belt.

Replaces / Cross-Reference Part Numbers

• Drain Pump (3363394):WP3363394, 3352492, 3348215, 3348014, 3348015
• Motor Coupling (285753A):285753

Compatibility & Fitment

• Fits specific direct-drive models from major brands including Whirlpool, Kenmore, Maytag, and Amana.
• Example compatible model: Whirlpool WTW5500ST0.
• Verify fitment with your appliance's model number before ordering.

When to Replace

• Failing Drain Pump Symptoms:Washer will not drain, leaks water from the pump area, or makes loud noises during the drain cycle.
• Failing Motor Coupling Symptoms:Washer fills and agitates but will not spin or drain; loud rattling or grinding noises during operation.

Installation Tips

• Disconnect the washer from power and water sources before beginning repairs.
• Place towels under the pump and hoses to catch residual water.
• Ensure hoses are securely clamped to the new pump to prevent leaks.
• Align the motor and transmission shafts correctly when installing the new coupling.
