[Lifetime Warranty] W10225581 Refrigerator Bimetal Defrost Thermostat Replacement - Compatible with Whirlpool Kenmore - Replaces WPW10225581 PS11750673 AP6017375 2188824 2321799 W10260437

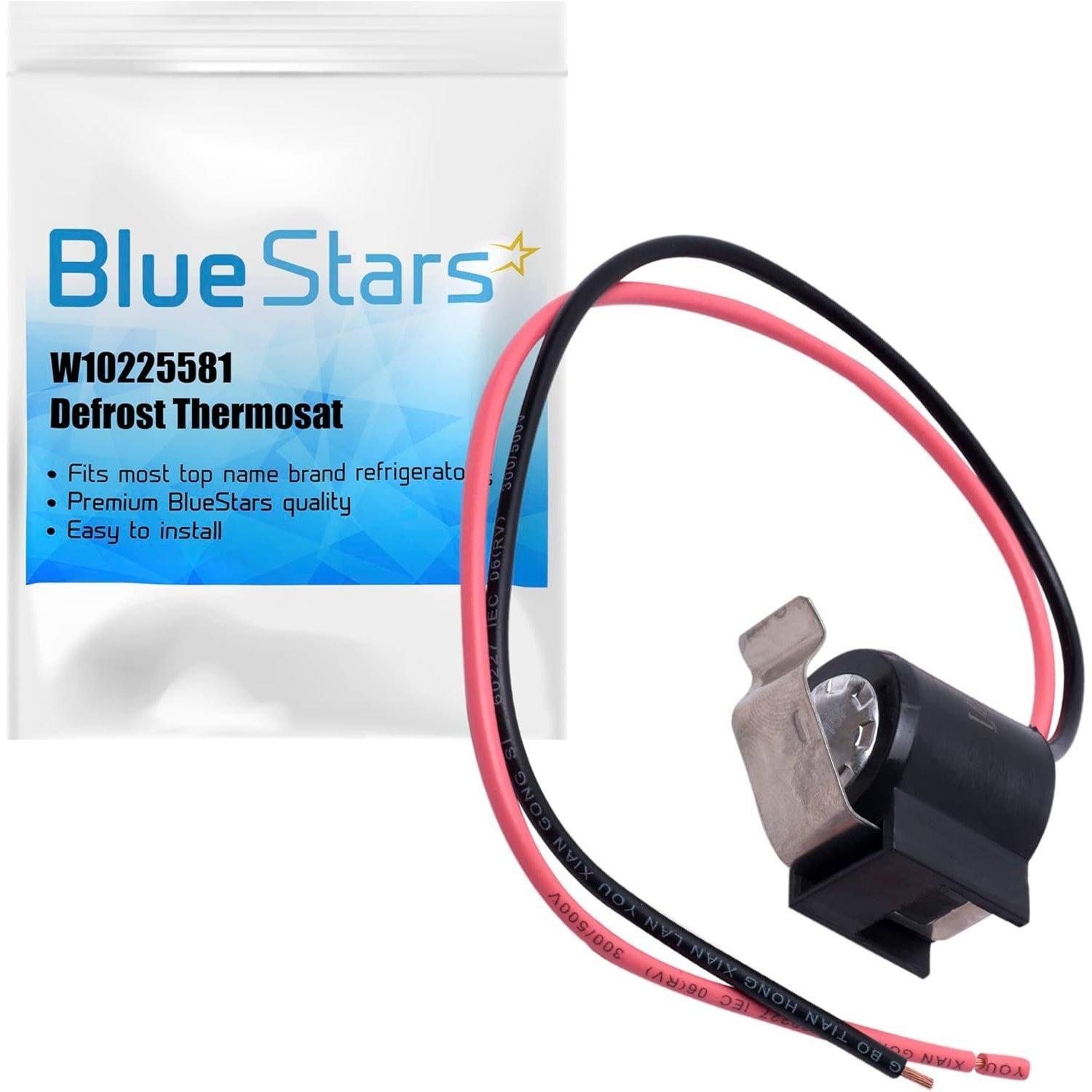

W10225581 Refrigerator Bimetal Defrost Thermostat

Key Features

• Monitors evaporator temperature to control the defrost cycle.
• Protects the evaporator from overheating.

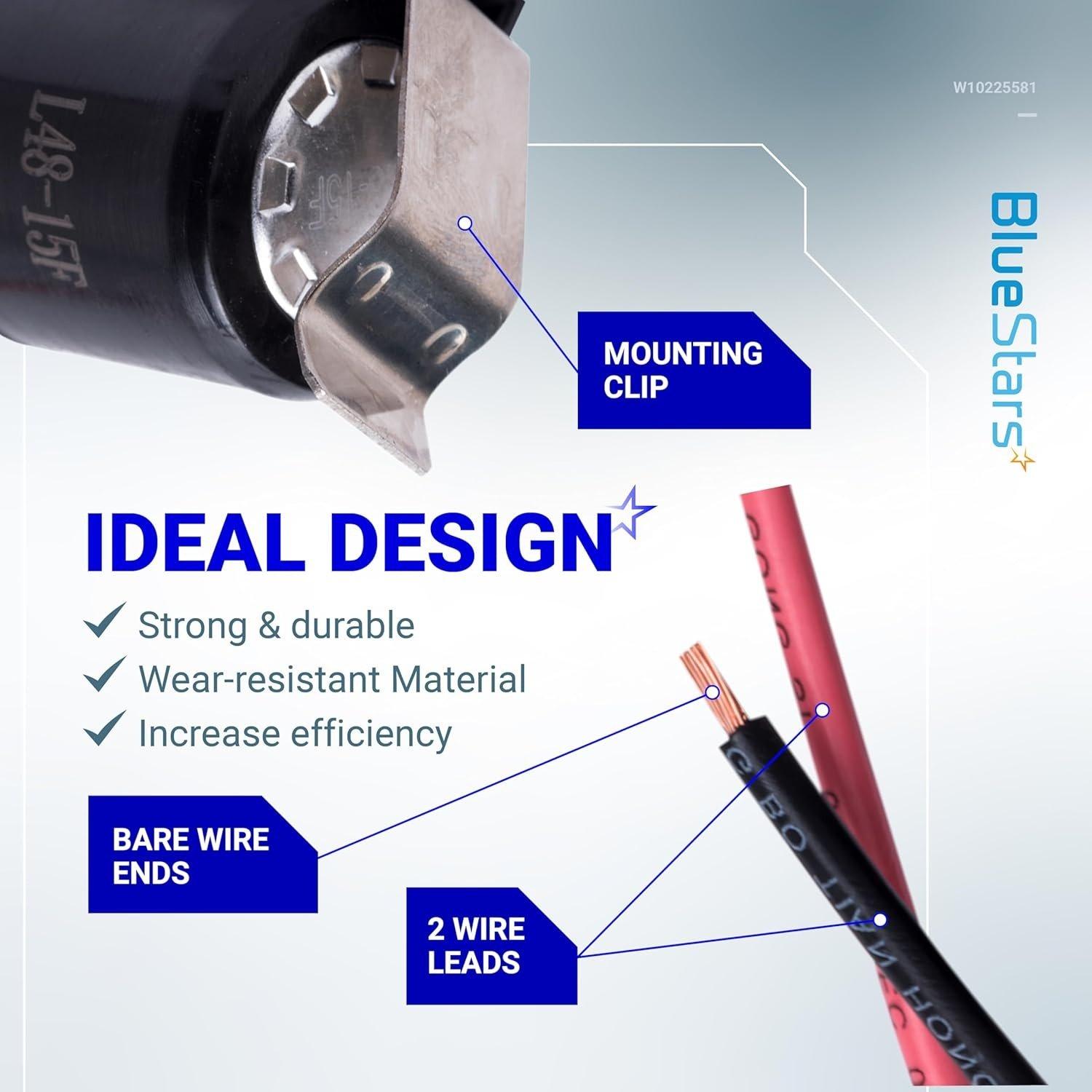

• Clips directly onto the evaporator tube for proper temperature sensing.
• Designed as a direct replacement for the original component.

Replaces / Cross-Reference Part Numbers

• W10225581
• WPW10225581
• AP6017375
• PS11750673
• 2149849
• 2161331
• 2176066
• 2188824
• 2266066
• 2266067
• 2315504
• 2317087
• 2319914
• 2321796
• 2321797
• 2321802
• 4387498
• AH2348824
• EA2348824
• PS2348824

Compatibility & Fitment

• Fits specific models from brands including Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Roper, and Estate.
• Always verify fitment with your refrigerator's specific model number before ordering.

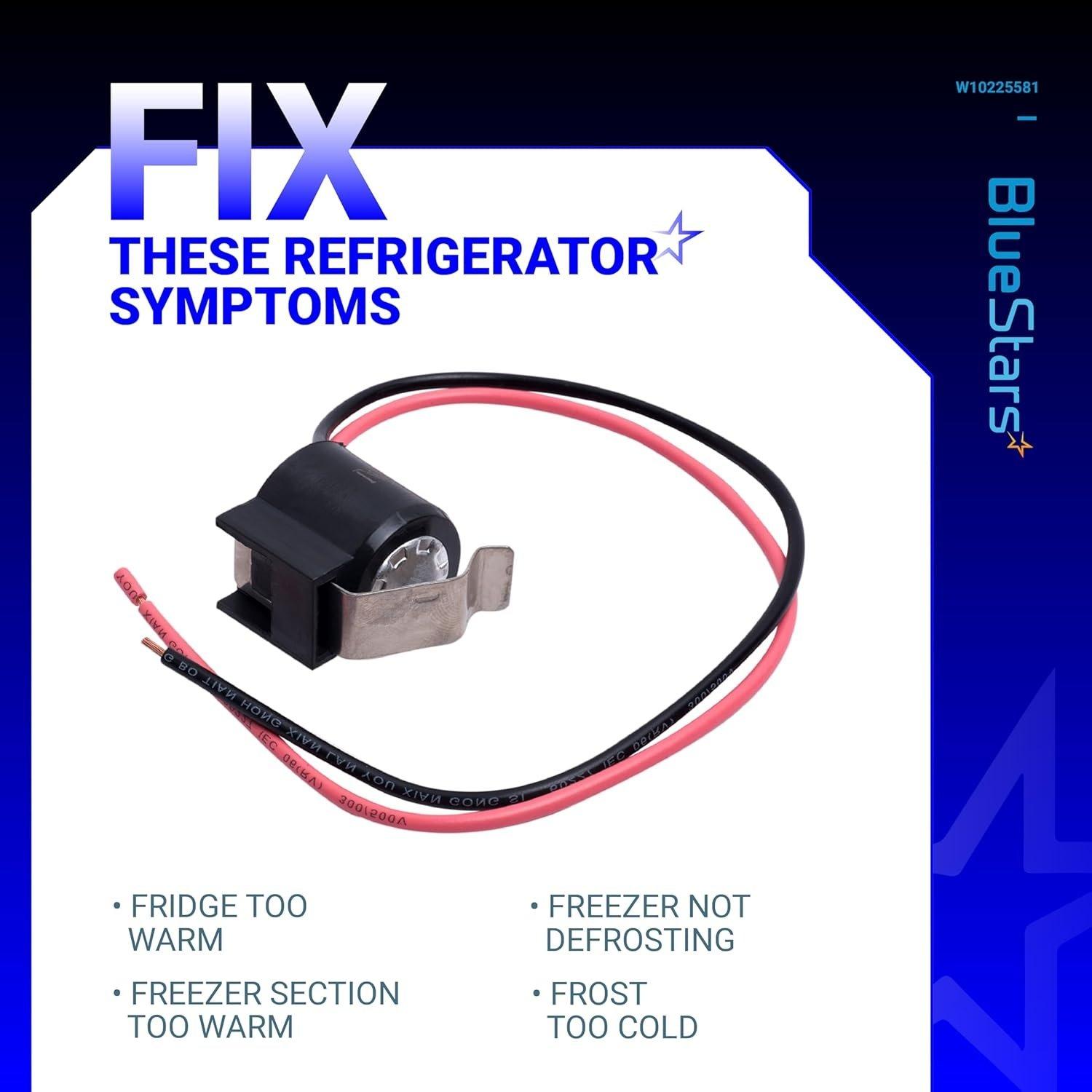

When to Replace

• Excessive frost buildup in the freezer section.
• Refrigerator or freezer compartment is not cooling properly.
• Refrigerator is leaking water.
• The refrigerator runs continuously.

Installation Tips

• Disconnect the refrigerator from its power source before starting the repair.
• The thermostat is typically located behind the back panel inside the freezer compartment.
• Ensure the new thermostat is clipped securely to the evaporator tubing in the same location as the original.
• Consider testing the defrost heater for continuity while the panel is removed.
