[Lifetime Warranty] 4392065 Dryer Repair Kit Included Belt 341241 Idler 691366 Rollers 349241T for Whirlpool Kenmore Admiral Amana Dryers - Replaces 279948 587636 AP3131942 PS373087 587636 WED4815EW1 NED4655EW1

4392065 Dryer Repair Kit Included Belt 341241 Idler 691366 Rollers 349241T

Key Features

• Complete kit to address common dryer operational issues.

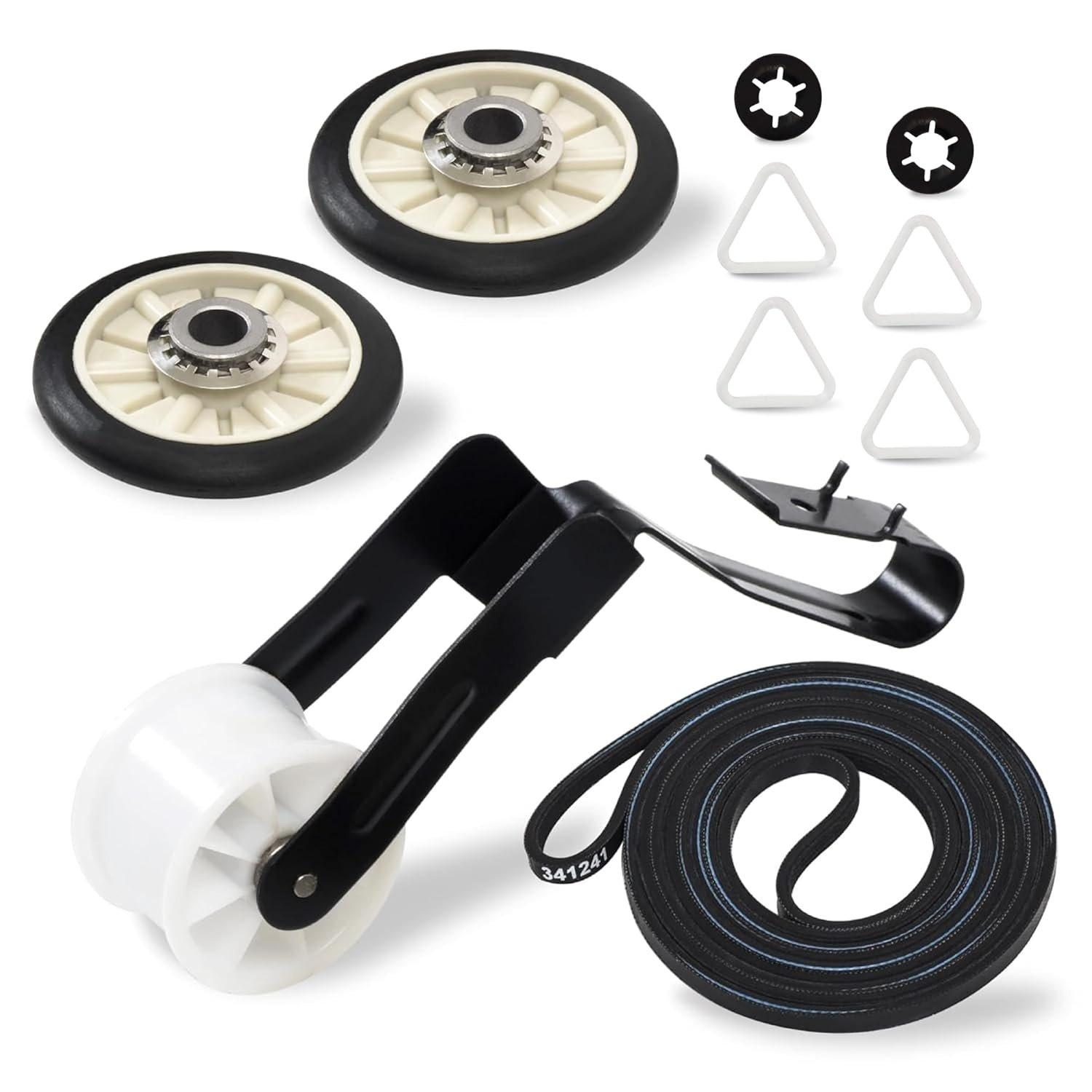

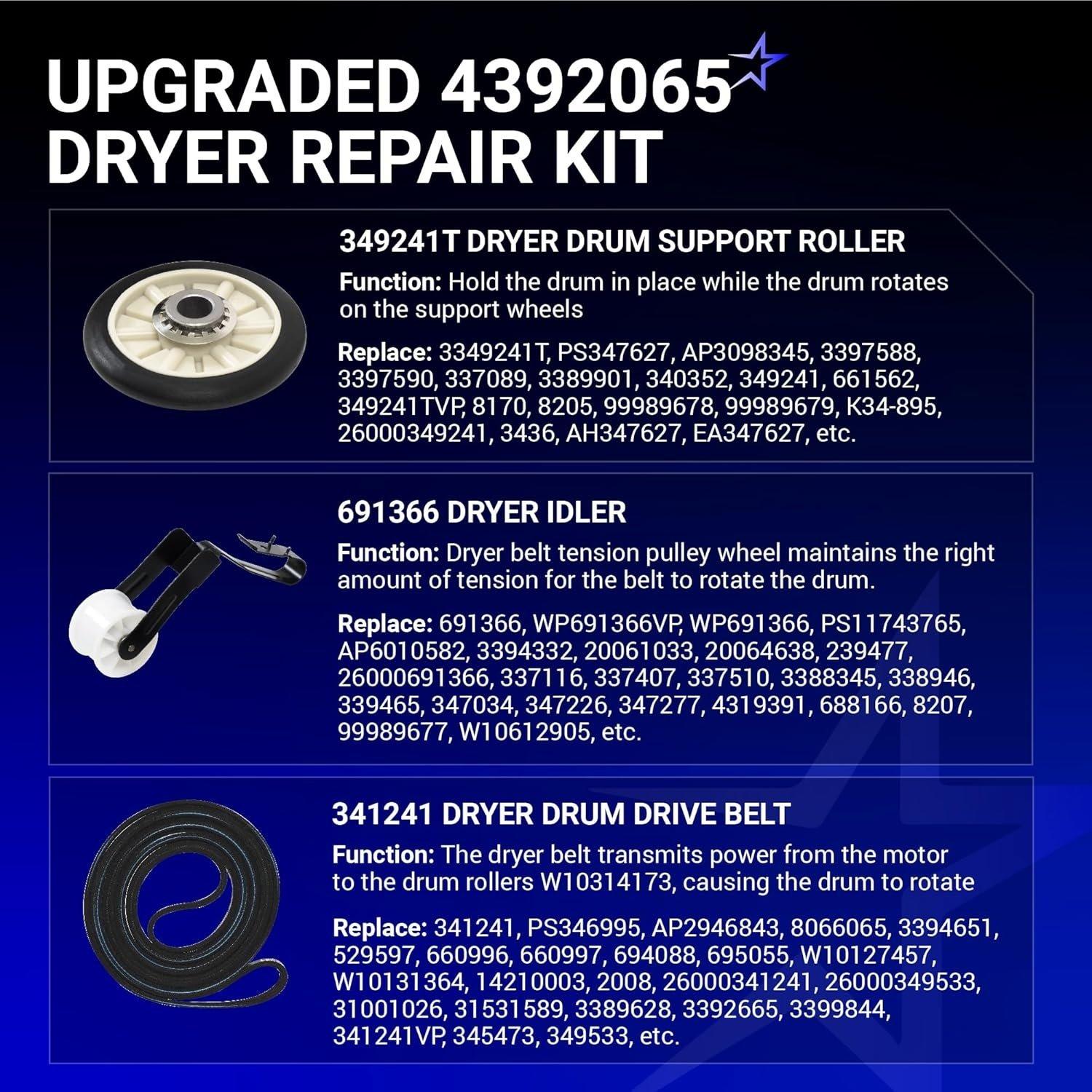

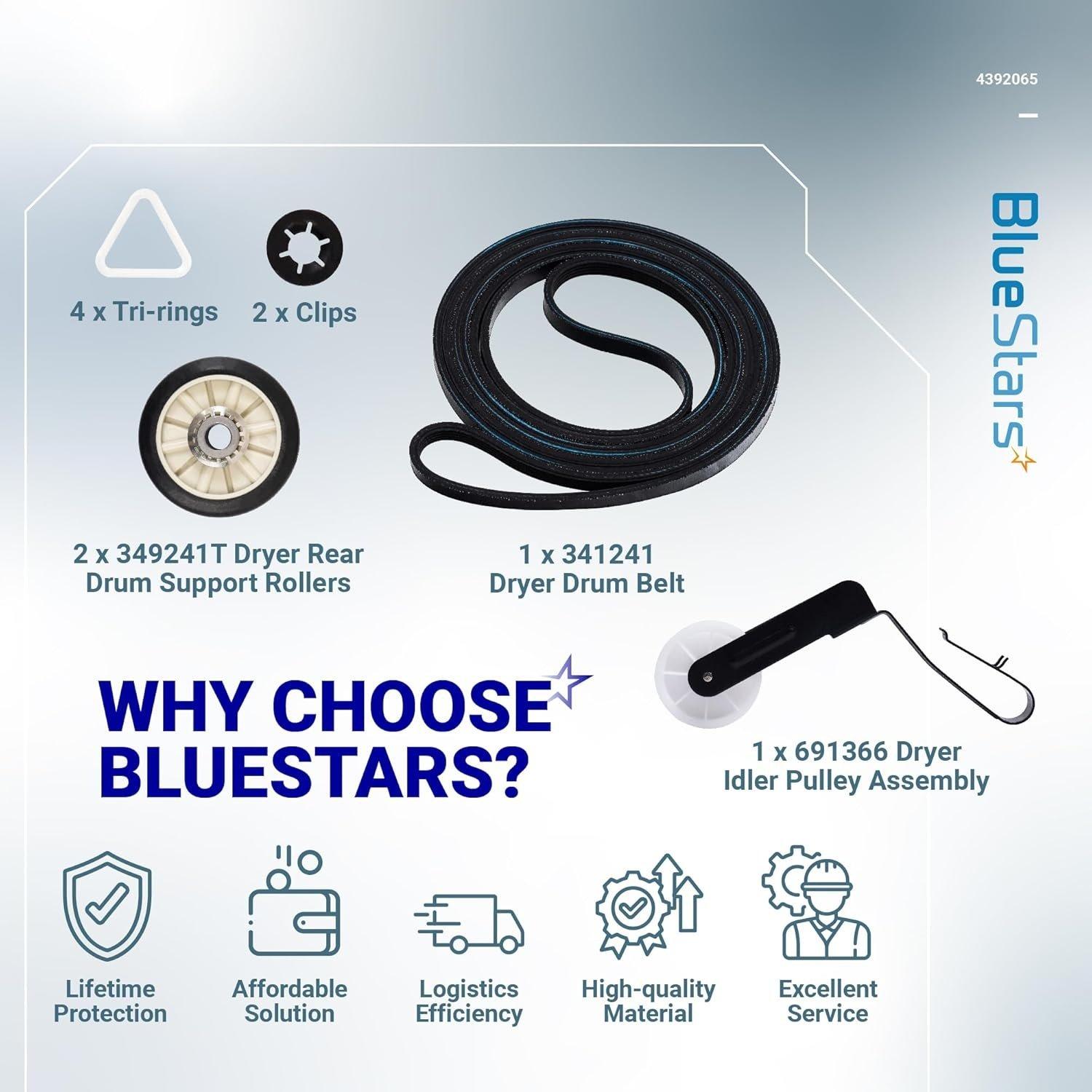

• Includes one 341241 drum belt, one 691366 idler pulley assembly, and two 349241T drum support rollers with hardware.
• Drum Belt (341241): 92 1/4 inches long, 1/4 inch wide, 4 ribs.

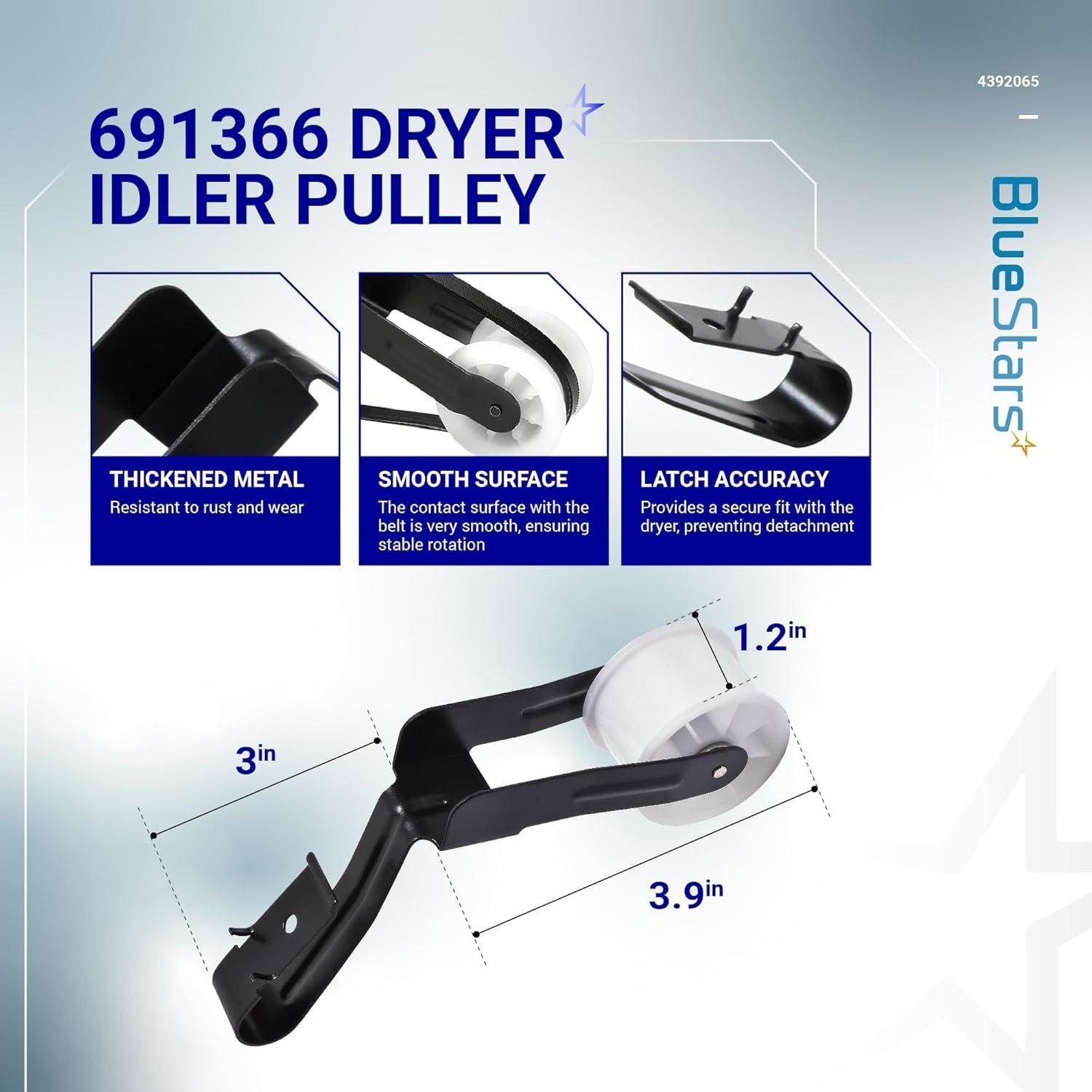

• Idler Pulley (691366): Maintains tension on the drum belt.

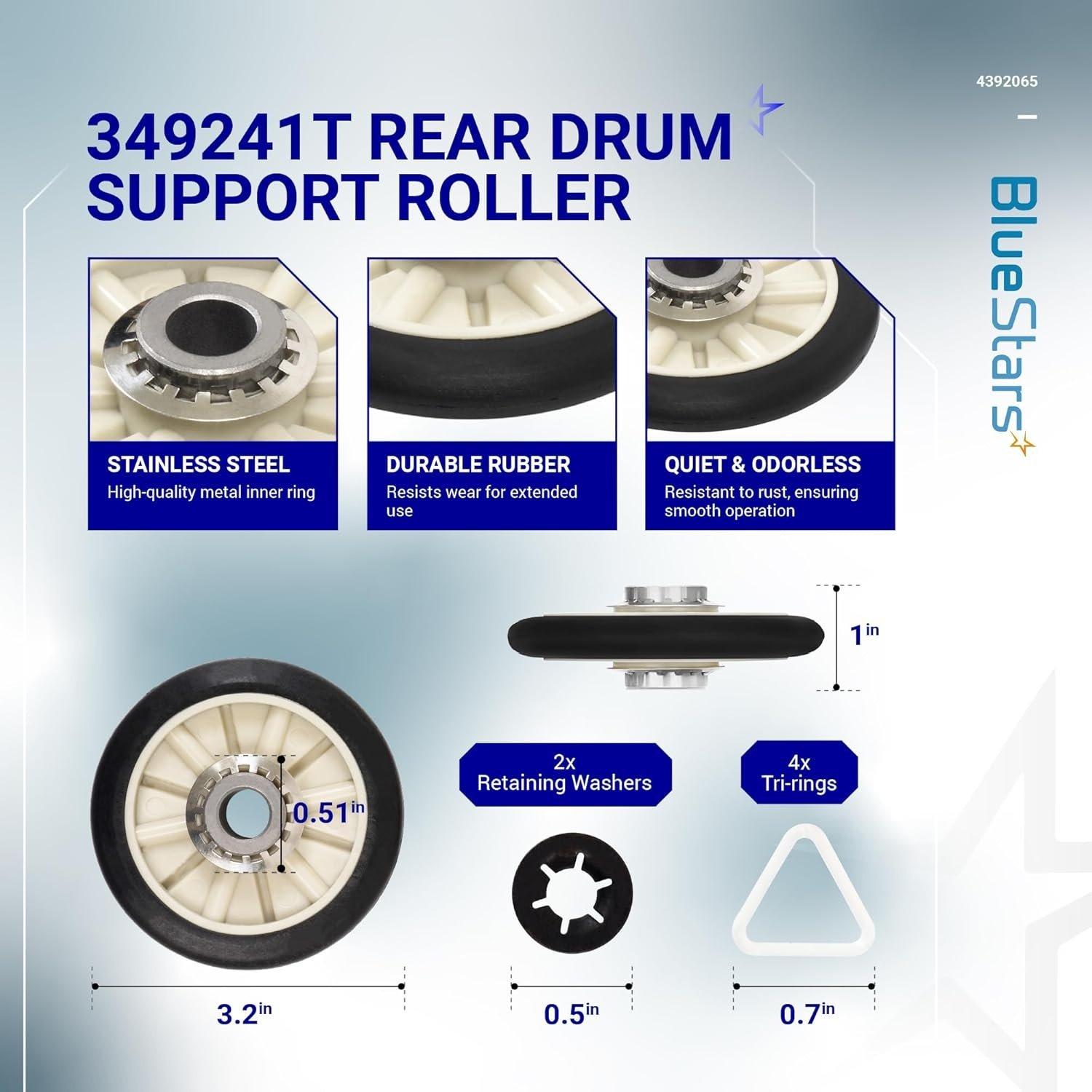

• Drum Rollers (349241T): Support the drum and allow it to rotate smoothly.

Replaces / Cross-Reference Part Numbers

• Kit 4392065: AP3131942, 587636, 80046, K35-163, DE412, EA373087, PS373087
• Belt 341241: AP6008283, AP2946843, PS11741416, PS347243
• Idler 691366: AP6010582, AP3131941, PS11743765, PS383724
• Rollers 349241T: AP6008514, AP3131942, PS11741671, PS344593

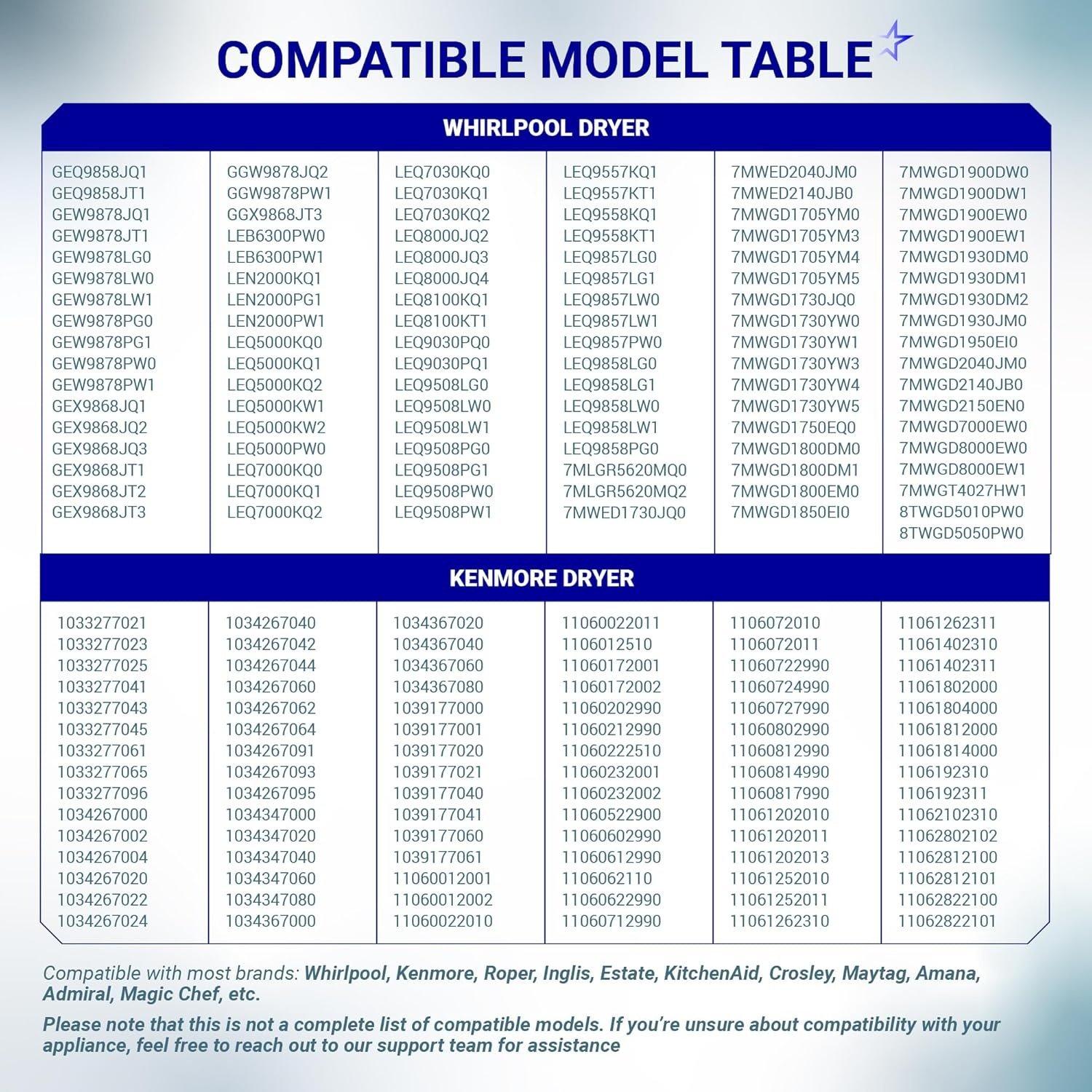

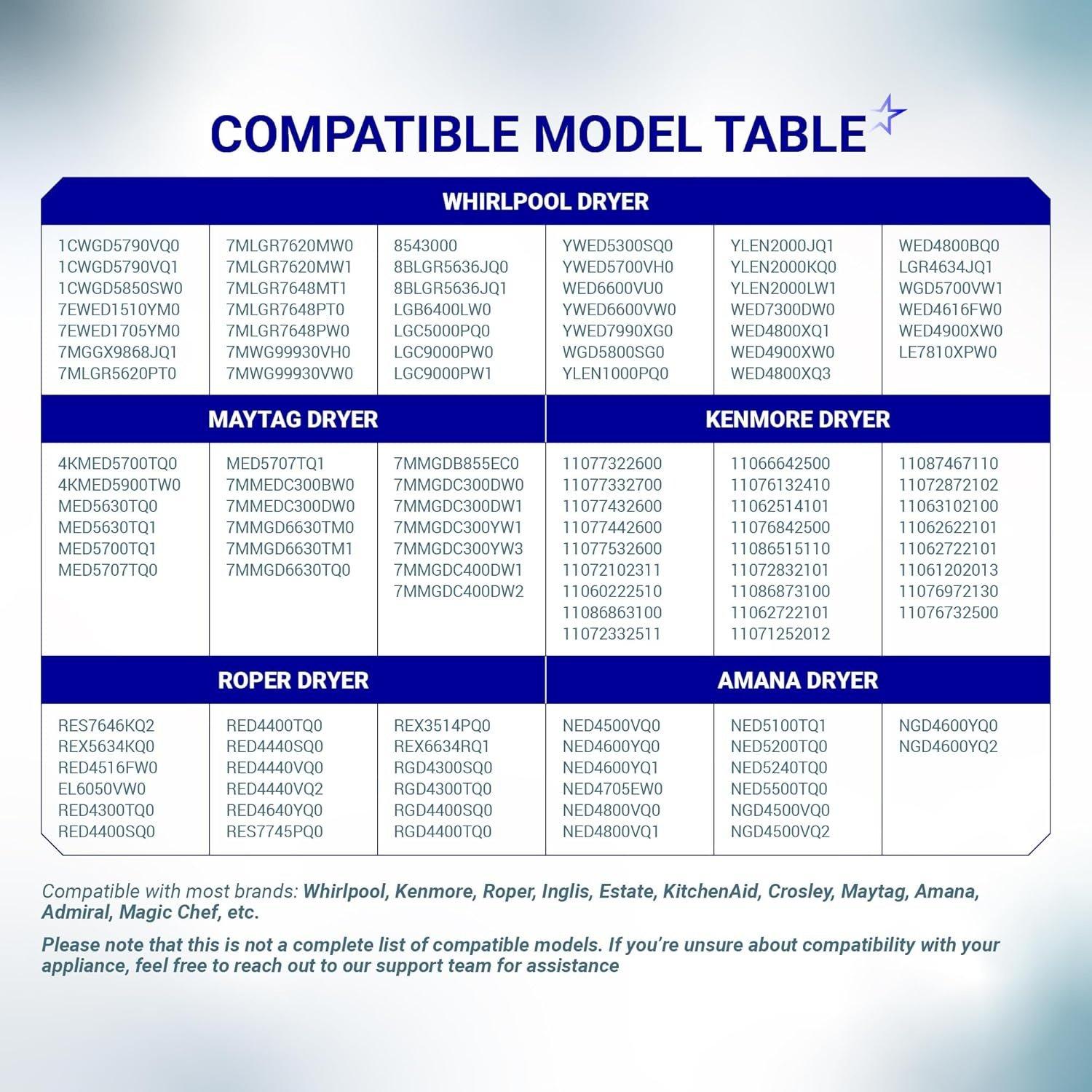

Compatibility & Fitment

• Designed for use with many 29-inch wide dryers with the lint screen located on top.
• Compatible with models from major brands including:
• Whirlpool
• Kenmore
• Sears
• Maytag
• Amana
• Roper
• Kirkland

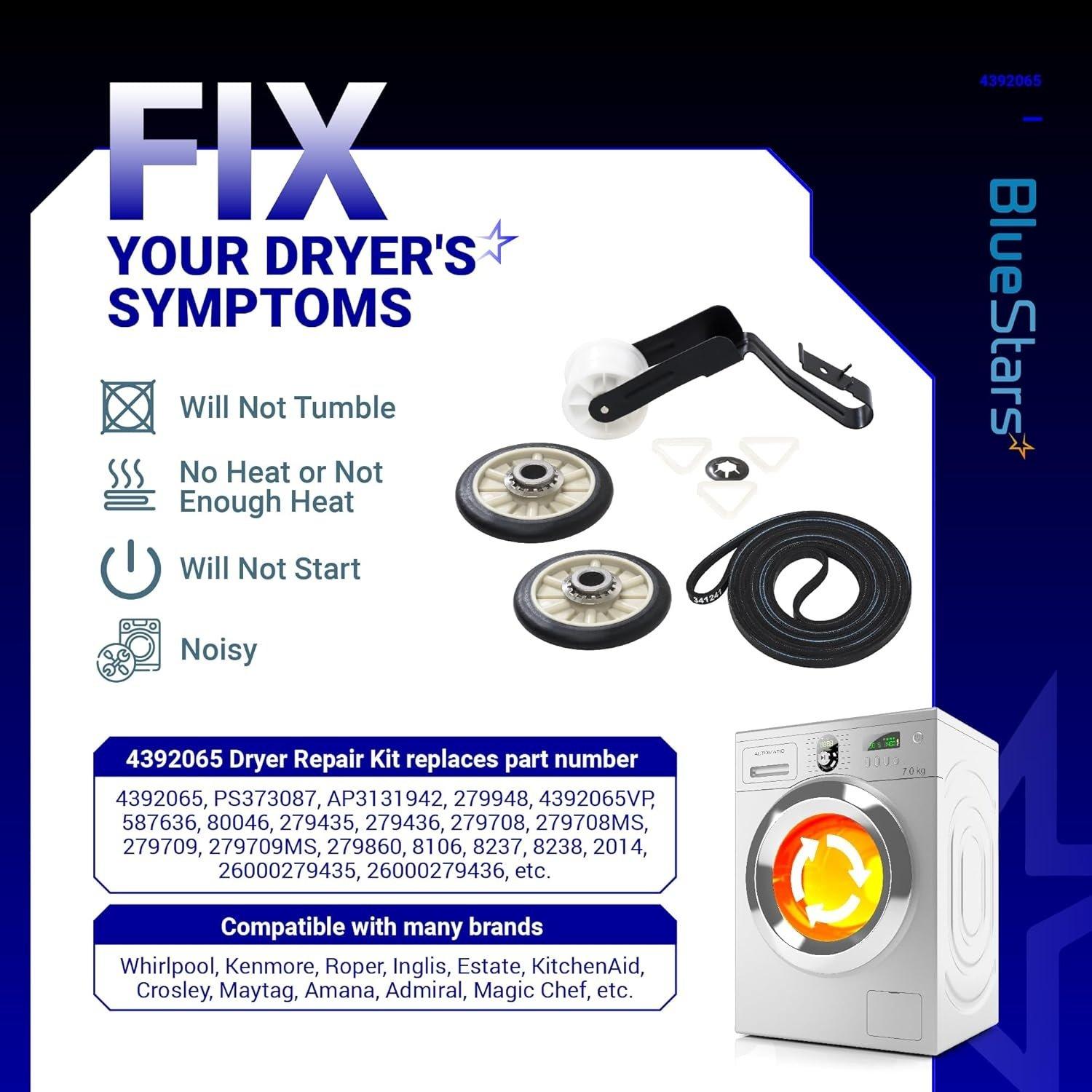

When to Replace

• Dryer produces squeaking, thumping, or rumbling noises.
• Drum fails to tumble or rotates intermittently.
• Dryer will not start.
• Black marks or residue are left on clothing.

Installation Tips

• Disconnect the dryer from its power source before beginning any repairs.
• Wear work gloves for safety.
• Clean any accumulated lint from the dryer cabinet during the repair.
• Ensure the new belt is installed with the ribbed side facing the drum.
