[Lifetime Warranty] 279838 WED4815EW1 Heating Element For Whirlpool WED6200SW1 WED5000DW2 WED5300VW0 WED4800BQ1 Maytag MEDC215EW1 MEDX655DW1 Amana NED4655EW1 Roper Admiral Kenmore

279838 W10724237 Dryer Heating Element

Key Features

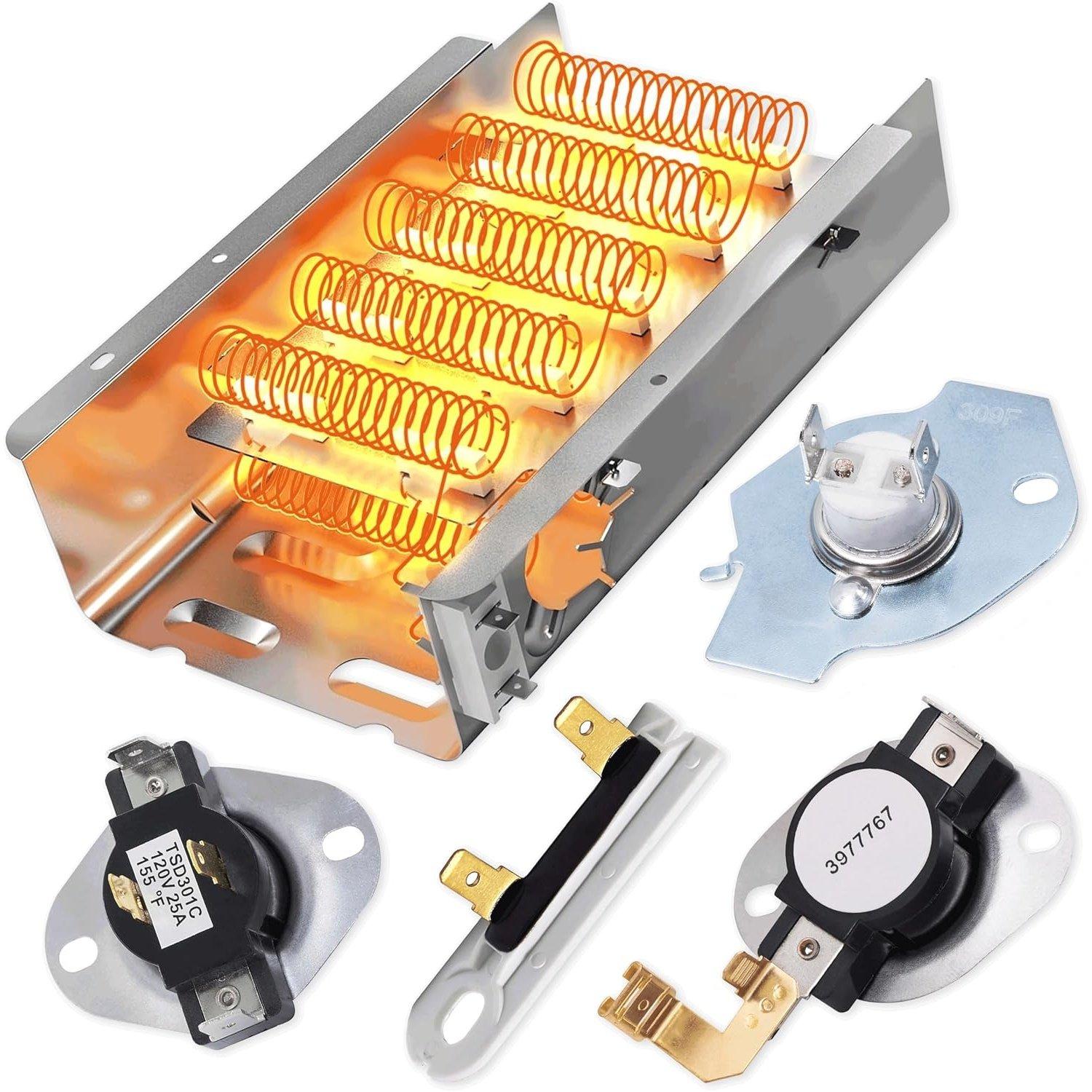

• Complete heating element assembly for electric dryers.

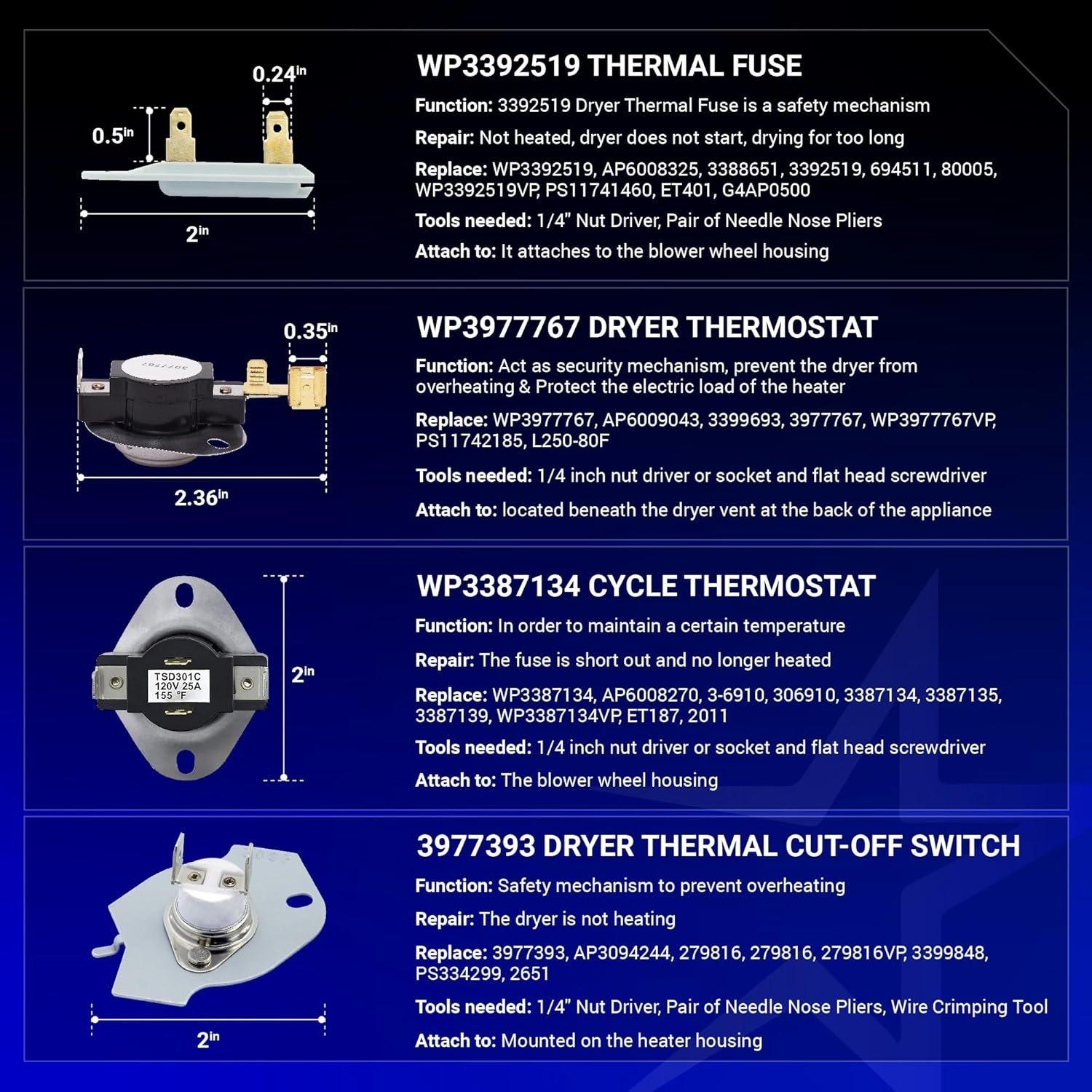

• Includes heater housing and high-limit thermostat.

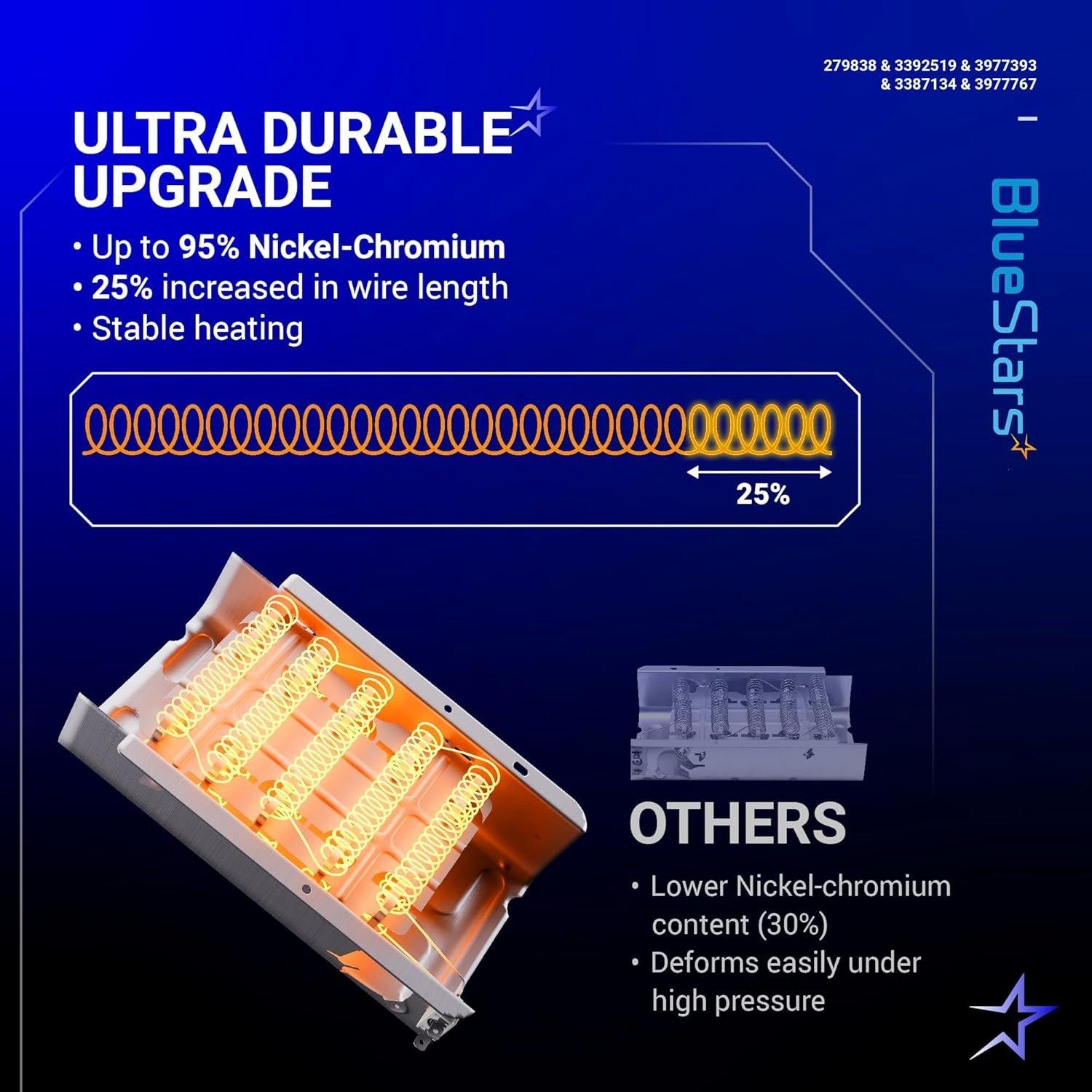

• Nickel-chrome alloy wire coil for consistent heat generation.

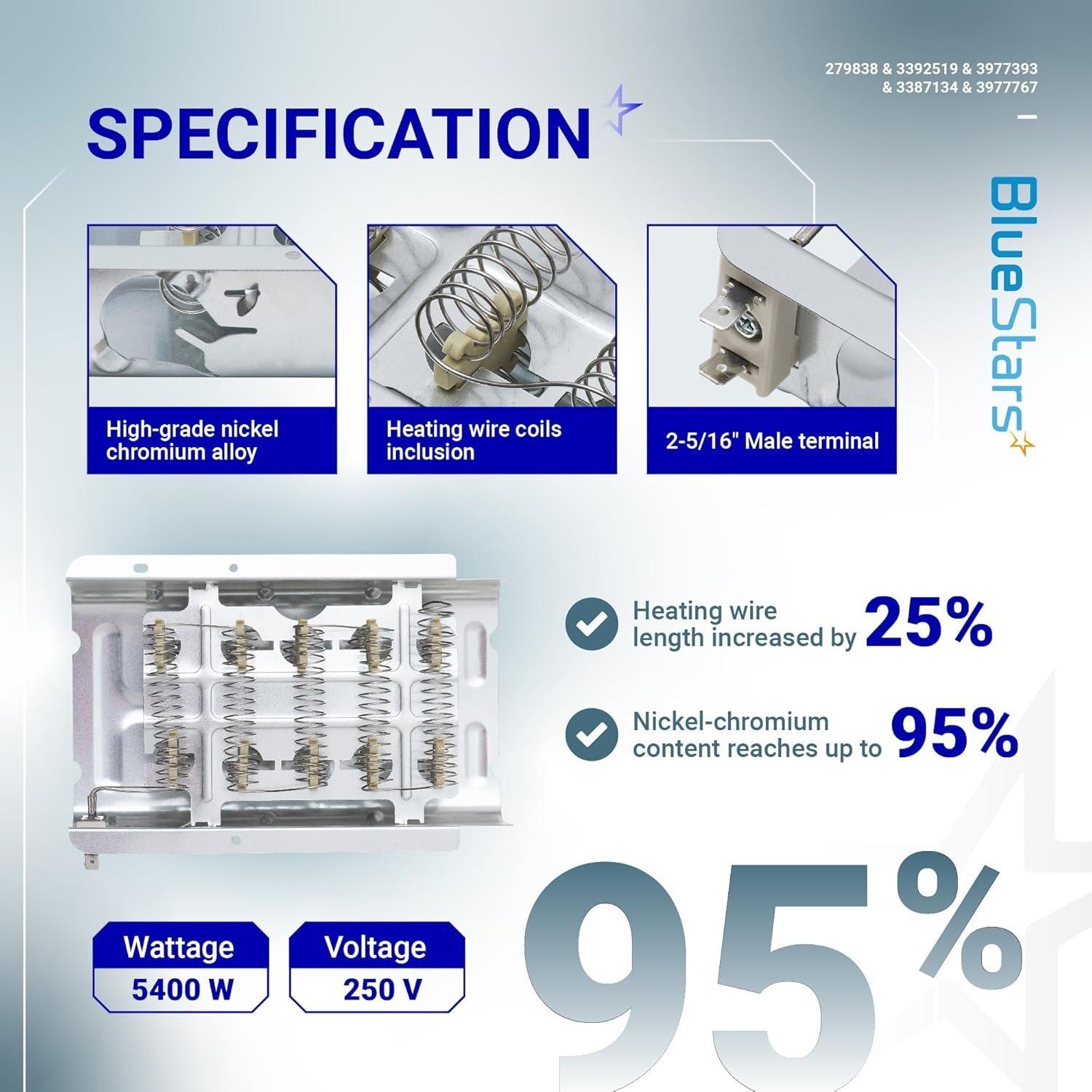

• Rating: 5400 Watts, 240 Volts.
• Terminal connections: 5/16 inch male spade.

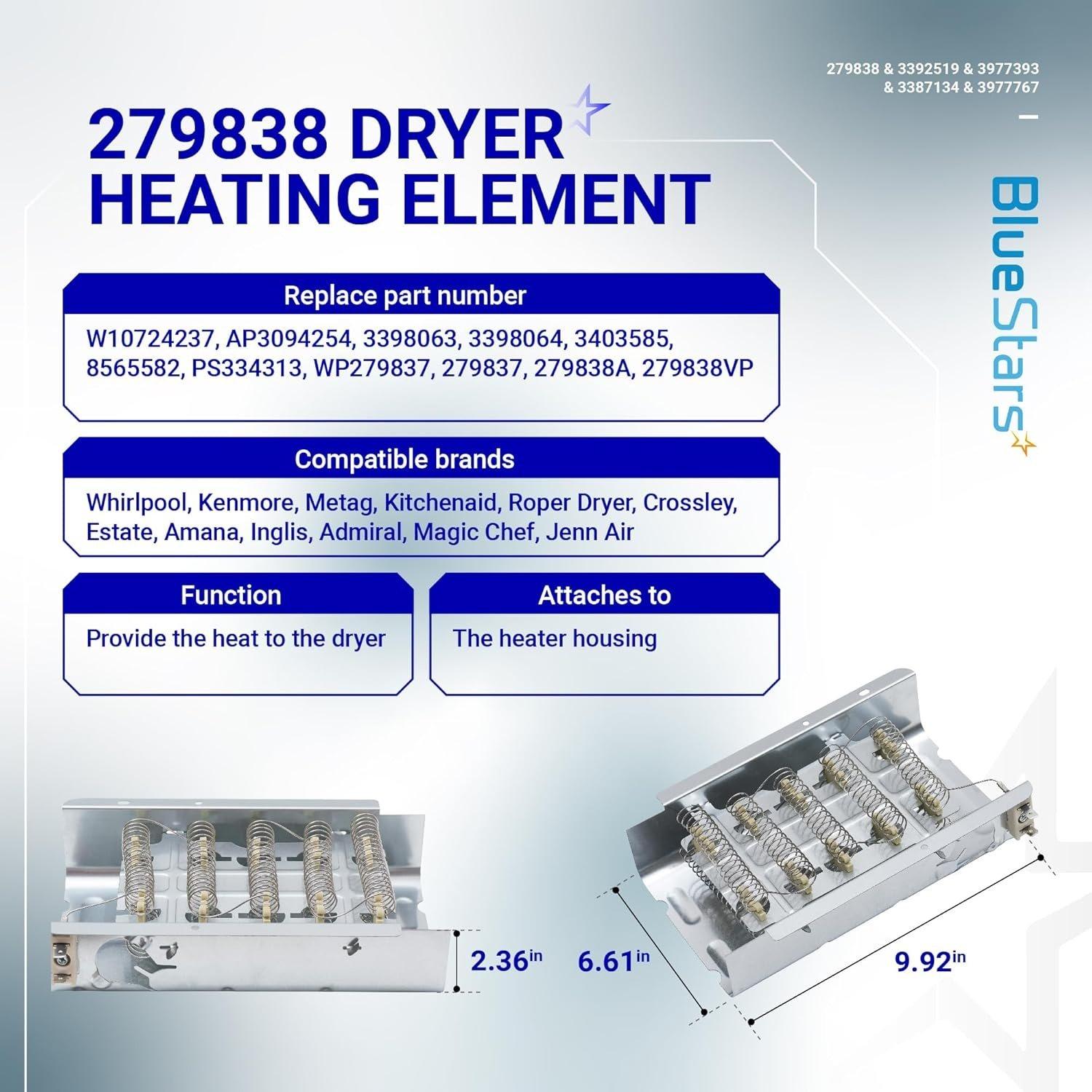

Replaces / Cross-Reference Part Numbers

• 279838
• W10724237
• 279838A
• 279838VP
• 3398064
• 3403585
• 8565582
• AP3094254
• PS334313

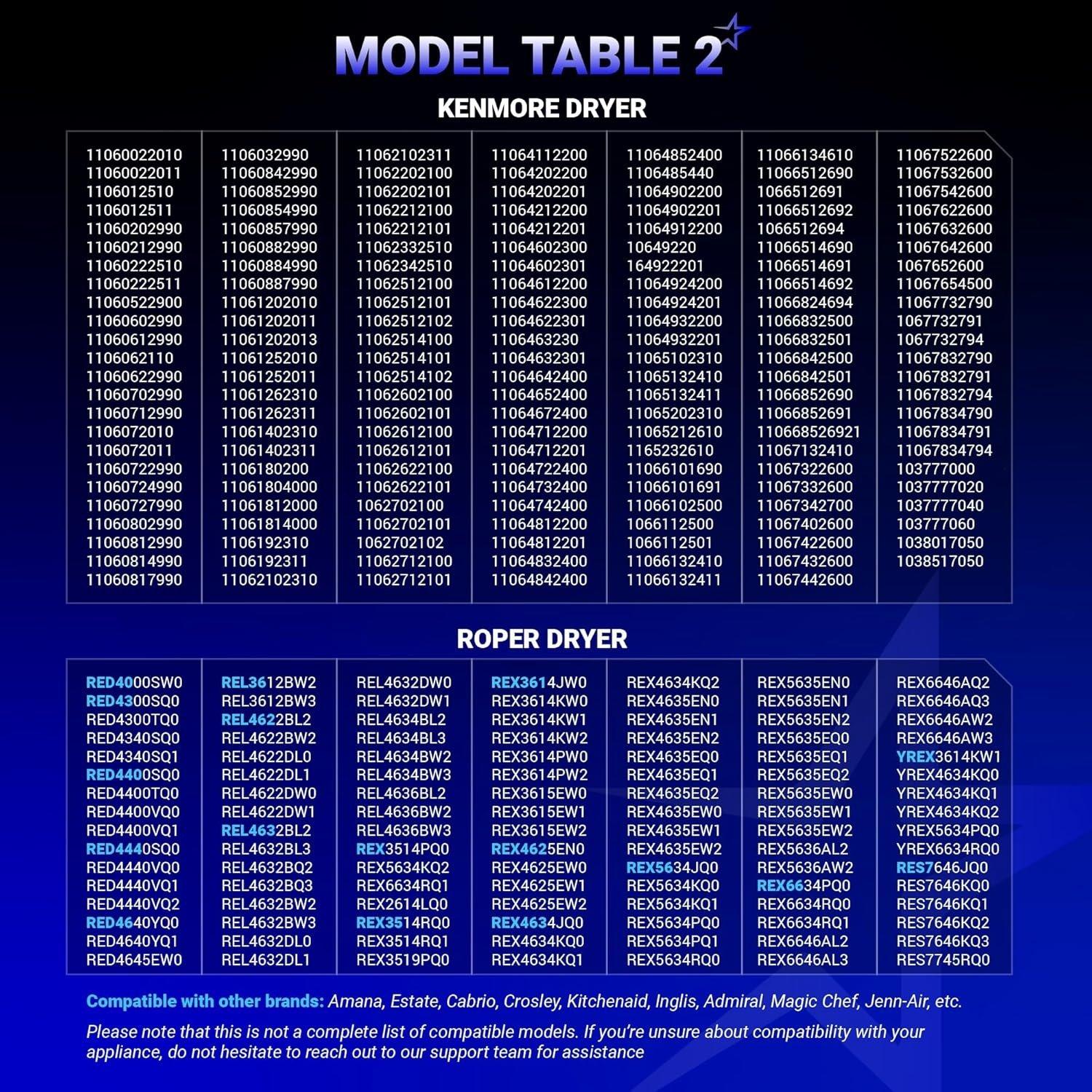

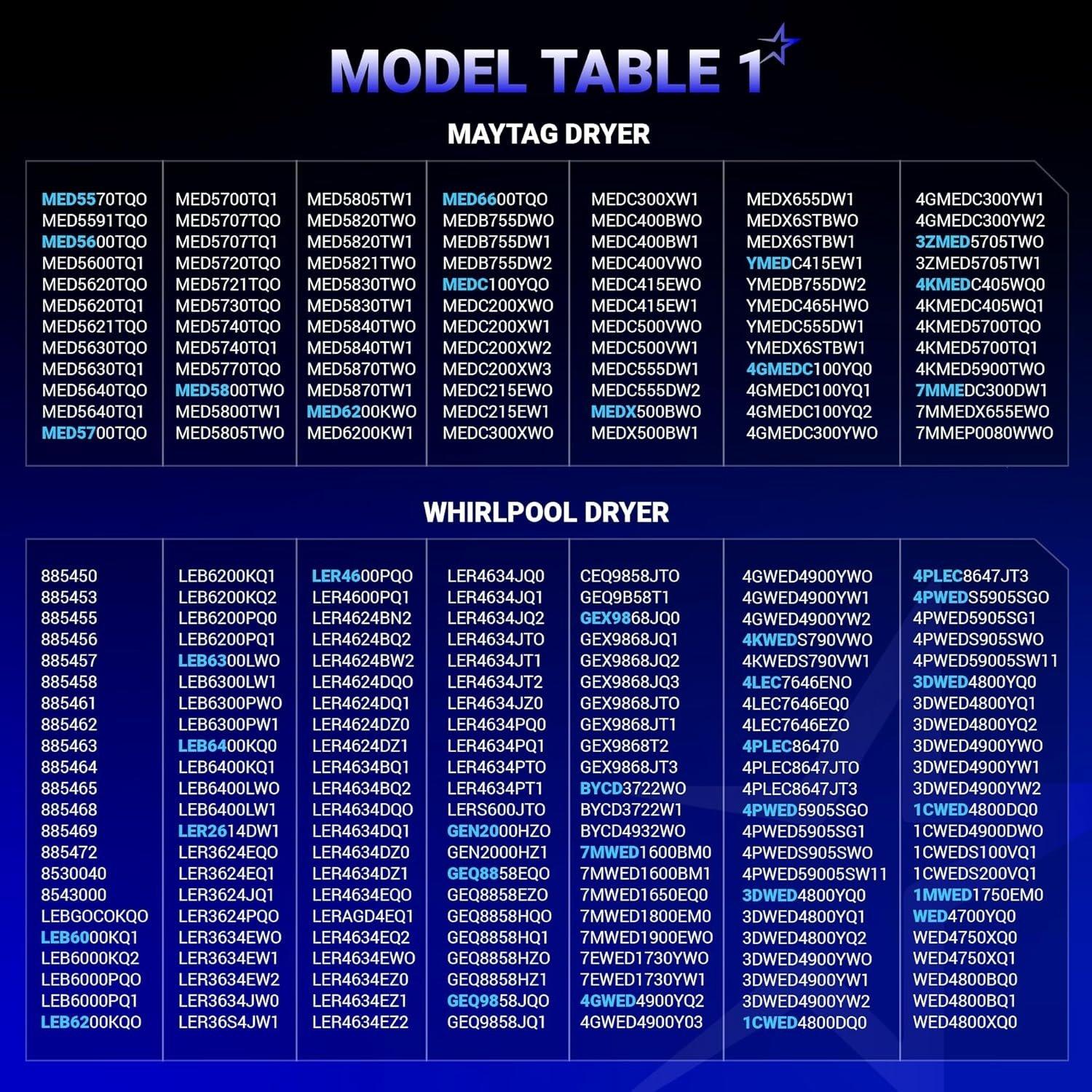

Compatibility & Fitment

• Fits numerous electric dryer models from major brands.
• Compatible with many Whirlpool, Kenmore, Maytag, Amana, Roper, and Crosley models.
• Commonly used in Kenmore 70 and 80 series dryers.

When to Replace

• Dryer runs but produces no heat.
• Clothes take an excessively long time to dry.
• Dryer produces insufficient or intermittent heat.
• Heating coil is visibly broken or damaged.
• Unit becomes unusually noisy from a broken, rattling coil.

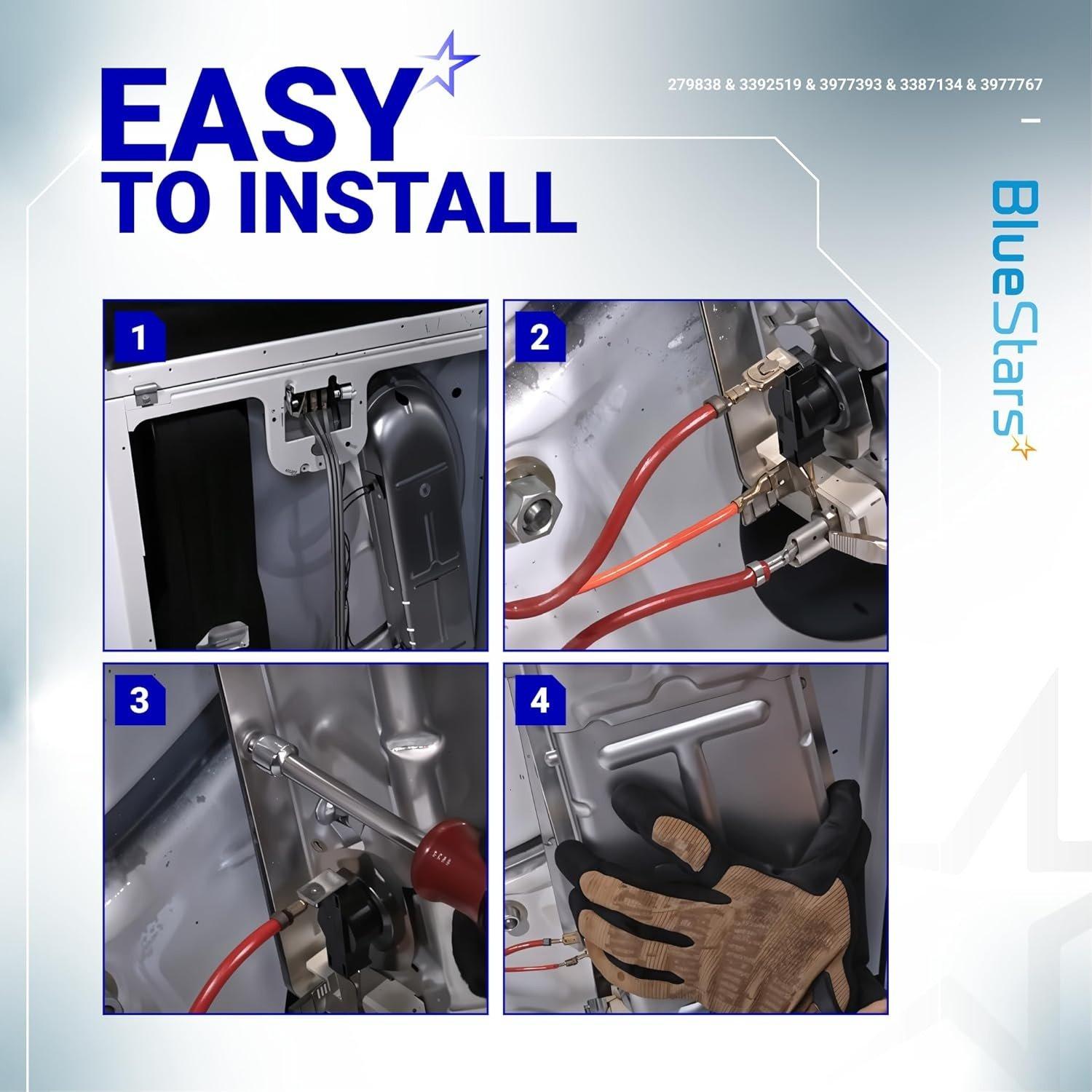

Installation Tips

• Disconnect the dryer from its power source before starting the repair.
• Confirm part compatibility with your specific dryer model number.
• Take pictures during disassembly to aid in reassembly.
• Clean lint and debris from the dryer cabinet and vent duct during replacement for safety and performance.
