[Lifetime Warranty] 279834 Dryer Gas Valve Ignition Solenoid Coil Kit - Compatible with Whirlpool Kenmore Maytag Dryers - Replaces AP3094251 PS334310 12001349 694540 694539 306105 306106

279834 Dryer Gas Valve Ignition Solenoid Coil Kit

Key Features

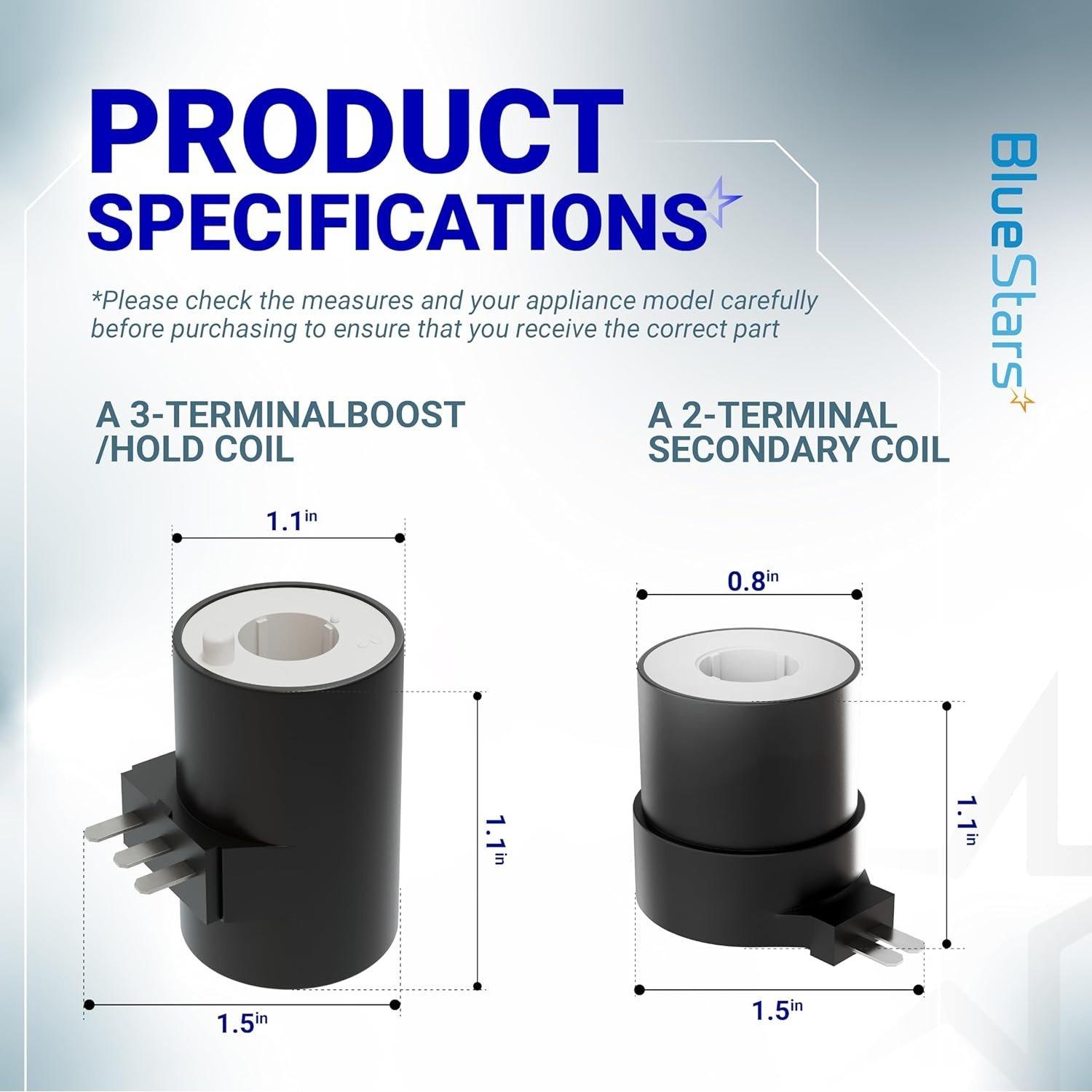

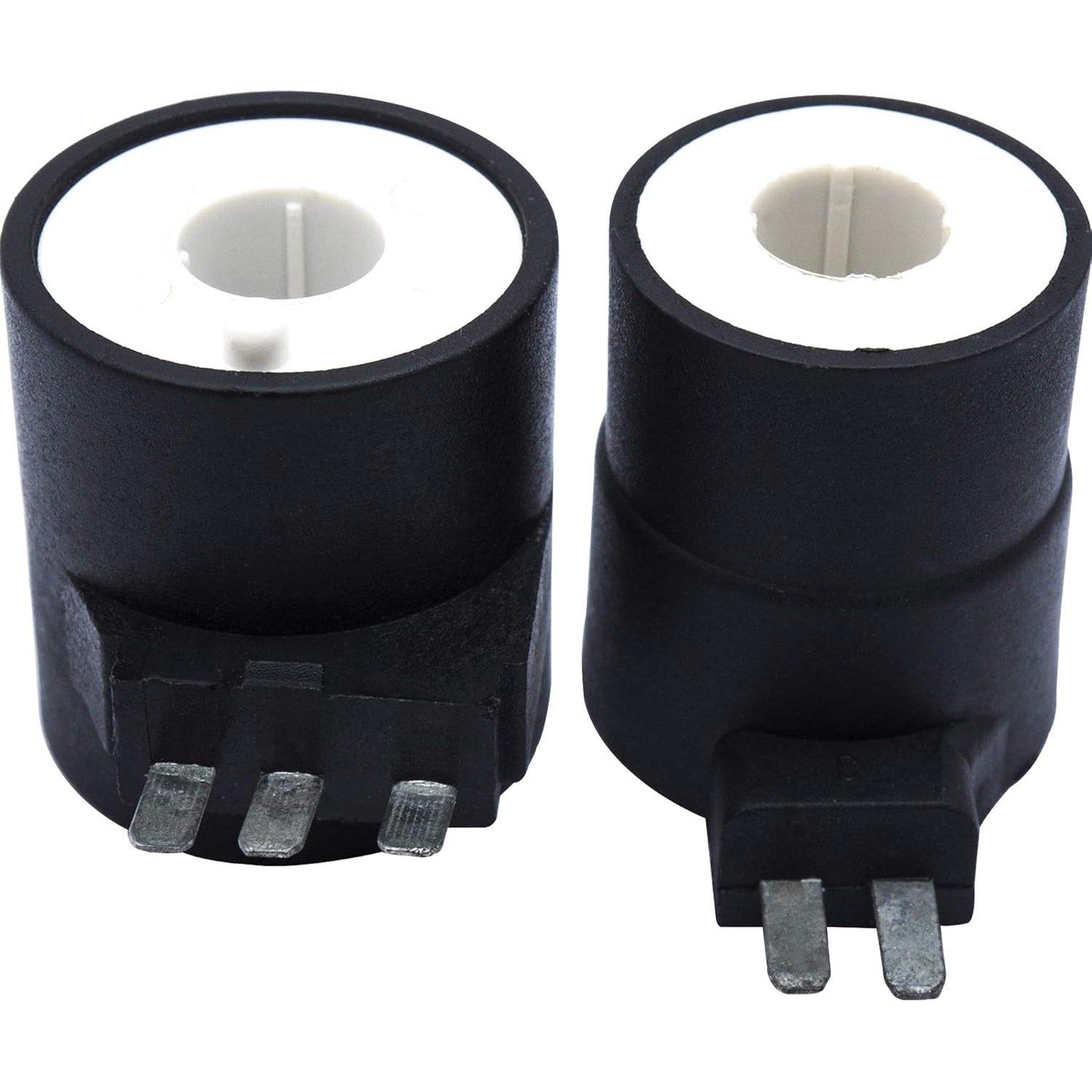

• Kit includes one three-terminal coil and one two-terminal coil.
• Controls the opening of the gas valve to allow gas to flow to the burner.
• Designed for use in gas-powered clothes dryers.

Replaces / Cross-Reference Part Numbers

• 279834
• 279834VP
• 306105
• 306106
• 694539
• 694540
• 12001349
• AH334310
• EA334310
• PS334310
• SCA700

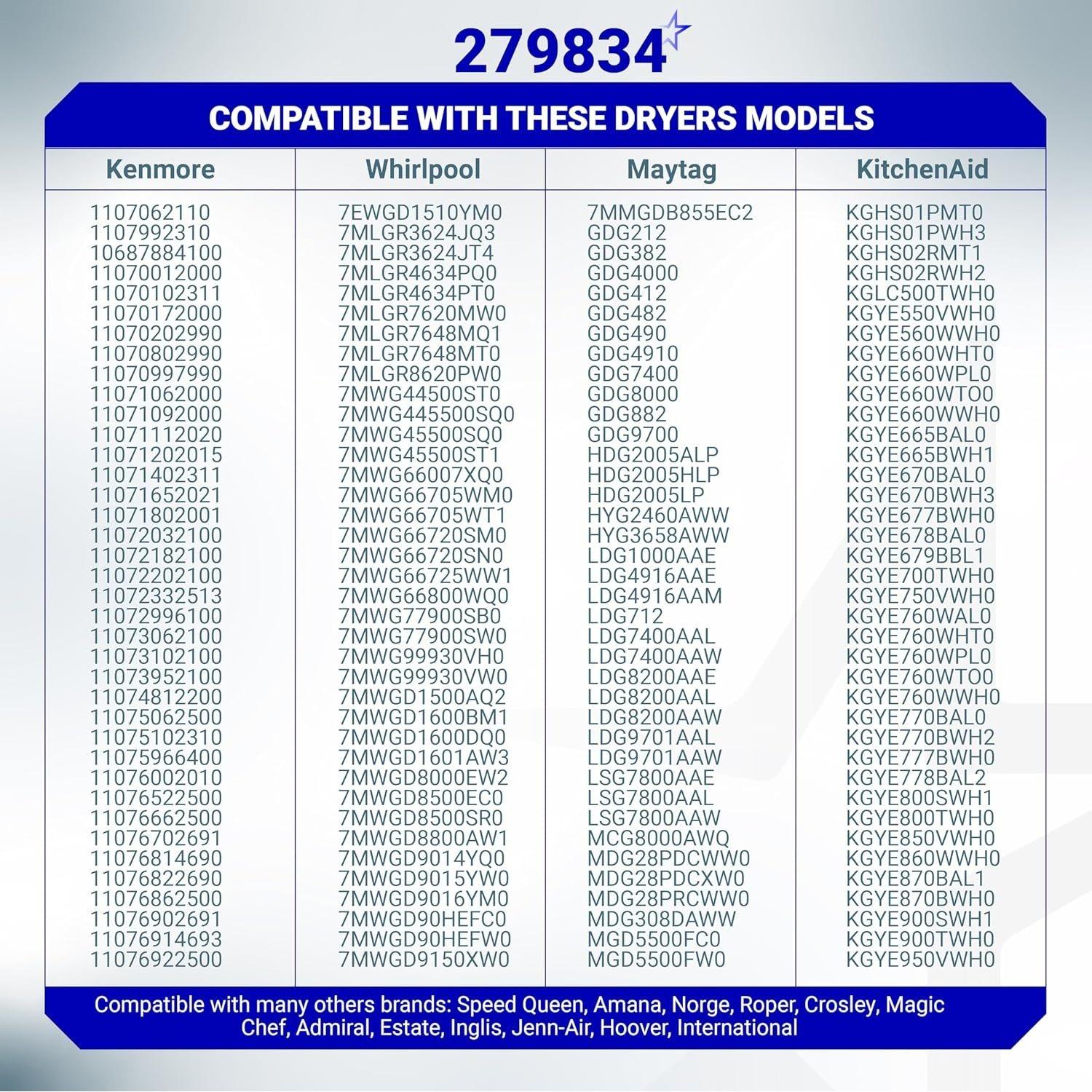

Compatibility & Fitment

• Fits various gas dryer models from brands including Whirlpool, Kenmore, Maytag, Roper, KitchenAid, and Estate.
• Compatible with M series White Rodgers gas valves.
• For use on dryers equipped with a dual solenoid gas valve assembly.

When to Replace

• Dryer tumbles but produces no heat.
• Dryer heats intermittently or stops heating during a cycle.
• The igniter glows, but the main gas burner fails to ignite.

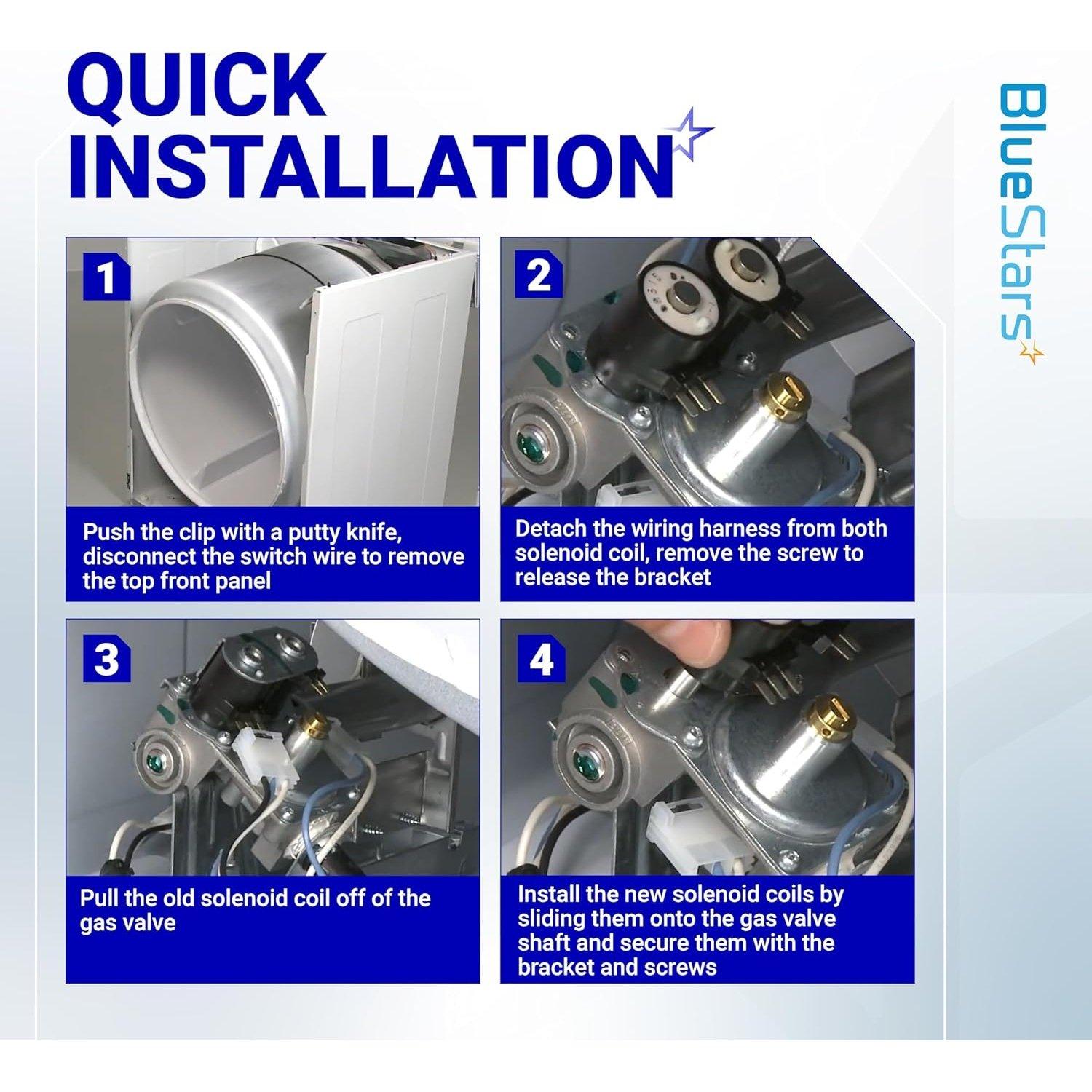

Installation Tips

• Disconnect the dryer from the electrical outlet and shut off the gas supply line before starting service.
• Note the orientation and wire connections of the old coils before removal.
• The three-terminal coil and two-terminal coil are not interchangeable.
• Ensure the new coils are firmly seated on the valve assembly before reconnecting wires.
