AZ0926116

[Lifetime Warranty] WH02X10383 Washer Tub Seal - Compatible with GE & Hotpoint Washers - Replaces WH02X10032 WH02X1196 PS4704237

Sold 6,183

Difficulty Icon: Easy
Easy
More than one hour

$9.72

$10.79

Save $1.07
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

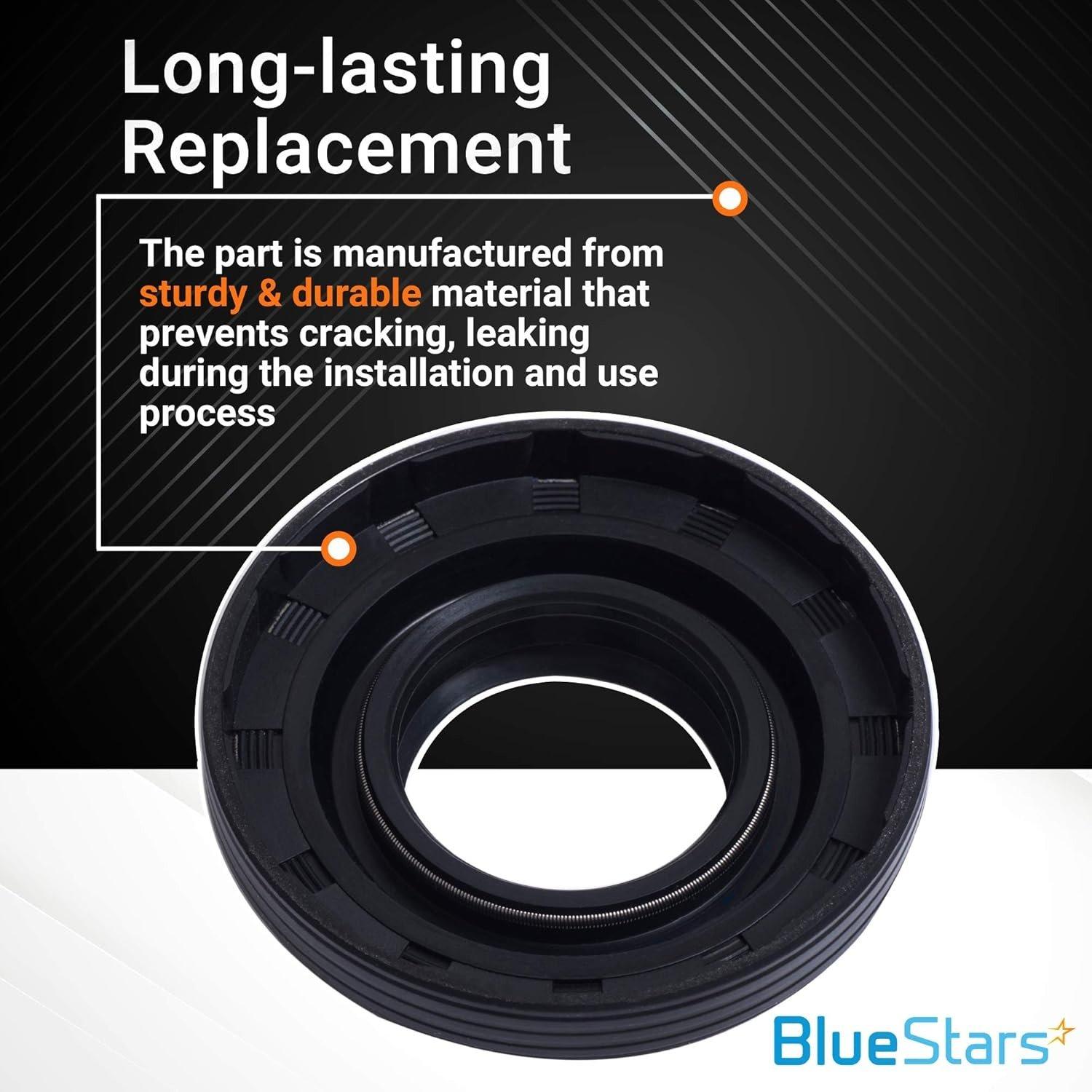

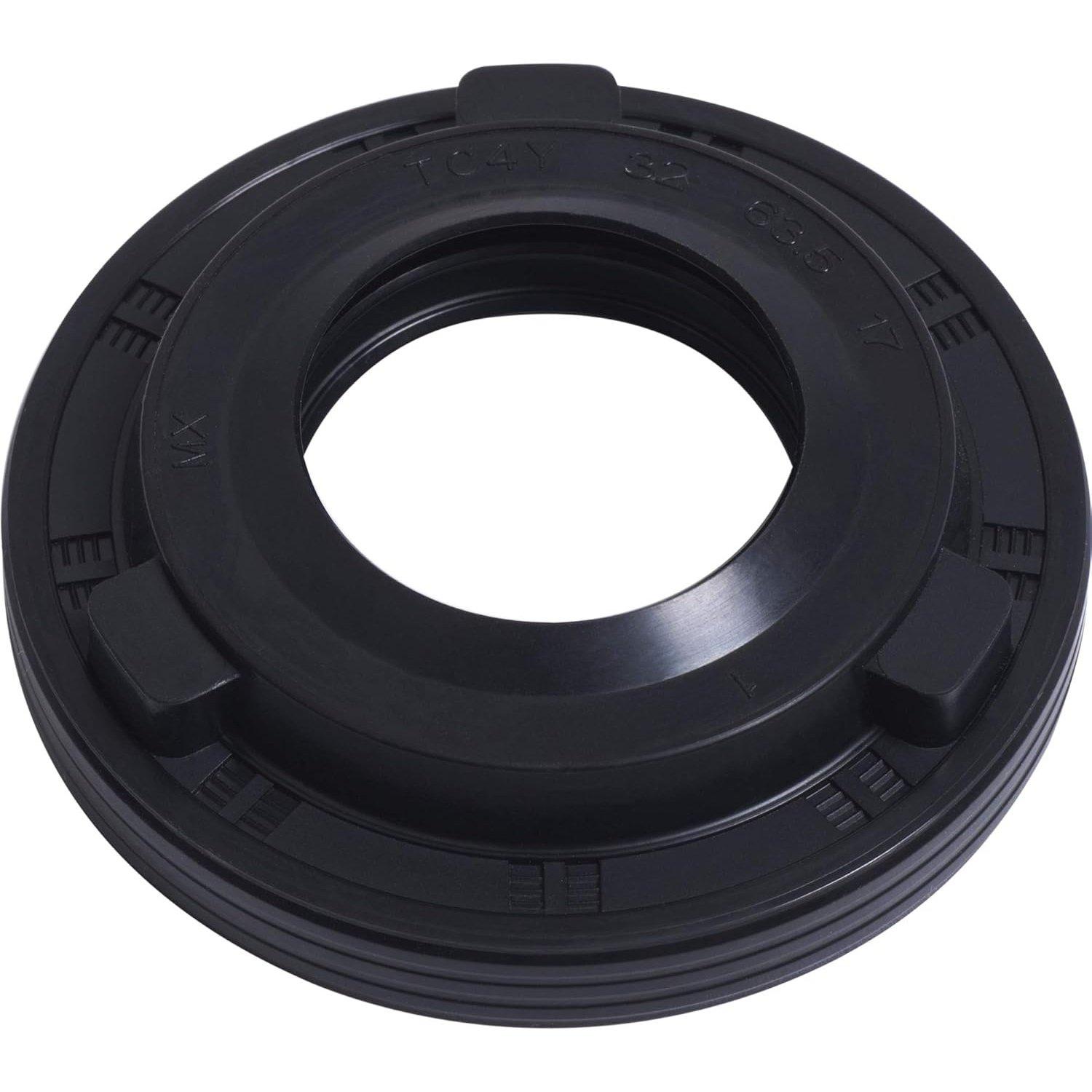

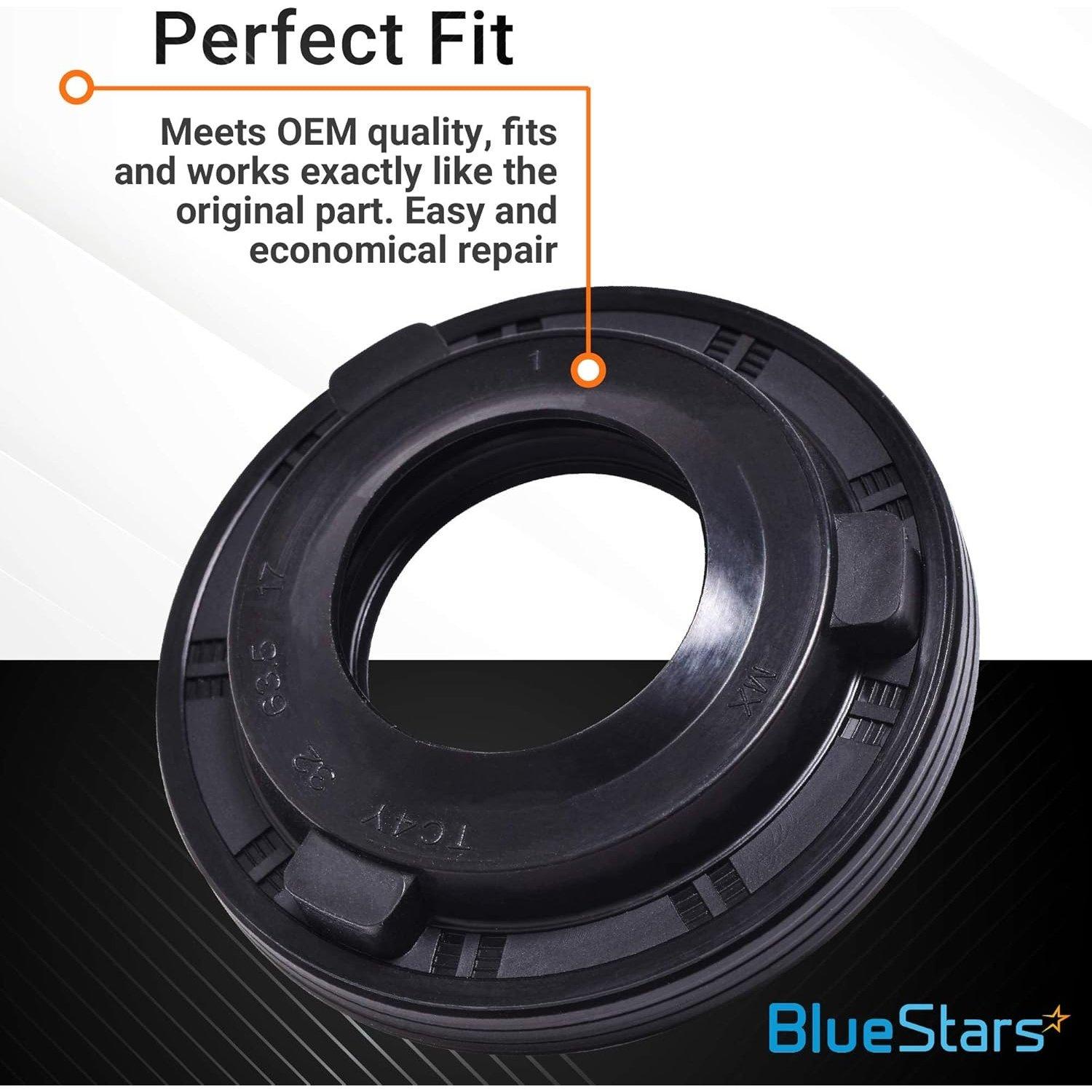

WH02X10383 Washer Tub Seal

Key Features

  • Creates a watertight seal around the transmission shaft to prevent leaks from the bottom of the tub.
  • Addresses common washer symptoms including water leakage, unusual noises, and failure to spin.

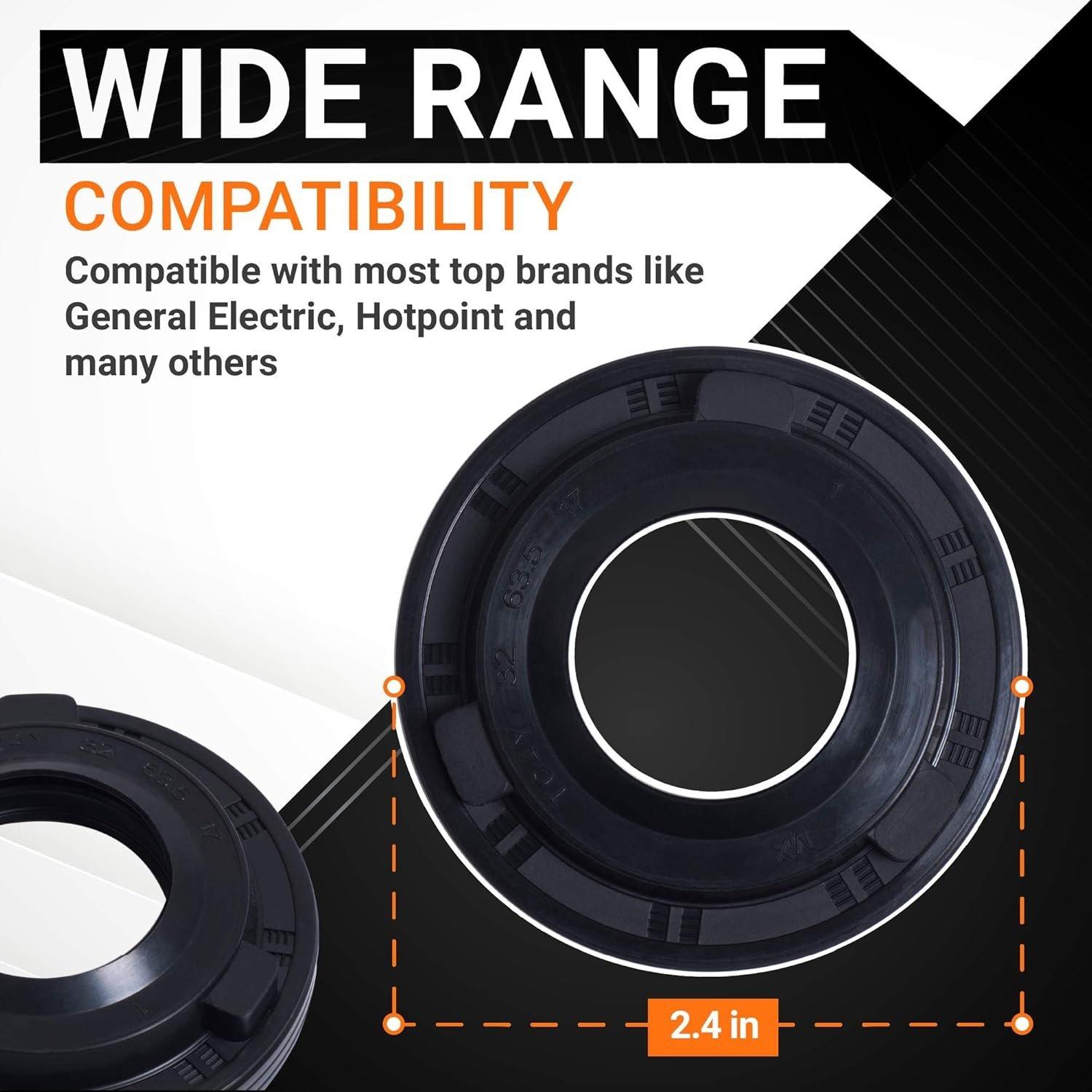

  • Dimensions: 0.625 in. (H) x 2.5 in. (W) x 2.5 in. (D)

Replaces / Cross-Reference Part Numbers

  • WH02X10383
  • AP5645738
  • 3029799
  • PS4704237
  • WH02X10032
  • WH2X1196
  • LP10032

Compatibility & Fitment

  • Designed for use with various General Electric (GE) top-load washing machine models.

When to Replace

  • Water is leaking from the center area underneath the washing machine.
  • Loud grinding or rumbling noises are present during the spin cycle.
  • The washer agitates and pumps but will not spin.
  • The existing seal is visibly cracked, worn, or damaged.

Installation Tips

  • Disconnect the washer from all power and water supplies before beginning the installation.
  • Thoroughly clean the tub and transmission shaft surfaces where the new seal will be installed.
  • Ensure the seal is seated evenly and correctly to prevent future leaks.
  • It is often recommended to inspect and replace the tub bearing at the same time as the seal.
