[Lifetime Warranty] 6501KW2002A Washer Rotor Position Sensor Assembly for LG Hall Sensor - Replaces 6501KW2002B PS3529186 4962510 AP4440680 - Compatible with LG Kenmore Washers WM2016CW WM3170CW WM3370HWA

Sold 7,888

Difficulty Icon: Normal
Normal
More than 30 minutes

$14.04

$15.59

Save $1.55
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

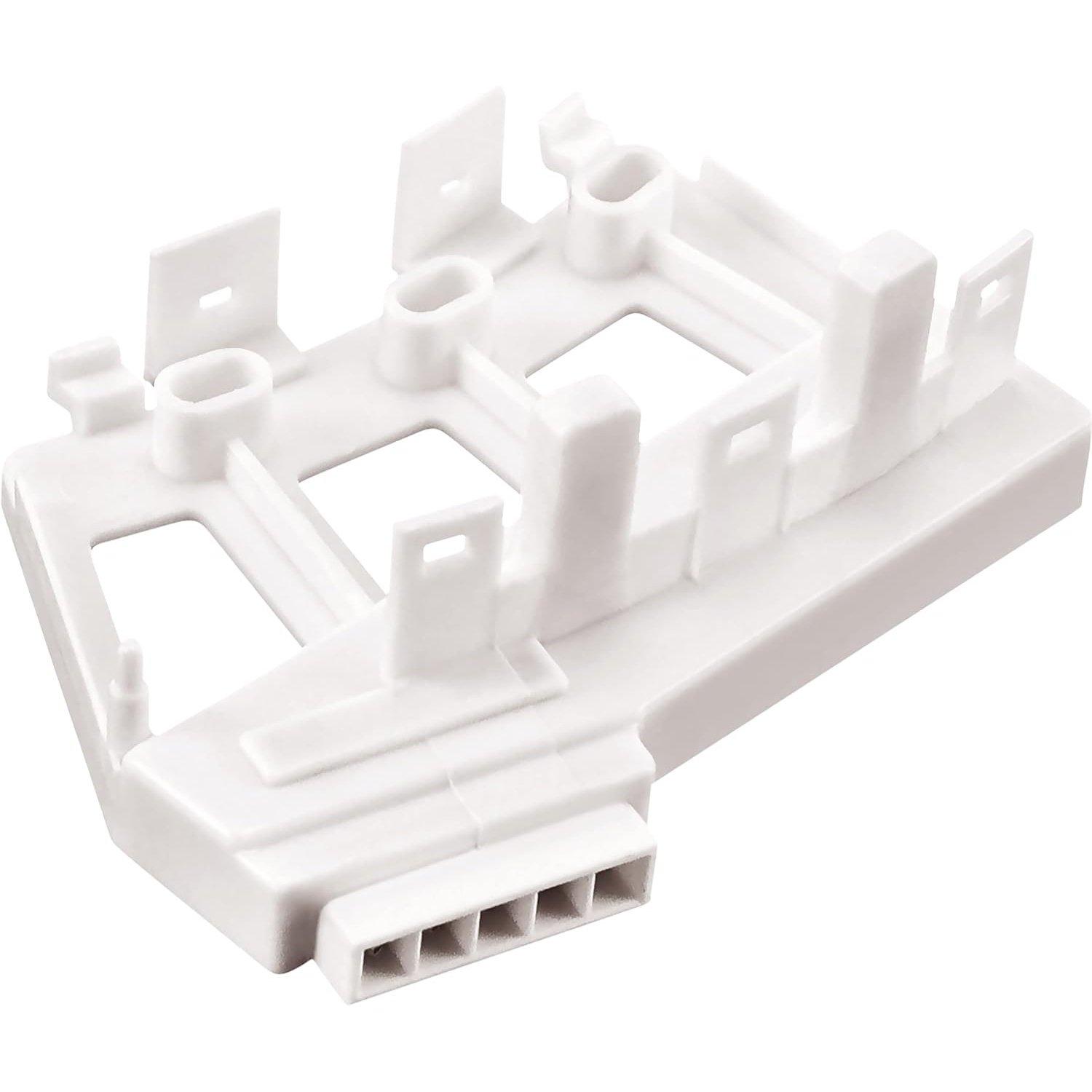

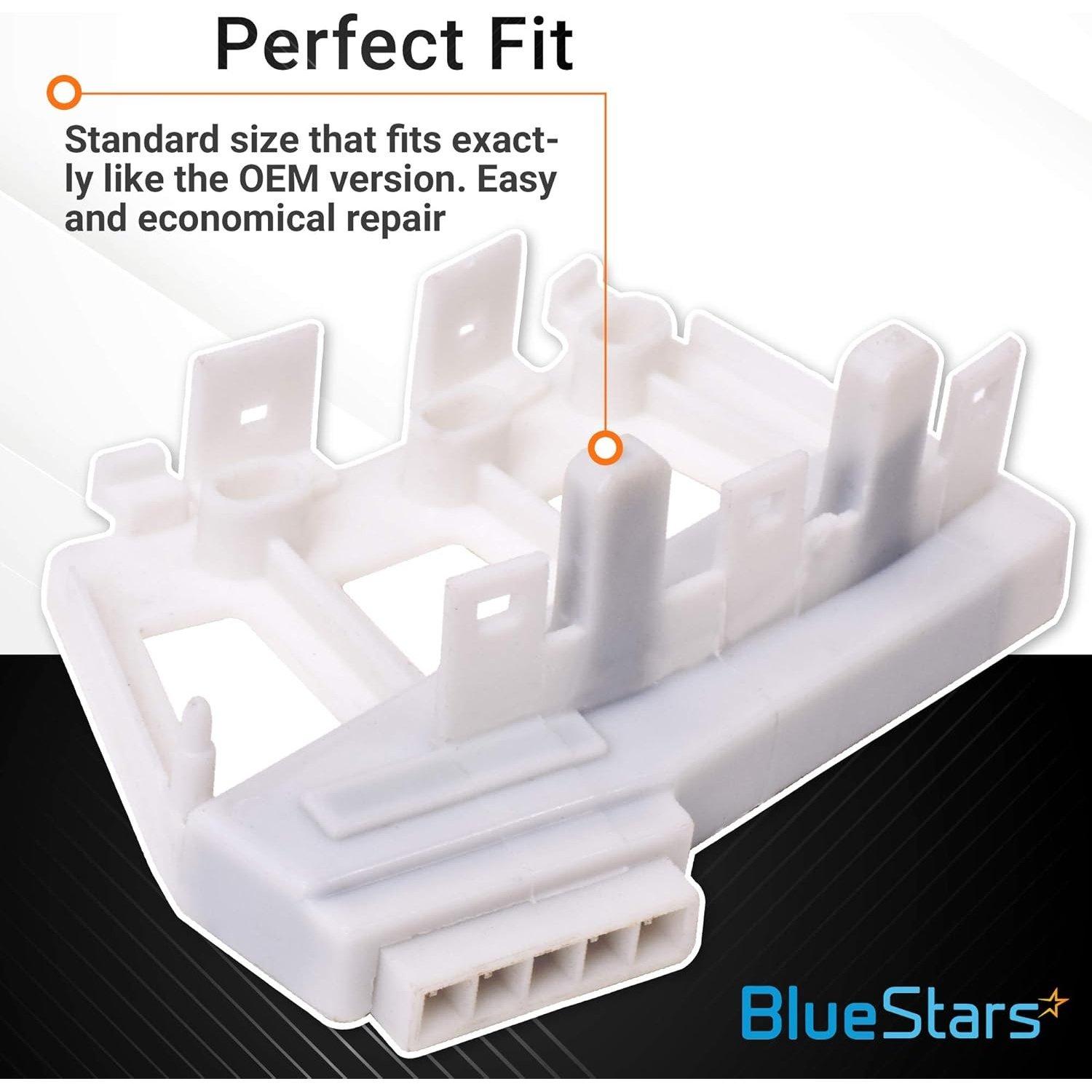

6501Kw2002A Washer Rotor Position Sensor

Key Features

  • Monitors the direction and speed of the motor's rotor
  • Communicates rotor position data to the main electronic control board
  • Enables the appliance to sense load size and adjust operation
  • Also known as an RPS or hall sensor

Replaces / Cross-Reference Part Numbers

  • 6501KW2002A
  • 6501KW2002B
  • 6501KW2002J
  • AP4440680
  • LP2002A

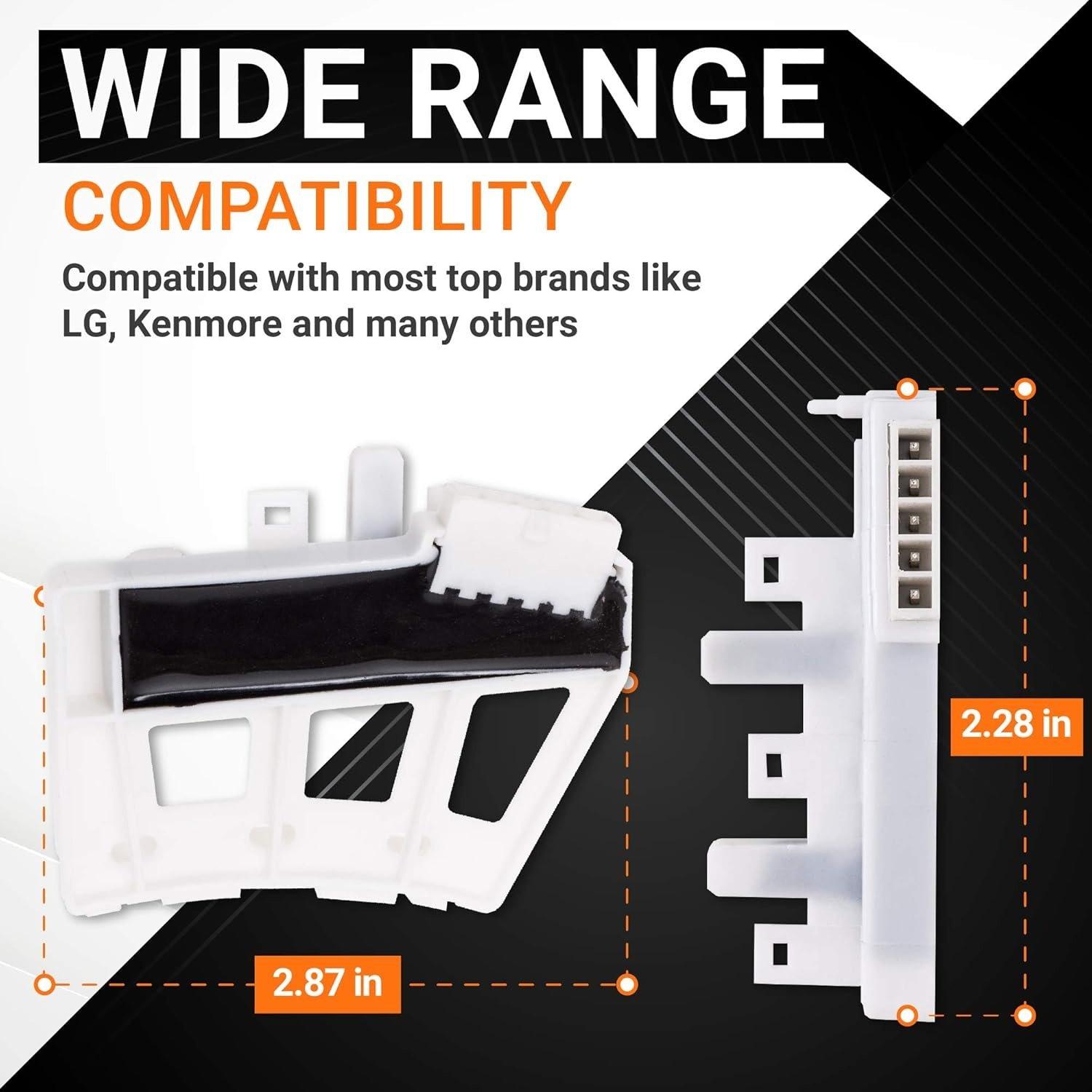

Compatibility & Fitment

  • Fits select LG and Kenmore washing machine models
  • Compatible with certain top-load and front-load configurations

When to Replace

  • Washer displays an LE error code
  • The drum will not spin or agitate
  • The drum moves slightly then stops
  • Washer operates erratically or makes unusual noises during the spin cycle

Installation Tips

  • Disconnect the appliance from power and water sources before beginning installation
  • The sensor is located on the motor stator assembly, typically accessed from the rear of the machine
  • Requires removal of the washer's rear panel, rotor bolt, rotor, and stator to access the sensor
  • Ensure the new sensor is securely clipped into place on the stator before reassembly
