[Lifetime Warranty] WR50X122 Refrigerator Defrost Thermostat - Compatible with General Electric Kenmore Hotpoint Models - Replaces PS303471 AP2071262 WR50X0128 image 0
[Lifetime Warranty] WR50X122 Refrigerator Defrost Thermostat - Compatible with General Electric Kenmore Hotpoint Models - Replaces PS303471 AP2071262 WR50X0128 image 1
[Lifetime Warranty] WR50X122 Refrigerator Defrost Thermostat - Compatible with General Electric Kenmore Hotpoint Models - Replaces PS303471 AP2071262 WR50X0128 image 2
[Lifetime Warranty] WR50X122 Refrigerator Defrost Thermostat - Compatible with General Electric Kenmore Hotpoint Models - Replaces PS303471 AP2071262 WR50X0128 image 3
[Lifetime Warranty] WR50X122 Refrigerator Defrost Thermostat - Compatible with General Electric Kenmore Hotpoint Models - Replaces PS303471 AP2071262 WR50X0128 image 4
AZ1194279

[Lifetime Warranty] WR50X122 Refrigerator Defrost Thermostat - Compatible with General Electric Kenmore Hotpoint Models - Replaces PS303471 AP2071262 WR50X0128

Sold 4,221

Difficulty Icon: Easy
Easy
More than 30 minutes

$9.36

$10.39

Save $1.03
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

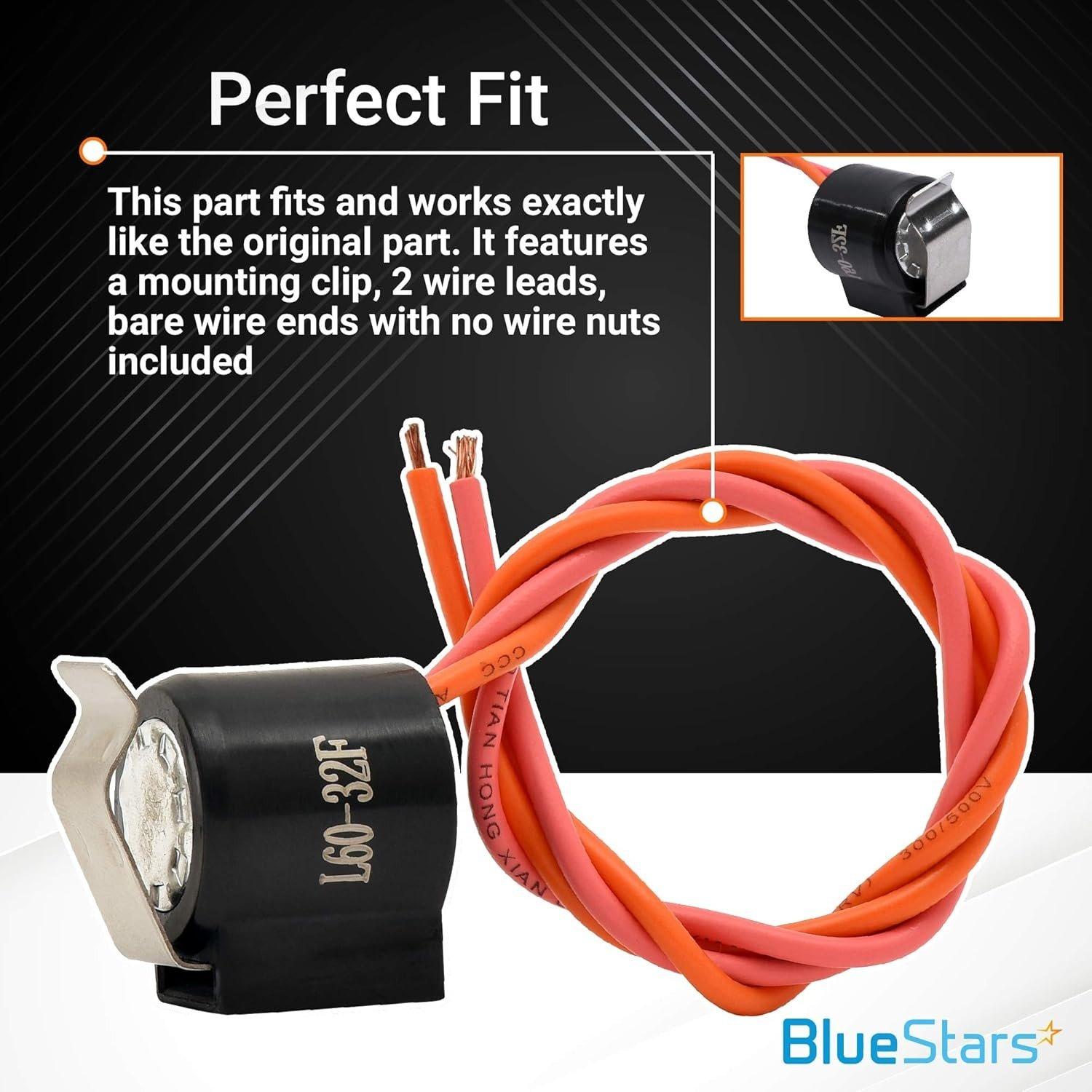

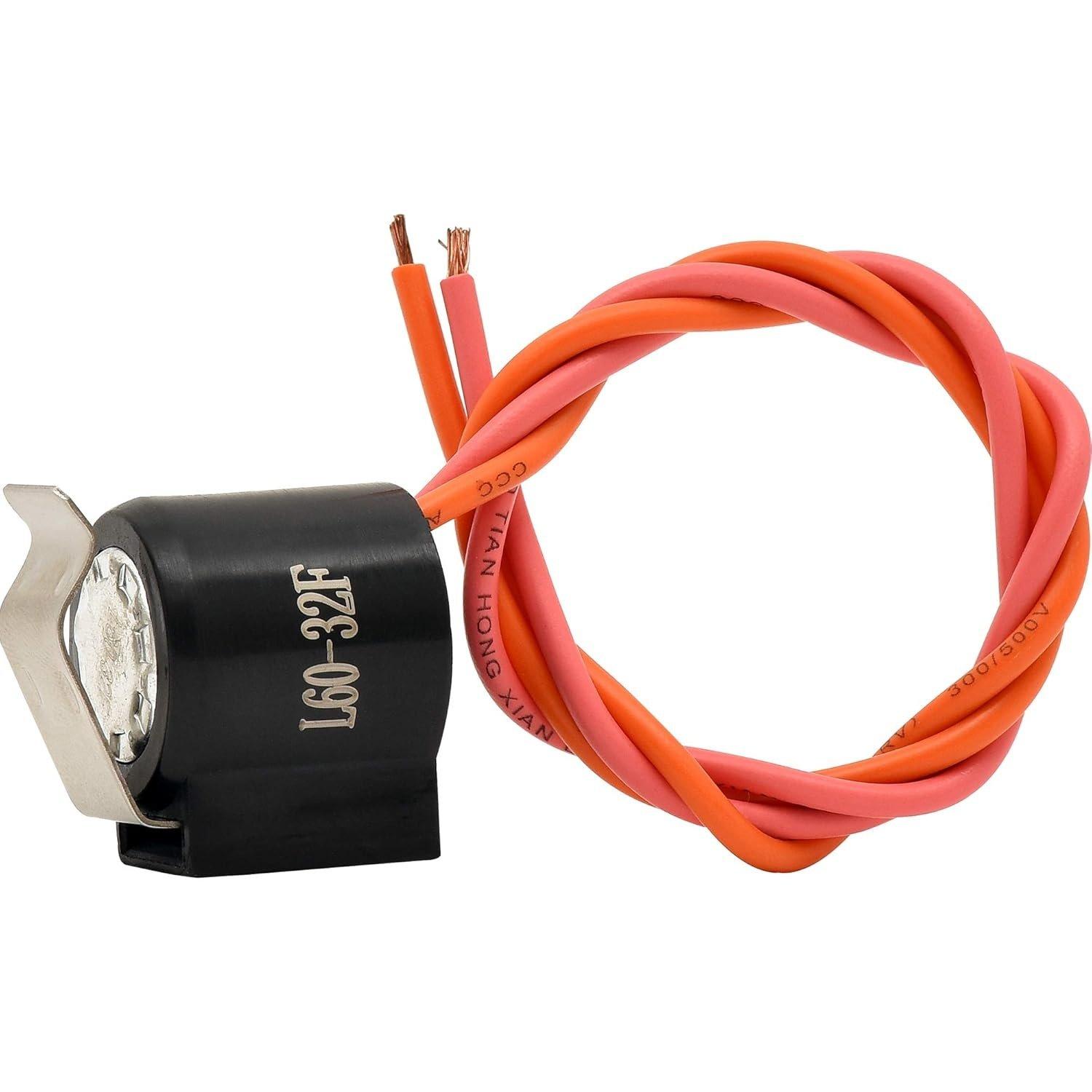

WR50X122 Refrigerator Defrost Thermostat

Key Features

  • Monitors the temperature of the evaporator coils during a defrost cycle
  • Protects the evaporator from overheating
  • L60-32F thermostat opens at 60°F and closes at 32°F
  • Bi-metal construction for temperature sensing
  • Includes two wire leads for connection

Replaces / Cross-Reference Part Numbers

  • WR50X122
  • AP2071363
  • 2928
  • AH296996
  • EA296996
  • PS296996
  • WR50X0122
  • WR50X108
  • WR50X112
  • WR50X115
  • WR50X119

Compatibility & Fitment

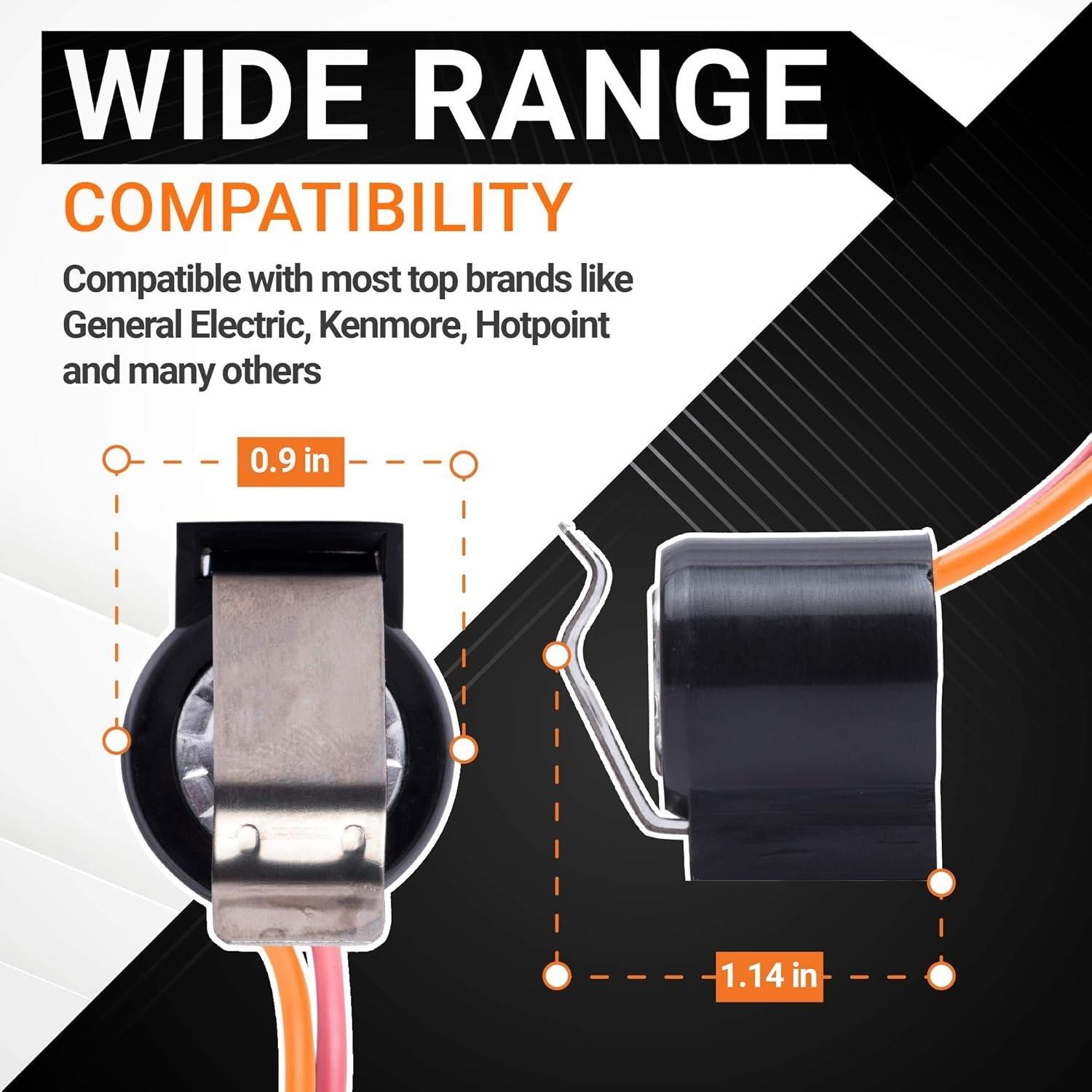

  • Designed for use in specific GE, Hotpoint, Café, and Monogram refrigerator models
  • Always verify fitment with your appliance's model number before ordering

When to Replace

  • Excessive frost buildup in the freezer compartment
  • Refrigerator section is too warm
  • Freezer section is too cold
  • Defrost heater fails to activate
  • Water leaking from the appliance

Installation Tips

  • Disconnect the refrigerator from its power source before beginning installation
  • The thermostat is typically clipped directly onto the evaporator tubing
  • Use a multimeter to test the continuity of the existing thermostat to confirm failure
  • Ensure wire lead connections are secure
