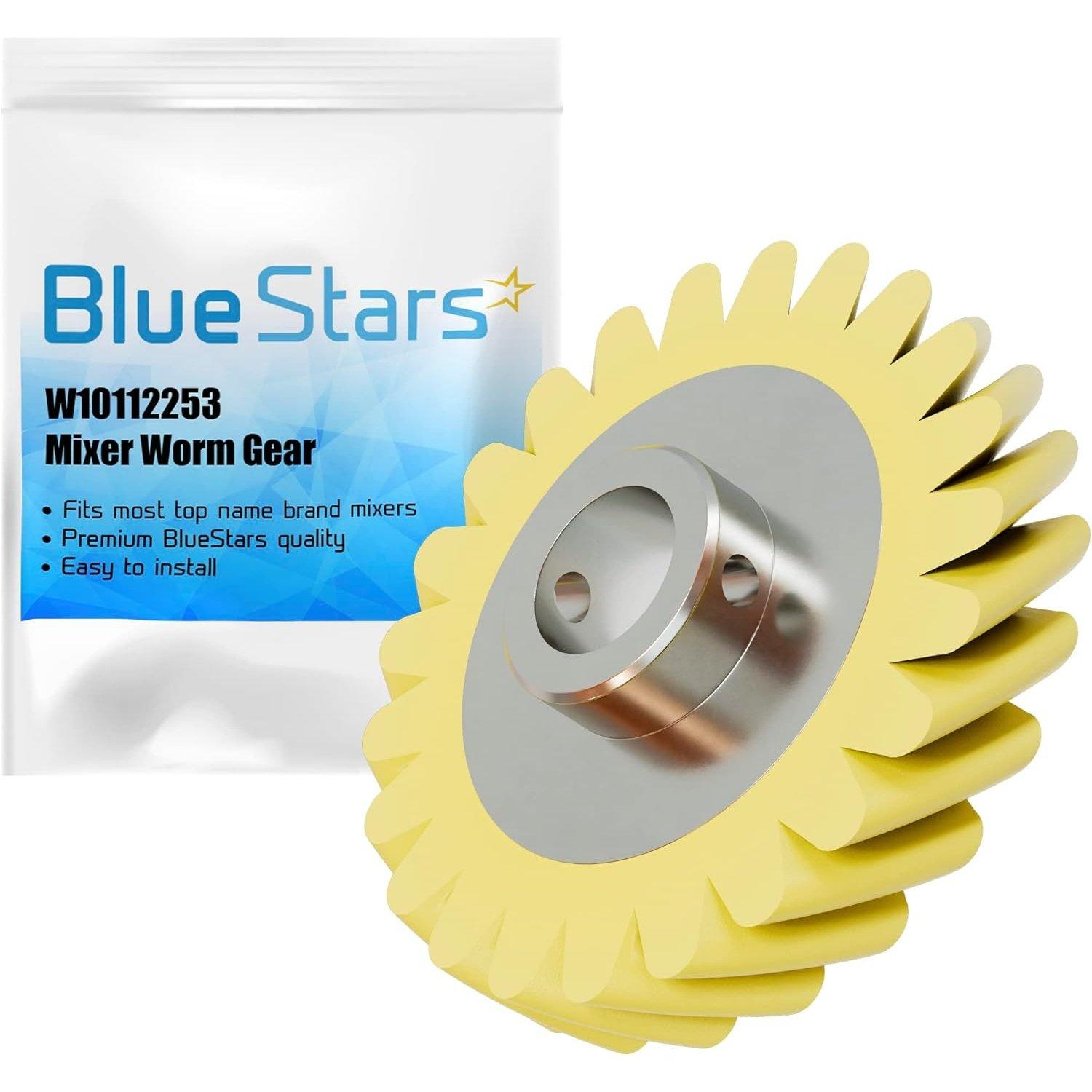

[Lifetime Warranty] W10112253 Mixer Worm Gear

W10112253 Mixer Worm Gear

Key Features

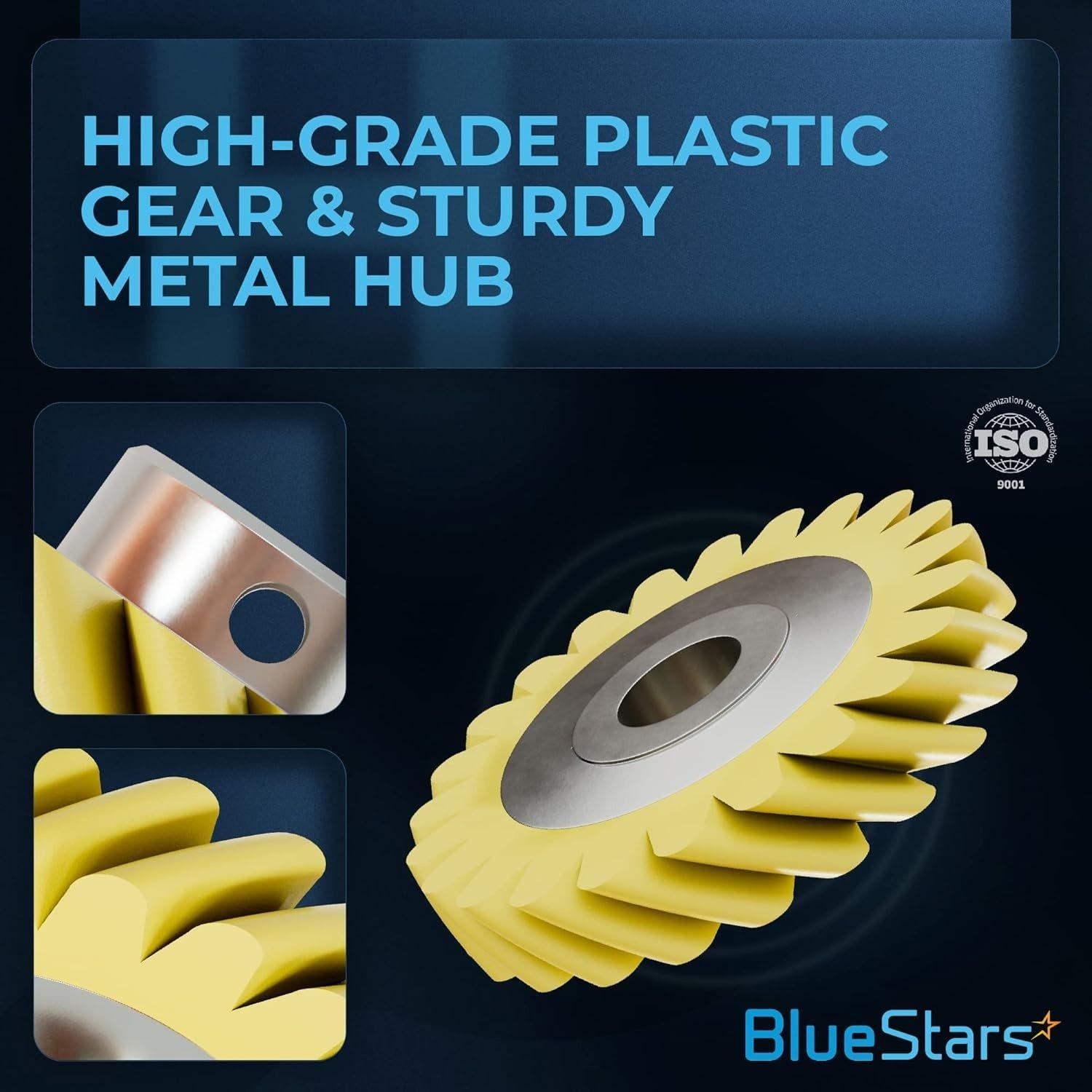

• Constructed from durable fiber material.
• Functions as a sacrificial component to protect the motor from overload.
• Direct replacement for the original manufacturer's part.

Replaces / Cross-Reference Part Numbers

• W10112253
• WPW10112253
• 4162897
• AP4295669
• 1206513

Compatibility & Fitment

• Fits specific stand mixer models from brands including KitchenAid, Whirlpool, Maytag, Jenn-Air, Amana, and Magic Chef.
• Commonly used in KitchenAid models such as K45, K5, K5SS, KSM90, KSM103, KSM110, KSM150, and KP50P.

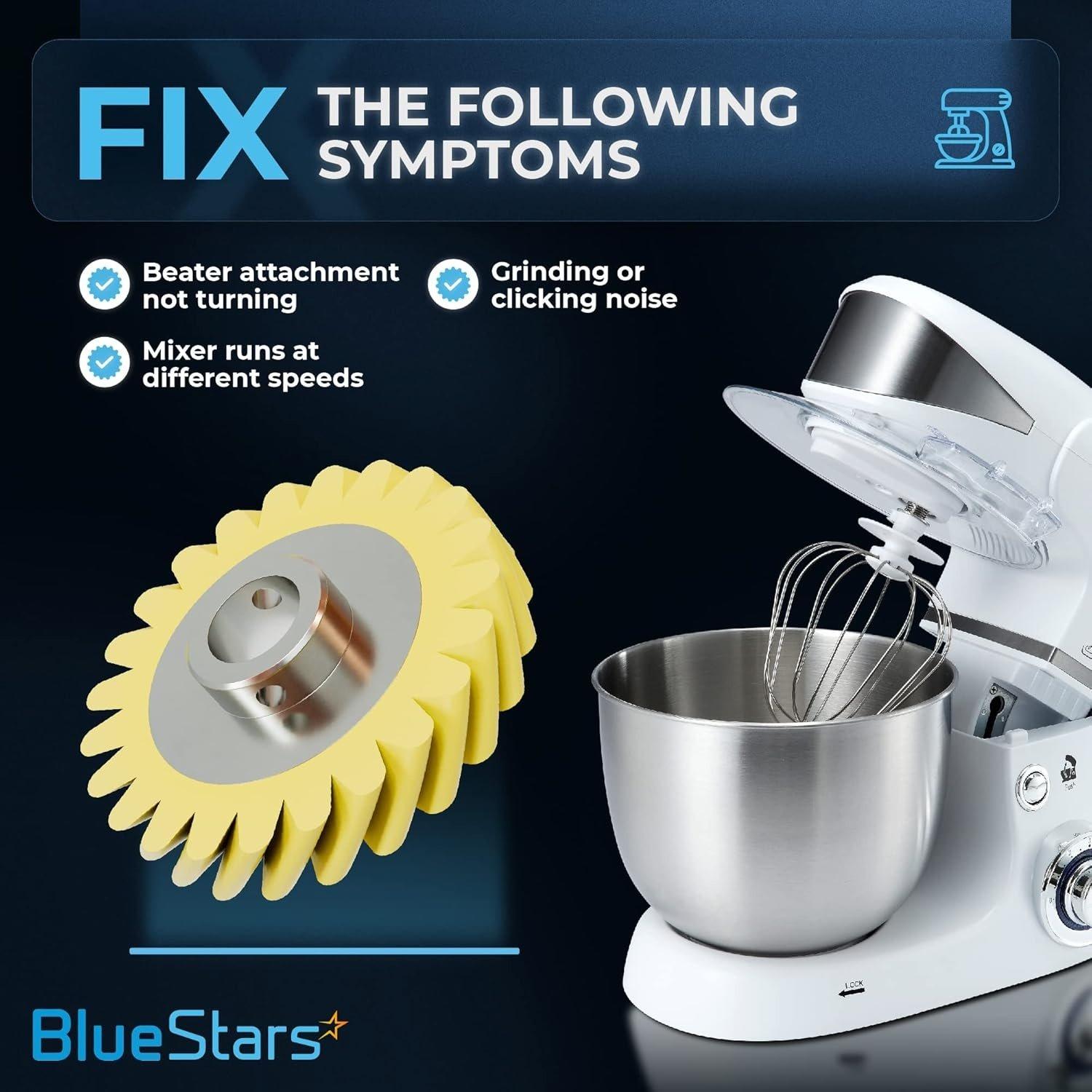

When to Replace

• Mixer motor runs, but attachments do not turn or turn intermittently.
• Loud grinding, clicking, or knocking sounds from the gear housing.
• Visible signs of wear, such as stripped or broken gear teeth.

Installation Tips

• Disconnect the appliance from the power source before beginning repair.
• Thoroughly remove all old grease and metal shavings from the gear housing.
• Apply a liberal amount of new, food-grade gear grease to the new gear and surrounding components during assembly.
