AZ1408900

[Lifetime Warranty] 285811 Medium Cam Agitator Repair Kit - Compatible with Whirlpool, Kenmore Washers - Replaces AP3138838, 2744, 285746, 285811VP, 3347410, 3351001, 3363663, AH334650, EA334650

Sold 20,280

Difficulty Icon: Easy
Easy
More than 30 minutes

Out of Stock
This item is no longer available. Please contact our customer service for more information
puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

285811 Medium Cam Agitator Repair Kit

Key Features

  • Complete repair kit for washing machine agitators
  • Includes: 1 medium cam, 4 directional dogs, 1 bearing, and 1 retainer
  • Material: Plastic / Rubber
  • Restores dual-action agitator function

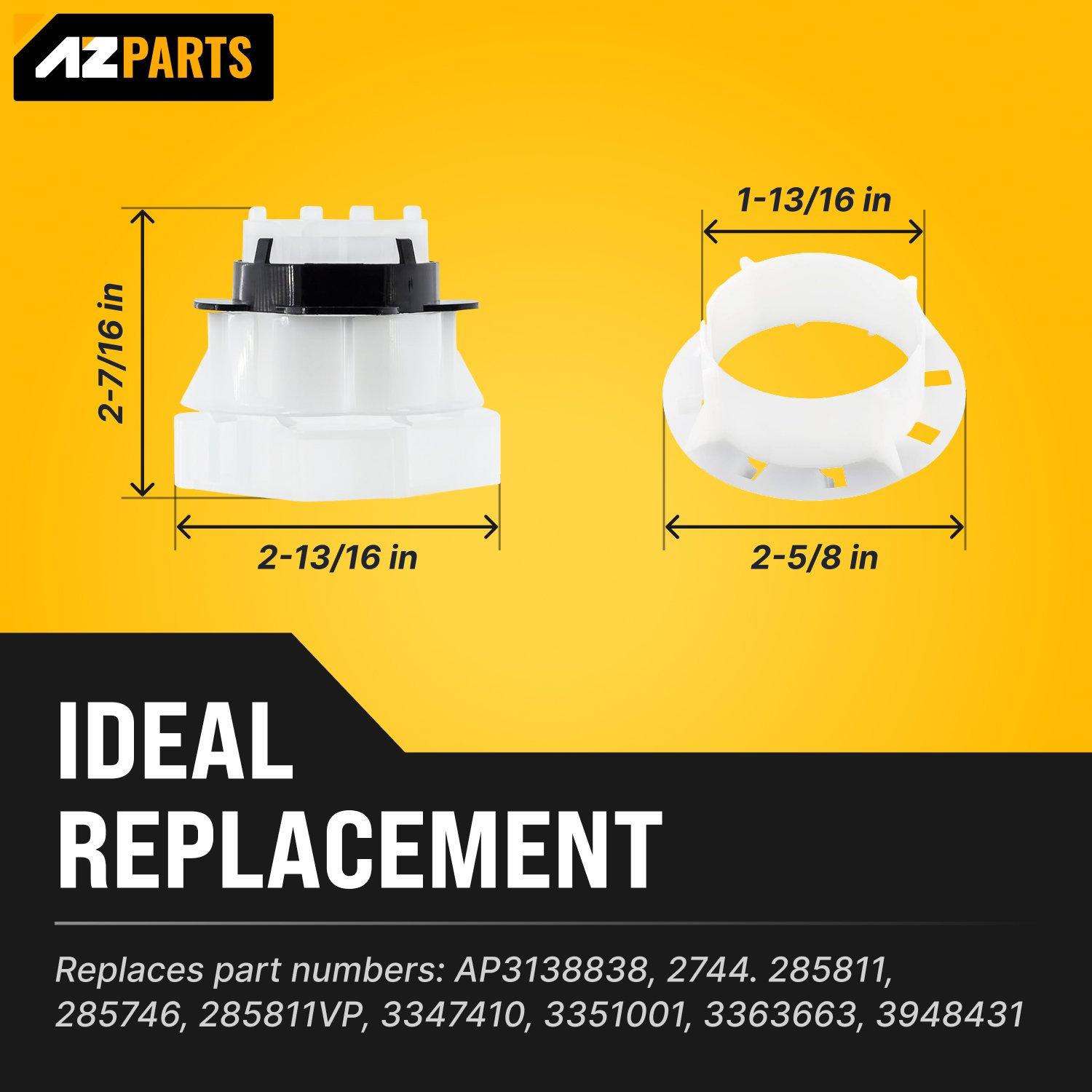

  • Cam Dimensions: 2.81 in L x 2.81 in W x 2.44 in H

Replaces / Cross-Reference Part Numbers

  • 285811
  • 3362002
  • 3951311
  • 80040
  • AP3094537
  • PS334650
  • TJ90LP227

Compatibility & Fitment

  • Fits most direct-drive top-load washing machines
  • Compatible with major brands including Whirlpool, Kenmore, Roper, Estate, KitchenAid, and Inglis

When to Replace

  • The top portion of the agitator does not move or moves intermittently
  • Washer makes a grinding or clicking noise during the agitate cycle
  • Clothes are not being agitated or cleaned effectively
  • The agitator base moves but the upper section is stationary

Installation Tips

  • Disconnect the washer from power and water supplies before beginning installation
  • Required tool: Extended 7/16-inch socket and ratchet
  • Remove the agitator cap or fabric softener dispenser to access the center bolt
  • Lift the agitator assembly out of the tub to access and replace the internal components
