AZ1449101

[Lifetime Warranty] 2198202 Refrigerator Cold Control Thermostat Replacement - Compatible with Whirlpool & Kenmore Refrigerators - Replaces 2161284 2198201 PS11739232 AP6006166 WP2198202 161284 1110552

Sold 30,989

Difficulty Icon: Easy
Easy
More than 30 minutes

$14.67

$16.29

Save $1.62
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

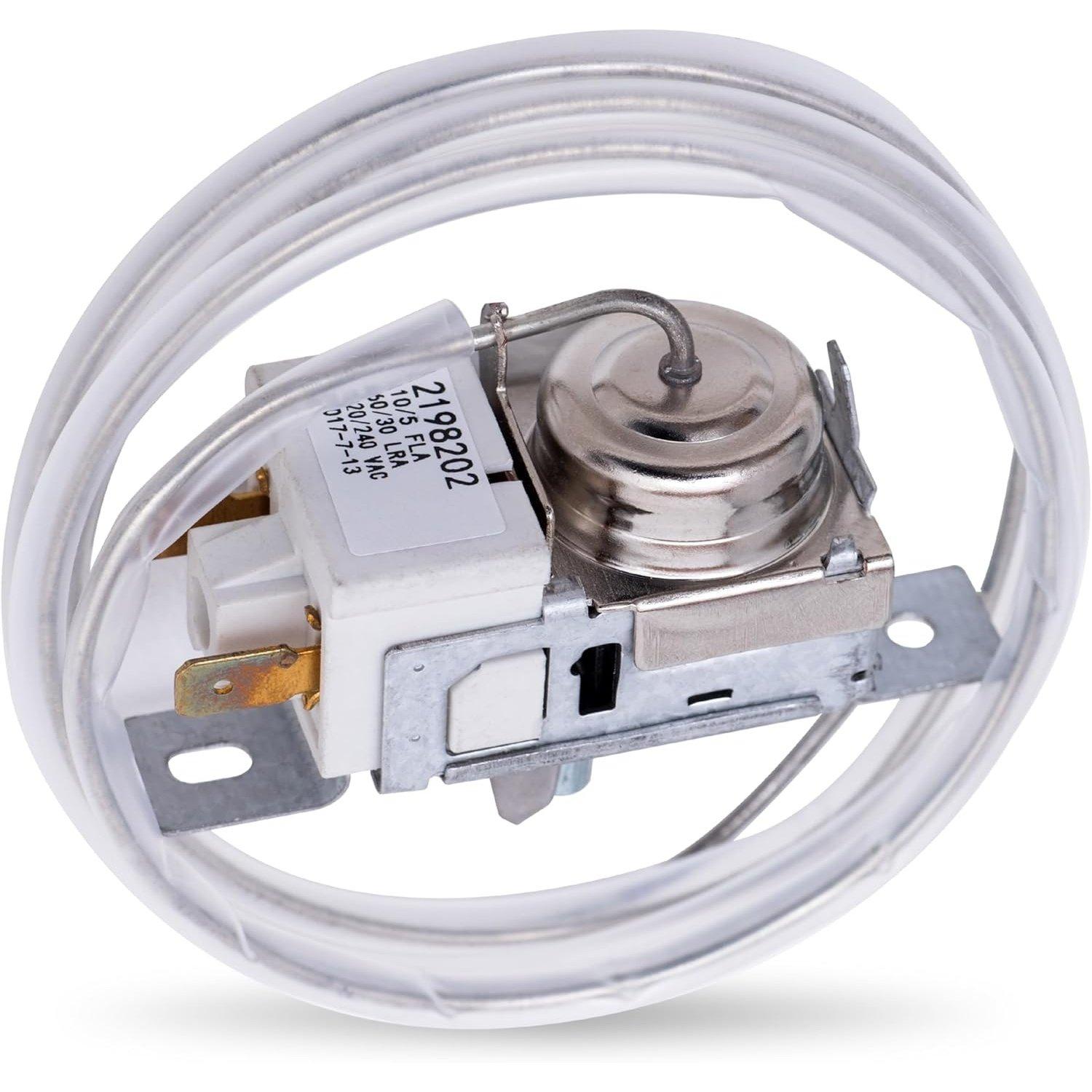

2198202 Refrigerator Cold Control Thermostat

Key Features

  • Regulates the refrigerator's internal temperature
  • Direct replacement for specified models
  • Includes thermostat, housing, and knobs

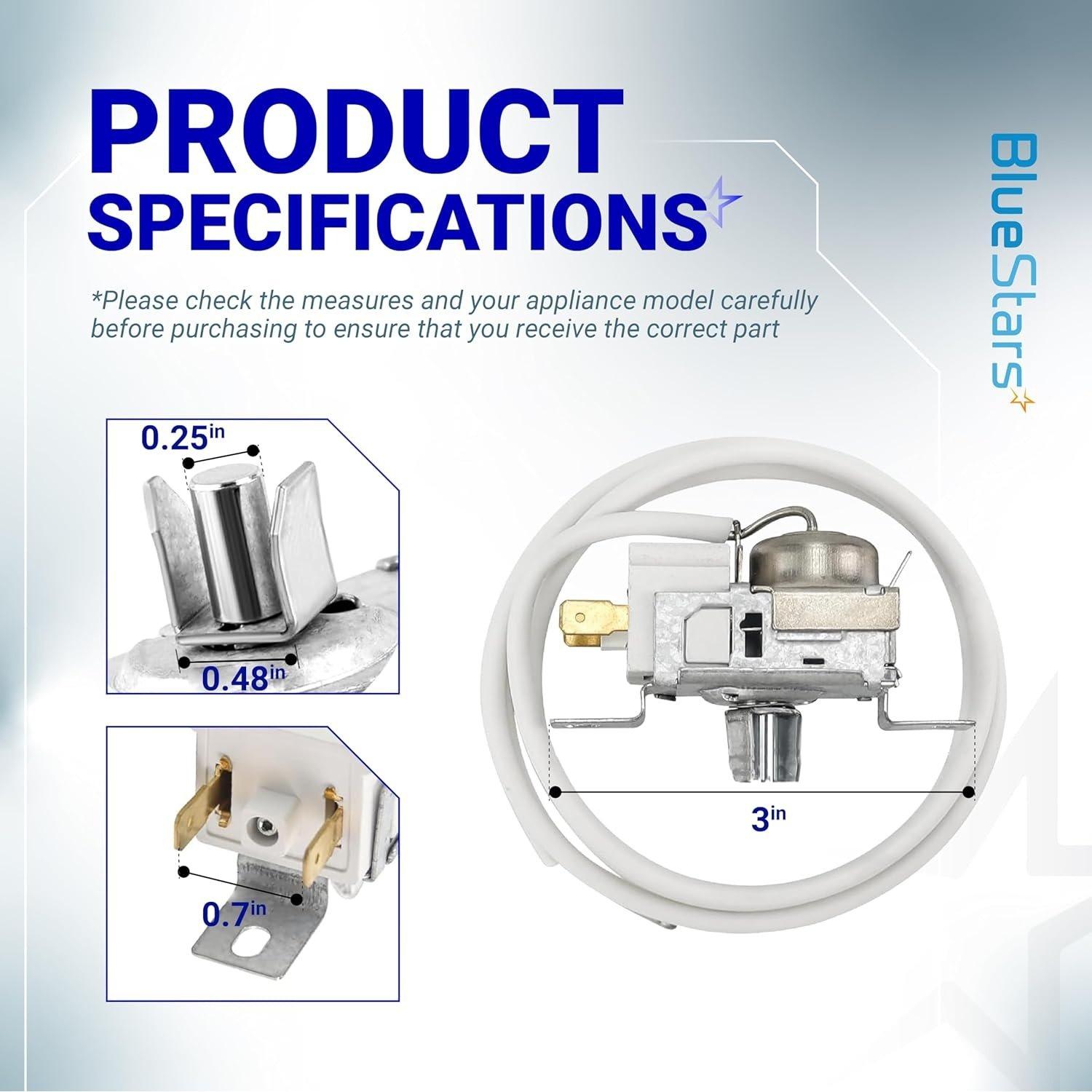

  • Capillary tube is approximately 38 inches in length

Replaces / Cross-Reference Part Numbers

  • WP2198202
  • 2198202
  • 2198201
  • 2161284
  • PS11739232

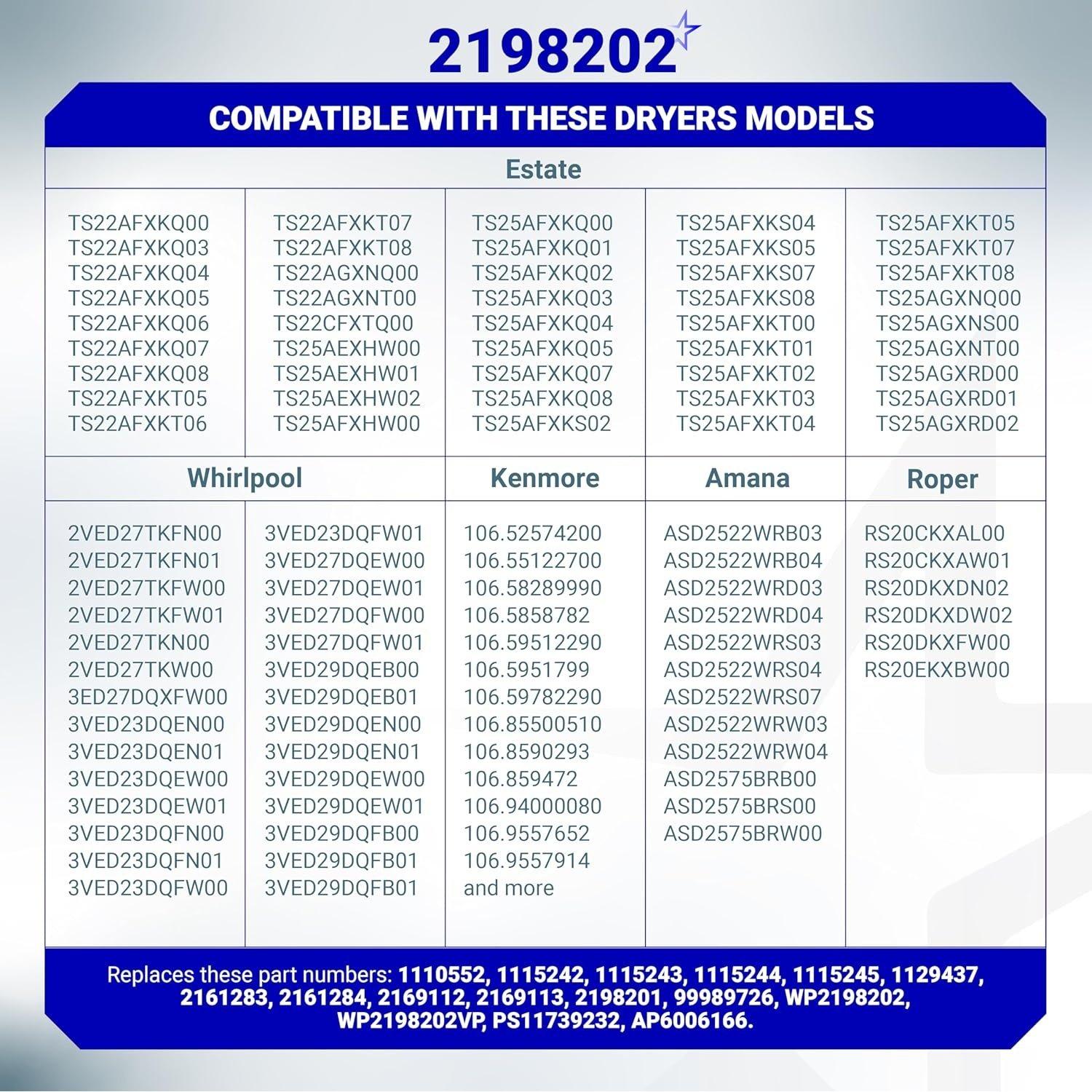

Compatibility & Fitment

  • Fits specific models from brands including Whirlpool, Kenmore, KitchenAid, Maytag, and Electrolux.
  • Confirm fitment with your appliance's model number before ordering.

When to Replace

  • Refrigerator is too warm or not cooling
  • Refrigerator is too cold or freezing contents
  • Temperature fluctuates inconsistently
  • Compressor runs constantly or not at all

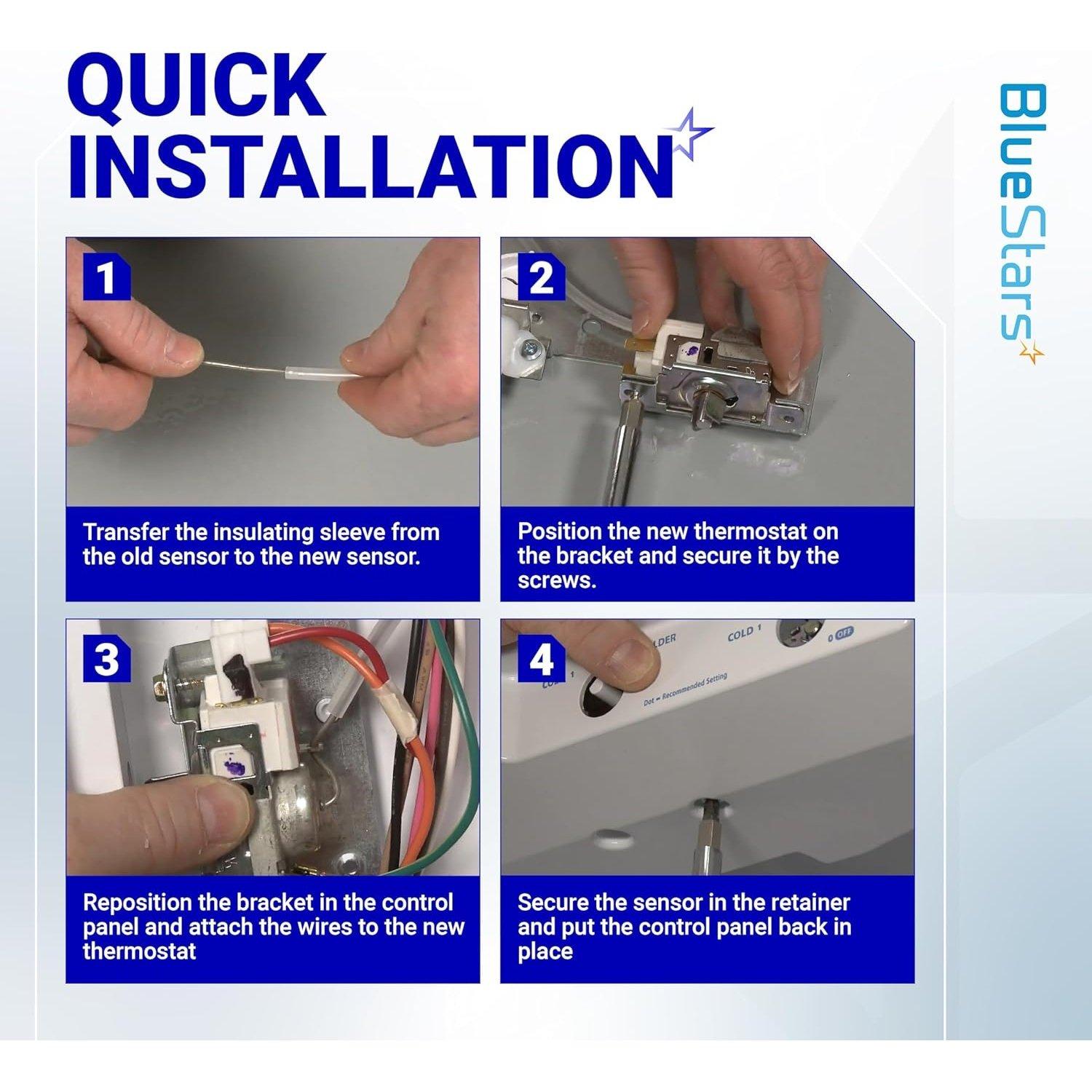

Installation Tips

  • Disconnect the refrigerator from the power source before installation.
  • Take a photo of the original wire connections for reference.
  • Carefully unroll the new capillary tube to avoid kinks or damage.
  • Ensure the sensing bulb is correctly placed in its designated clip within the fresh food compartment.
