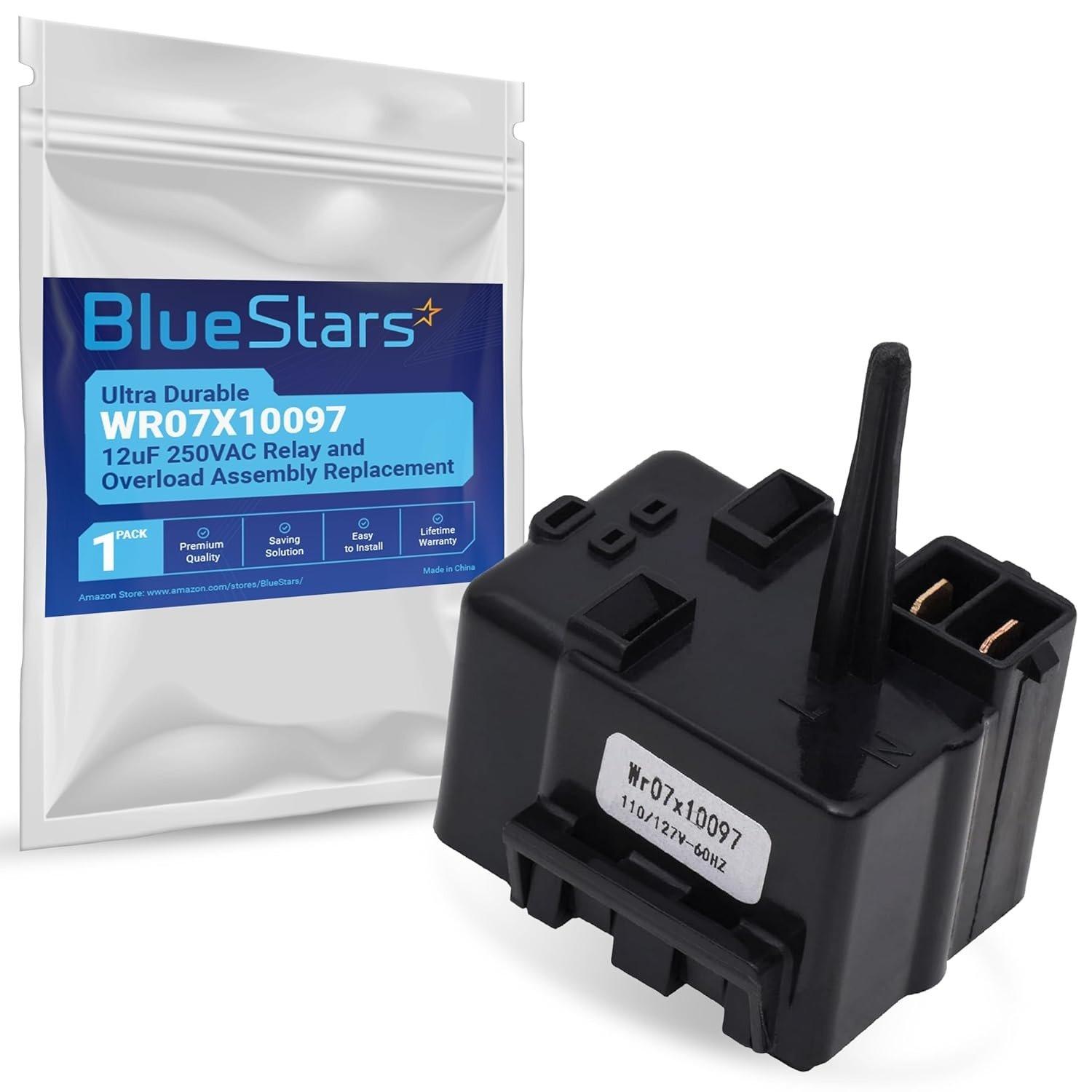

[Lifetime Warranty] WR07X10097 12uF 250VAC Relay and Overload Assembly Replacement - Compatible with GE Refrigerators - Replaces 1265640 AP4300623 PS1766101 513604045

WR07X10097 Relay and Overload Assembly

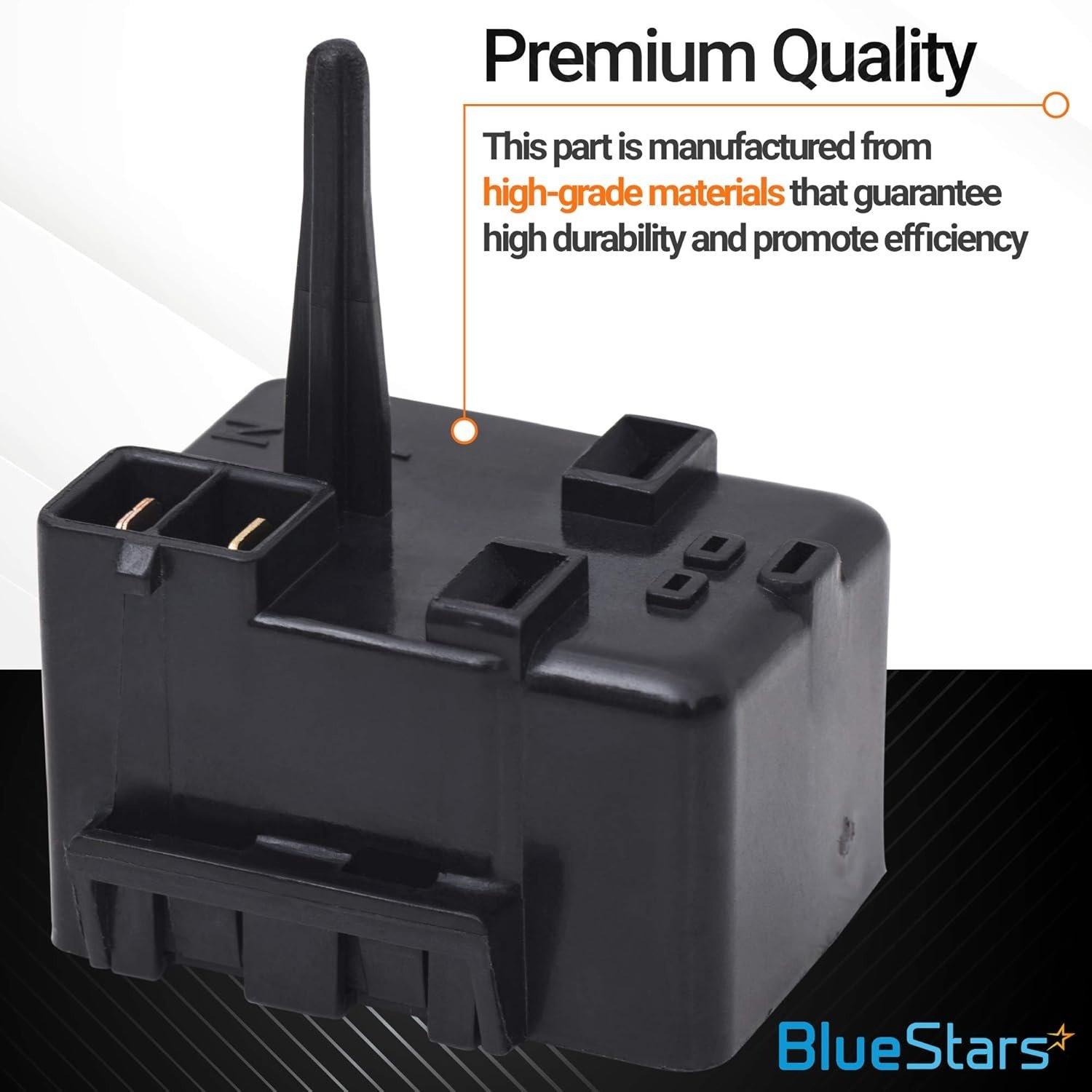

Key Features

• Combination relay and overload unit for refrigerator compressors.
• The relay initiates the compressor's start-up cycle.
• The overload provides thermal protection to prevent the compressor from overheating.

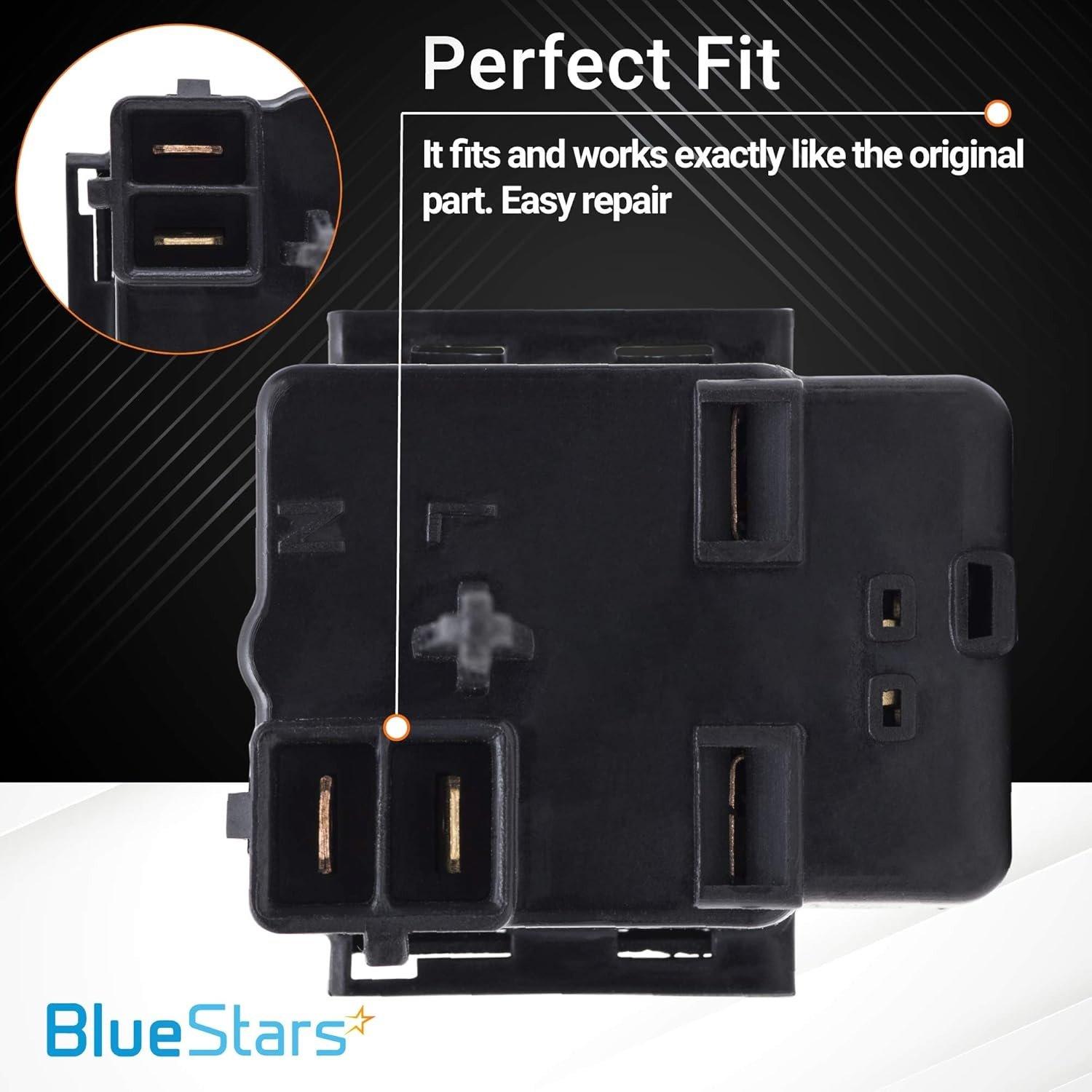

• Includes brass terminal strip for secure electrical connections.

Replaces / Cross-Reference Part Numbers

• WR07X10097

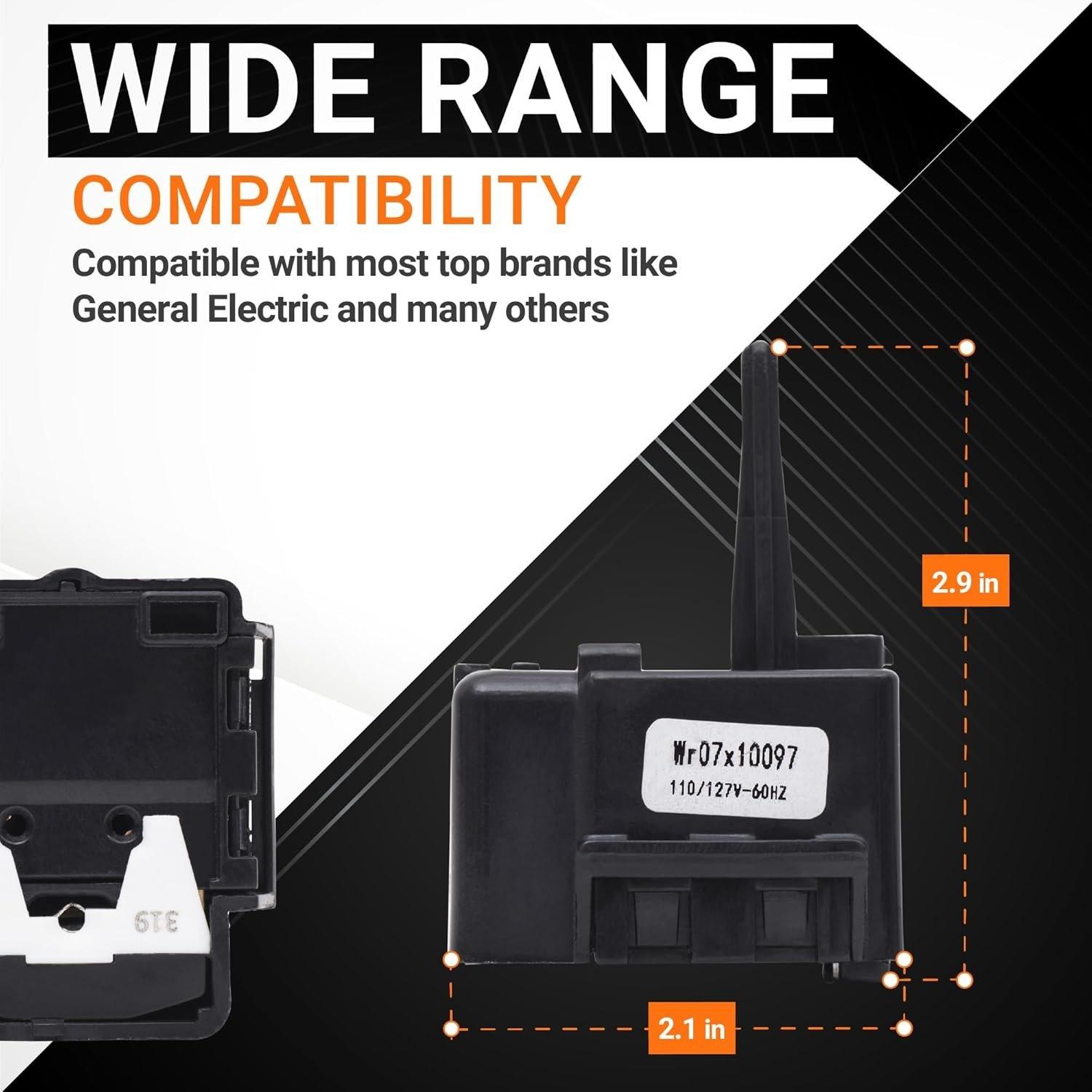

Compatibility & Fitment

• Designed as a direct replacement for specific General Electric (GE) refrigerator models.
• Verify compatibility with your appliance's model number before ordering.

When to Replace

• Refrigerator is not cooling correctly.
• Compressor hums but fails to start.
• A distinct clicking sound is heard from the compressor area at regular intervals.
• The compressor does not run at all.

Installation Tips

• Disconnect the refrigerator from the power supply before installation.
• Photograph the original wiring configuration for reference during reassembly.
• Ensure the new assembly is firmly seated on the compressor terminals.
