AZ1582115

[Lifetime Warranty] 9704230 Blender Drive Coupler with Spanner Kit Replacement - Exact Fit for KitchenAid KSB5WH KSB5 KSB3 Blenders - Replaces WP9704230VP WP9704230

Sold 13,581

Difficulty Icon: Normal
Normal
15 - 20 minutes

$8.82

$9.79

Save $0.97
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

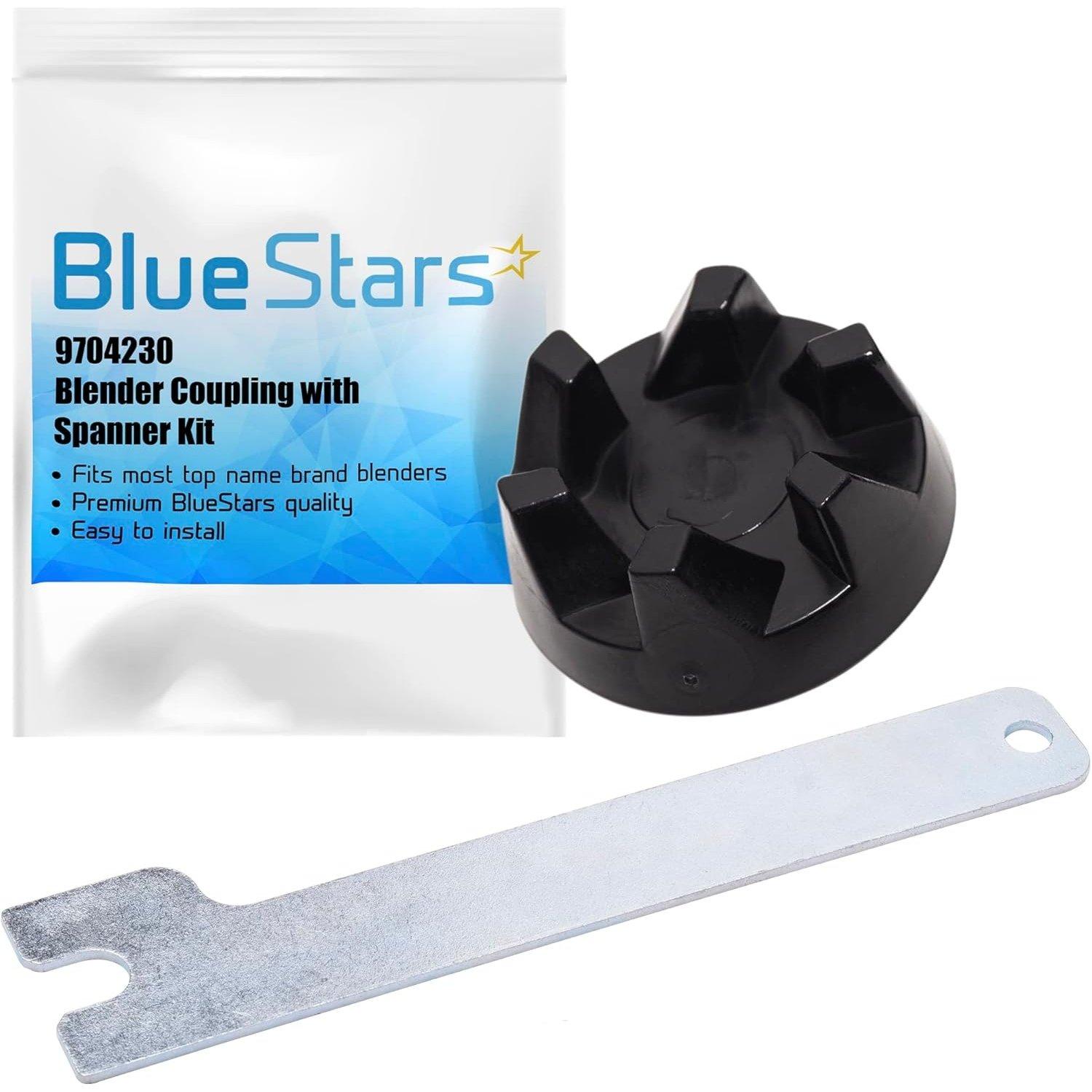

9704230 Blender Drive Coupler with Spanner Kit

Key Features

  • Connects the blender motor base to the blade assembly in the jar.

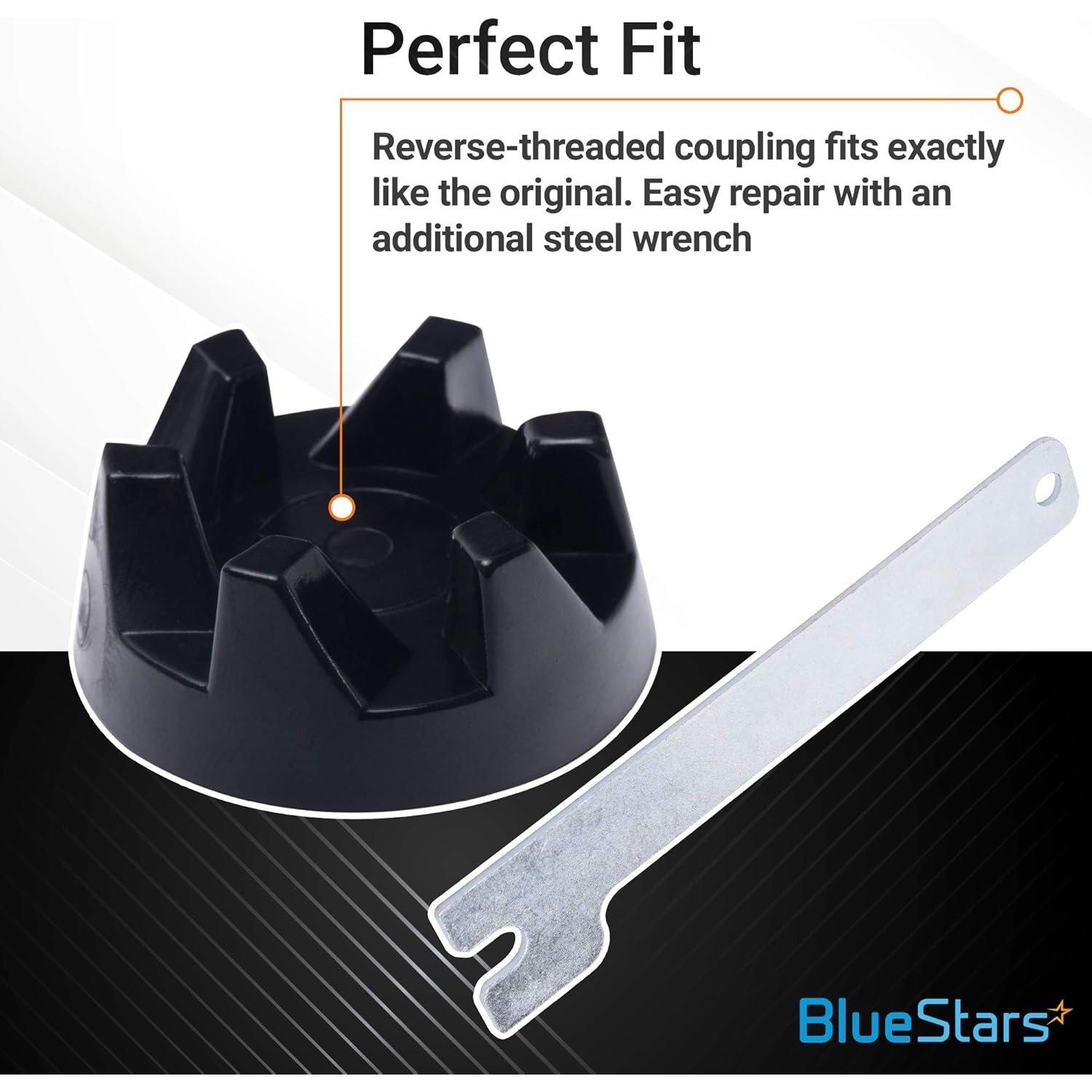

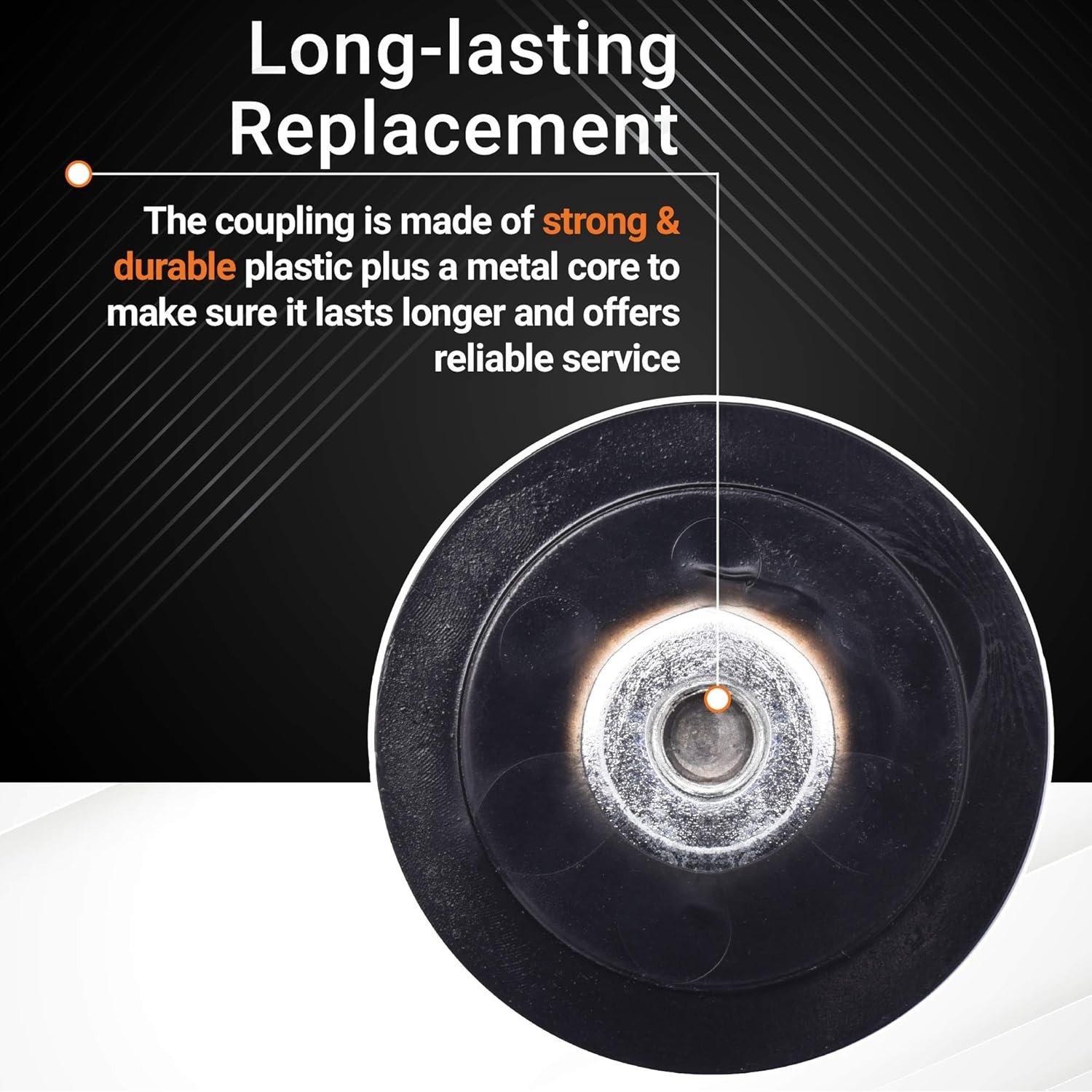

  • Coupler constructed with a rubber body and a reverse-threaded metal core.
  • Includes a spanner wrench for removal of the old part.

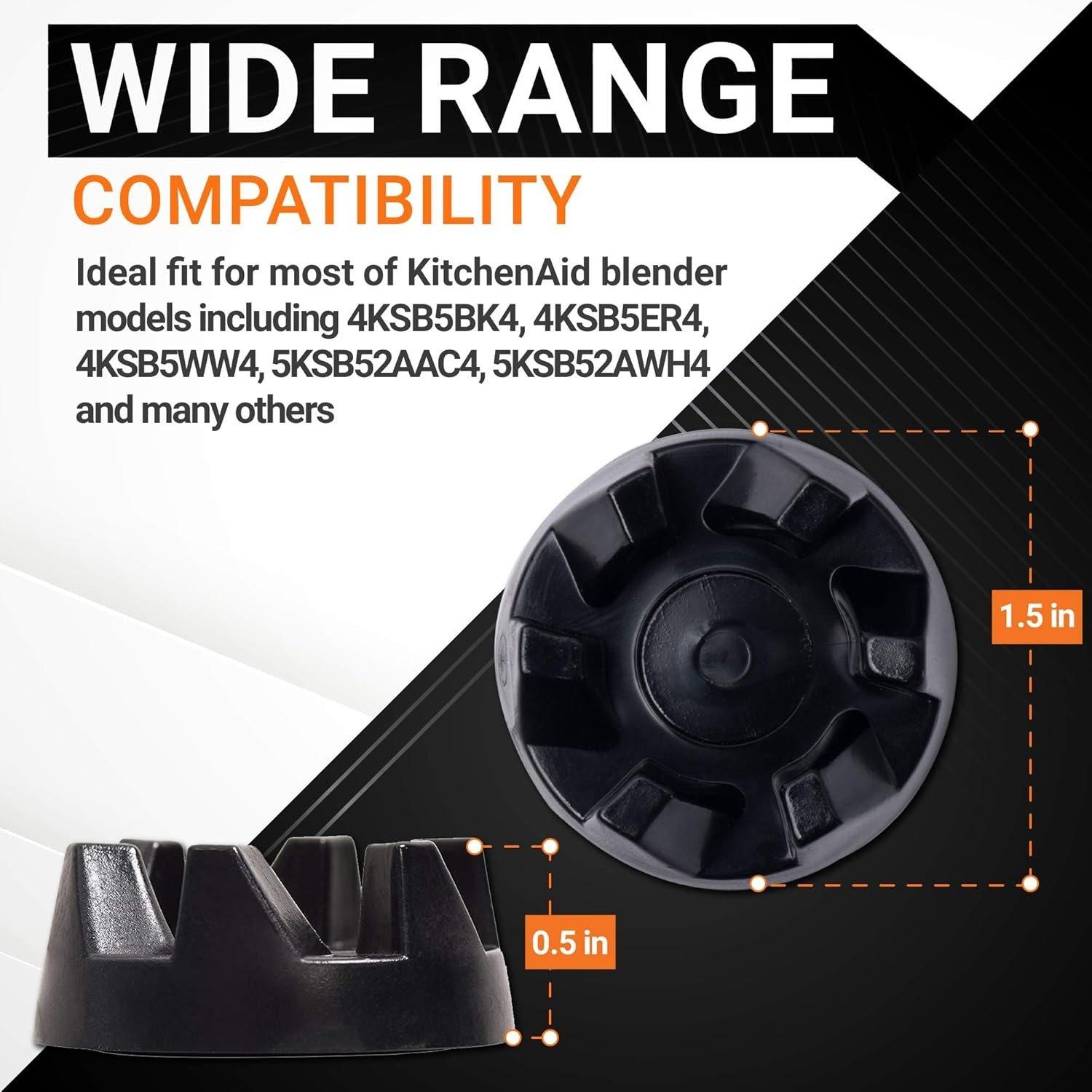

  • Coupler Outer Diameter: 1.42 in (36mm)
  • Coupler Center Hole Diameter: 6mm
  • Spanner Length: 115mm

Replaces / Cross-Reference Part Numbers

  • 9704230
  • WP9704230
  • WP9704230VP

Compatibility & Fitment

  • Fits specific KitchenAid and Whirlpool blender models.
  • Compatible with KSB3 and KSB5 series blenders, including but not limited to: 4KSB5, 5KSB5-4, 5KSB52-4, KSB3-4, KSB5-4, KSB5BU4, KSB5CR4, KSB5OB4, KSB5SS-4, KSB5WH4.

When to Replace

  • Blender motor is running but the blades do not spin.
  • Visible stripping, cracking, or damage to the existing coupler teeth.
  • Loud grinding noises coming from the base of the blender during operation.

Installation Tips

  • Disconnect the blender from the power source before beginning repair.
  • Use a flat-blade screwdriver to pry the old coupler off the motor shaft.
  • The coupler has a reverse (left-hand) thread. Turn it clockwise to loosen and remove.
  • Turn the new coupler counter-clockwise to tighten it onto the motor shaft.
