[Lifetime Warranty] 285805 Washer Water Inlet Valve with Mounting Bracket - Fit Whirlpool Kenmore Kitchen Aid - Replaces 292197 3349451 3354565 AP3094541 KAWS850JQ4 LSQ8243HQ0 7MLSC9545JQ2

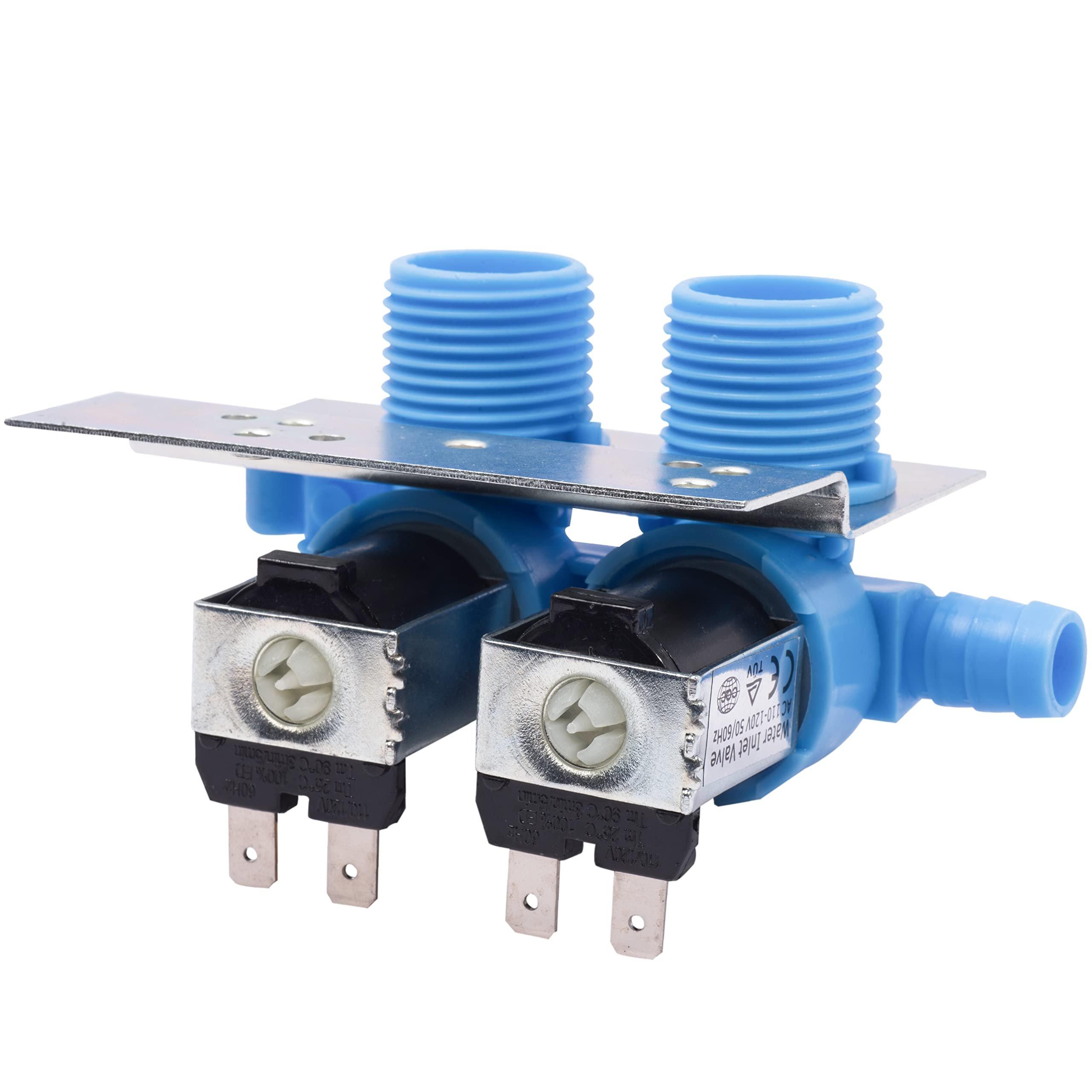

285805 Washer Water Inlet Valve with Mounting Bracket

Key Features

• Controls the flow of hot and cold water into the washing machine.
• Includes a pre-attached mounting bracket for installation.

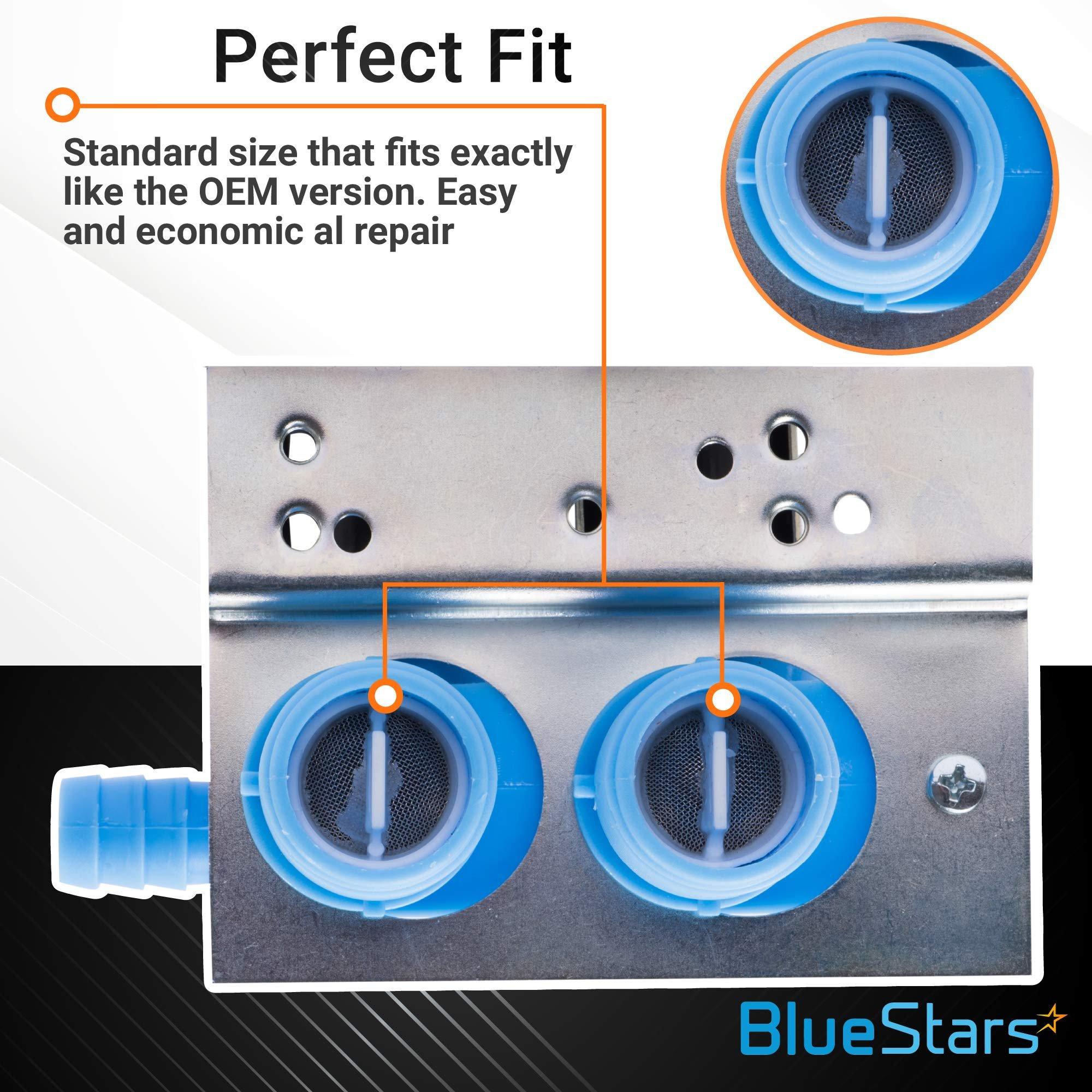

• Features two water inlet ports with 3/4-11x1/2 NHT hose threads.
• Compatible with standard half-inch inner diameter (ID) water hoses.

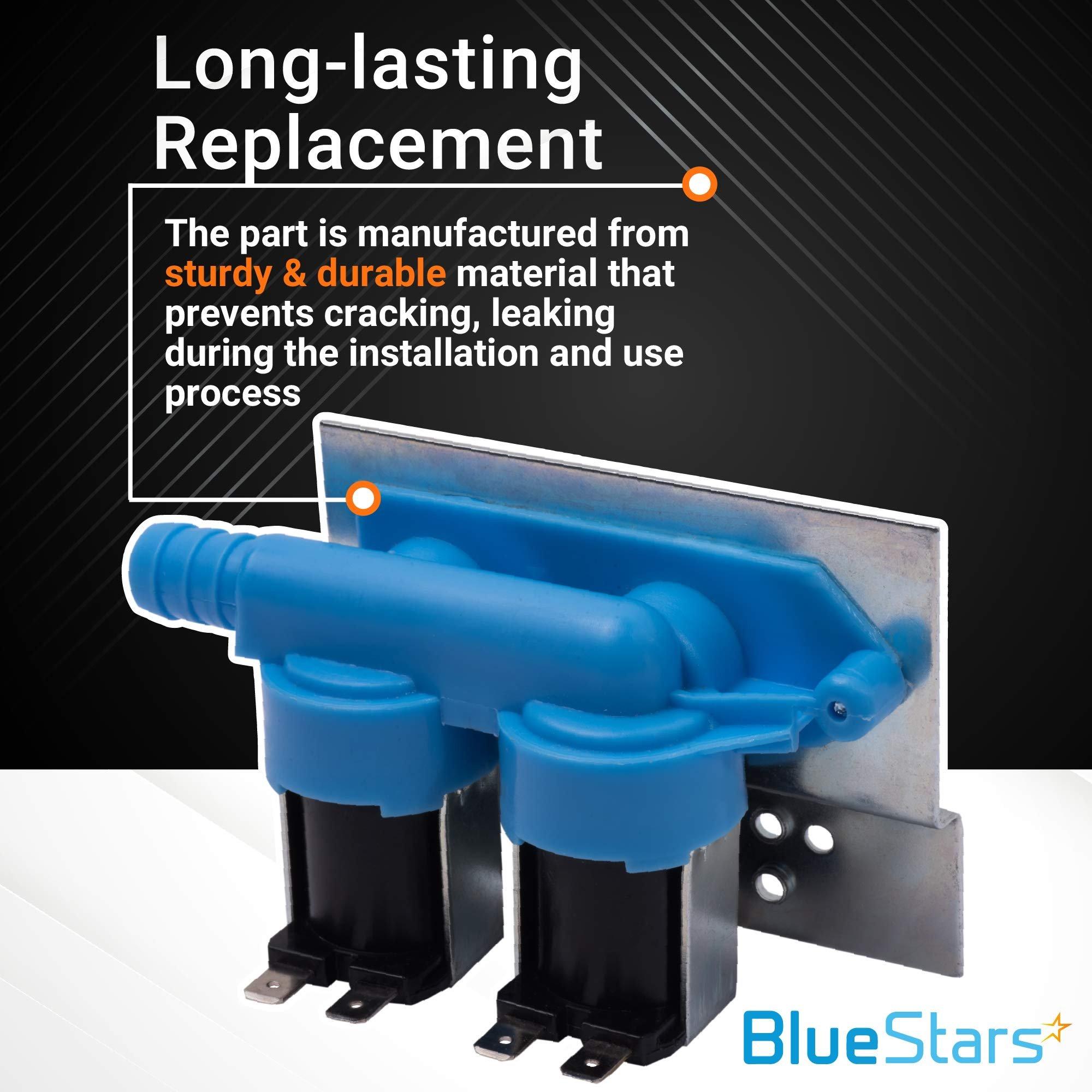

• Constructed with durable materials for long-term reliability.

Replaces / Cross-Reference Part Numbers

• 285805
• 292197
• 3349451
• 3354565

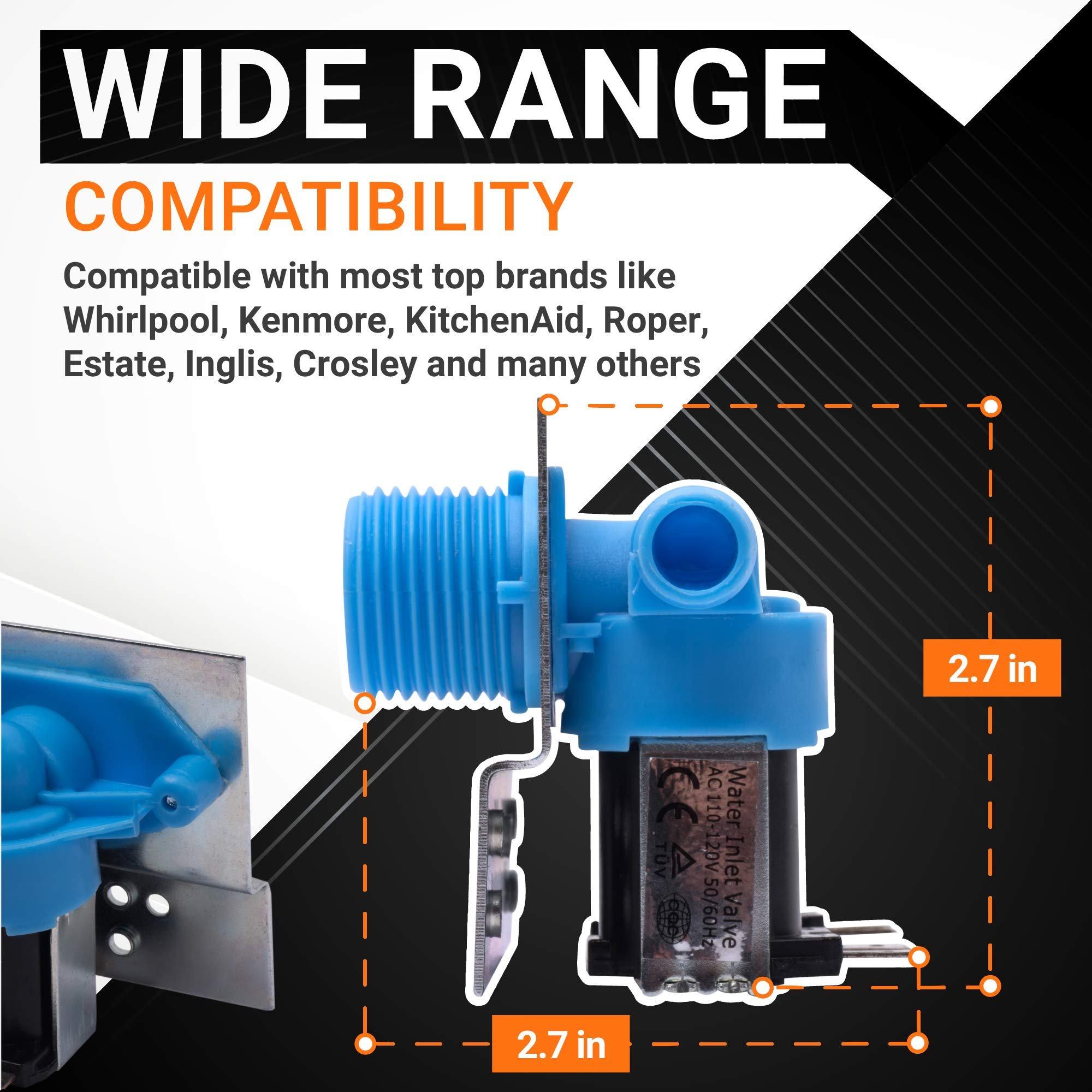

Compatibility & Fitment

• Fits a wide range of direct-drive washing machines from major brands.
• Compatible Brands: Whirlpool, Kenmore, KitchenAid, Roper, Estate.
• Example Compatible Models: Whirlpool LLR6233AN0, Kenmore KAWS850JQ4.

When to Replace

• Washer does not fill with water.
• Washer fills slowly or will not stop filling.
• Water is leaking from the valve area.
• Hot or cold water will not enter the machine.

Installation Tips

• Disconnect the washing machine from power and water supplies before beginning installation.
• Ensure hose connections are securely tightened to prevent leaks.
• Have a towel or bucket ready to catch any residual water from the hoses.
• Refer to your appliance's service manual for model-specific instructions.
