[Lifetime Warranty] 8577274 Dryer Thermistor - Fit for Whirlpool Kenmore KitchenAid Dryers - Replaces 3976615 AP3919451 WP8577274 PS993287 3390292

8577274 Dryer Thermistor

Key Features

• Monitors and regulates internal dryer temperature to prevent overheating.
• Measures resistance at approximately 11.9K Ohms at 70°F (21°C).
• Dimensions: 2.00 in (L) x 0.02 in (W) x 1.00 in (H).

Replaces / Cross-Reference Part Numbers

• 8577274
• WP8577274
• 3976615
• AP6013514
• PS11746740

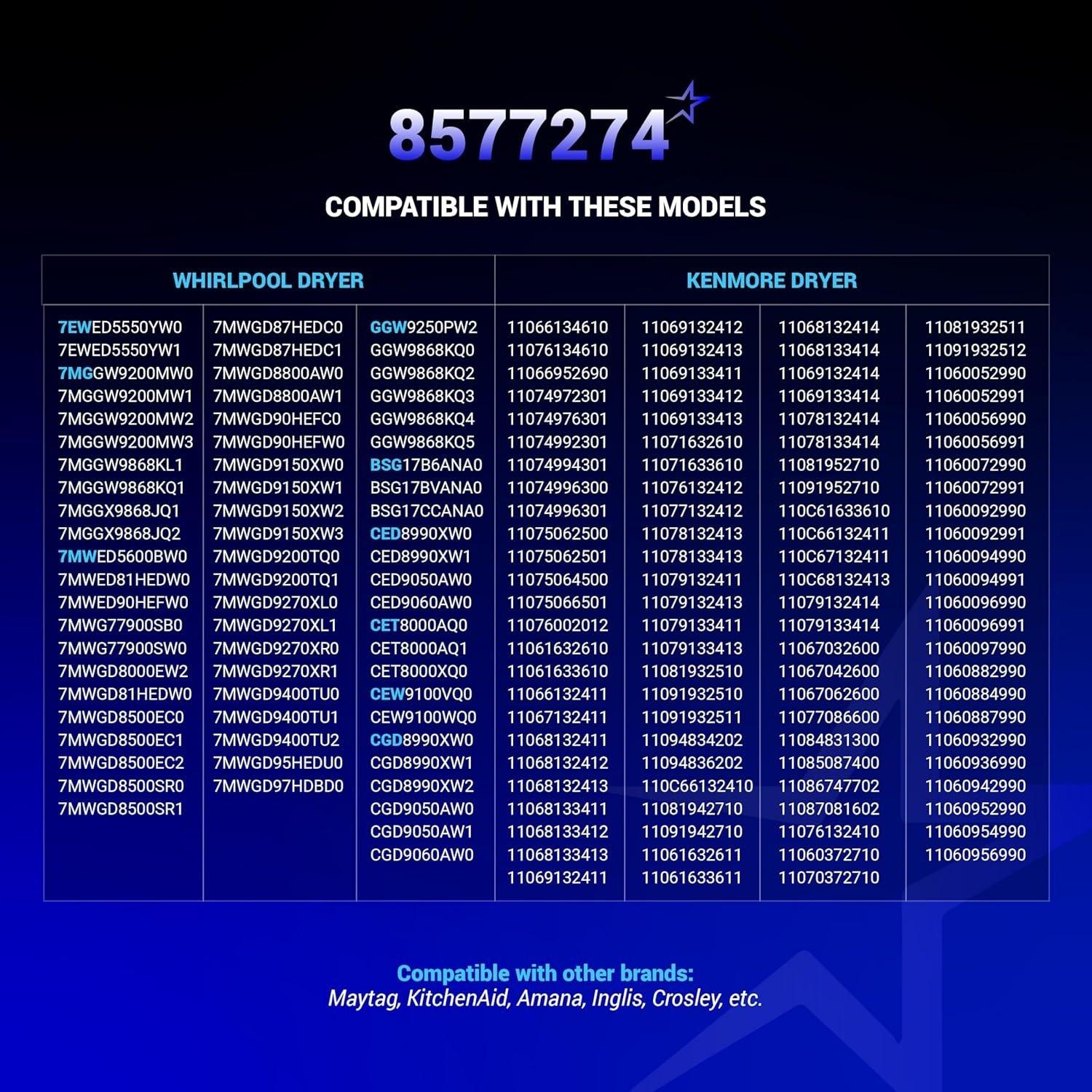

Compatibility & Fitment

• Direct replacement for various dryer models.
• Fits dryers manufactured by Whirlpool, Maytag, Kenmore, Amana, Crosley, and Inglis.

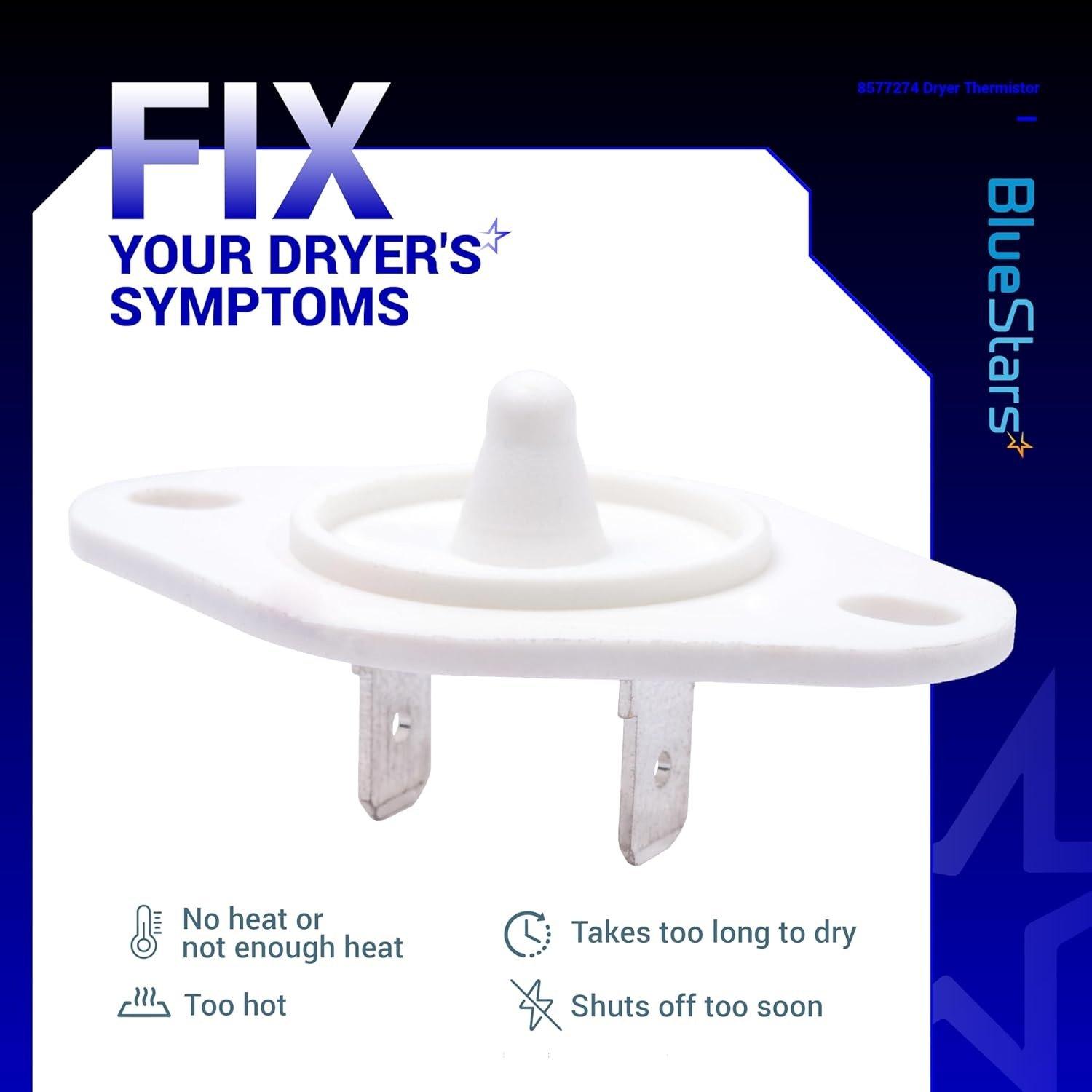

When to Replace

• Dryer is overheating or not heating at all.
• Drying cycles are too long or too short.
• Appliance displays temperature-related error codes.

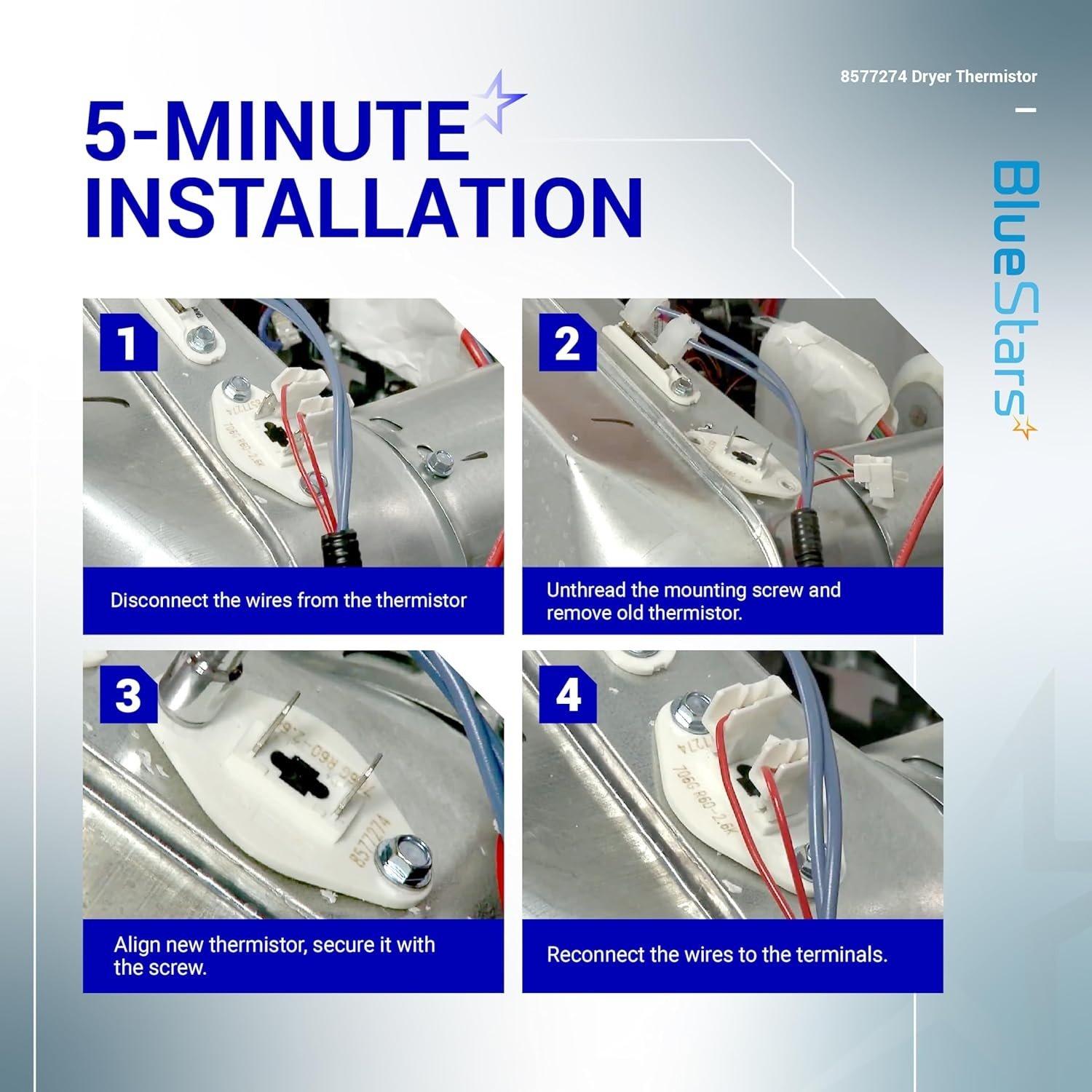

Installation Tips

• Disconnect the dryer from its power source before beginning installation.
• The thermistor is typically located on the blower wheel housing or exhaust duct.
• Use a multimeter to verify the resistance of the existing part before replacement. A correct reading is approximately 11.9K Ohms at room temperature.
