[Lifetime Warranty] 4318165 Refrigerator Door Closer Cam Kit Replacement - Compatible with Whirlpool Kenmore KitchenAid Roper Refrigerators - Replaces AP3103517 EA358690 PS358690

4318165 Refrigerator Door Closer Cam Kit

Key Features

• Restores the self-closing action of the refrigerator or freezer door.
• Ensures smooth opening and closing by providing a lifting ramp for the hinge.
• Helps maintain a proper door seal to conserve energy.
• Located on the bottom hinge of the door.

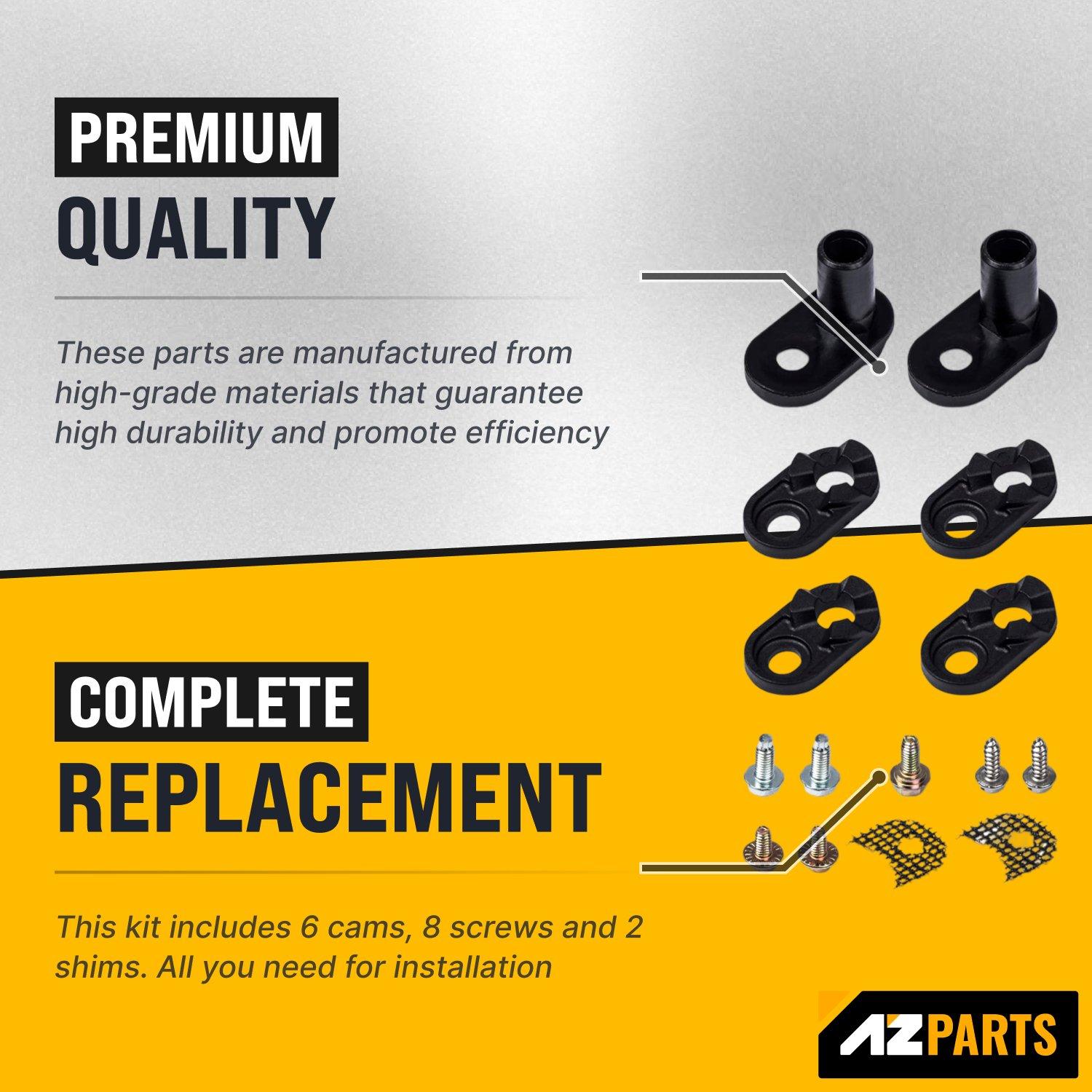

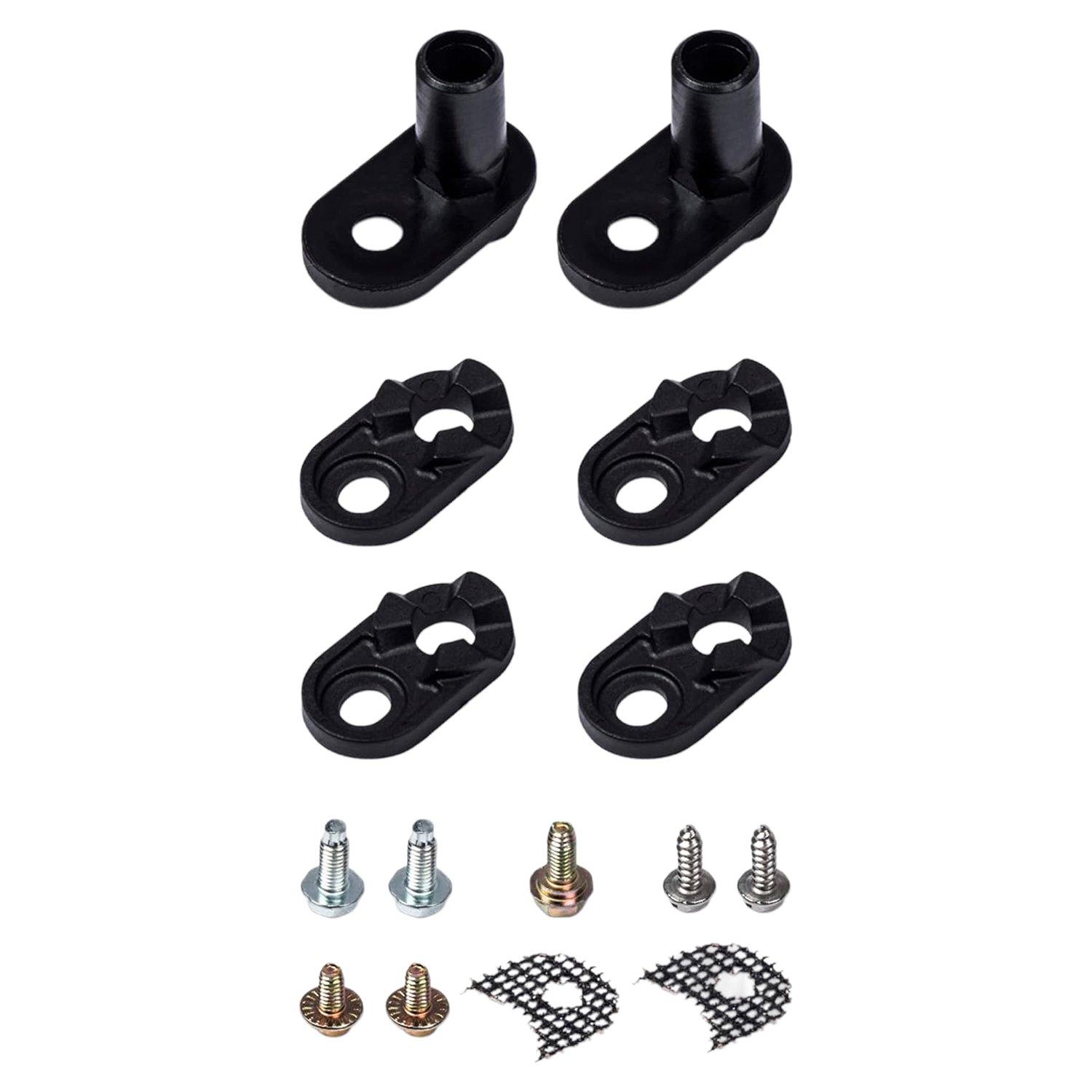

• Kit includes two cams, shims, and mounting hardware for a complete repair.

Replaces / Cross-Reference Part Numbers

• 4318165
• AP3103517
• 2154752
• 2182132
• 2182133
• 4211257
• AH358690
• EA358690
• PS358690

Compatibility & Fitment

• Designed for side-by-side and some top-freezer refrigerator models.
• Fits various models from brands including Whirlpool, Kenmore, KitchenAid, Roper, Estate, and Maytag.
• Installs on the bottom hinge of either the fresh food or freezer door.

When to Replace

• Door fails to close completely on its own.
• Door swings open or will not stay shut.
• A loud popping or snapping noise is heard when opening or closing the door.
• Visible damage, cracking, or excessive wear on the existing plastic cams.

Installation Tips

• Disconnect the refrigerator from the power source before beginning the installation.
• Empty the contents of the door to make it lighter and easier to handle.
• Slightly lift the door off the bottom hinge pin to access and replace the cam components.
• Note the orientation of the old cams and shims before removal.
• Apply a food-grade lubricant to the new cams for optimal performance and longevity.
