[Lifetime Warranty] 3387747 MEDB835DW4 Dryer Heating Element Kit - For Whirlpool Kenmore Maytag KitchenAid Amana GEW9250PW1 GEW9250PW0 WED5100HW1 WED8300SW2 GEW9200LW1 MED6230HW1 GEQ9800PW1 WED7500GC0

3387747 & 279973 Dryer Heating Element & Thermal Cut-off Fuse Kit

Key Features

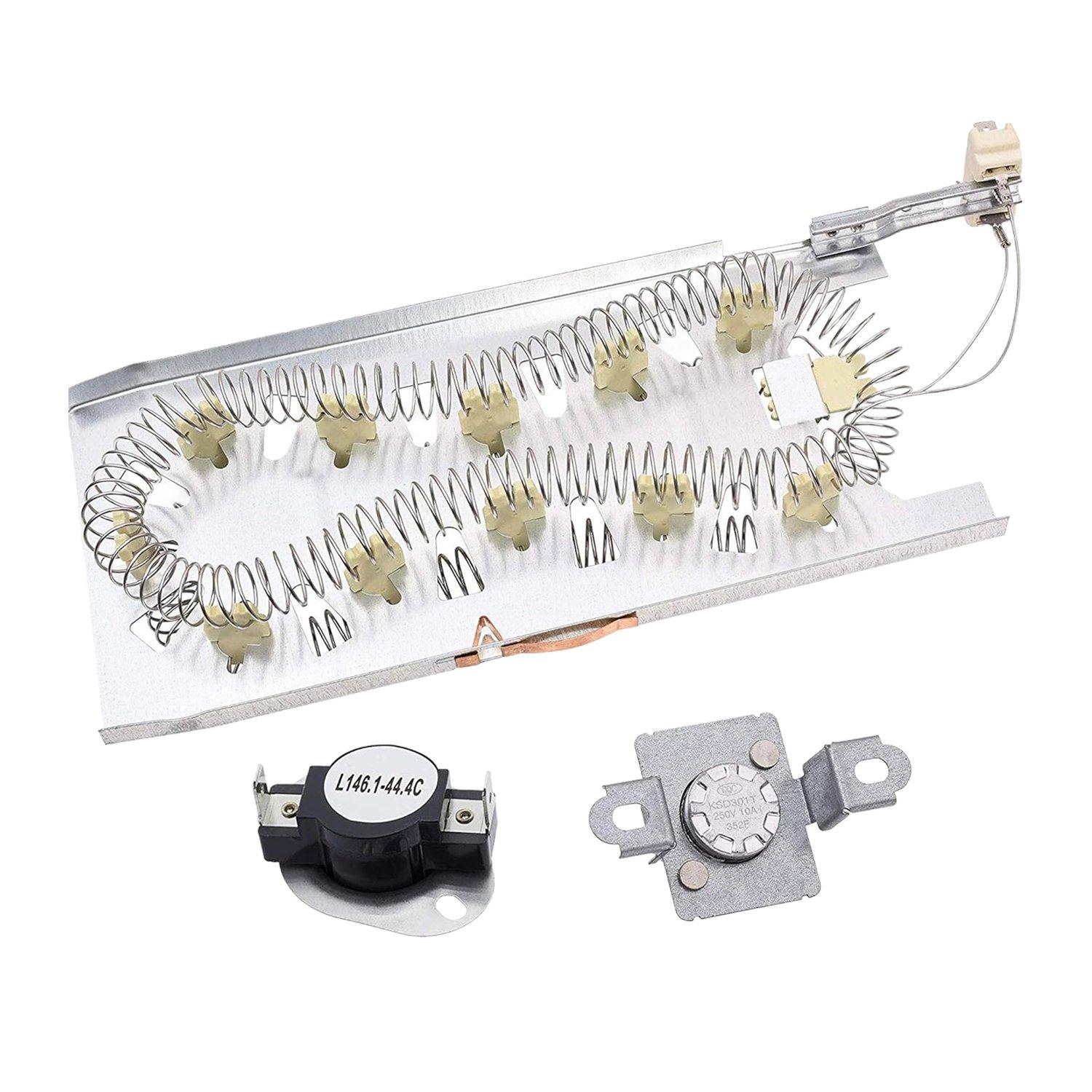

• Kit includes one 3387747 heating element, one 279973 thermal cut-off kit, and one 3392519 thermal fuse.
• Restores heat to dryers that are not heating or are taking too long to dry.
• Components are designed to meet or exceed original equipment manufacturer specifications.

Replaces / Cross-Reference Part Numbers

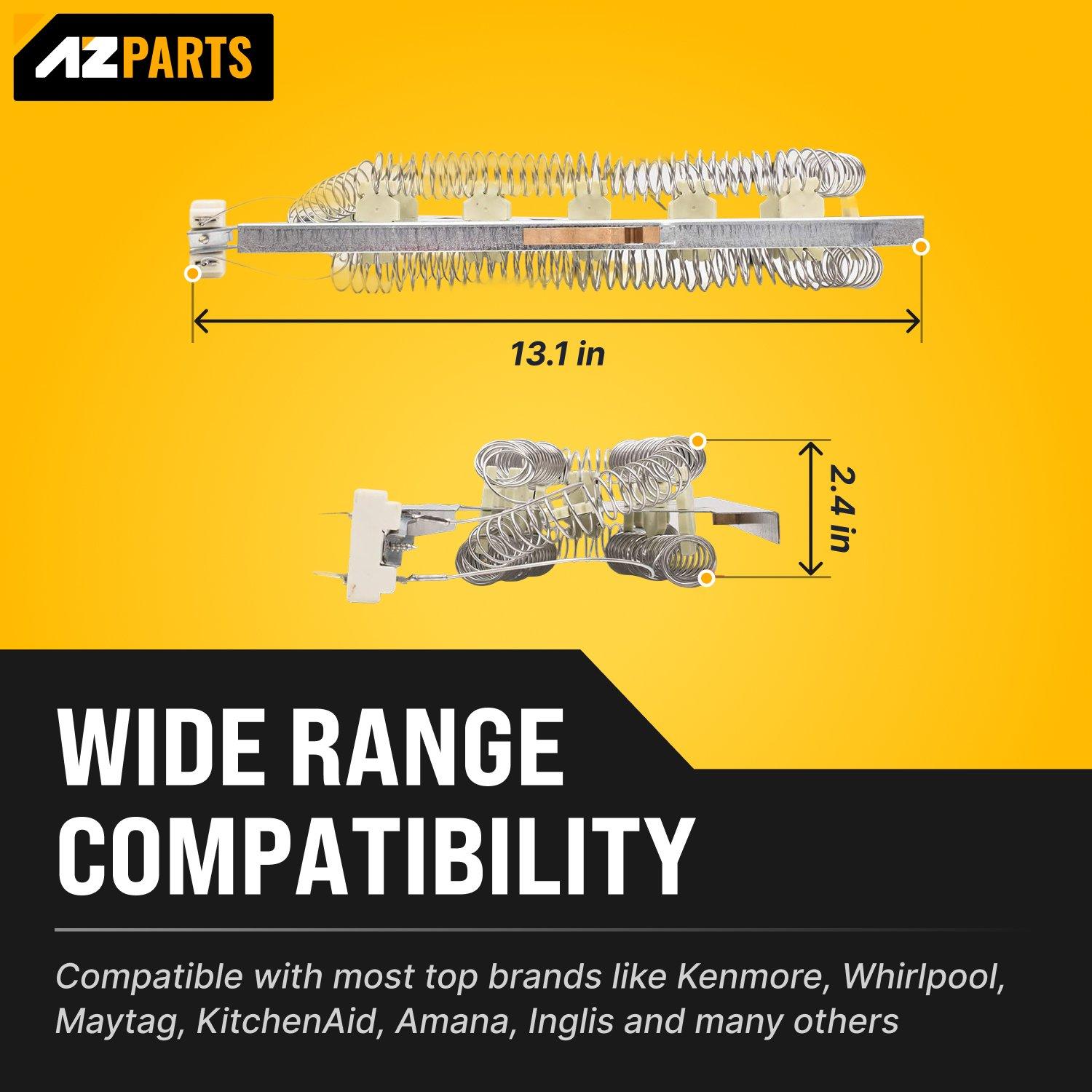

• Heating Element (3387747): WP3387747, 8544771, AP6008281, PS11741416

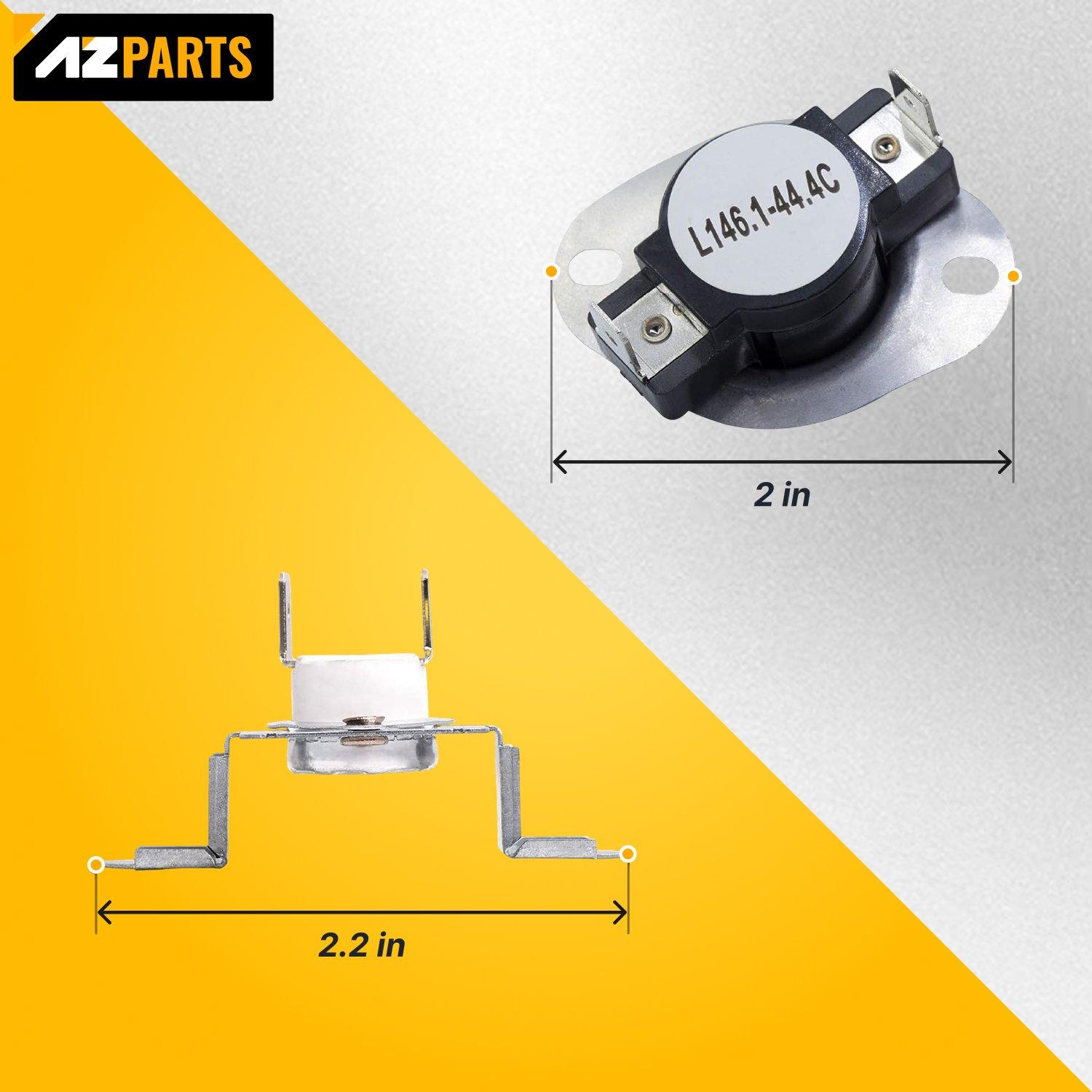

• Thermal Cut-off Kit (279973): WP279973, 279973VP, 3391913, 3404151, 897710, AP3094323
• Thermal Fuse (3392519): WP3392519, 3392519, 80005, 694511, ET401, PS11741460

Compatibility & Fitment

• Fits a wide range of electric dryers from brands including Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Crosley, and Inglis.
• Compatible with specific models such as Maytag YMEDZ600TB2.
• Always verify compatibility with your specific dryer model number before purchasing.

When to Replace

• Dryer runs and tumbles but produces no heat.
• Drying times are excessively long.
• Dryer shuts off mid-cycle.
• A burning smell is detected from the element housing.

Installation Tips

• Disconnect the dryer from the electrical outlet before starting the repair.
• Use a multimeter to test for continuity on the old components to diagnose the failure.
• It is recommended to replace the high-limit thermostat and thermal fuse when replacing the heating element.
• Thoroughly clean lint and debris from the dryer's vent ducting to prevent future overheating and component failure.
