[Lifetime Warranty] 4681EA2001T WM3170CW Washer Drain Pump for Kenmore LG WM3170CW WM2101HW WM2301HR WM0642HW WM3670HVA WM2650HWA WM3270CW WM8100HVA MAH5500BWW WM8000HVA WM2487HRMA WM8000HWA

Sold 14,109

Difficulty Icon: Normal
Normal
More than 30 minutes

$23.40

$25.99

Save $2.59
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

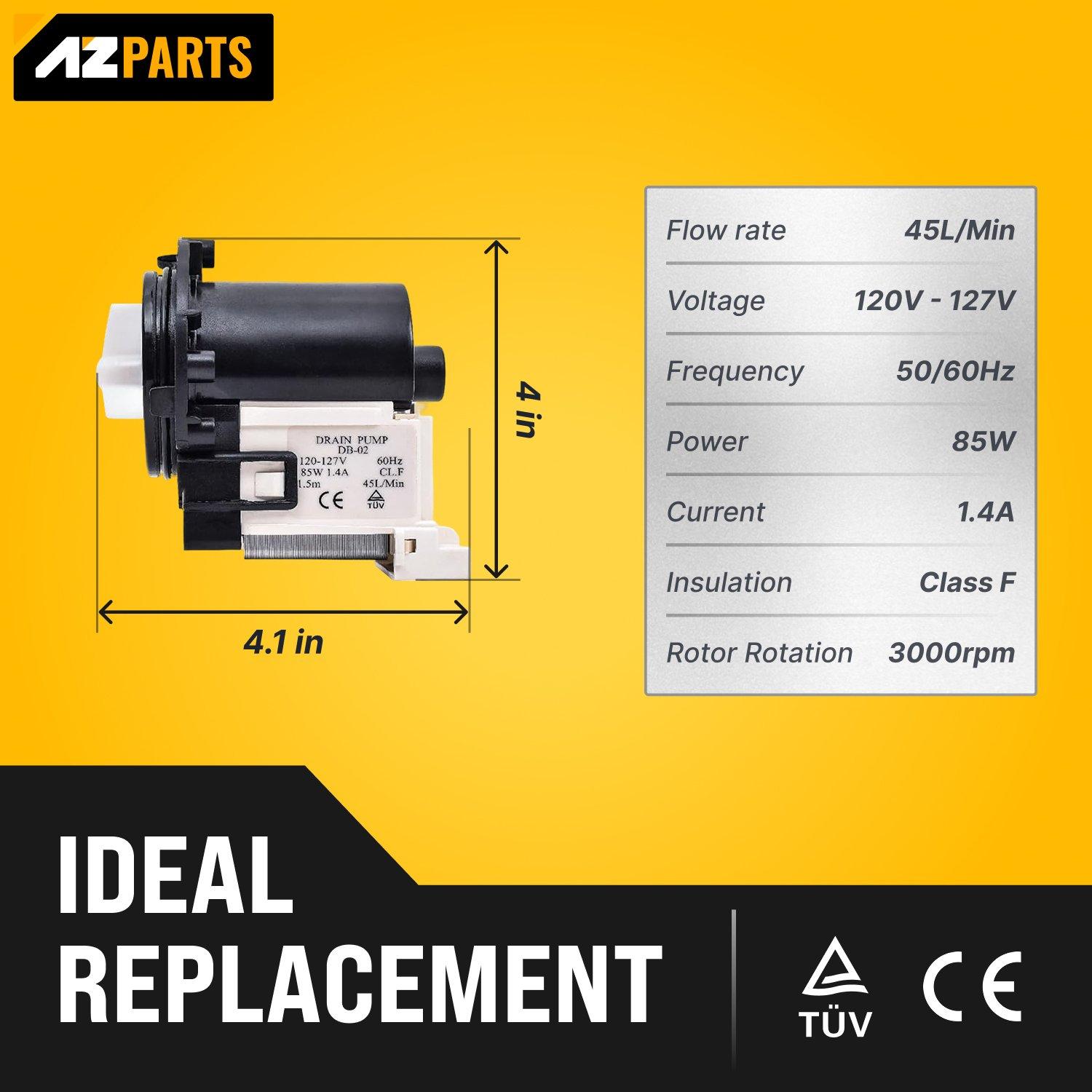

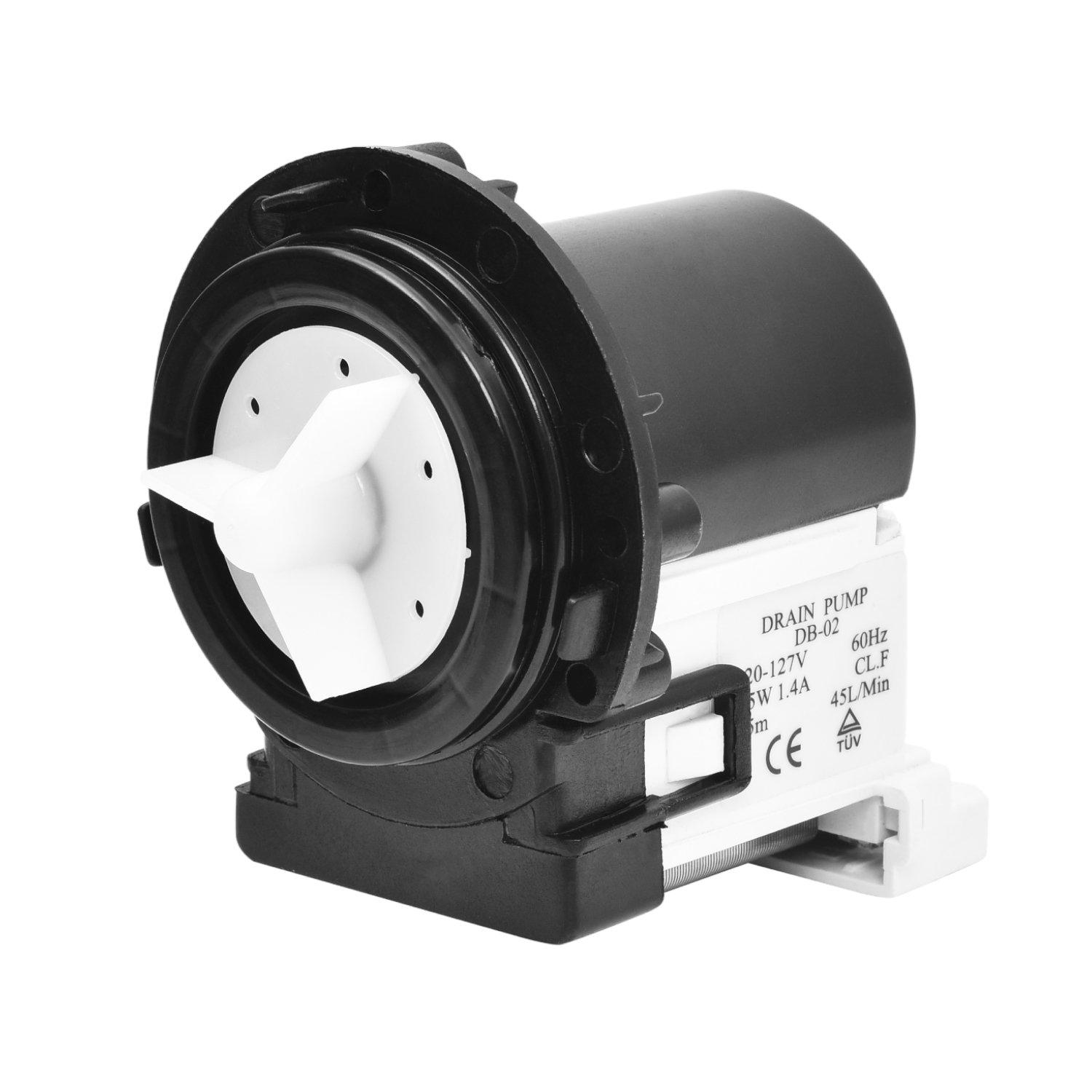

4681EA2001T Washer Drain Pump Motor

Key Features

  • Direct replacement AC pump and motor assembly
  • Expels water from the washer tub during the drain cycle
  • Engineered for durability and precise fitment
  • Genuine Original Equipment Manufacturer (OEM) part

Replaces / Cross-Reference Part Numbers

  • 4681EA2001A
  • 4681EA2001B
  • 4681EA2001D
  • 4681EA2001N
  • 4681EA2001S
  • 4681EA1007G
  • 1267494
  • 2003253
  • AP4438623
  • EAP3523275
  • PS3523275
  • AH3523275

Compatibility & Fitment

  • Fits select front-load washing machines from brands including LG and Kenmore
  • Commonly used in models such as WM2016CW, WM2277HW, WM2801HLA, and WM3470HVA
  • Verify compatibility with your specific washer model number before ordering

When to Replace

  • Washer fails to drain or drains slowly
  • "OE" error code is displayed on the control panel
  • Loud humming, grinding, or buzzing noises during the drain cycle
  • Water remains in the drum after the wash cycle is complete

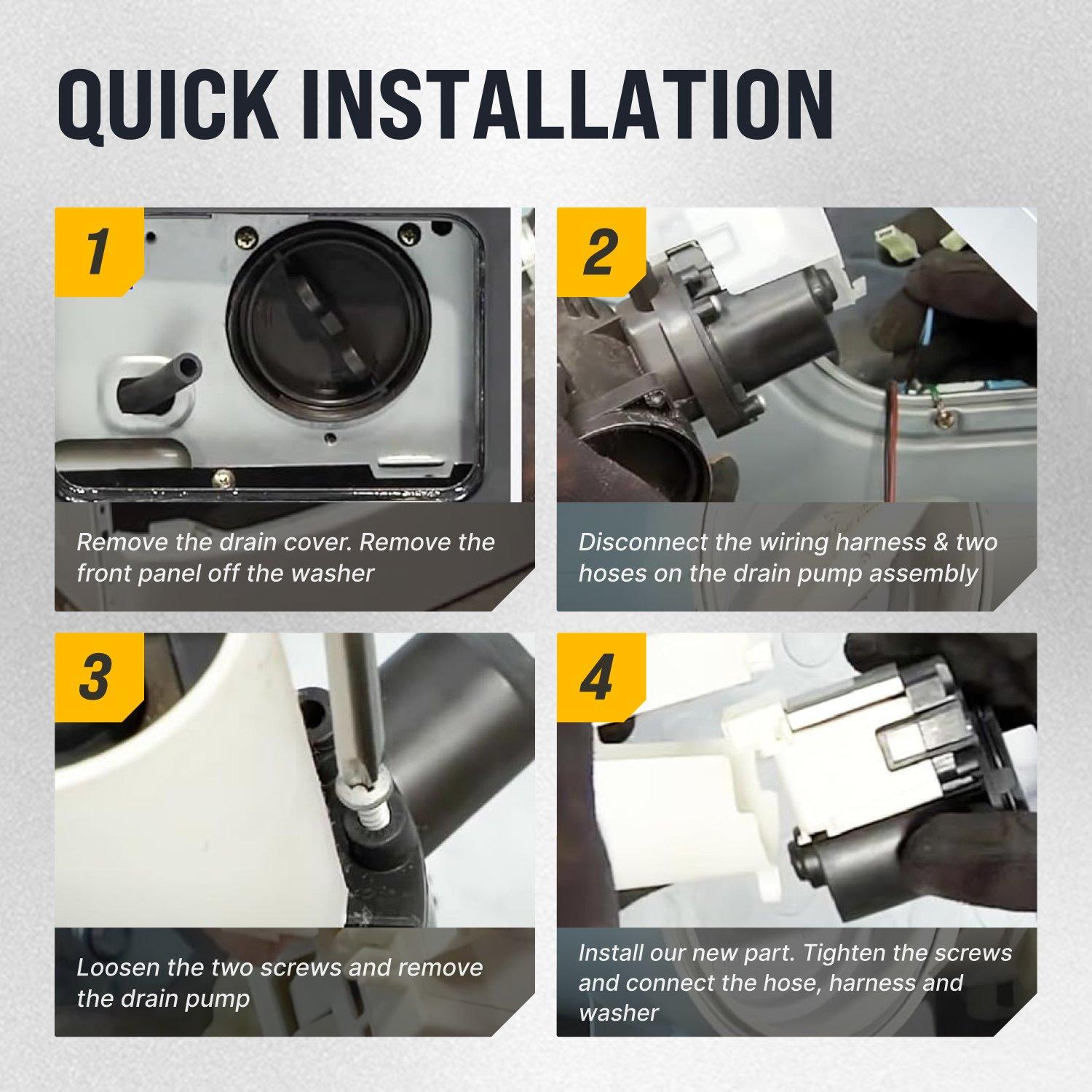

Installation Tips

  • Disconnect the washer from power and water supplies before beginning repair
  • Place towels under the pump housing to catch residual water
  • Clean the pump filter and housing of any debris during replacement
  • Ensure all hose clamps are securely tightened to prevent leaks after installation
