[Lifetime Warranty] 9759242 Oven Thermal Fuse - Compatible with Whirlpool KitchenAid Maytag Ovens/Ranges - Replaces 4452223 WP9759242 AP6014015 PS11747248

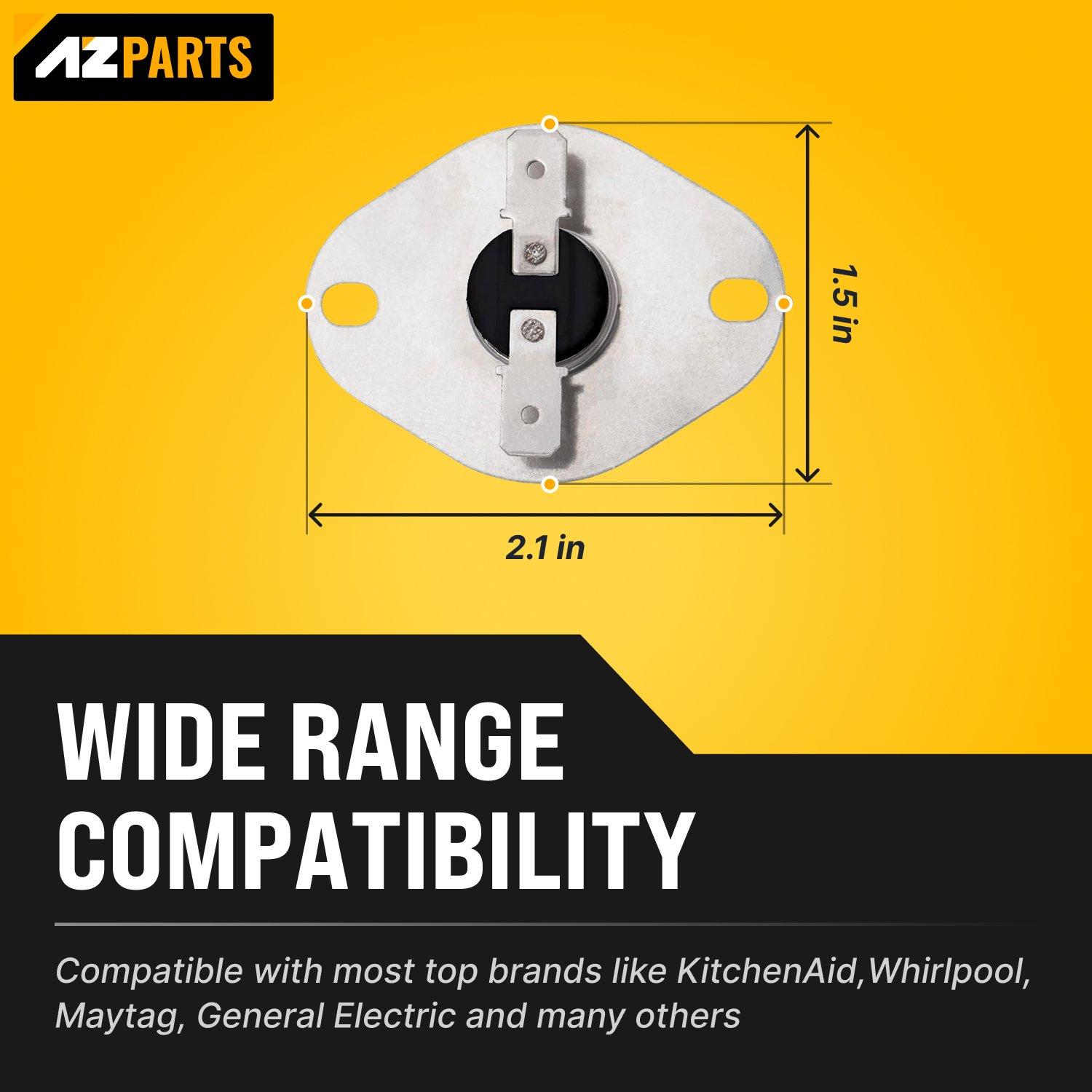

9759242 Oven Thermal Fuse

Key Features

• Acts as a safety device to protect the oven from overheating
• Non-resettable, one-time use thermal cut-off
• Trips and cuts power if the oven temperature exceeds a safe limit
• Rated for 130° C (266° F)

Replaces / Cross-Reference Part Numbers

• WP9759242
• 9759242
• 4452223
• 1061375
• AP6014015
• AP3879224
• 9759242CM

Compatibility & Fitment

• Designed for various wall oven and range models
• Commonly used in Whirlpool and KitchenAid brand appliances
• Verify compatibility with your specific appliance model number before ordering

When to Replace

• Oven has no power or will not start
• Oven does not heat or has little heat
• Bake or broil elements will not turn on
• Door remains locked after a self-cleaning cycle
• Fuse has tripped (no continuity) during testing

Installation Tips

• Disconnect the appliance from all power sources before installation
• The fuse is typically located on the outer rear panel of the oven
• Before replacing, inspect the cooling fan and high-limit thermostat for proper operation, as their failure can cause the fuse to trip
• If the fuse has tripped, investigate and resolve the underlying cause of overheating to prevent repeat failure
