[Lifetime Warranty] 12001656 Oven Temperature Sensor Part - Compatible with Whirlpool Kenmore Ovens - Replaces AP4009009 74004943 PS1570174 12001554 12001656VP 7430P003-60 WB21X5301

12001656 Oven Temperature Sensor Part

Key Features

• Monitors and regulates internal oven temperature for accurate cooking.

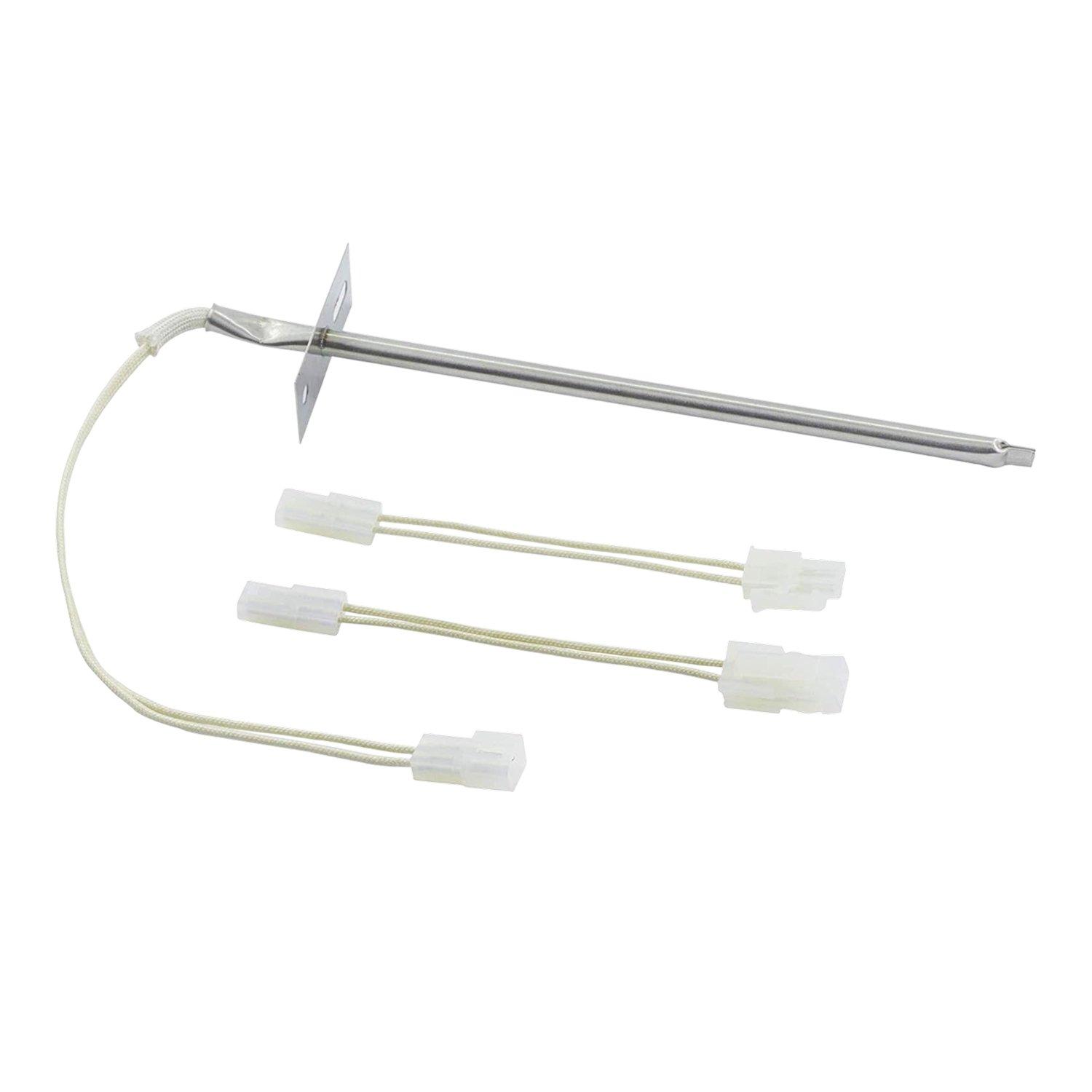

• Probe length: 6 inches
• Overall length: 7-1/8 inches

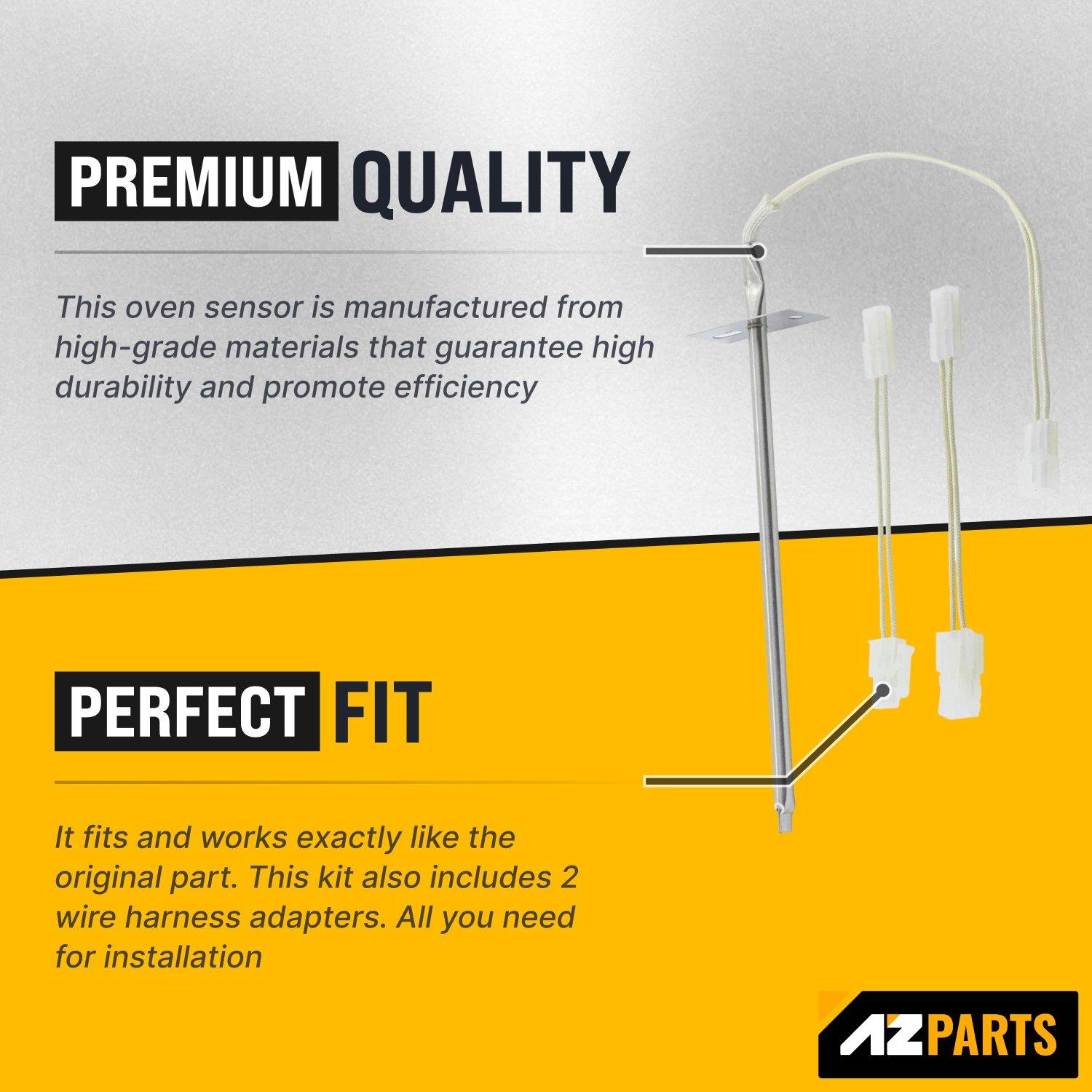

• Includes two wire harness adapters to ensure proper connection for various models.
• Kit contains one sensor and installation hardware.

Replaces / Cross-Reference Part Numbers

• AP4009009
• PS1570174
• 74004943
• 12001554

Compatibility & Fitment

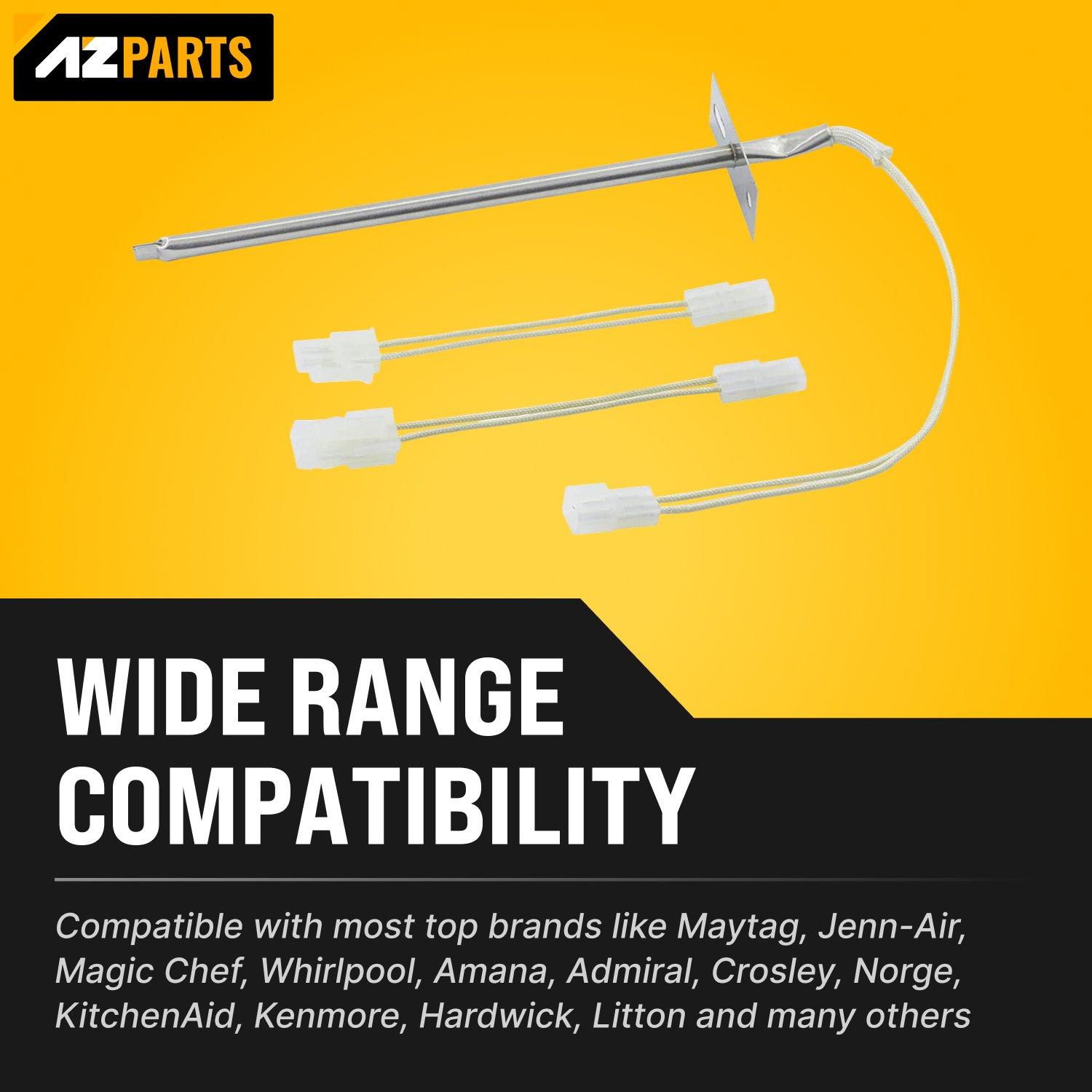

• Fits a wide range of oven and stove models from major brands including Whirlpool, Maytag, Kenmore, and Magic Chef.
• Verify compatibility by checking your appliance's original part number before ordering.

When to Replace

• Oven temperature is inaccurate (too hot or not hot enough).
• Oven fails to heat.
• Cooking results are inconsistent, with food being burnt or undercooked.
• The oven's display shows a fault code related to the temperature sensor (e.g., F3, F4).

Installation Tips

• Disconnect the appliance from its power source before beginning installation.
• The sensor is typically located inside the oven cavity, on the upper left or right of the rear wall.
• Unscrew the old sensor, gently pull it out, and disconnect the wire harness.
• Connect the new sensor, using one of the included adapters if the plug does not match directly.
• Secure the new sensor in place with the original screws.
