[Lifetime Warranty] 174368 Mower Deck Belt - for 48-inch Husqvarna, AYP, Poulan, Jonsered - Replaces 532174368, 532 17 43-68, 33907, PP13007, 532180483 | 5-8” x 90”

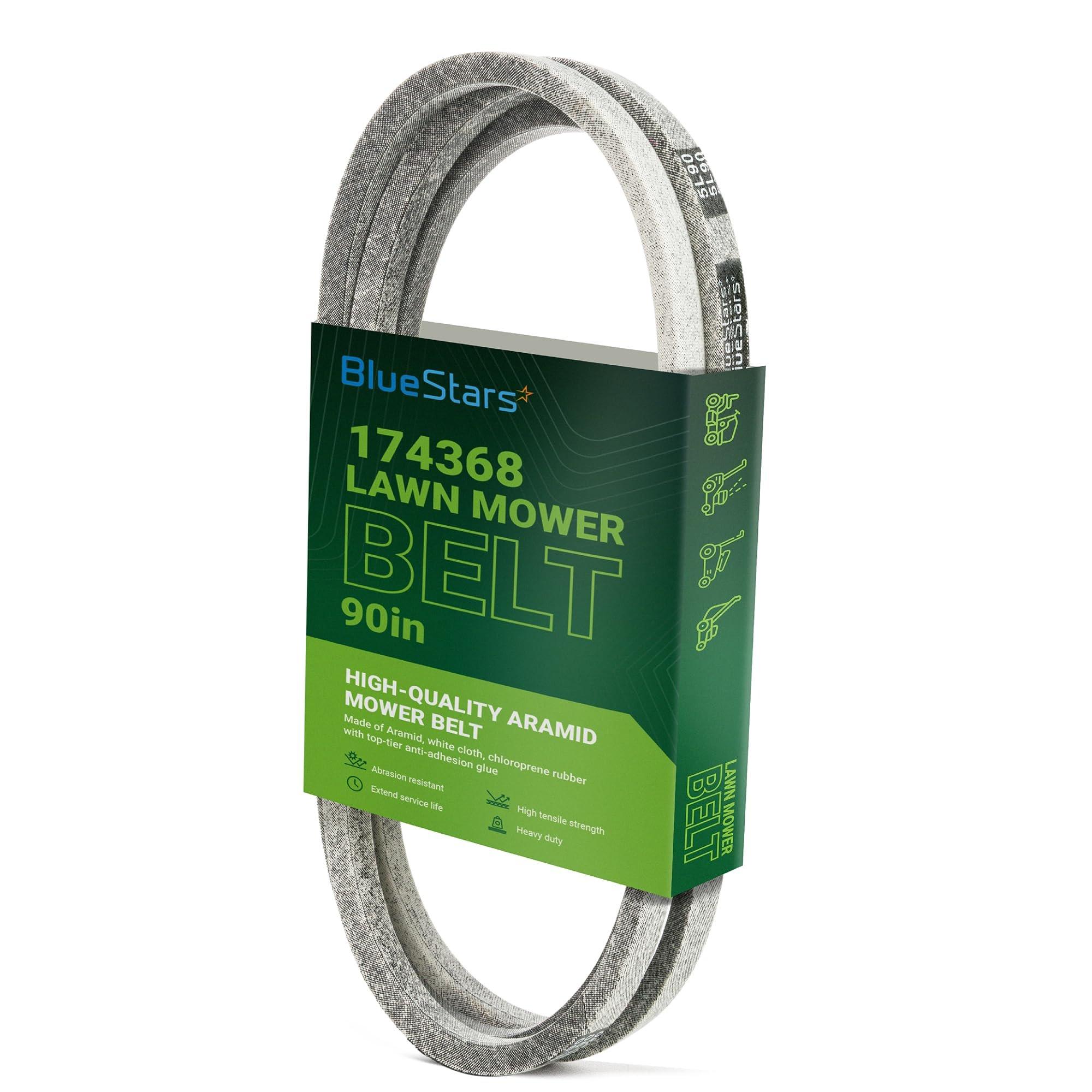

174368 Mower Deck Belt (5-8” x 90”)

Key Features

• Type: Mower Deck Belt
• Application: Drives blades on 48-inch cutting decks

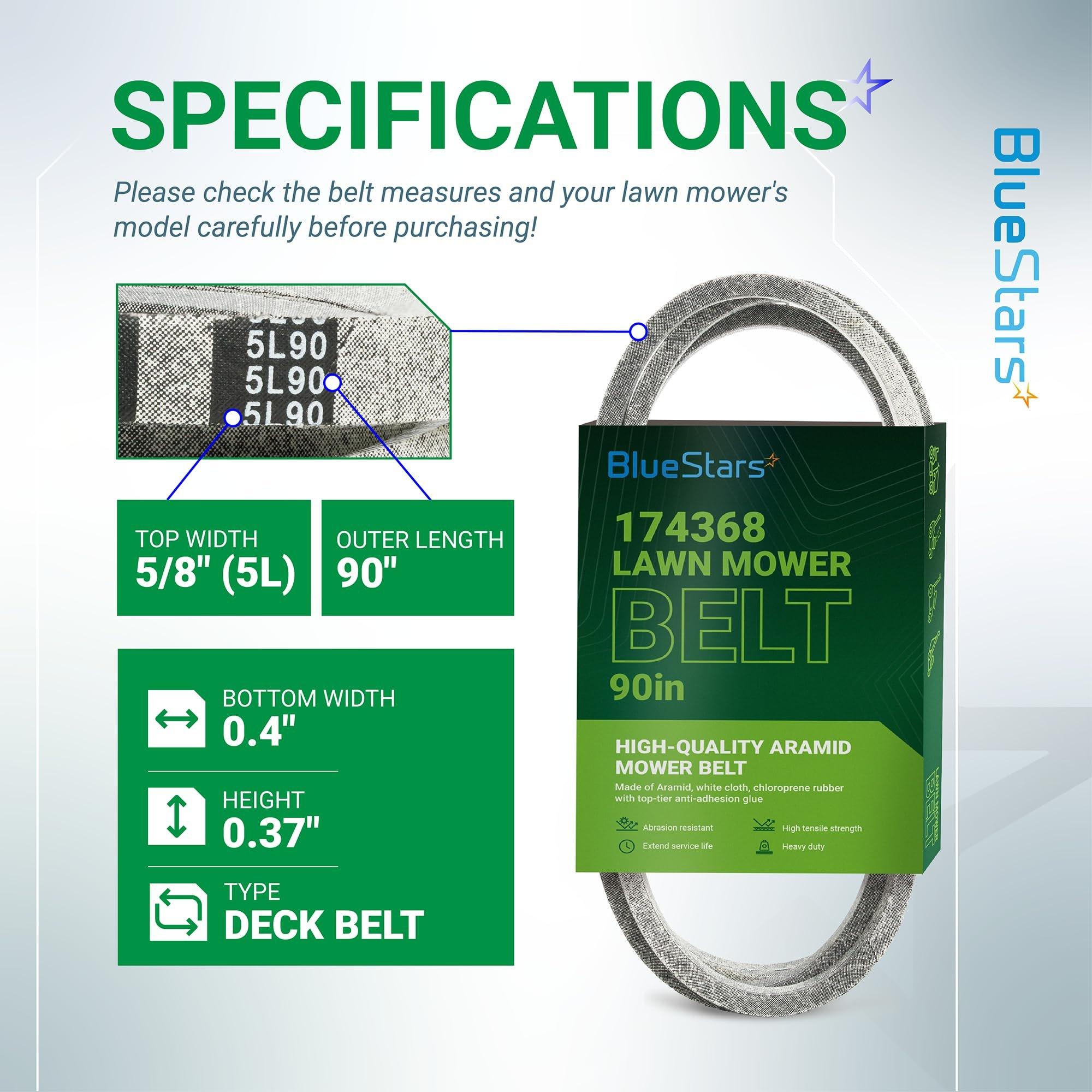

• Dimensions: 5/8-inch width, 90-inch outer length

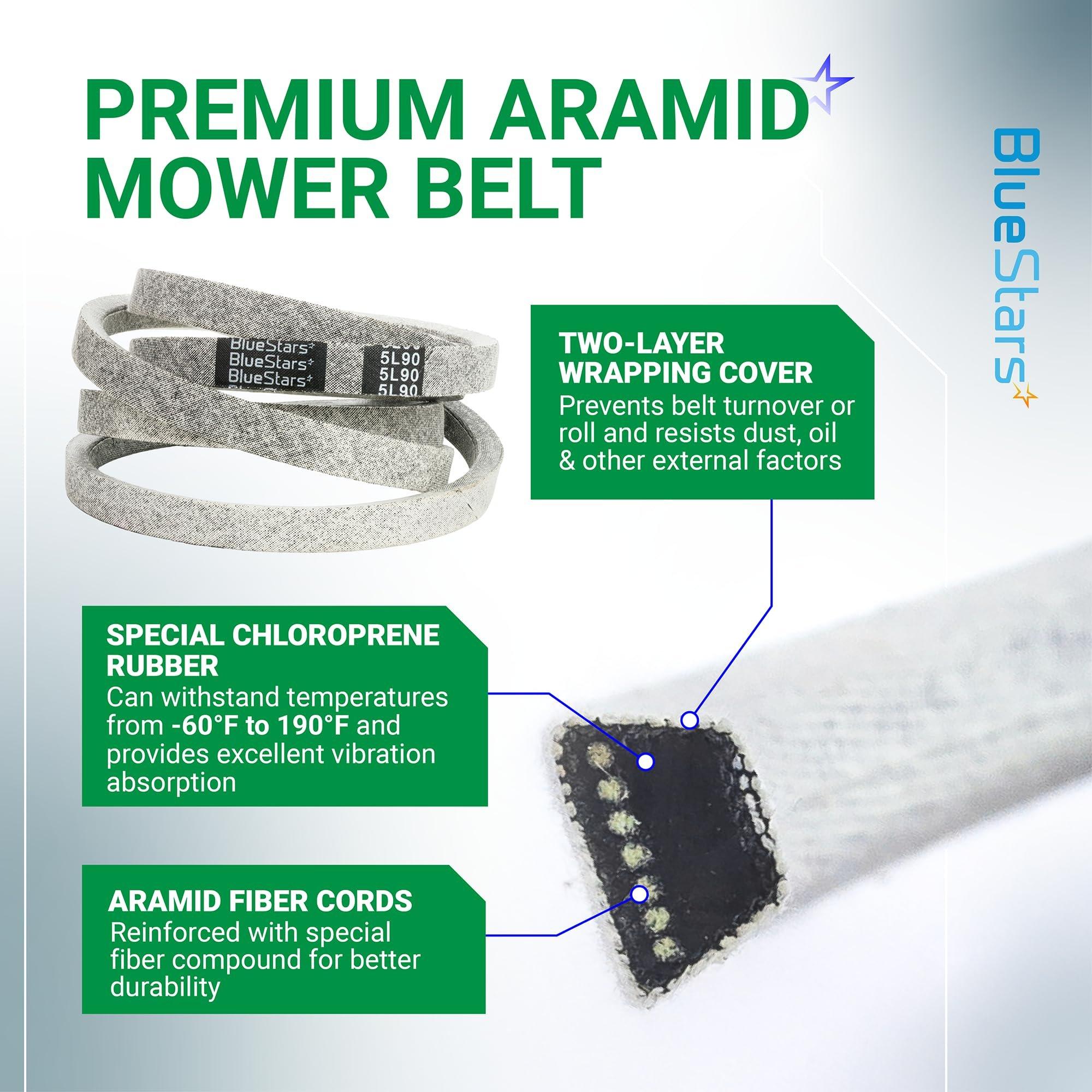

• Construction: Composed of a durable rubber compound with internal high-tensile cords for enhanced strength and resistance to stretching.

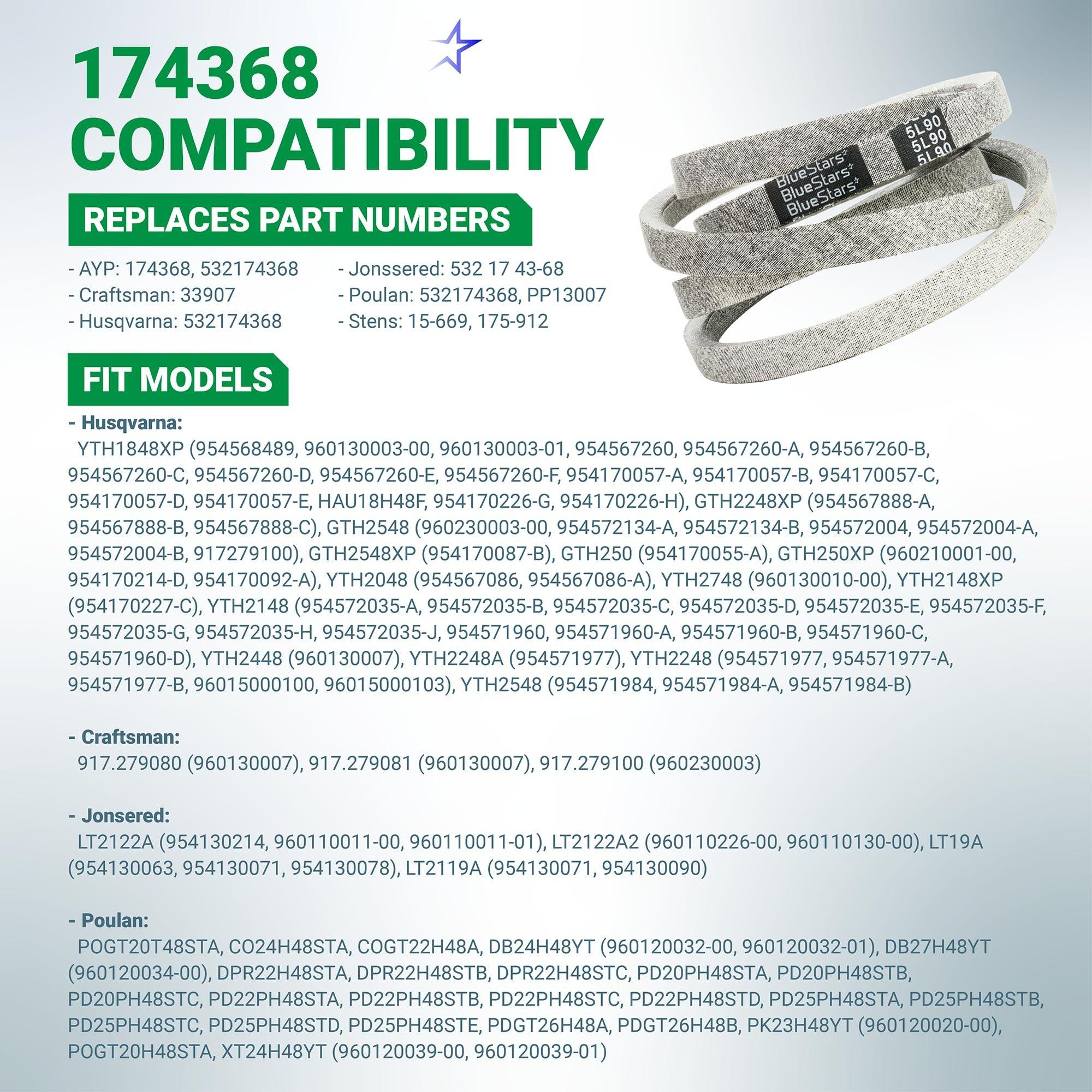

Replaces / Cross-Reference Part Numbers

• AYP: 174368, 532174368, 532180483
• Craftsman: 33907
• Husqvarna: 532174368, 532 17 43-68
• John Deere: M127523
• Jonsered: 532 17 43-68, 532174368
• Poulan: PP13007, 532174368

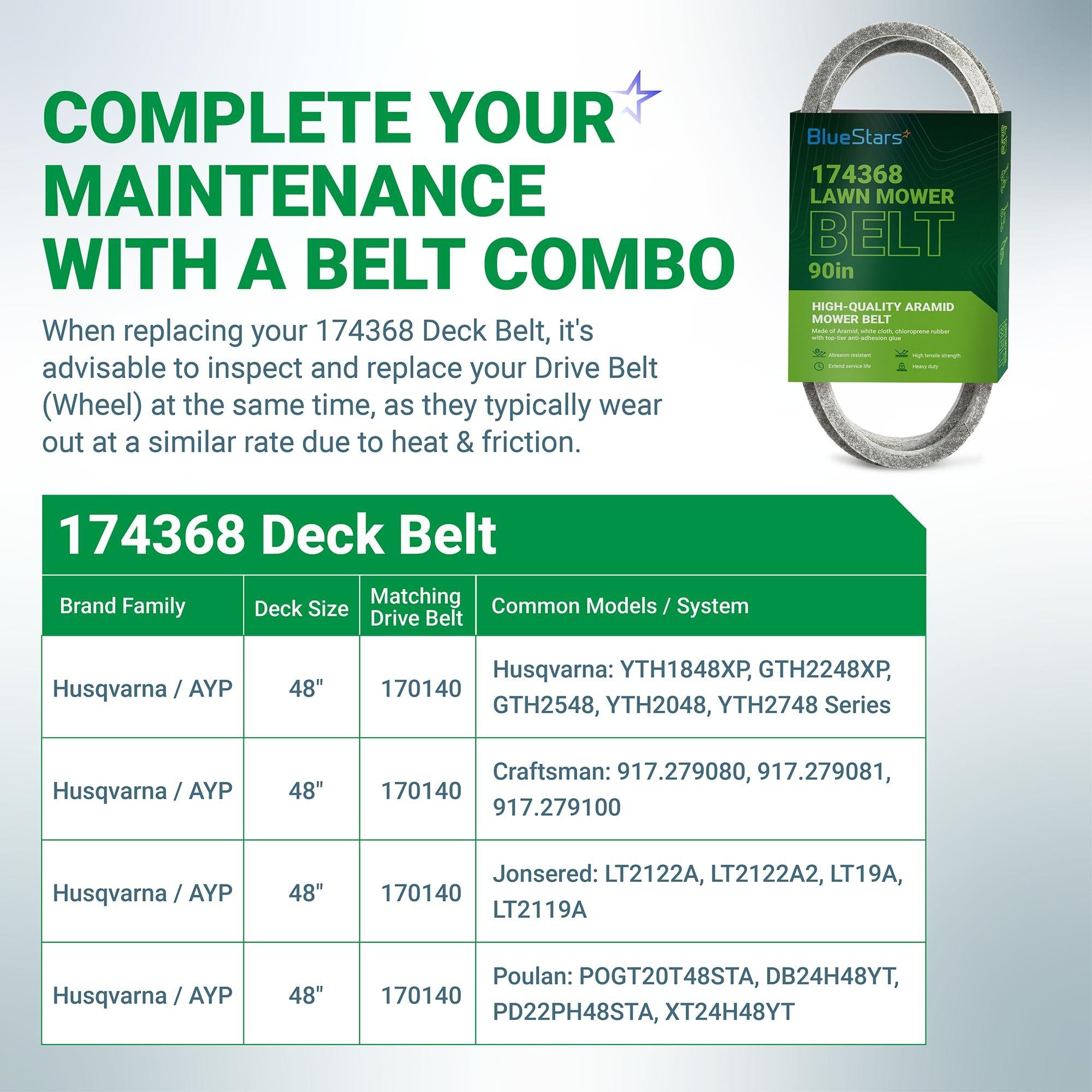

Compatibility & Fitment

• Fits select riding mowers and lawn tractors with 48-inch cutting decks.
• Compatible Brands: AYP, Craftsman, Husqvarna, Jonsered, Poulan.
• Example Models: AYP YTH2748, CO24H48STA.

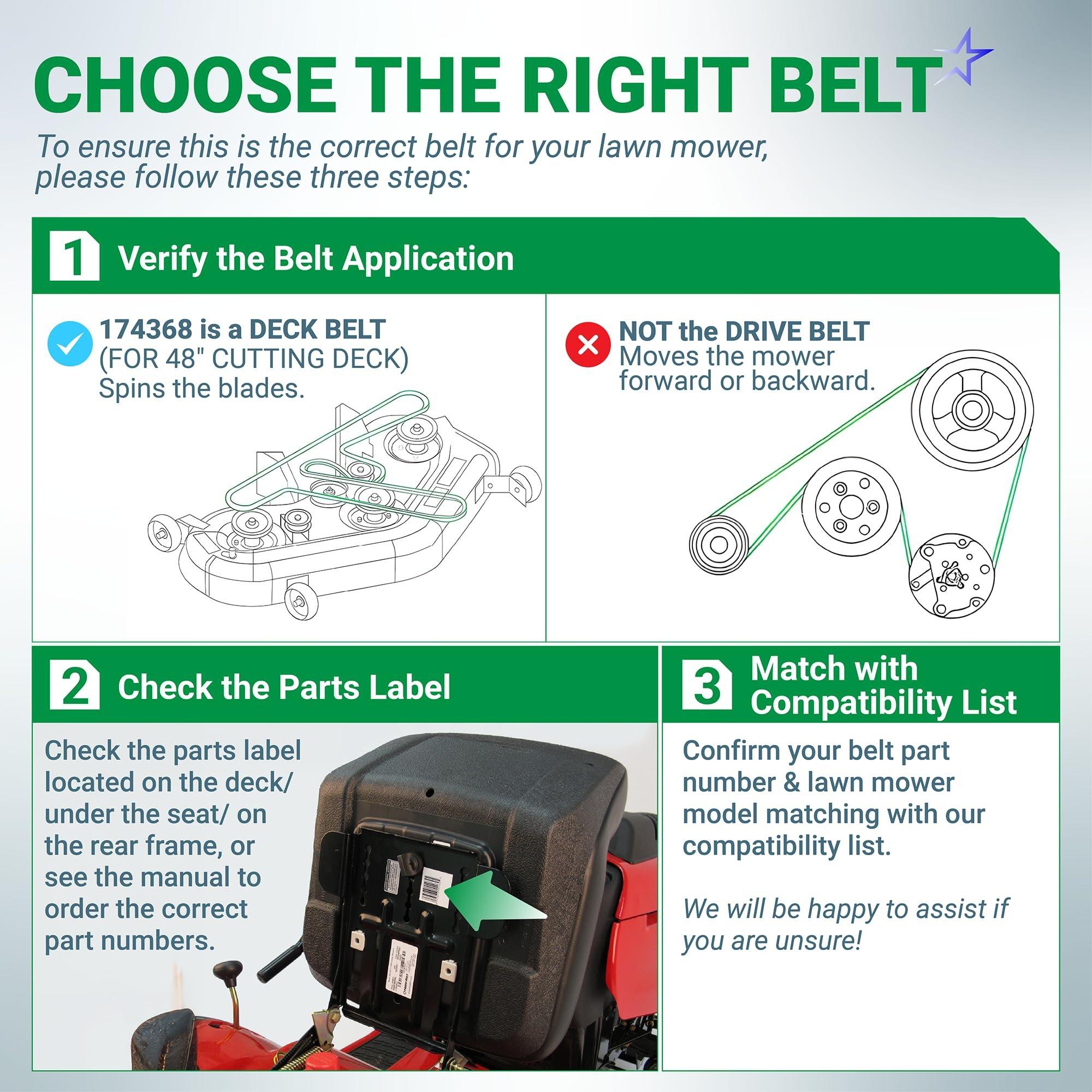

• Note: Verify the part number listed in your owner's manual to ensure correct fitment.

When to Replace

• Visible signs of wear, including cracking, glazing, fraying, or separation of layers.
• Noticeable stretching, leading to improper tension and blade slippage.
• Degraded cutting performance, such as an uneven cut or failure of blades to engage.
• Audible squealing from the deck during operation.

Installation Tips

• For safety, disconnect the spark plug wire and engage the parking brake before servicing the mower deck.
• Refer to the operator's manual for your specific model's belt routing diagram.
• Inspect all deck pulleys and idler springs for wear or damage before installing the new belt.
• Ensure the belt is properly seated in all pulley grooves.
• Verify correct belt tension after installation as specified by the manufacturer.
