[Lifetime Warranty] 61005518 Refrigerator Relay and Overload Replacement - Compatible with Whirlpool & Maytag Refrigerators - Replaces 12002782 1194680 AP4009659 PS2004057

Difficulty Icon: Easy
Easy
More than 30 minutes

$12.87

$14.29

Save $1.42
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

61005518 Refrigerator Relay and Overload Replacement

Key Features

  • Component combines a start relay and a compressor overload protector.
  • Initiates the compressor start-up sequence.
  • Protects the compressor from excessive current draw.
  • Addresses common symptoms such as a clicking compressor or failure to cool.

Replaces / Cross-Reference Part Numbers

  • 61005518
  • 12002782
  • 1194680
  • AP4009659
  • PS2004057
  • AH2004057

Compatibility & Fitment

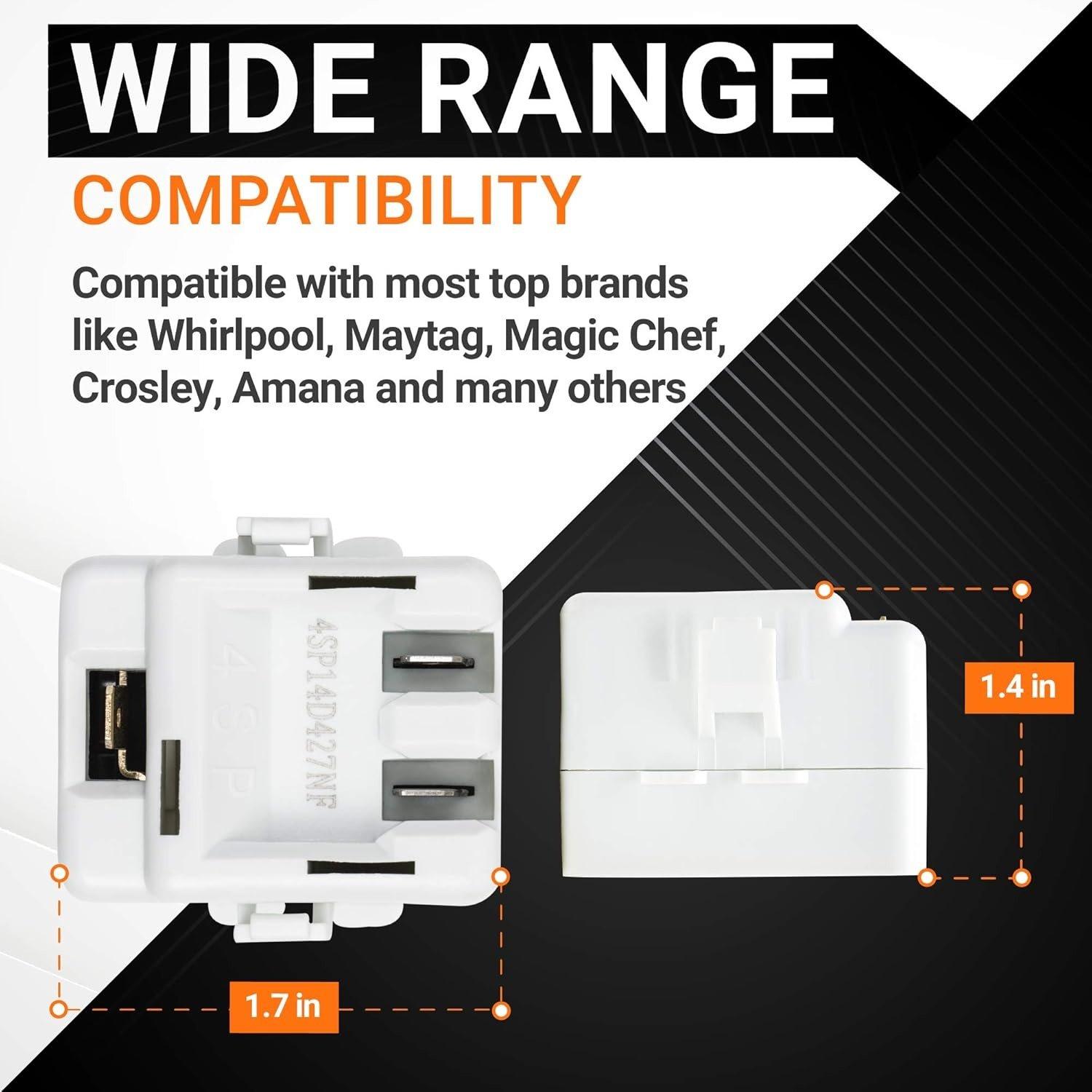

  • Designed for use with various refrigerator models from brands including Whirlpool, Maytag, Kenmore, KitchenAid, Amana, Admiral, Estate, Magic Chef, and Crosley.
  • Confirm compatibility by checking your appliance's original part number.

When to Replace

  • Refrigerator is not cooling but lights are on.
  • Compressor does not start or hums briefly before shutting off.
  • An audible clicking sound occurs every few minutes from the compressor area.
  • Food compartment is warmer than the set temperature.

Installation Tips

  • Disconnect the refrigerator from the power source before beginning the repair.
  • The relay and overload assembly is located on the side of the compressor.
  • Photograph the original wire connections before removing the old part to ensure correct placement.
  • Wear work gloves to protect your hands during installation.
Connector Type
Quick Connect

Contact Material
Nickel

Contact Type
Normally Closed

Current Rating
1 Microamps

Mounting Type
Plug In Mount

Operation Mode
Automatic

Contact Current Rating
6 Amps

Specification Met
Energy Star

Part Number
61005518

Model
61005518 1194680 12002782 AP4009659

Number Of Terminals
2.0
