[Lifetime Warranty] 3387747 Dryer Heating Element 280148 Thermal Cut-Off (8557403 High Limit Thermostat & 8318314 Thermal Fuse) For Whirlpool Kenmore Maytag GEW9250PW1 GEW9250PW0 WED5100HW1 WED8300SW2 GEW9200LW1

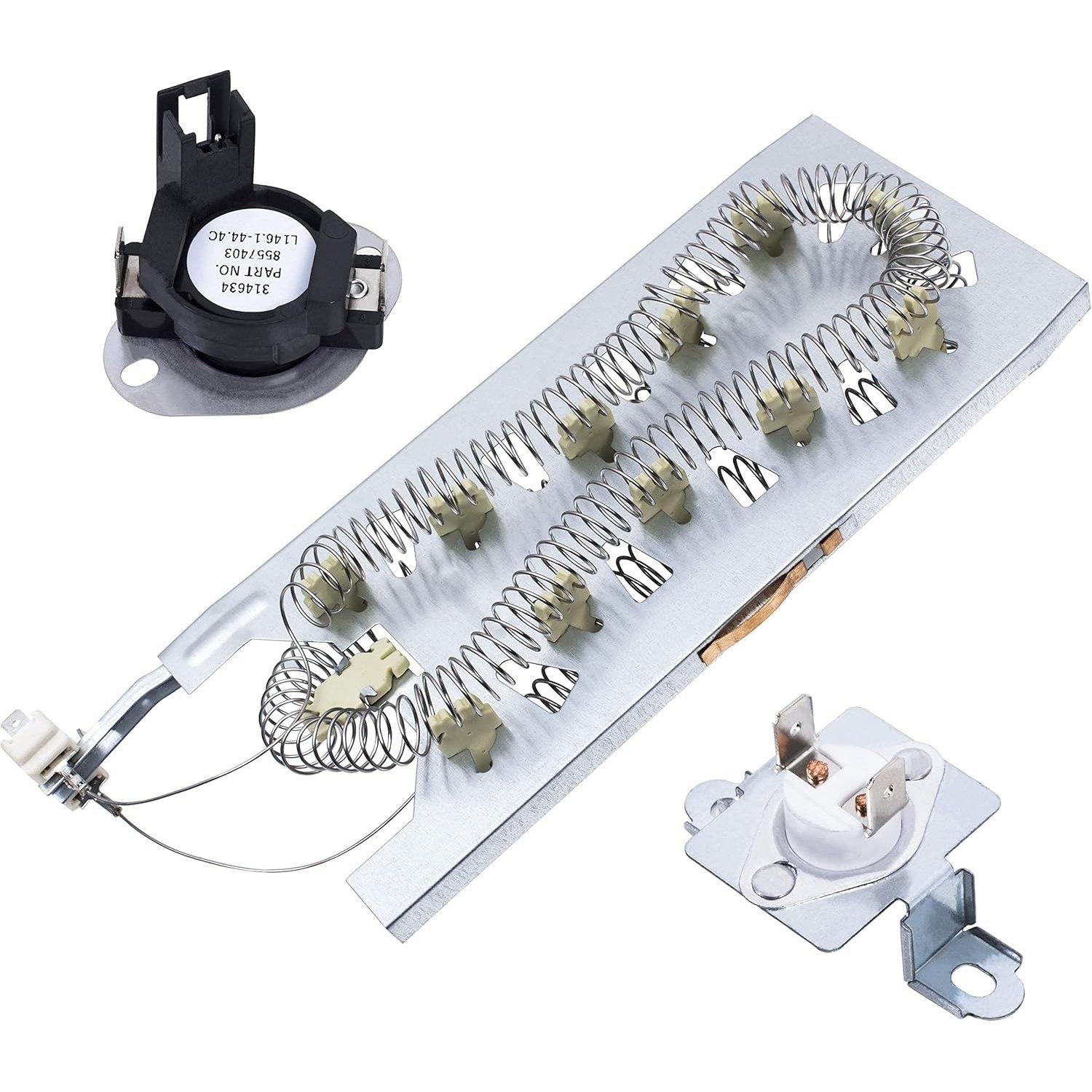

3387747 Dryer Heating Element 280148 Thermal Cut-Off (8557403 High Limit Thermostat 8318314 Thermal Fuse)

Key Features

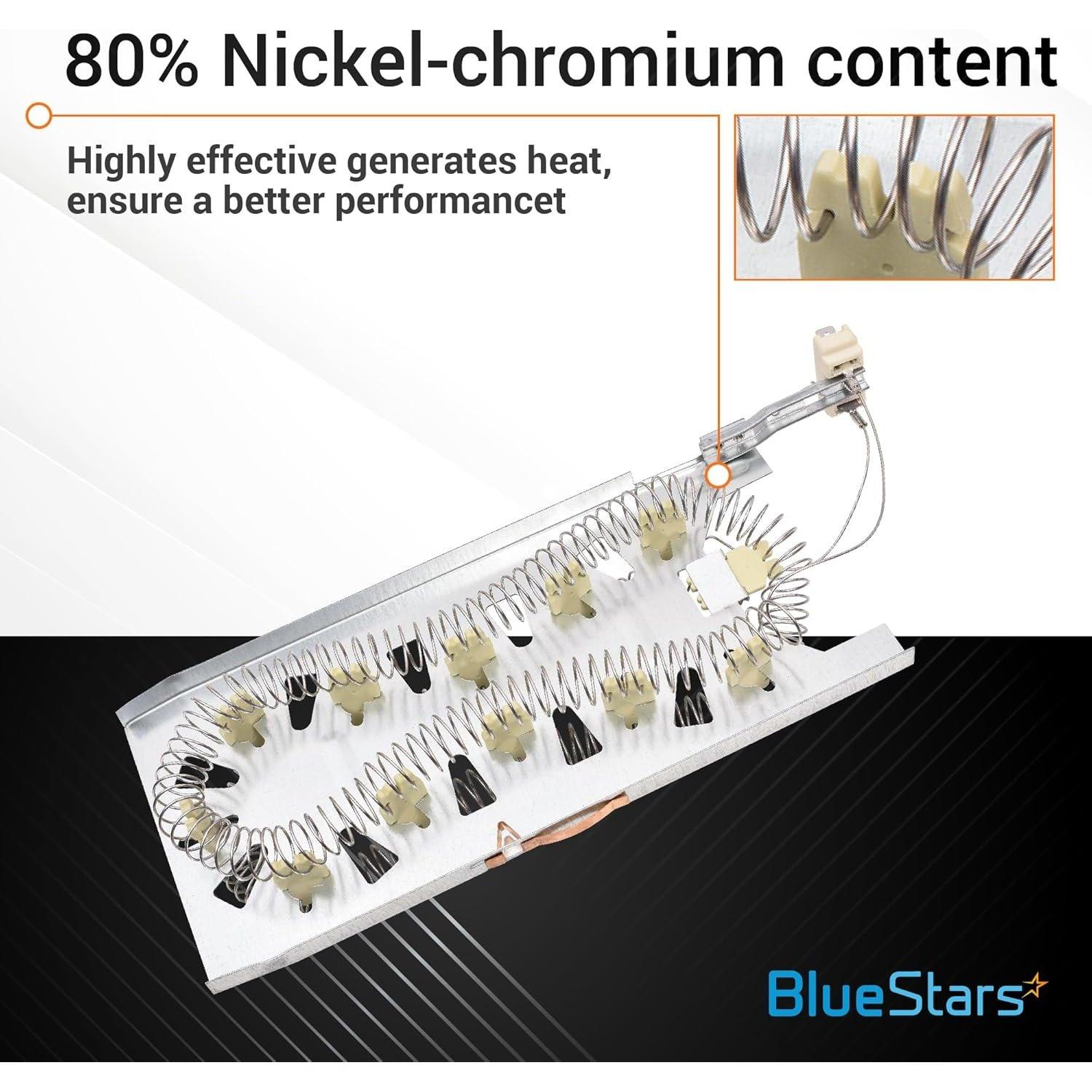

• Heating Element (3387747): 5400 Watts, 240 Volts, with two 5/16-inch male terminals.
• Thermal Cut-Off Kit (280148): Includes one high-limit thermostat and one thermal fuse.

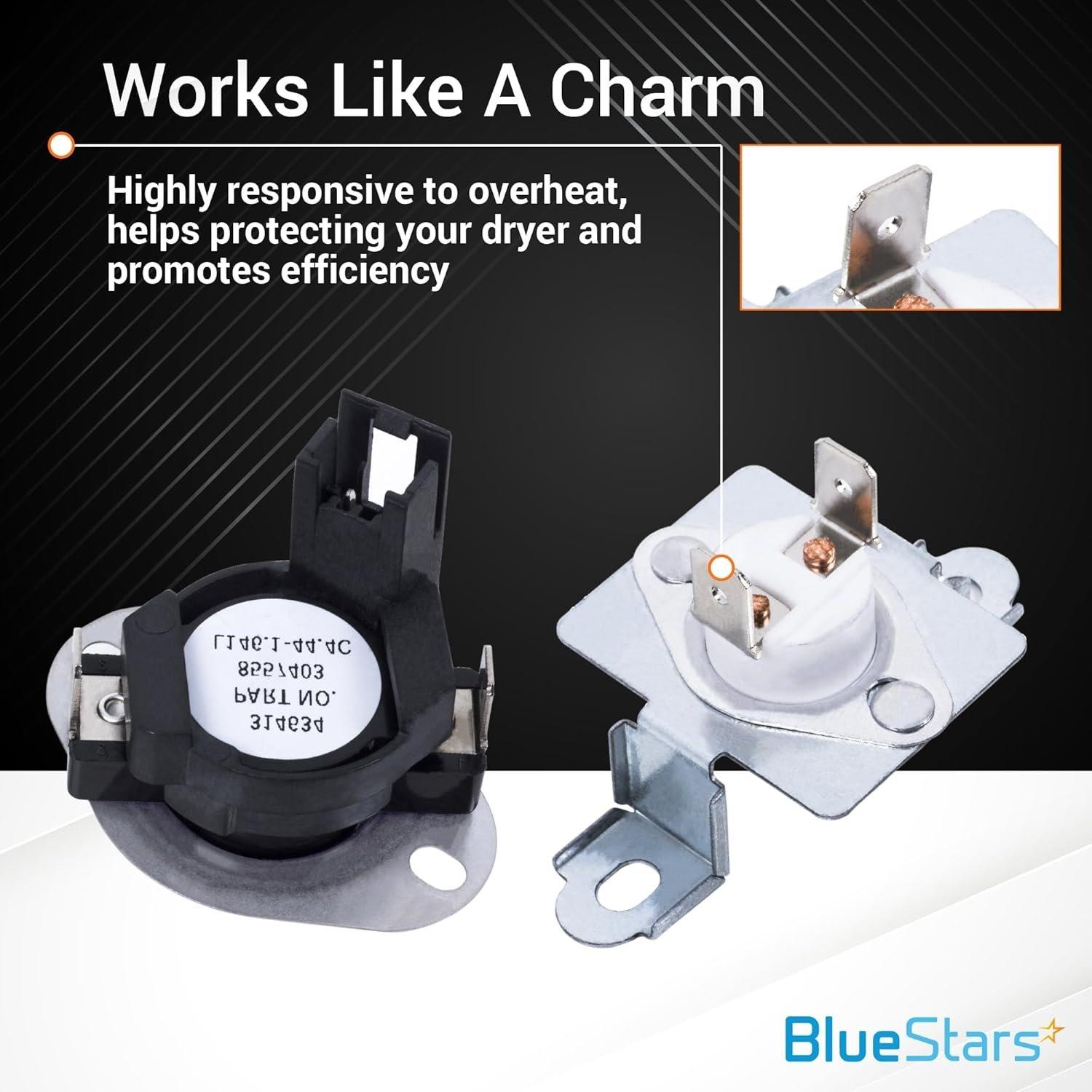

• High-Limit Thermostat (8557403): Monitors and regulates temperature to prevent overheating.
• Thermal Fuse (8318314): A safety device that cuts power if the dryer overheats.

Replaces / Cross-Reference Part Numbers

• Heating Element: 3387747, 8544771
• Thermal Cut-Off Kit: 280148, 280148VP, 1175772
• High-Limit Thermostat: 8557403
• Thermal Fuse: 8318314

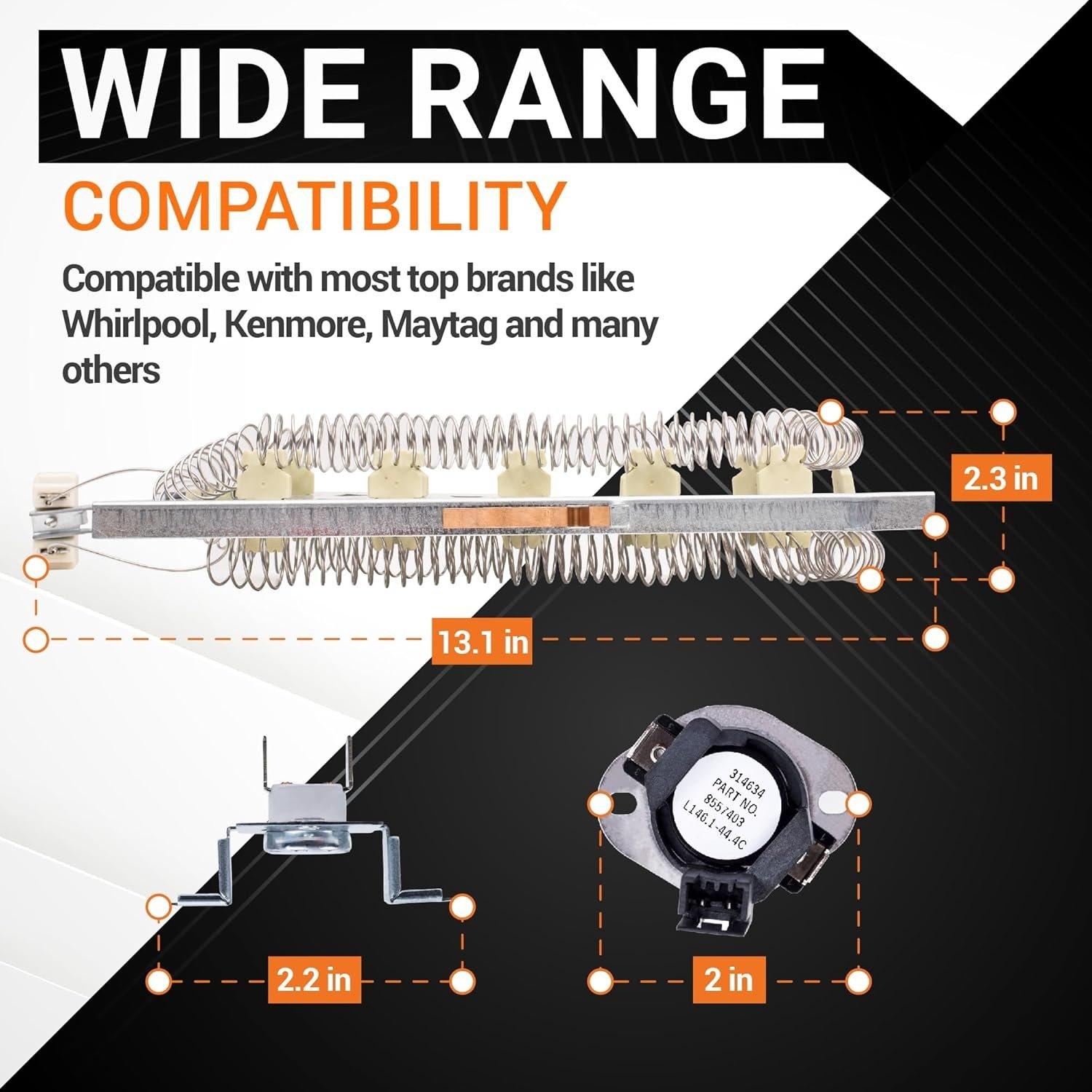

Compatibility & Fitment

• Whirlpool
• Kenmore
• Maytag

When to Replace

• Dryer runs but does not produce heat.
• Heating is intermittent or insufficient.
• Dryer shuts off prematurely during a cycle.
• Visible break or damage to the heating element coil.
• Component fails a continuity test with a multimeter.

Installation Tips

• Disconnect the dryer from its power source before beginning any repairs.
• Photograph the existing wiring connections before removing old parts for reference.
• Clean the dryer cabinet, lint screen, and vent ducting of lint buildup during installation to prevent future overheating.
• Confirm component compatibility with your appliance's model number before installation.
