AZ00152656
Easy
15 - 20 minutes
$44.46
$49.39
Not sure if this is the right part?
Check now
AZ00152656
632625 Furnace Ignitor
Easy
15 - 20 minutes
$44.46
$49.39
Save $4.93
In Stock
Fast delivery
Confirm the fit for your model
Find your model number and check it here to see if the part fits.
Description
Description

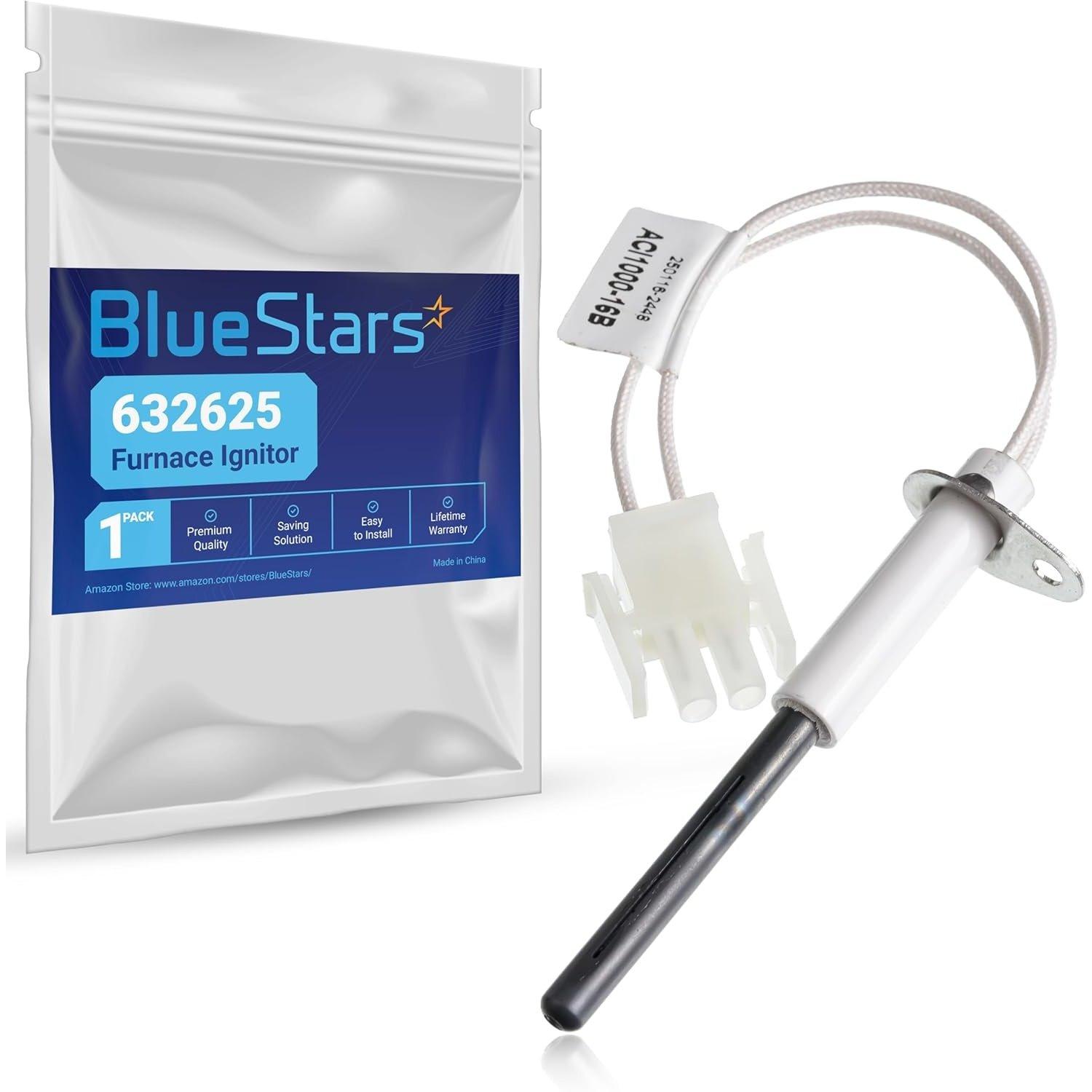

632625 Furnace Ignitor

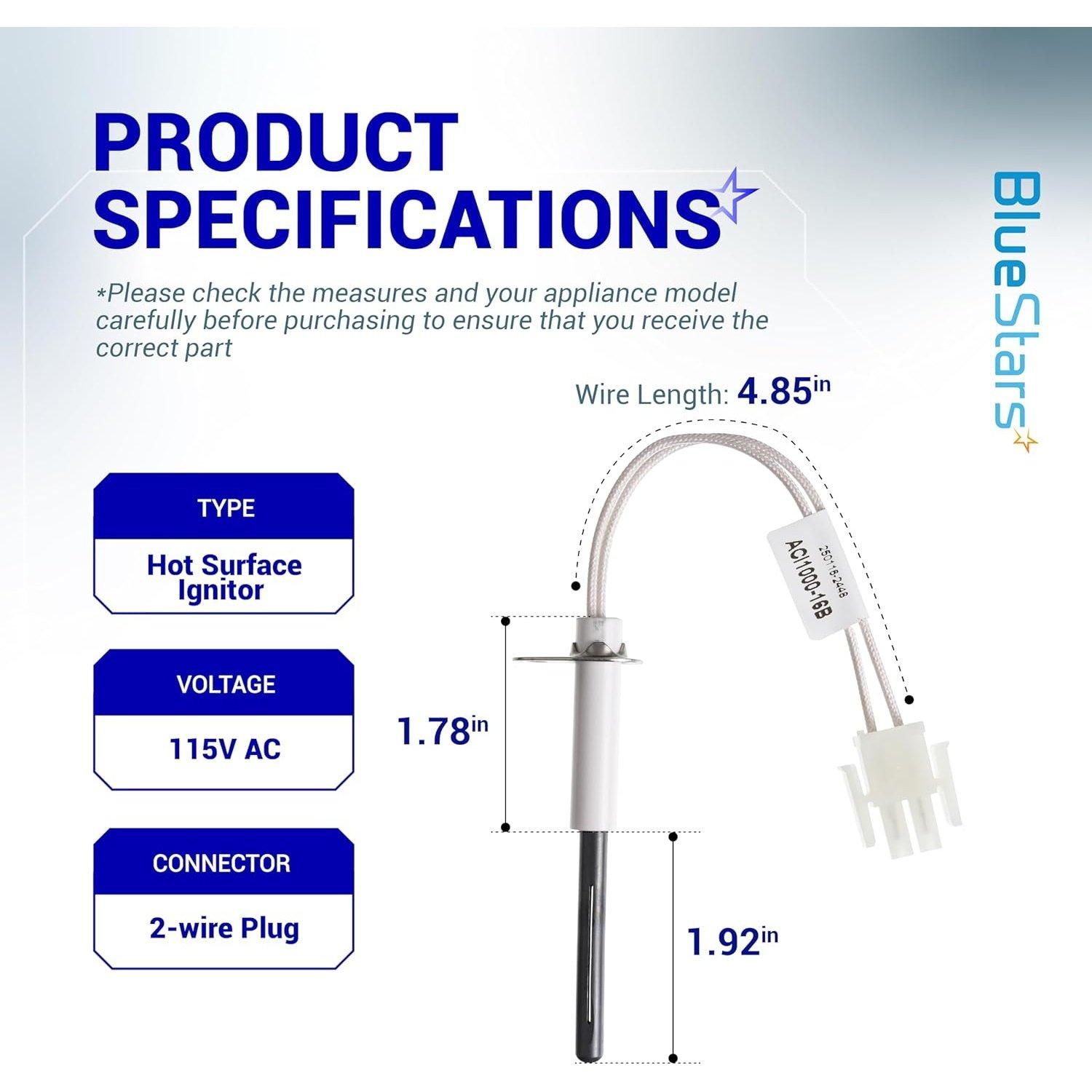

Key Features
- Direct-fit hot surface ignitor
- Durable silicon nitride element construction
- Features a 2-prong molex plug for simple connection
- Includes a 5-inch wire lead

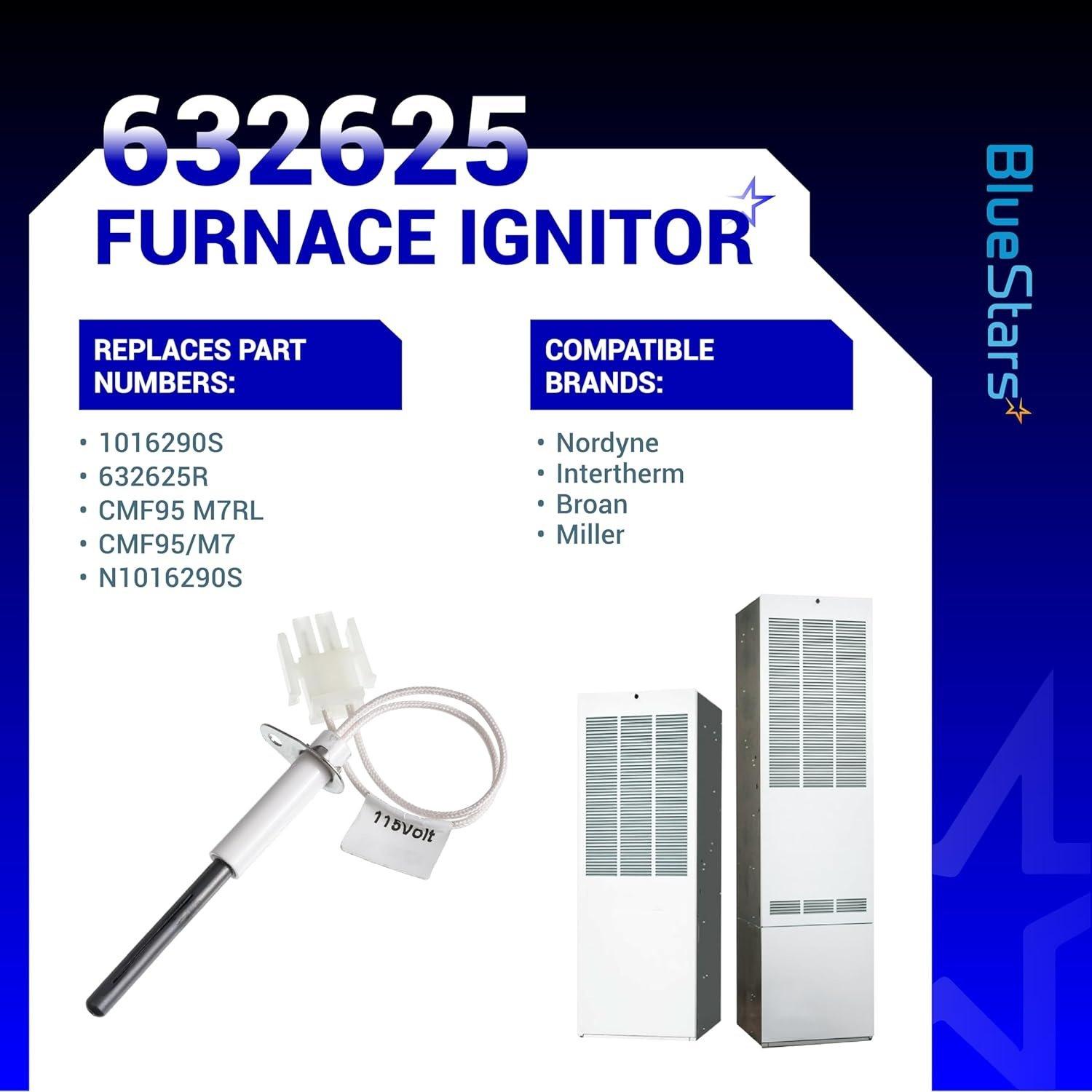

Replaces / Cross-Reference Part Numbers
- 632625
- 1016290S
- 632625R
- CMF95 M7RL
- CMF95/M7
- N1016290S
- FM-632625
- FM-903758
Compatibility & Fitment
- Designed for furnace models from the following brands:
- Commonly used in Nordyne M7 and CMF95 series furnaces.
When to Replace
- The furnace blower runs but fails to produce heat.
- The furnace does not ignite.
- Diagnostic codes indicate an ignition or ignitor failure.
- The existing ignitor has a visible crack, break, or burn spot.

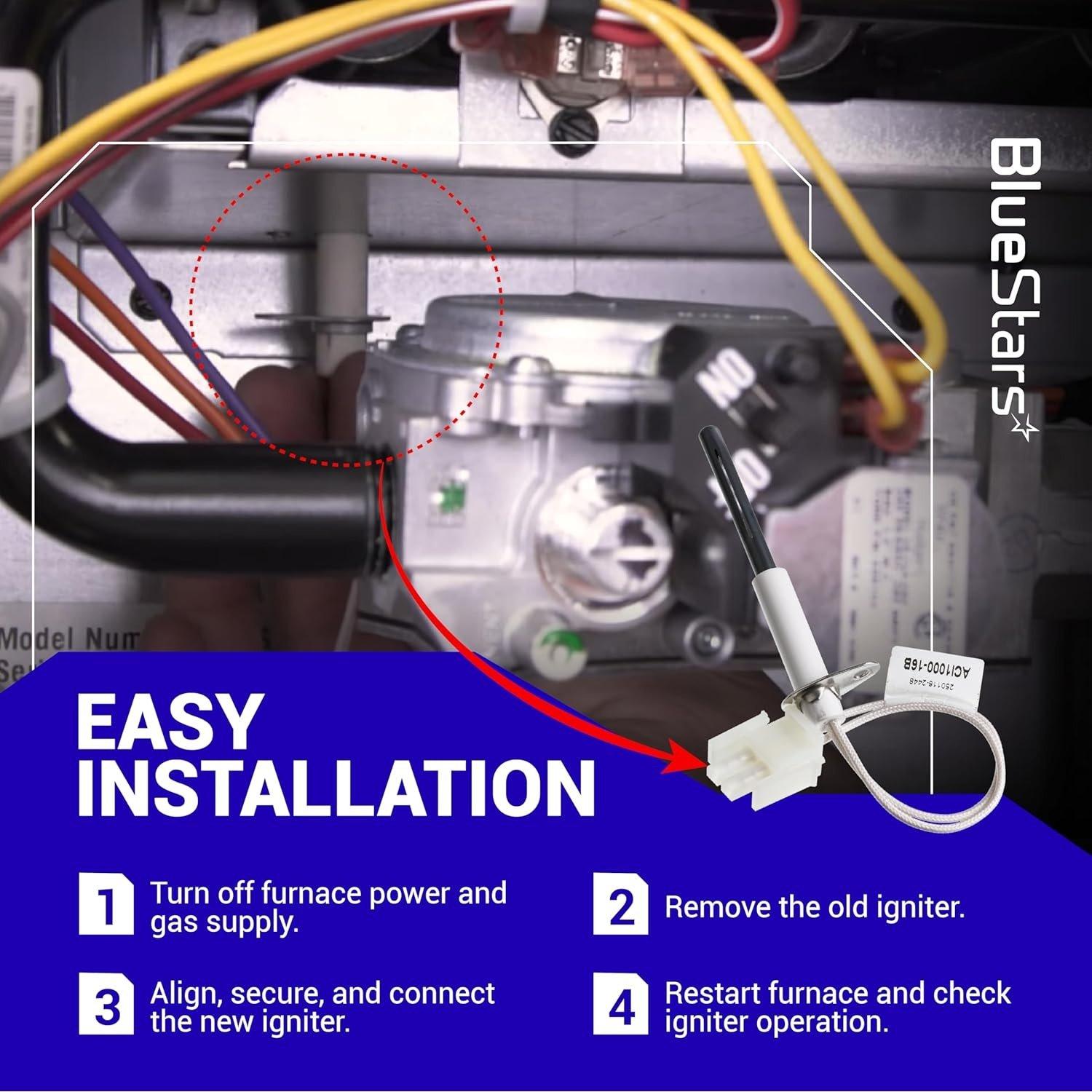

Installation Tips
- Always disconnect power to the furnace before beginning installation.
- Handle the new ignitor by its ceramic base only. Do not touch the dark gray or black element, as skin oils can cause premature failure.
- Ensure the plug is fully and securely seated in the furnace connection.
- Visually confirm the ignitor is correctly positioned within the burner assembly after installation.
