[Lifetime Warranty] 30268 36043 RV Burner Head and 35100 91788 Furnaces Ignitor Electrode Kit - Fit for Domestic Atwood Hydro Flame 79 85 AFS & AFM Series LPG Heaters Fireplaces Atwood RV Furnace

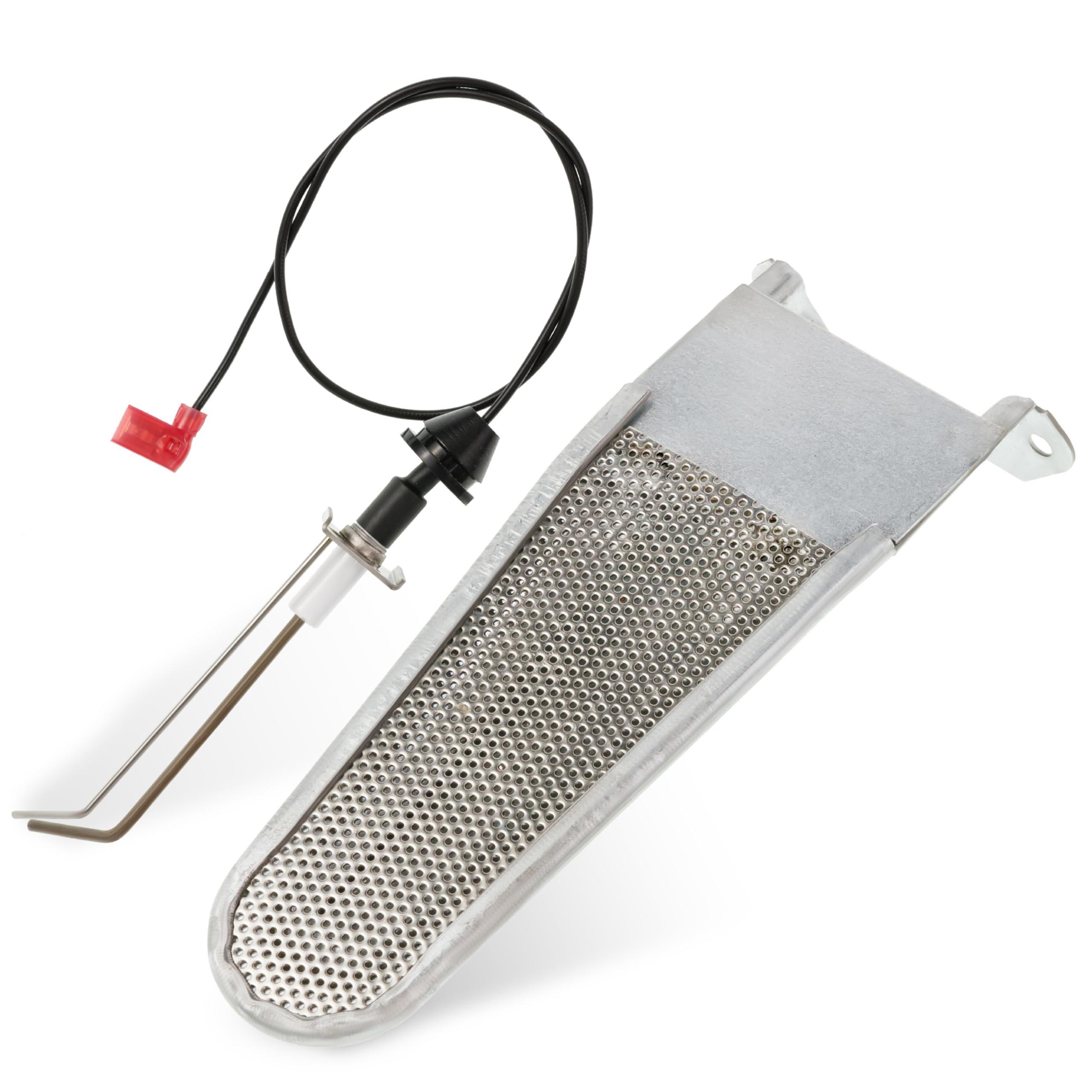

30268 36043 RV Burner Head and 35100 91788 Furnaces Ignitor Electrode Kit

Key Features

• Durable Construction:The burner head is manufactured from high-grade stainless steel to resist corrosion and withstand high temperatures during combustion.
• Precision Ignition:The dual-probe electrode provides reliable spark generation and flame sensing for consistent furnace startup.
• Optimized Airflow:The burner head design ensures an even distribution of LPG for a steady flame pattern and efficient heat transfer.
• Complete Replacement Set:Includes both the burner head and the ignitor electrode to restore proper heating performance and safety.

Replaces / Cross-Reference Part Numbers

• Burner Head:30268, 36043
• Ignitor Electrode:35100, 91788

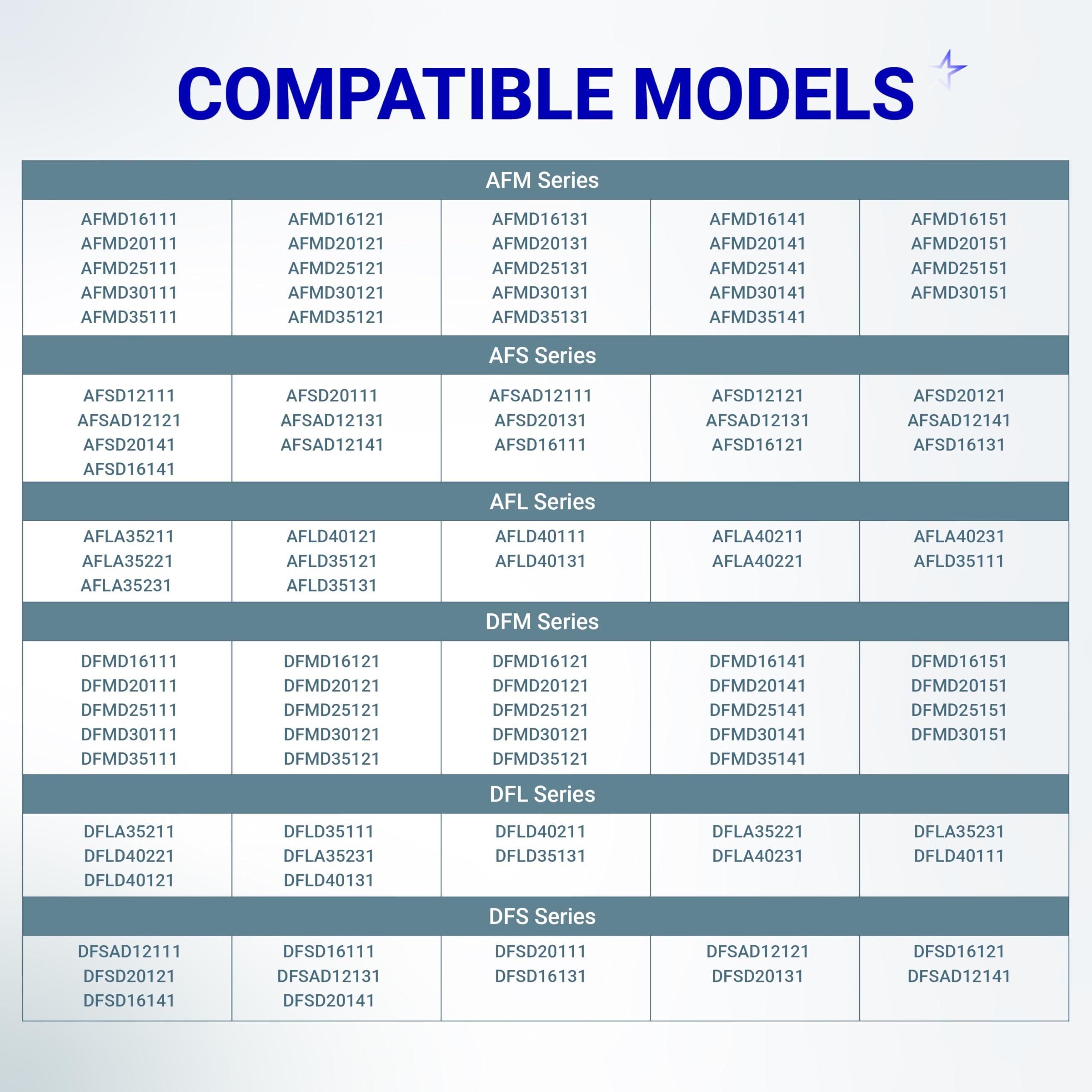

Compatibility & Fitment

• 79 Series:7912-II, 7916-II, 7920-II
• 85 Series:8516-III/IV, 8520-III/IV, 8525-III/IV, 8531-III/IV, 8535-III/IV
• AFS Series:All models within the AFS furnace range
• AFM Series:All models within the AFM furnace range
• Fuel Type:Specifically engineered for LPG (Liquid Propane Gas) heaters

When to Replace

• Cracked or Rusted Burner:Visible holes, warping, or heavy scaling on the burner head surface.
• Ignition Failure:The furnace clicks but fails to light, often caused by a worn or fouled electrode.
• Orange Flame:Indicates incomplete combustion due to a clogged or deteriorating burner head.
• Short Cycling:The furnace shuts off immediately after lighting, suggesting the flame sensor on the electrode is no longer functioning.

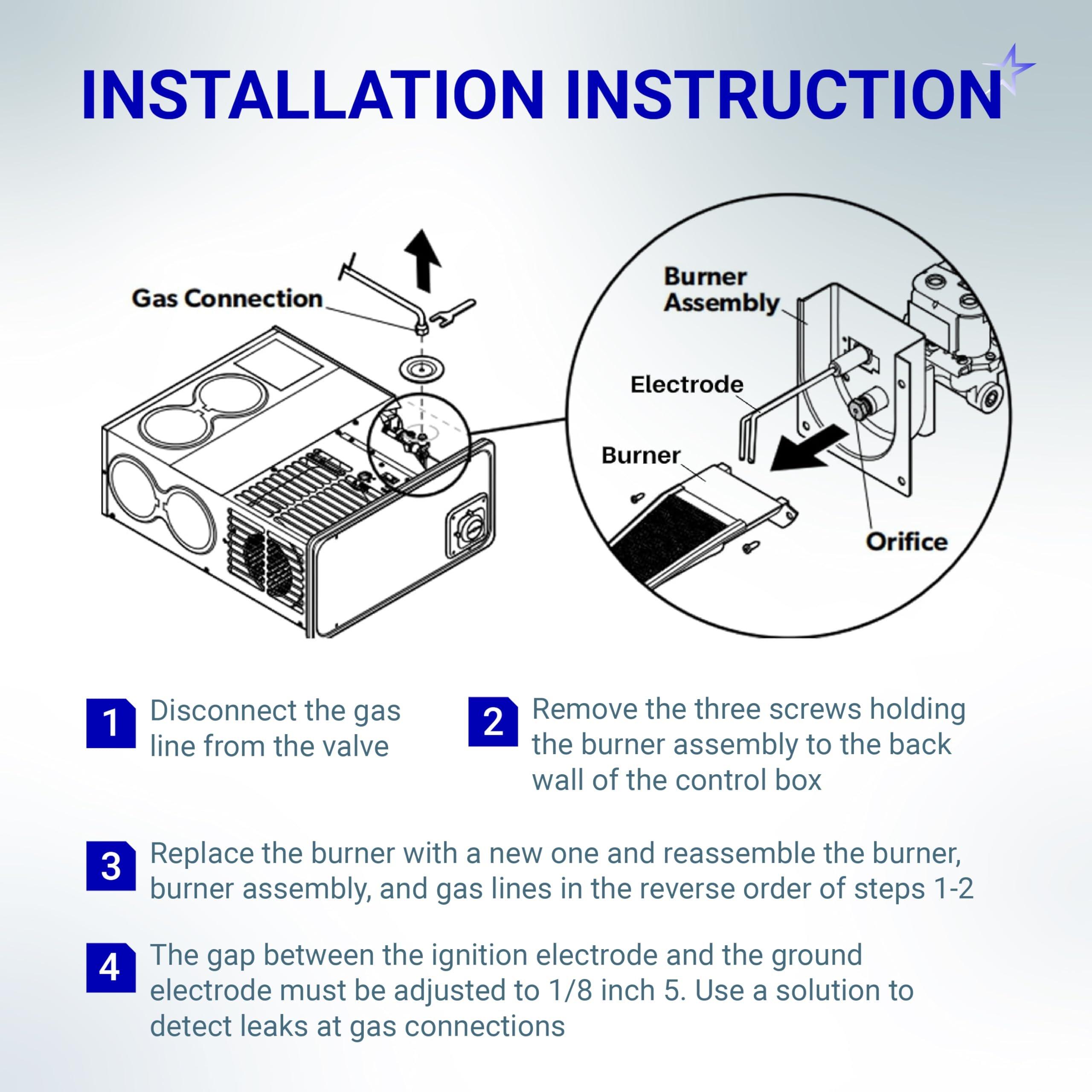

Installation Tips

• Power and Gas Safety:Disconnect the 12V DC power supply and shut off the LP gas valve before beginning the replacement.
• Electrode Gap:Ensure the gap between the electrode probes is set to approximately 1/8 inch (3mm) for optimal sparking.
• Seal Integrity:Check the burner gasket during installation; if the old gasket is brittle or damaged, replace it to prevent exhaust leaks.
• Clearance:Verify that the burner tube is free of debris, spider webs, or soot buildup before reassembling the unit.
