[Lifetime Warranty] RCO210 3 in 1 Hard Start Capacitor Replacement - RSC Series Solid State Relay Overload & Start Capacitor Combination - 1/3-1/2 H.P. 115VAC

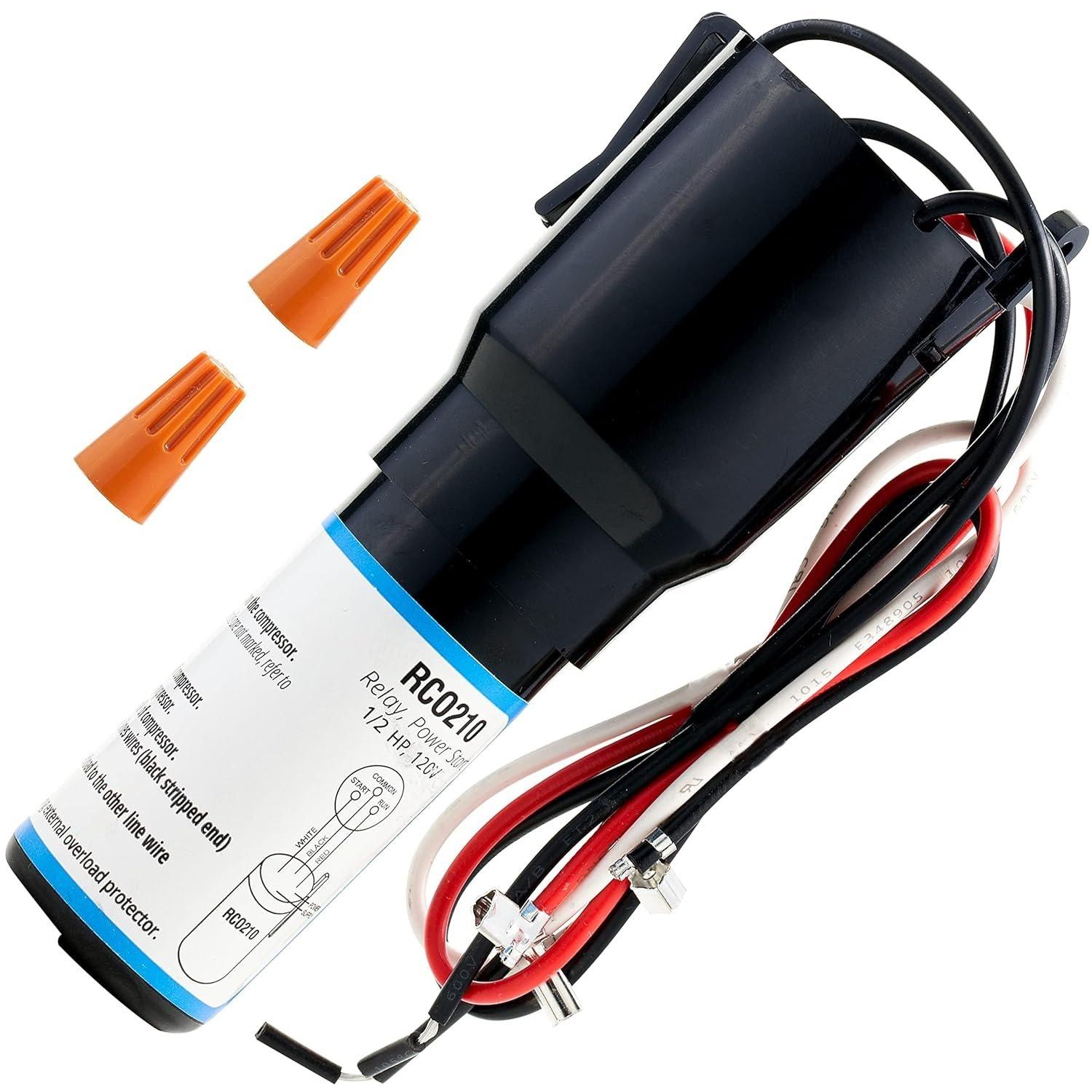

RCO210 3 in 1 Hard Start Capacitor

Key Features

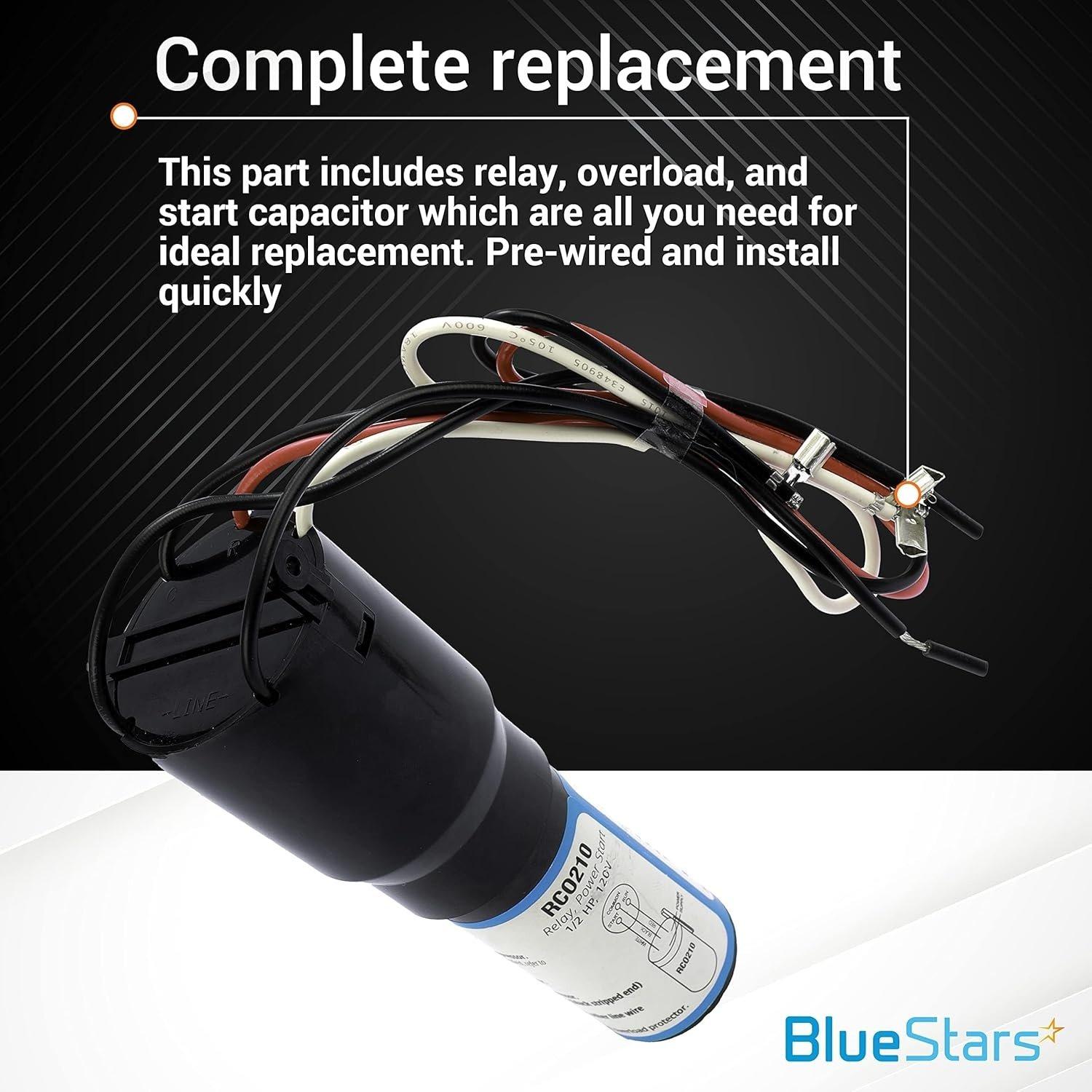

• Combines a start relay, overload protector, and start capacitor into a single unit
• Solid-state design
• For use with 110-125VAC systems
• Capacitance: 243-292 MFD
• Rated for compressors from 1/3 HP to 1/2 HP
• UL Listed

Replaces / Cross-Reference Part Numbers

• Replaces individual start relays, overload protectors, and start capacitors in compatible systems

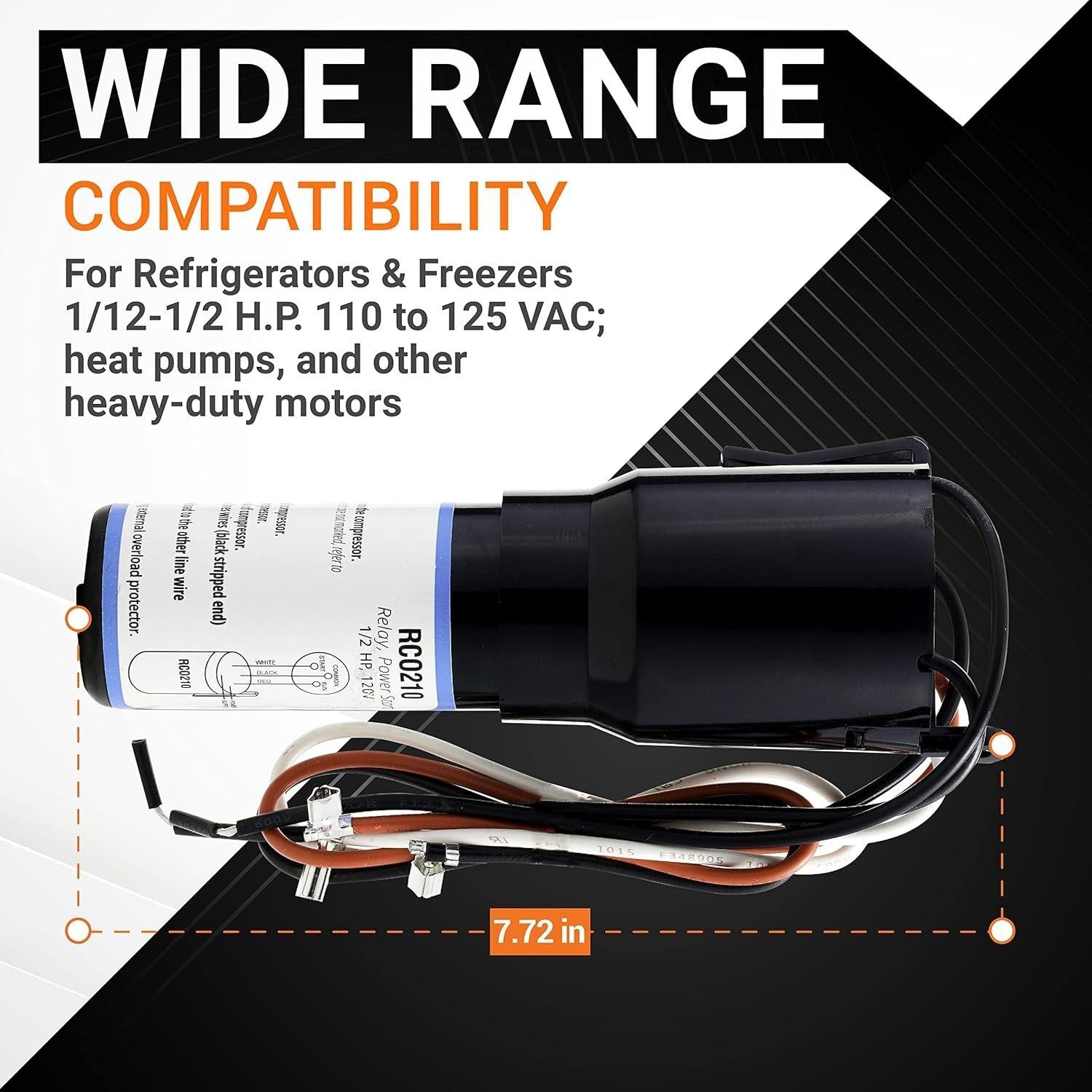

Compatibility & Fitment

• Fits hermetic compressors from 1/3 HP to 1/2 HP
• Operating Voltage: 115V / 120V nominal
• Commonly used in refrigerators, freezers, and wine coolers
• Replaces Positive Temperature Coefficient (PTC) start relays and associated components

When to Replace

• Compressor attempts to start with a humming sound, then clicks off
• Compressor cycles on and off in short intervals
• Appliance is not cooling but the compressor is warm to the touch
• Original relay or overload shows signs of burning or damage

Installation Tips

• Disconnect the appliance from the power source before beginning installation
• Verify wiring connections before removing the original components
• Ensure all electrical connections are secure
• Consult the appliance's service manual for specific guidance
