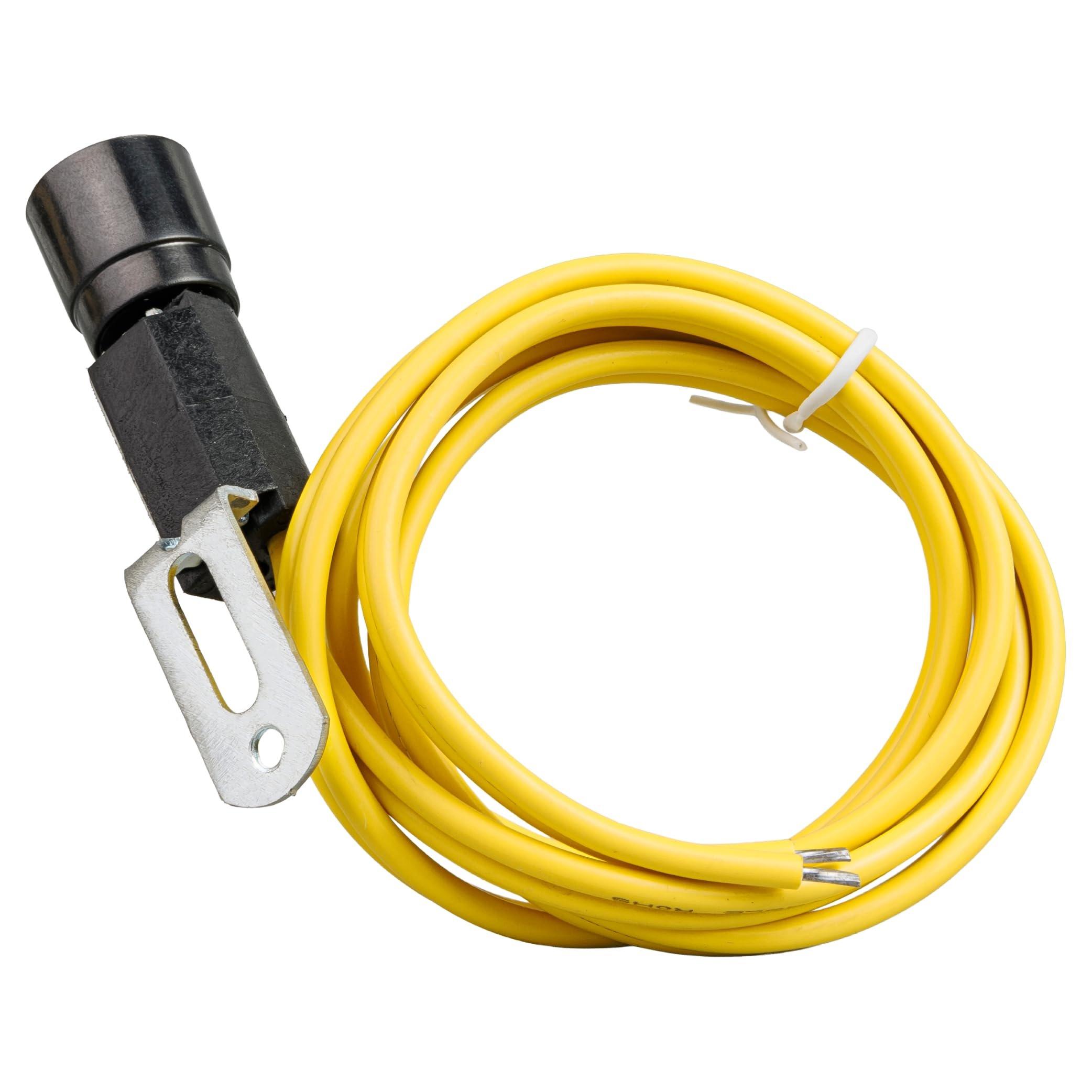

7006U 7135U Cad Cell Flame Sensor - Fits Beckett Oil Burners

7006U 7135U Cad Cell Flame Sensor - Fits Beckett Oil Burners

Key Features

• Cadmium sulfide photocell senses combustion-chamber light and signals the primary control when ignition occurs and the flame remains established.
• 30.315-inch (77 cm) lead length supports routing around the burner housing.
• Copper enclosure maintains its shape near the combustion chamber.

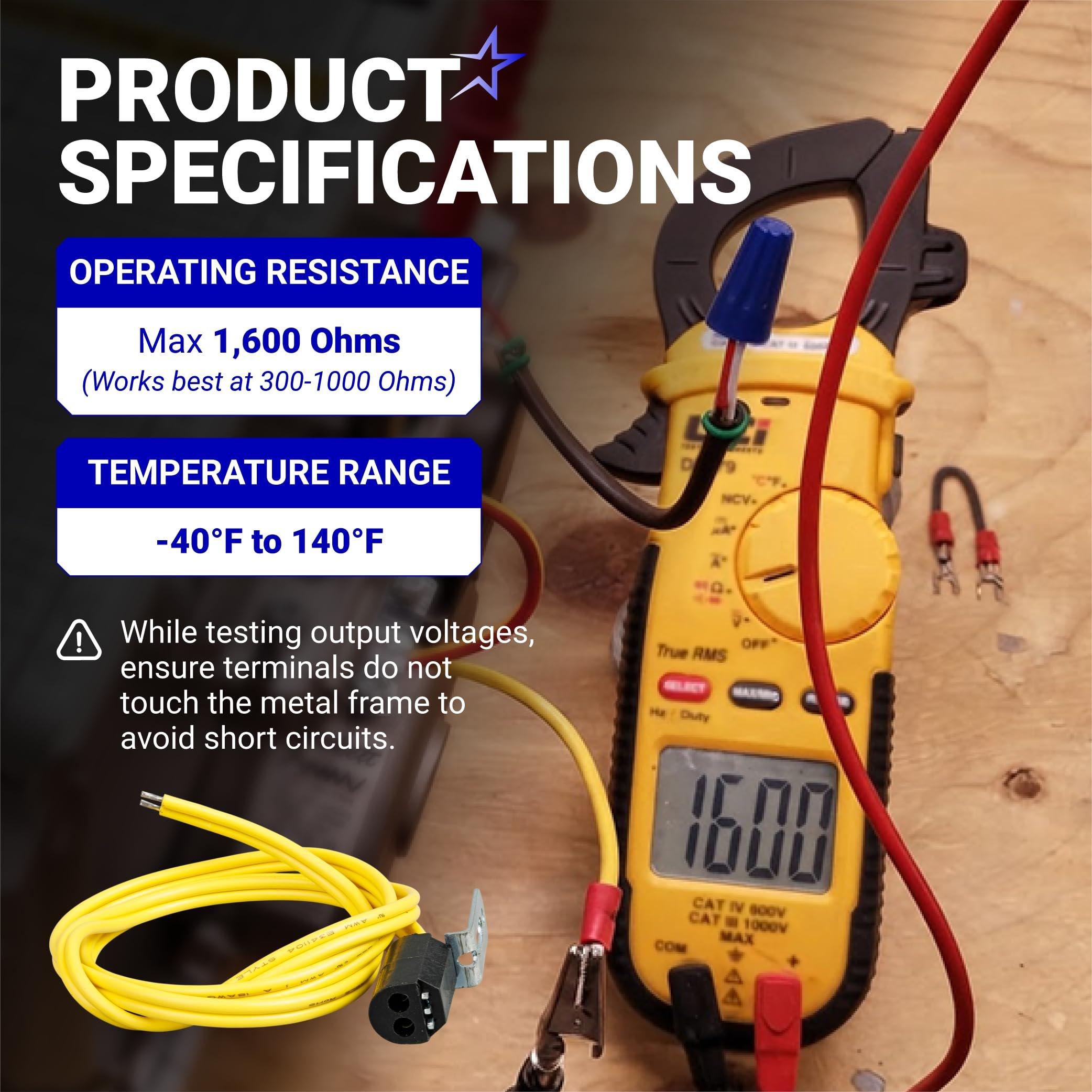

• Operating resistance is 300 to 1,000 ohms while the burner runs, with 1,600 ohms maximum.
• Bench reading is 0 ohms under light and infinite resistance in full darkness.
• High-temperature wire insulation helps guard against current leakage and short circuits. The flexible leads are cadmium-free and soldered for a steady signal path.

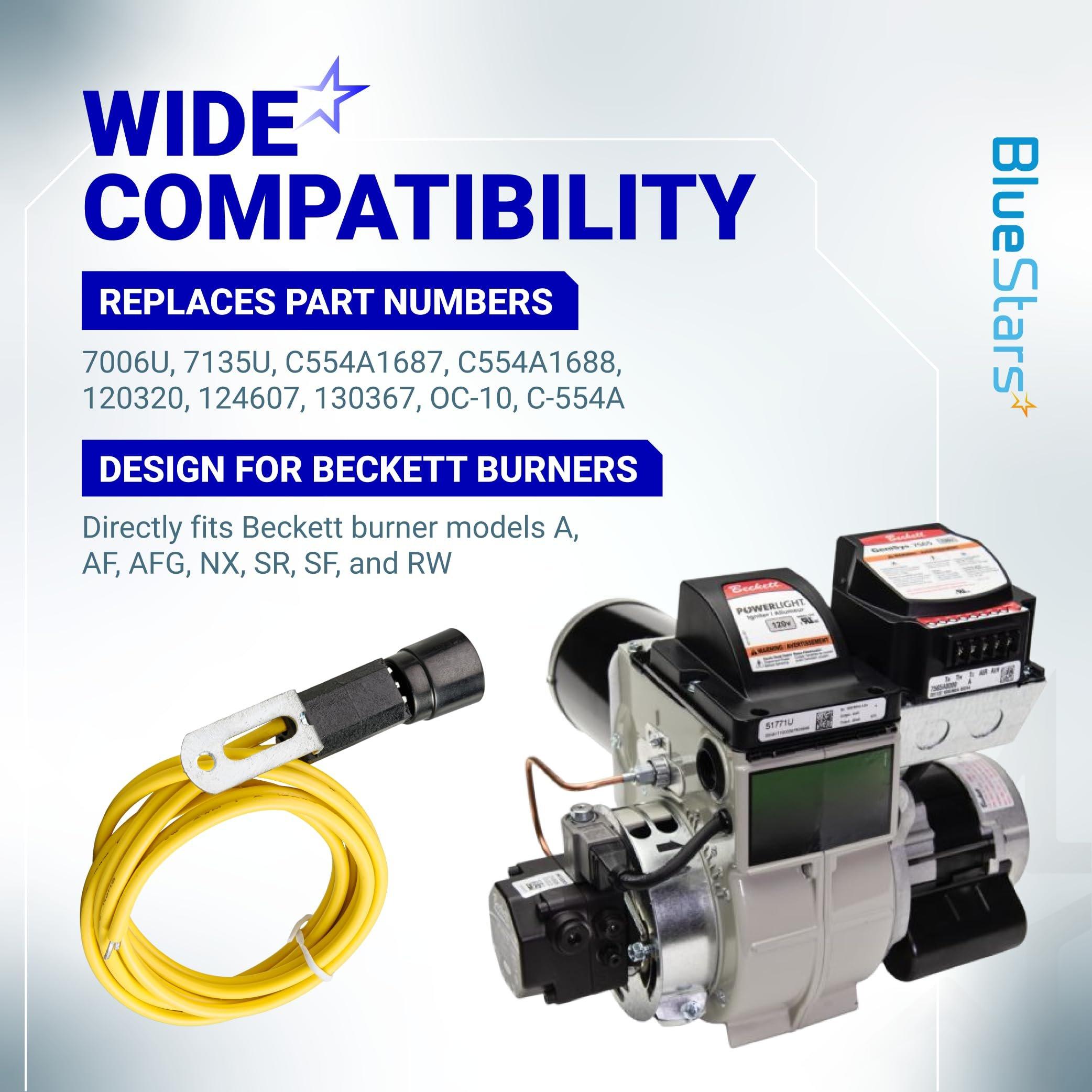

Replaces / Cross-Reference Part Numbers

• 7006U
• 7135U
• C554A1687
• C554A1688
• 120320
• 124607
• 130367
• OC-10
• C-554A
• Item model number: 5445421

Compatibility & Fitment

When to Replace

• The burner fires but drops out after approximately 10 to 30 seconds.
• The system repeatedly enters safety lockout or requires manual resets.
• The cad cell lens appears tan, smoky, or brown.
• Resistance readings do not reach 0 ohms under light or infinite resistance in full darkness during a bench check.

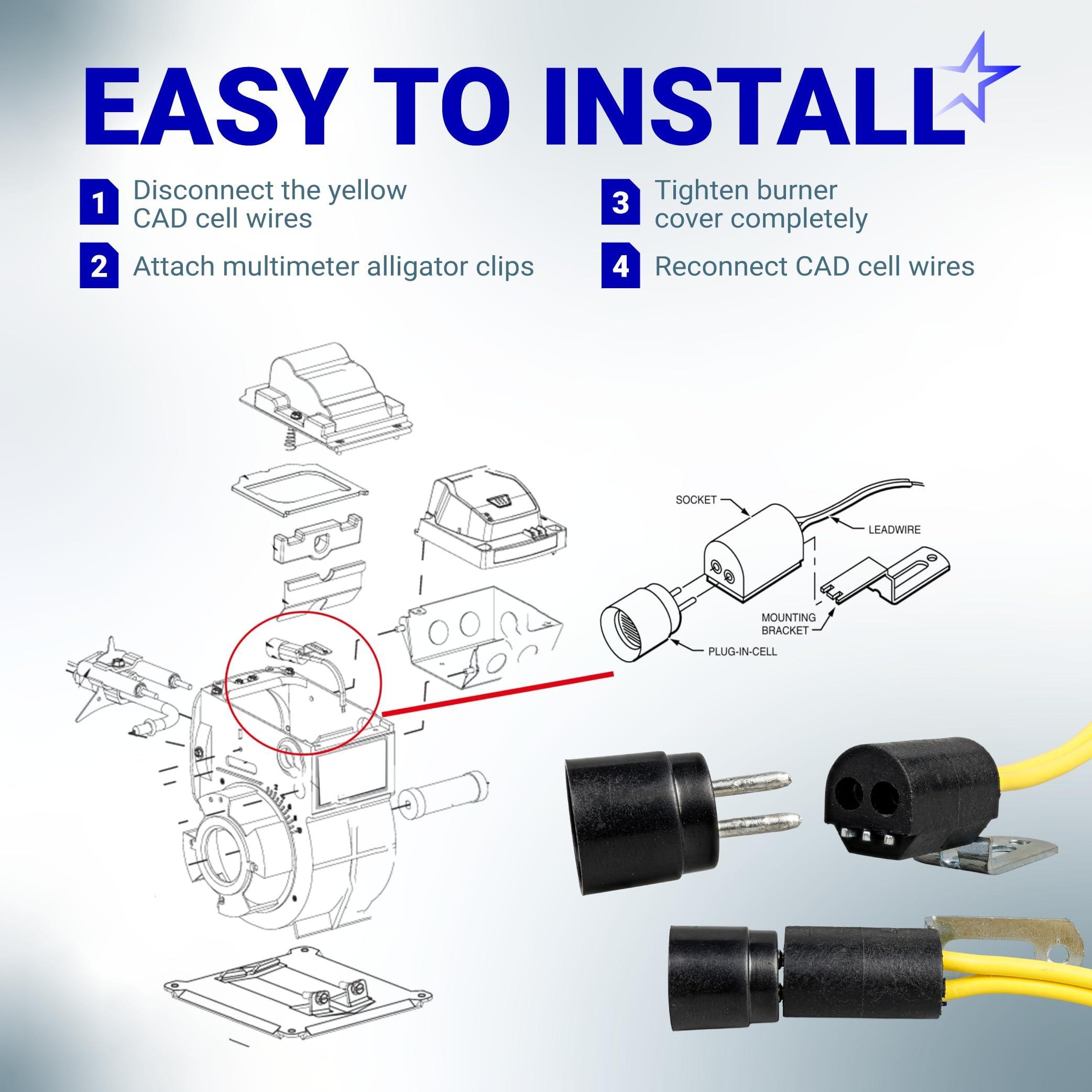

Installation Tips

1. Turn off power at the burner service switch and circuit breaker before handling wiring.
2. Pull the old cad cell eye from the holder slot.
3. Release the old lead wires from the primary control terminals.
4. Seat the replacement cad cell in the holder. Bend the bracket slightly only if a tighter fit is needed.
5. Connect the new leads to the primary control terminals.
6. Before firing the burner, use a multimeter to confirm a 0-ohm reading under light.
