AZ00229601
Part Number: 91-2258

[Lifetime Warranty] 91-2258 Replacement Lawn Mower V-Belt 35" x 3/8" - for Toro Recycler and Super Recycler 20001 20003 20005 20007 20012 - Replaces 265-273 14042 75-684

Difficulty Icon: Normal
Normal
More than 30 minutes

$10.53

$11.69

Save $1.16
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

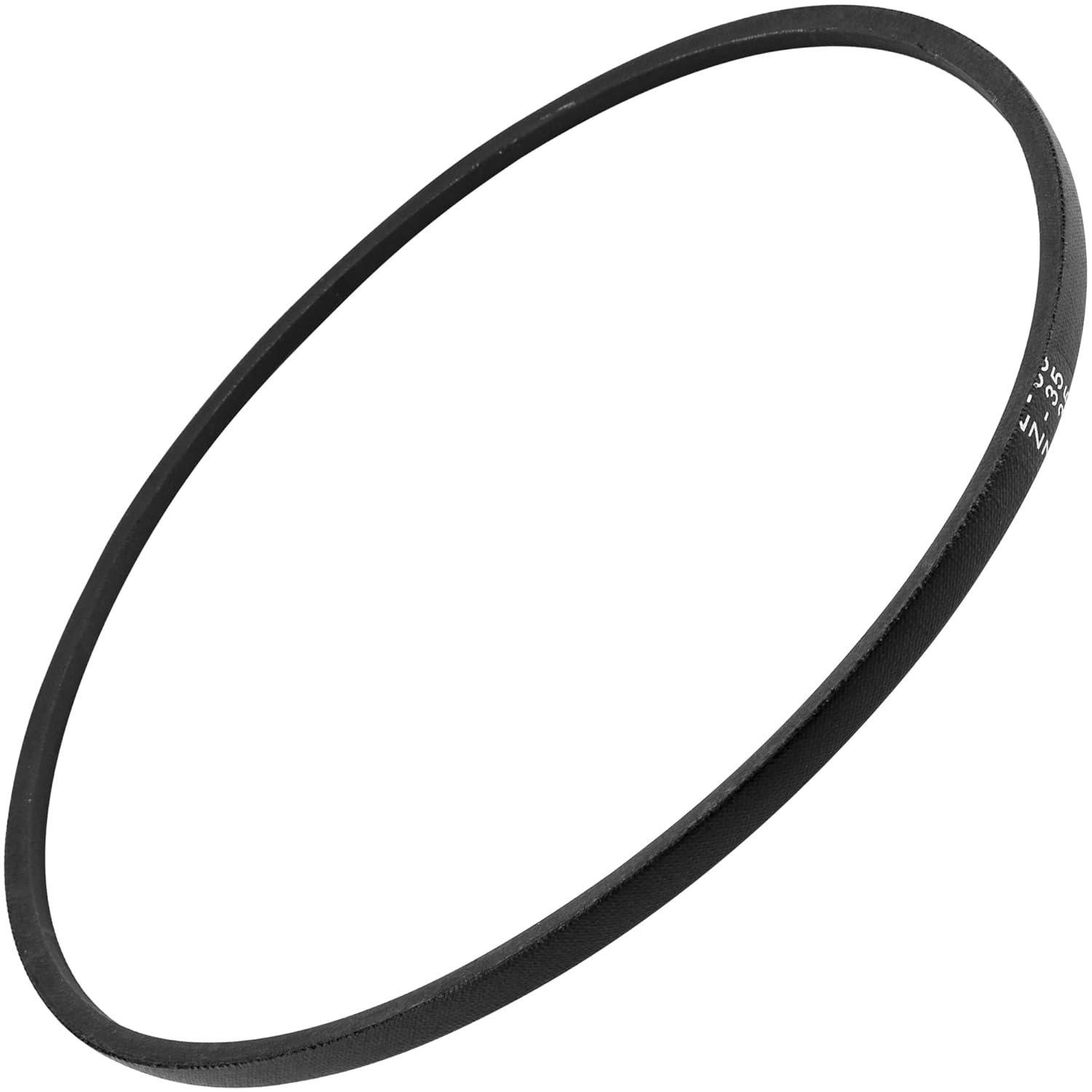

91-2258 Replacement Lawn Mower V-Belt (35" x 3/8")

Key Features

  • Belt Type: V-Belt
  • Application: Self-propel drive system

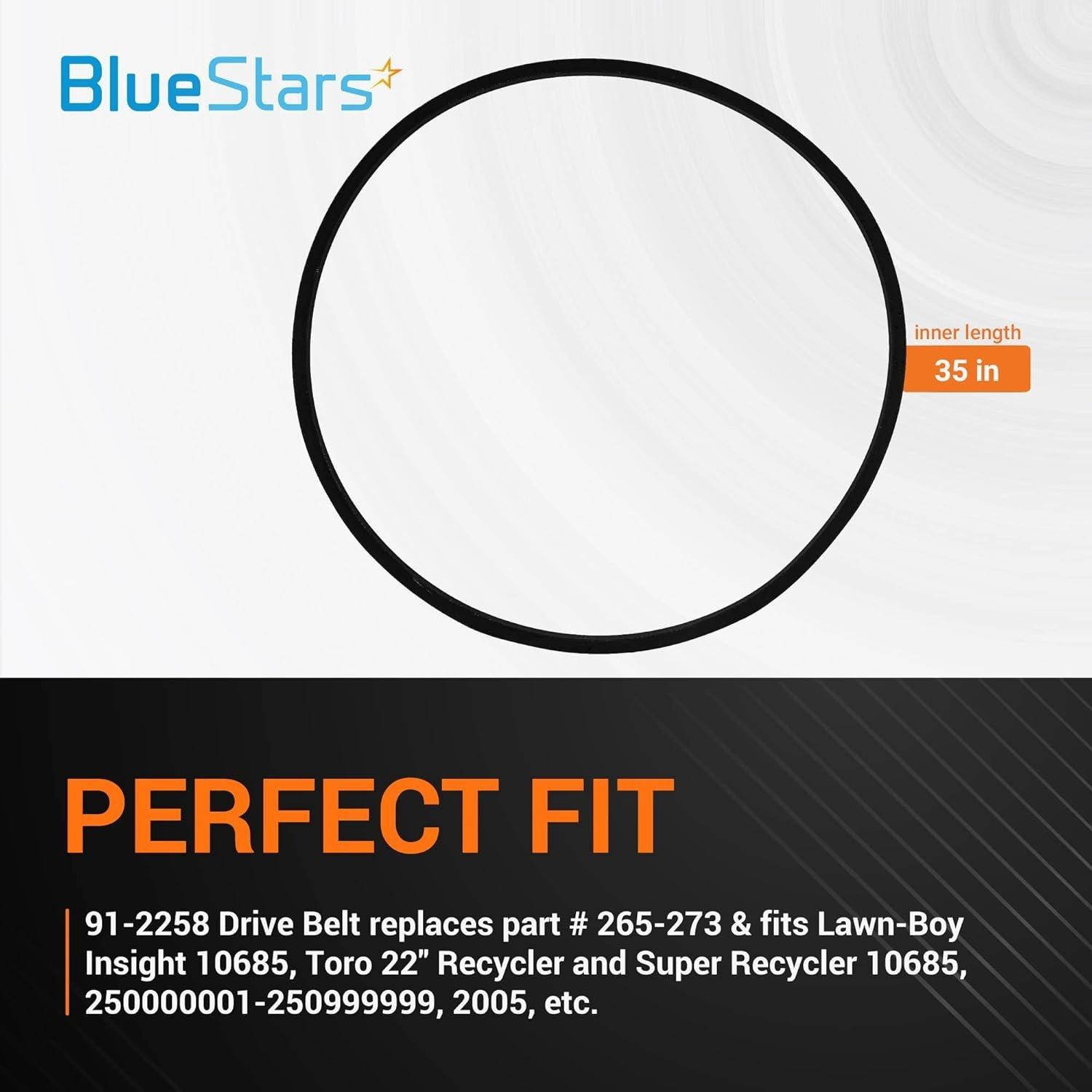

  • Length: 35 inches
  • Top Width: 3/8 inches

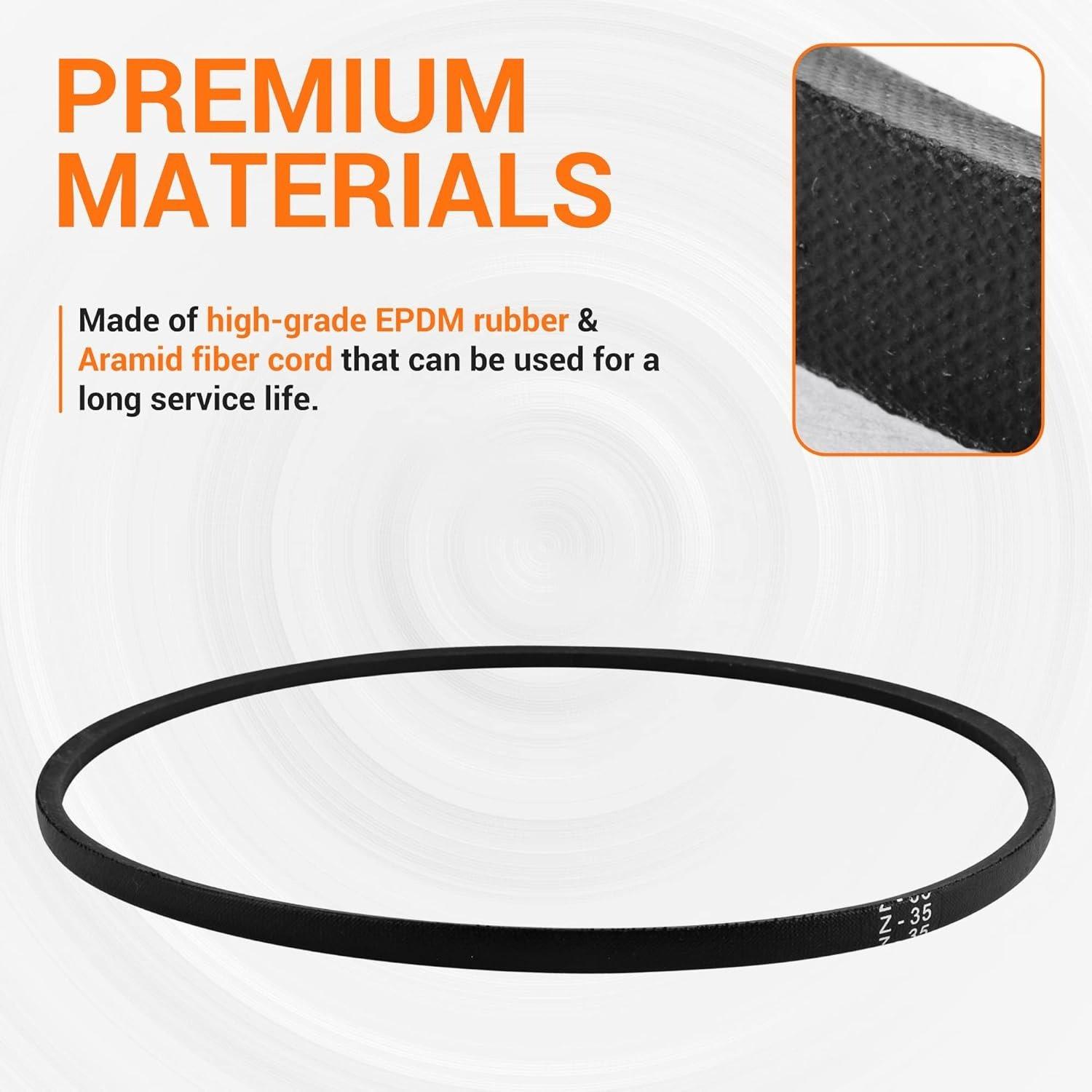

  • Material: Engineered for durability, flexibility, and resistance to heat and oil

Replaces / Cross-Reference Part Numbers

  • Toro: 91-2258
  • Stens: 265-273
  • Rotary: 14042
  • Oregon: 75-684

Compatibility & Fitment

  • Brand:Toro
  • Series:Fits select 22-inch Recycler and Super Recycler walk-behind mowers.
  • Specific Models Include:20001, 20003, 20005, 20007, 20012

When to Replace

  • Visible signs of wear such as cracks, fraying, or glazing.
  • Loss of drive power or inconsistent self-propel engagement.
  • Audible squealing or slipping sounds during operation.
  • Belt has stretched and no longer maintains proper tension.

Installation Tips

  • Always disconnect the spark plug before servicing the drive system.
  • Refer to your mower's owner's manual for detailed replacement instructions.
  • Document or photograph the old belt's routing path before removal.
  • Ensure the new belt is correctly seated in the grooves of all pulleys.
  • Check for proper tension after installation to prevent slippage and premature wear.

Compatibility & Fitment

    Material
    Aramid, Rubber

    Belt Style
    Flat Belt

    Compatible Devices
    Lawn Mower

    Material Type
    Aramid, Rubber

    Compatible Lawn Mower Models
    Cub Cadet 20045, MTD 20001, MTD 20037, MTD 20043, MTD 20089, Toro 20003, Toro 20005, Toro 20007, Toro 20012, Toro 20013, Toro 20014, Toro 20016, Toro 20017, Toro 20018, Toro 20019, Toro 20031, Toro 20036, Toro 20038, Toro 20039, Toro 20041, Toro 20042, Toro 20047, Toro 20048, Toro 20049, Toro 20064, Toro 20065, Toro 20066, Toro 20067, Toro 20068, Toro 20070, Toro 20071, Toro 20072, Toro 20073, Toro 20074, Toro 20075, Toro 20076, Toro 20076A, Toro 20079, Toro 20086, Toro 20087, Toro 20096, Toro 20098, Toro 20110, Toro 20111, Toro 20113, Troy-Bilt 20069

    Color
    As Pictured
