[Lifetime Warranty] B1401018 Furnace Igniter Hot Surface Ignitor - Compatible with Goodman Amana Janitrol Furnace

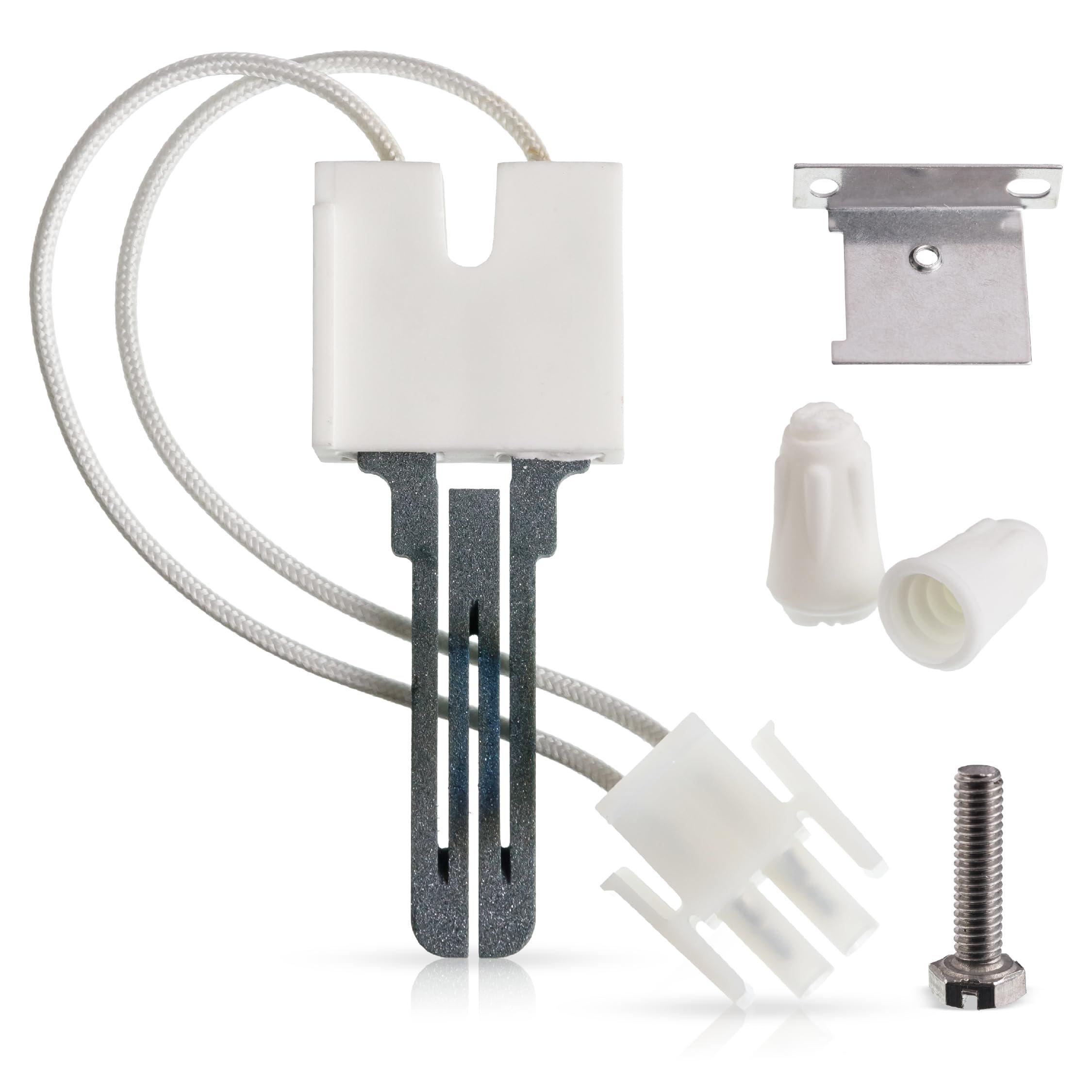

B1401018 Furnace Igniter Hot Surface Ignitor

Key Features

• Direct replacement hot surface igniter

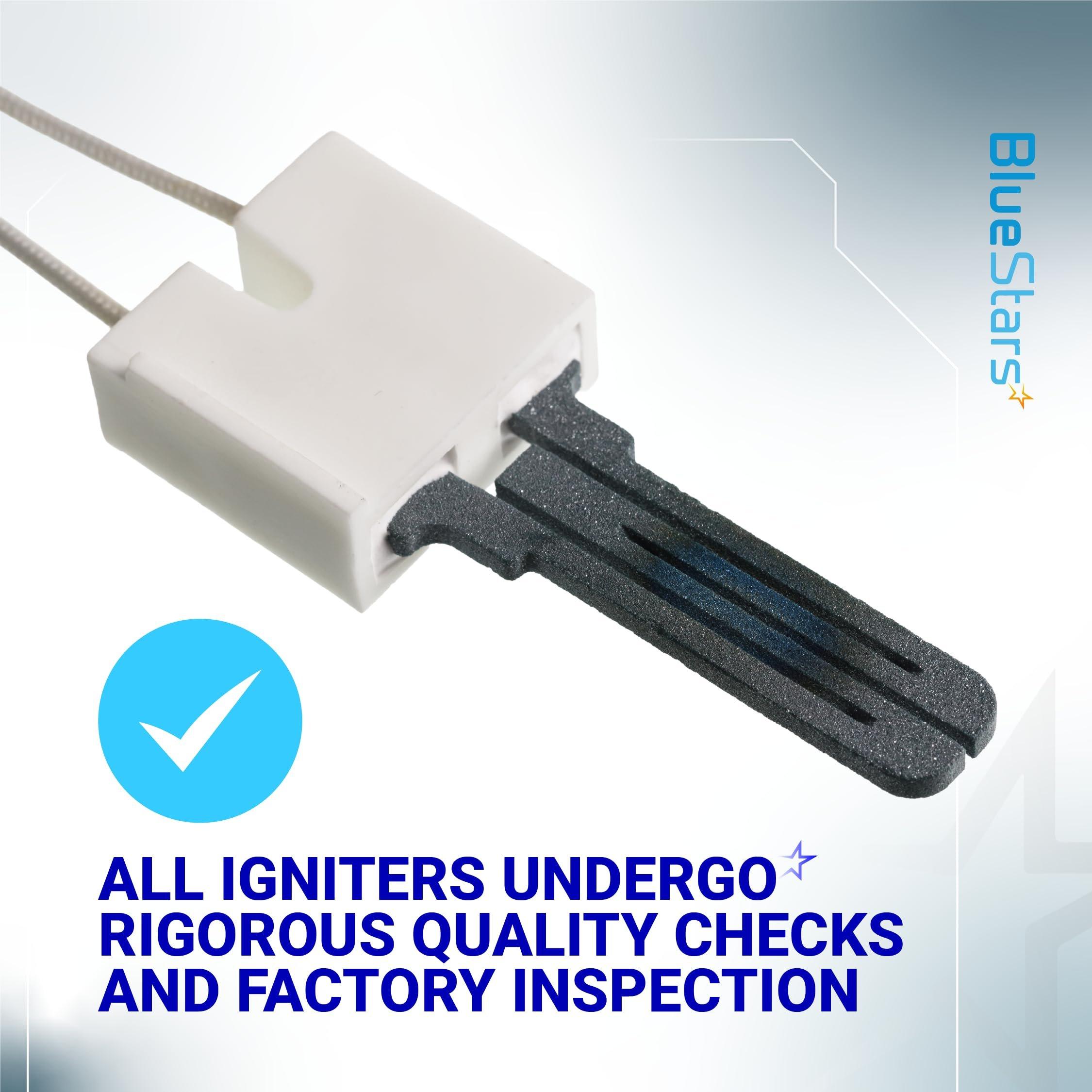

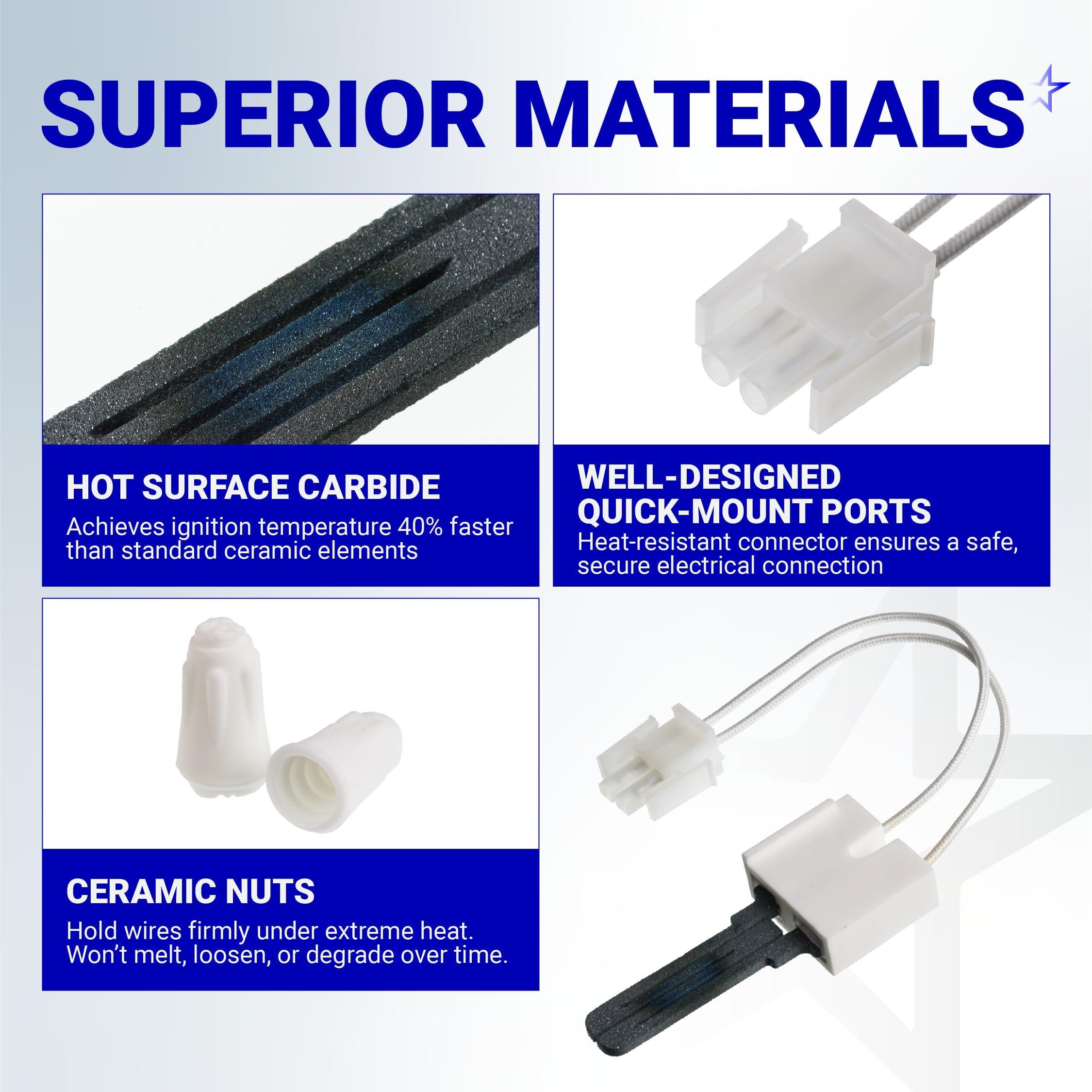

• Durable high-temperature element construction

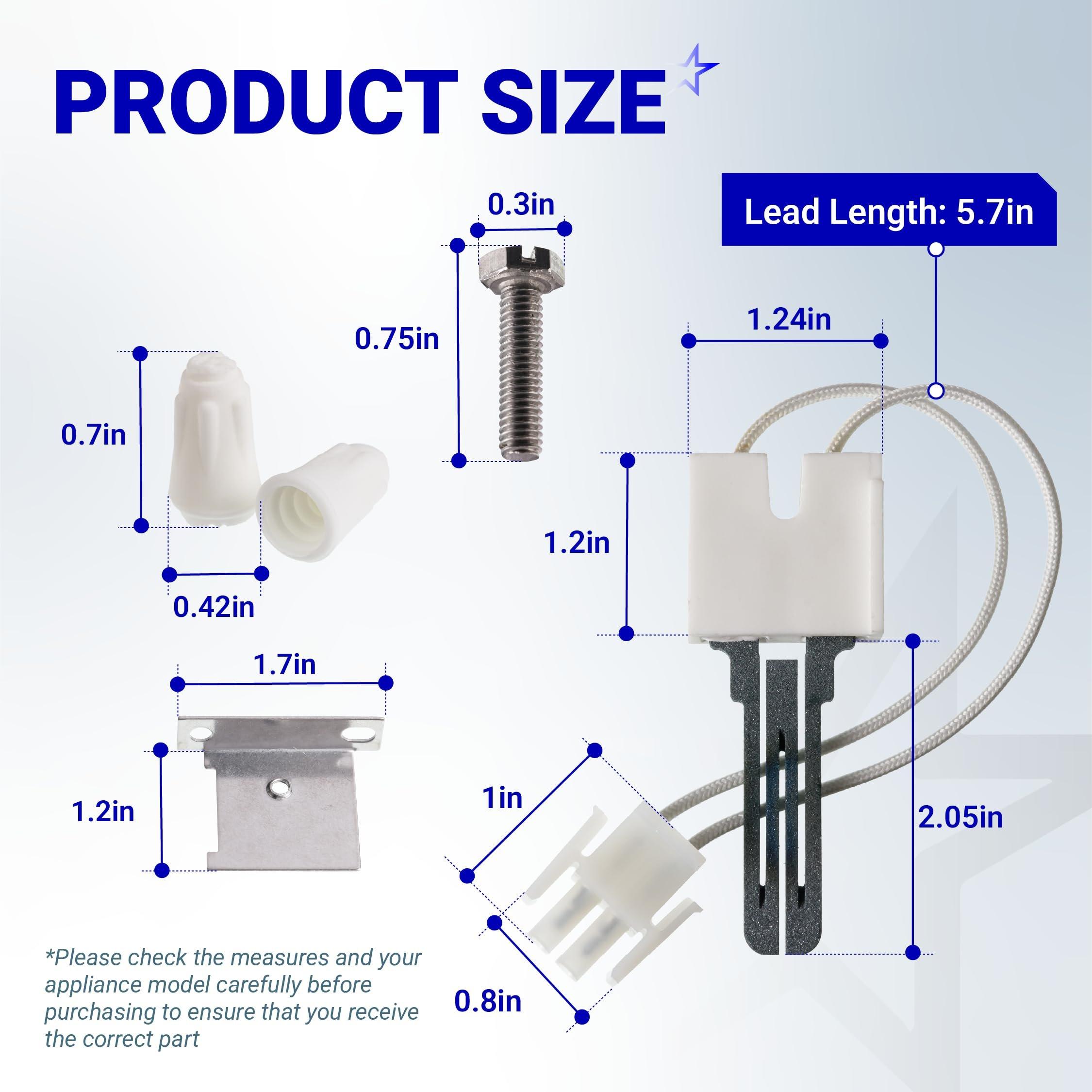

• Ceramic base measures 1-5/16 inches wide and 1/2 inch thick
• Includes 18-gauge copper lead wires with high-temperature fiberglass insulation
• Engineered to OEM material and operational specifications

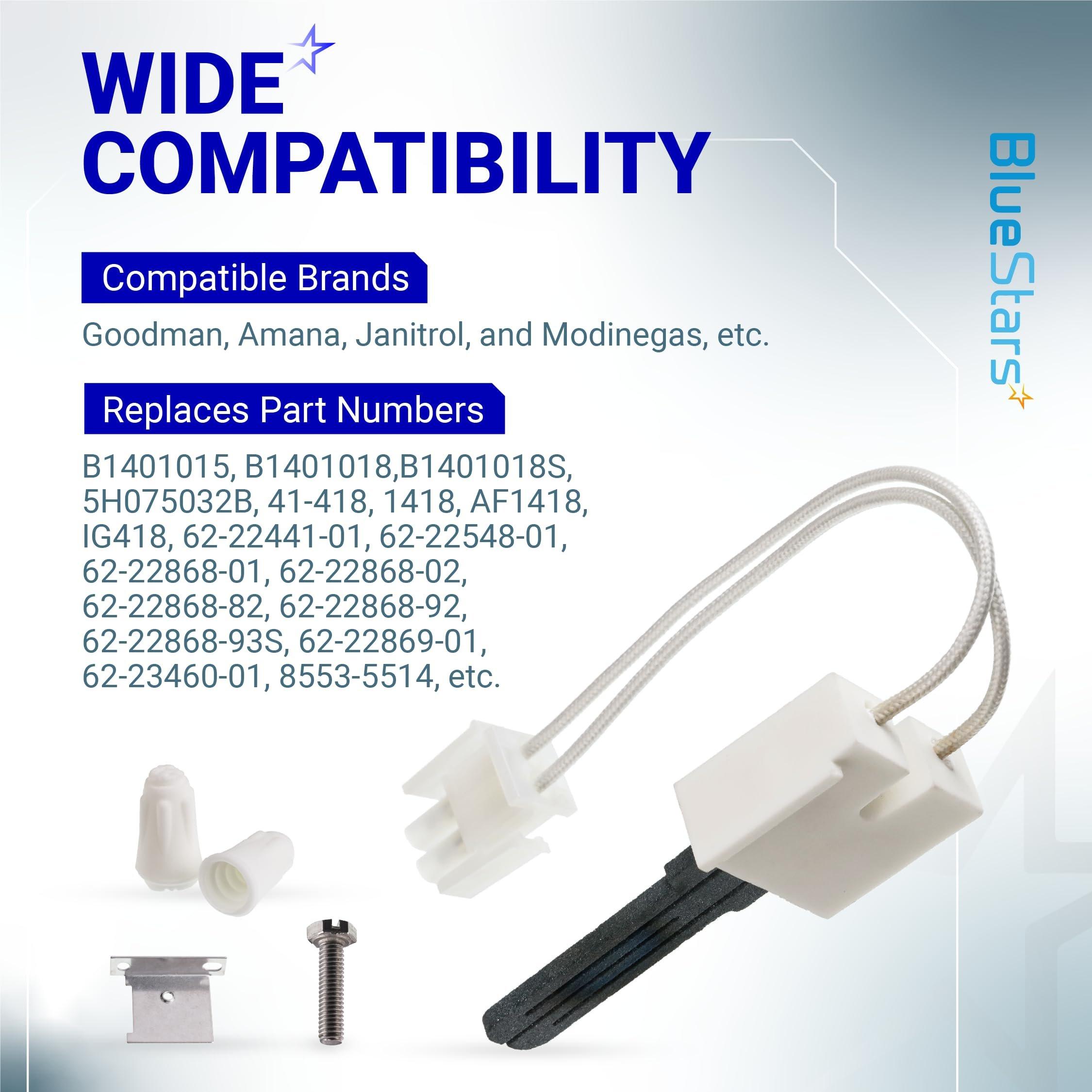

Replaces / Cross-Reference Part Numbers

• Goodman: B1401018S, B1401015
• Modine: 5H075032B
• Norton: 601, MB258229
• Rheem: 62-22868-93
• Robertshaw: 41-418
• Supco: IG418
• White Rodgers: 271NM, 767A-379
• York: 025-32625-000

Compatibility & Fitment

• Designed for use in specific Goodman, Janitrol, and Modine furnace models.
• Compatible with heating systems that require the part numbers listed in the cross-reference section.
• Verify compatibility by checking your equipment's service manual and the original part number.

When to Replace

• The furnace blower runs, but the burners do not light.
• The igniter fails to glow orange or red during the ignition sequence.
• Visible cracks, burns, or breaks in the igniter element or ceramic base.
• The furnace cycles on and off without successfully igniting.

Installation Tips

• Disconnect all electrical power to the furnace before beginning installation.
• Handle the new igniter by its ceramic base only. Do not touch the dark gray or black element, as skin oils can cause premature failure.
• Ensure the igniter is aligned correctly inside the burner assembly for proper flame sensing.
• Confirm all wire connections are secure before restoring power.
