[Lifetime Warranty] 8201786 Refrigerators Compressor Relay Start Device Kit - Replaces 2188830, 2212194, 2220475, AP3885081, 2216697 - Fits Whirlpool Kenmore KitchenAid Models

Difficulty Icon: Easy
Easy
More than 30 minutes

$29.07

$32.29

Save $3.22
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

8201786 Compressor Relay Start Device

Key Features

  • Provides the necessary electrical components to start the refrigerator compressor.
  • Aftermarket replacement kit for common refrigerator models.
  • Addresses compressor start-up failure.

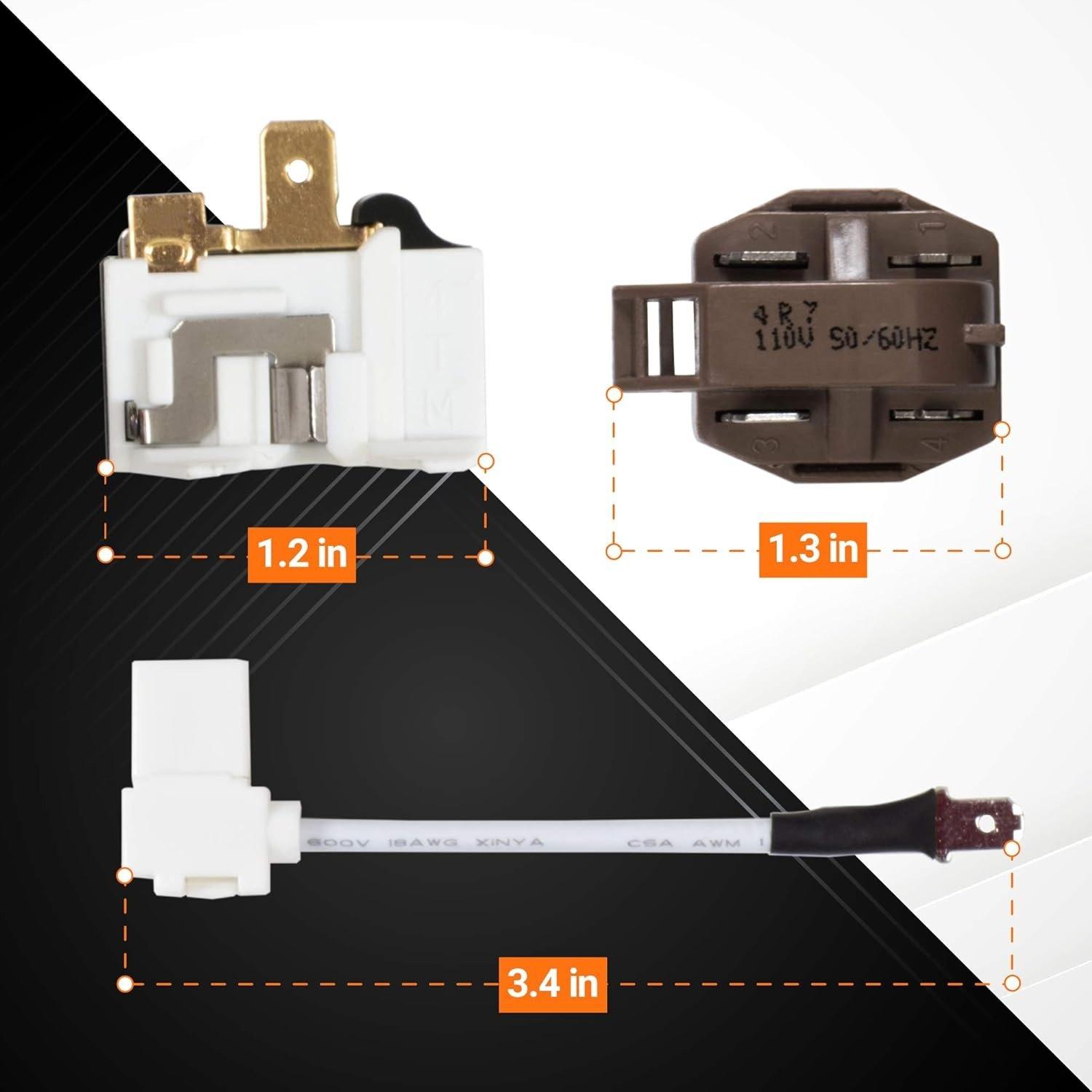

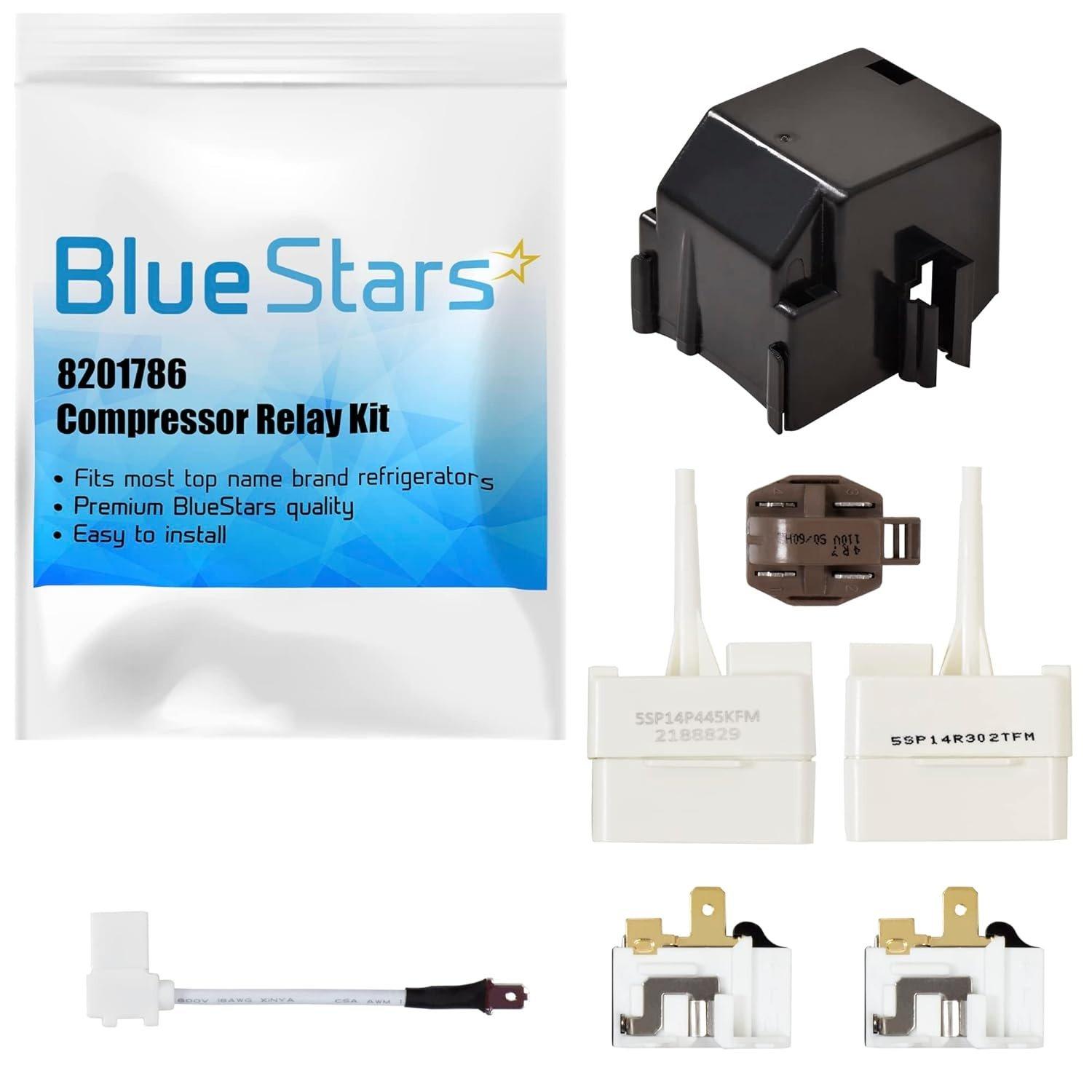

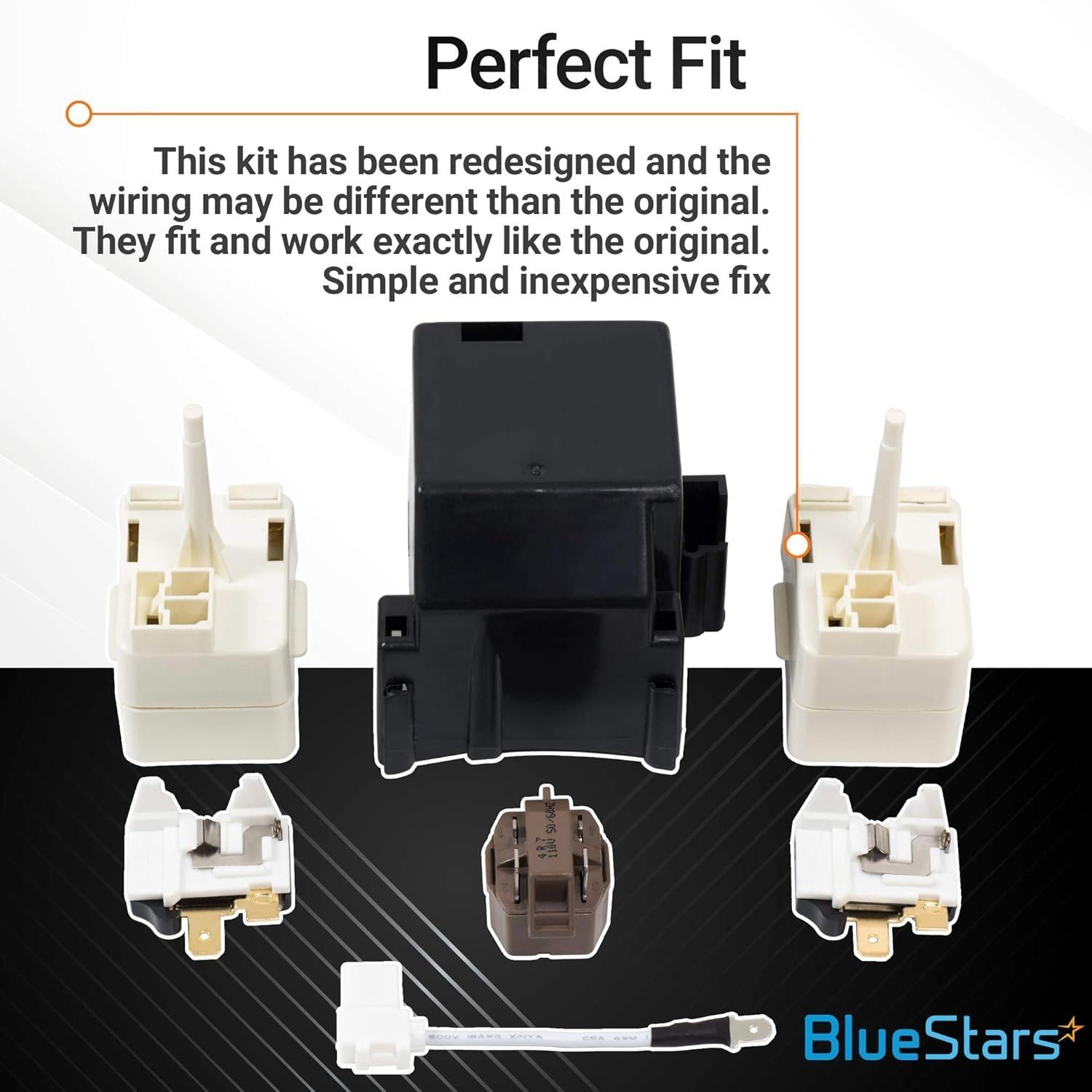

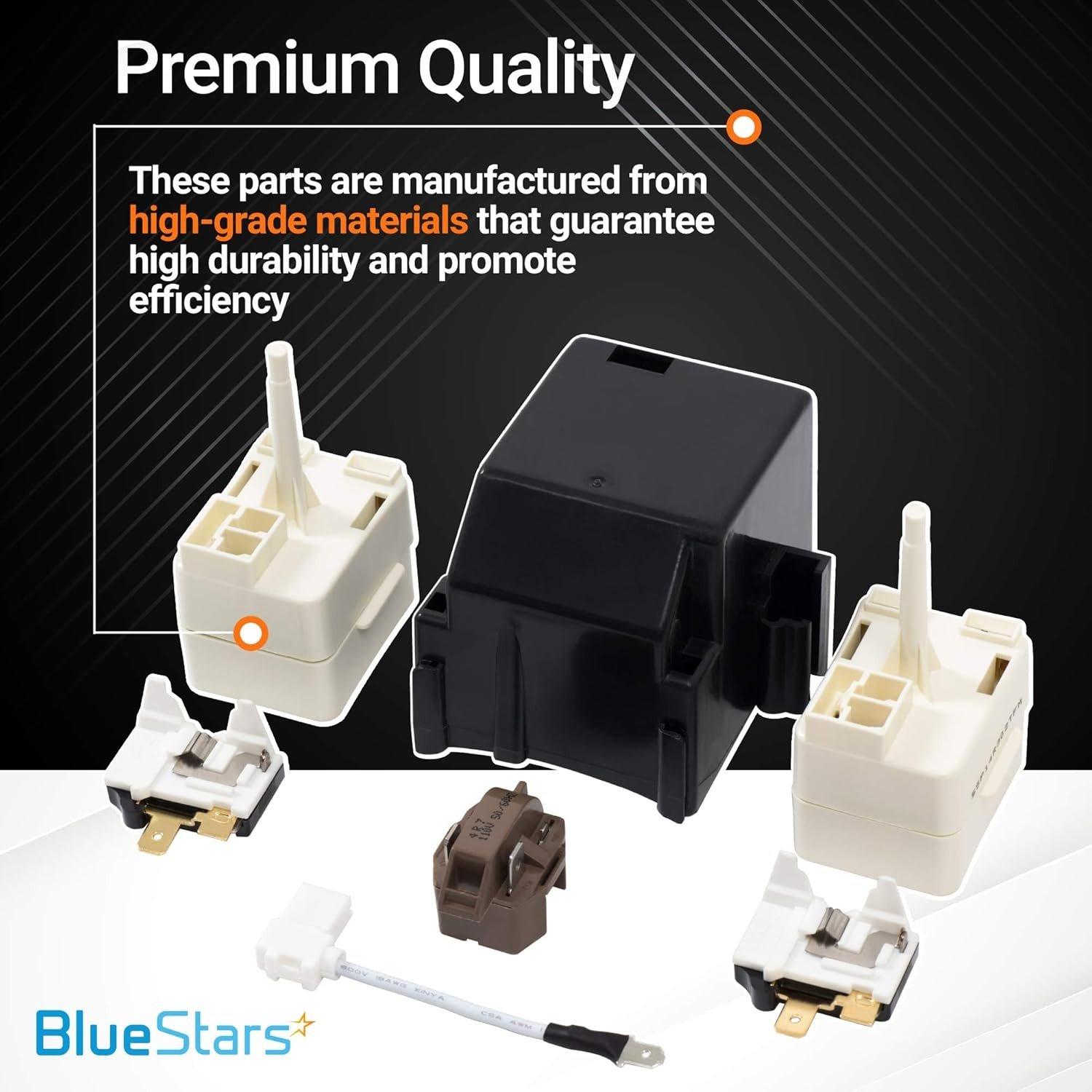

  • Kit includes a relay, two overloads, two start devices, a wire adapter, and a plastic cover.

Replaces / Cross-Reference Part Numbers

  • 8201786
  • 2188832
  • 2188833
  • 2188844
  • 2220475
  • OLK1786

Compatibility & Fitment

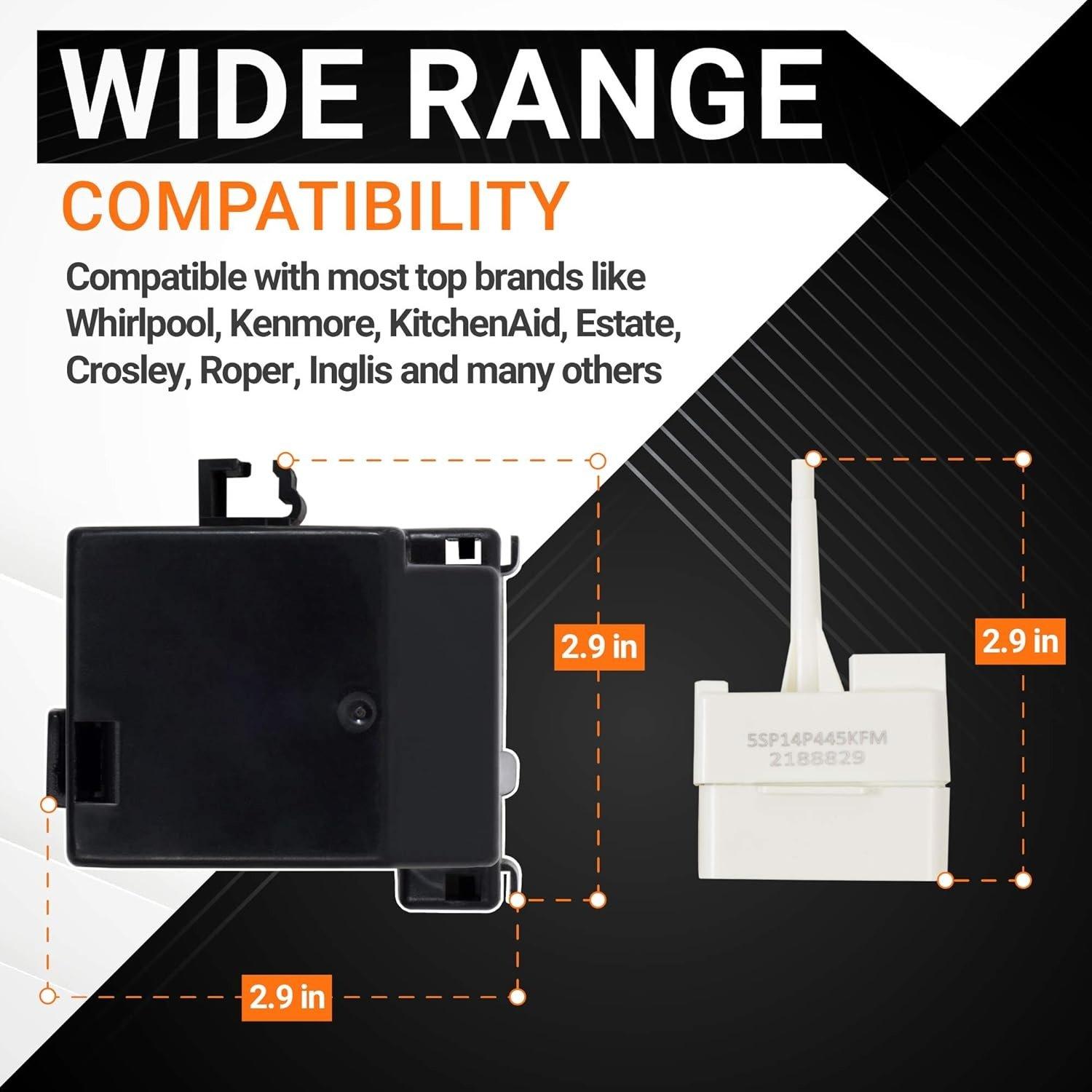

  • Fits specific refrigerator models from brands including Whirlpool, Kenmore, KitchenAid, Maytag, Roper, and Estate.
  • Designed for use with EGY80 and EGY90 type Embraco compressors.
  • Verify fitment by matching your original part number to the cross-reference list.

When to Replace

  • Refrigerator is not cooling but the interior light works.
  • Compressor fails to start or hums without running.
  • A distinct clicking sound is heard from the compressor area every few minutes.
  • The original relay rattles when shaken, indicating internal component failure.

Installation Tips

  • Disconnect the refrigerator from the power source before beginning installation.
  • The kit contains multiple start devices; consult the included instructions to select the correct one for your compressor.
  • Note the wiring configuration before removing the old part to ensure correct reassembly.
  • After installation, listen for the compressor to start and run to confirm a successful repair.
